DIAGNOSTIC PROCEDURE 1-(1)

(Door switch check)

SEL914U

SEL021V

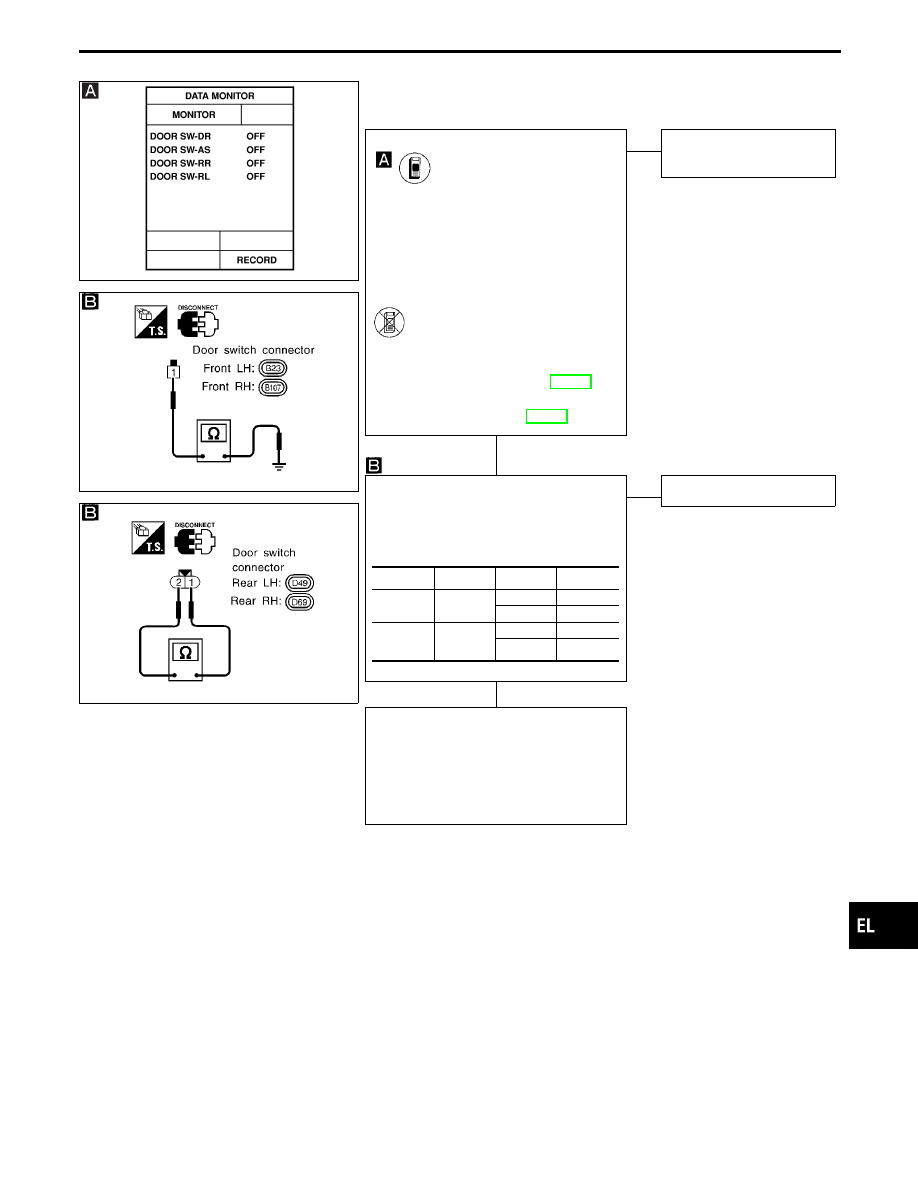

CHECK DOOR SWITCH INPUT SIGNAL.

CONSULT-II

See “DOOR SW” in DATA MONITOR
mode.
When door is open:

DOOR SW

ON

When door is closed:

DOOR SW

OFF

-------------------------------------------------------------------------------------------------------------------------------------- OR --------------------------------------------------------------------------------------------------------------------------------------

ON BOARD

Check all door switches in Switch monitor
(Mode II) mode.
(Refer to On board Diagnosis, EL-299.)

Refer to wiring diagram in EL-420.

NG

E

OK

Door switch is OK, go to
hood switch check.

CHECK DOOR SWITCH.
1. Disconnect door switch connector.
2. Check continuity between terminals or

switch body ground.

OK

E

NG

Replace door switch.

Check the following.

I

Door switch ground condition (Front
door) or door switch ground circuit (Rear
door)

I

Harness for open or short between door
switch and BCM

Terminals

Condition

Continuity

Front door

switch

q

1

-

Ground

Pressed

No

Released

Yes

Rear door

switch

q

1

-

q

2

Pressed

No

Released

Yes

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM — IVMS

Trouble Diagnoses (Cont’d)

H

H

EL-431

SEL535W

DIAGNOSTIC PROCEDURE 1-(2)
(Hood switch check)

SEL929U

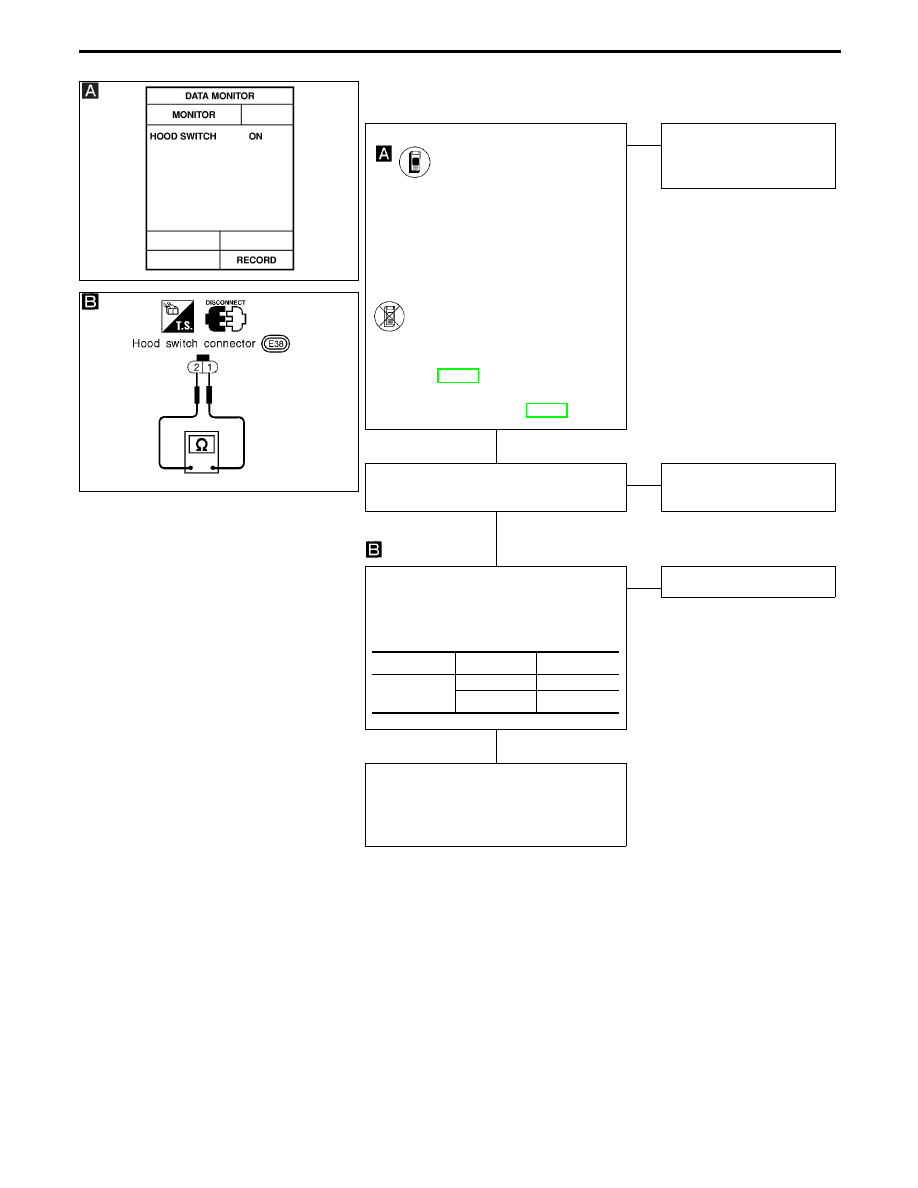

CHECK HOOD SWITCH INPUT SIGNAL.

CONSULT-II

See “HOOD SWITCH” in DATA MONITOR
mode.
When hood is open:

HOOD SWITCH

ON

When hood is closed:

HOOD SWITCH

OFF

-------------------------------------------------------------------------------------------------------------------------------------- OR --------------------------------------------------------------------------------------------------------------------------------------

ON BOARD

Check hood switch in Switch monitor
(Mode II) mode. (Refer to On board
Diagnosis, EL-299.)

Refer to wiring diagram in EL-421.

NG

E

OK

Hood switch is OK, go to
trunk room lamp switch
check.

Check hood switch and hood fitting condi-
tion.

OK

E

NG

Adjust installation of hood
switch or hood.

CHECK HOOD SWITCH.
1. Disconnect hood switch connector.
2. Check continuity between hood switch

terminals.

OK

E

NG

Replace hood switch.

Check the following.

I

Hood switch ground circuit

I

Harness for open or short between BCM
and hood switch

Terminals

Condition

Continuity

q

1

-

q

2

Pushed

No

Released

Yes

VEHICLE SECURITY (THEFT WARNING) SYSTEM — IVMS

Trouble Diagnoses (Cont’d)

H

H

H

EL-432

SEL536W

DIAGNOSTIC PROCEDURE 1-(3)
(Trunk room lamp switch check)

SEL930U

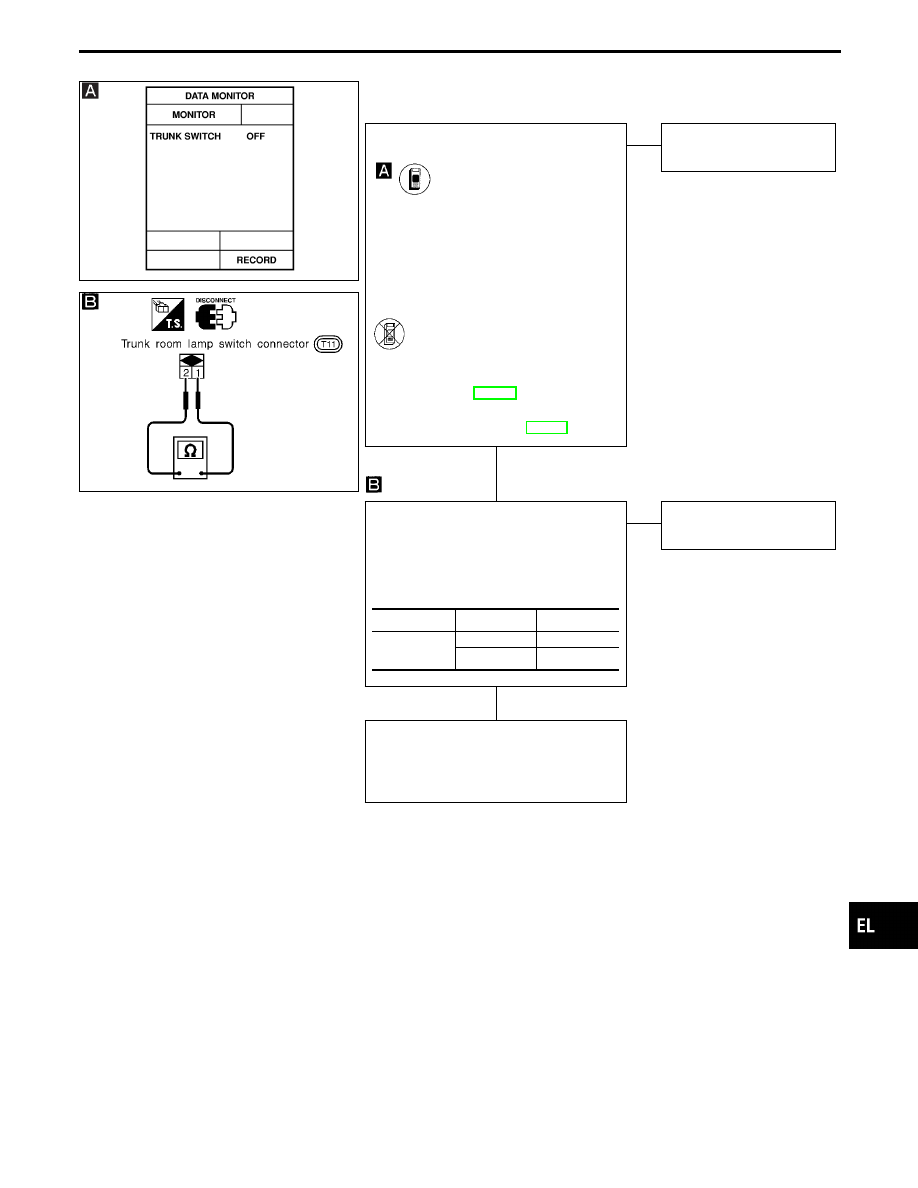

CHECK TRUNK ROOM LAMP SWITCH
INPUT SIGNAL.

CONSULT-II

See “TRUNK SWITCH” in DATA MONI-
TOR mode.
When trunk lid is open:

TRUNK SWITCH

ON

When trunk lid is closed:

TRUNK SWITCH

OFF

-------------------------------------------------------------------------------------------------------------------------------------- OR --------------------------------------------------------------------------------------------------------------------------------------

ON BOARD

Check trunk room lamp switch in Switch
monitor (Mode II) mode. (Refer to On
board Diagnosis, EL-299.)

Refer to wiring diagram in EL-421.

NG

E

OK

Trunk room lamp switch is
OK.

CHECK TRUNK ROOM LAMP SWITCH.
1. Disconnect trunk room lamp switch

connector.

2. Check continuity between trunk room

lamp switch terminals.

OK

E

NG

Replace trunk room lamp
switch.

Check the following.

I

Trunk room lamp switch ground circuit

I

Harness for open or short between BCM
and trunk room lamp switch

Terminals

Condition

Continuity

q

1

-

q

2

Closed

No

Open

Yes

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM — IVMS

Trouble Diagnoses (Cont’d)

H

H

EL-433

SEL580W

DIAGNOSTIC PROCEDURE 2
(Security indicator lamp check)

SEL931U

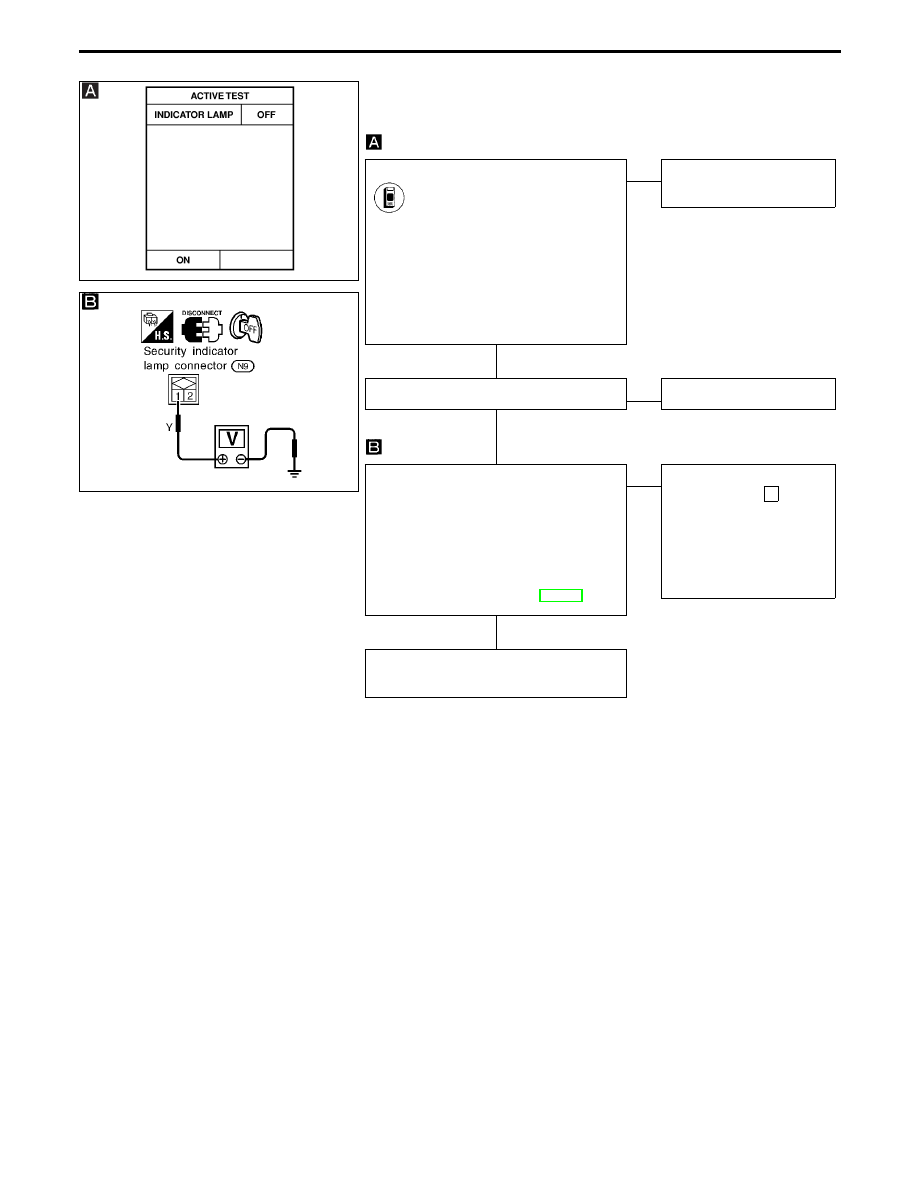

INDICATOR LAMP ACTIVE TEST

CONSULT-II

See “INDICATOR LAMP” in ACTIVE TEST
mode.
Perform operation shown on display.
Indicator lamp should illuminate.
Note: If CONSULT-II is not available, skip

this procedure and go to the next
procedure.

NG

E

OK

Security indicator lamp is
OK.

CHECK INDICATOR LAMP.

OK

E

NG

Replace indicator lamp.

CHECK POWER SUPPLY CIRCUIT FOR
INDICATOR LAMP.
1. Disconnect security lamp connector.
2. Check voltage between indicator lamp

terminal

q

1

and ground.

Battery voltage should exist.

Refer to wiring diagram in EL-420.

OK

E

NG

Check the following.

I

10A fuse [No.

28

,

located in fuse block
(J/B)]

I

Harness for open or
short between security
indicator lamp and fuse

Check harness for open or short between
security indicator lamp and BCM.
