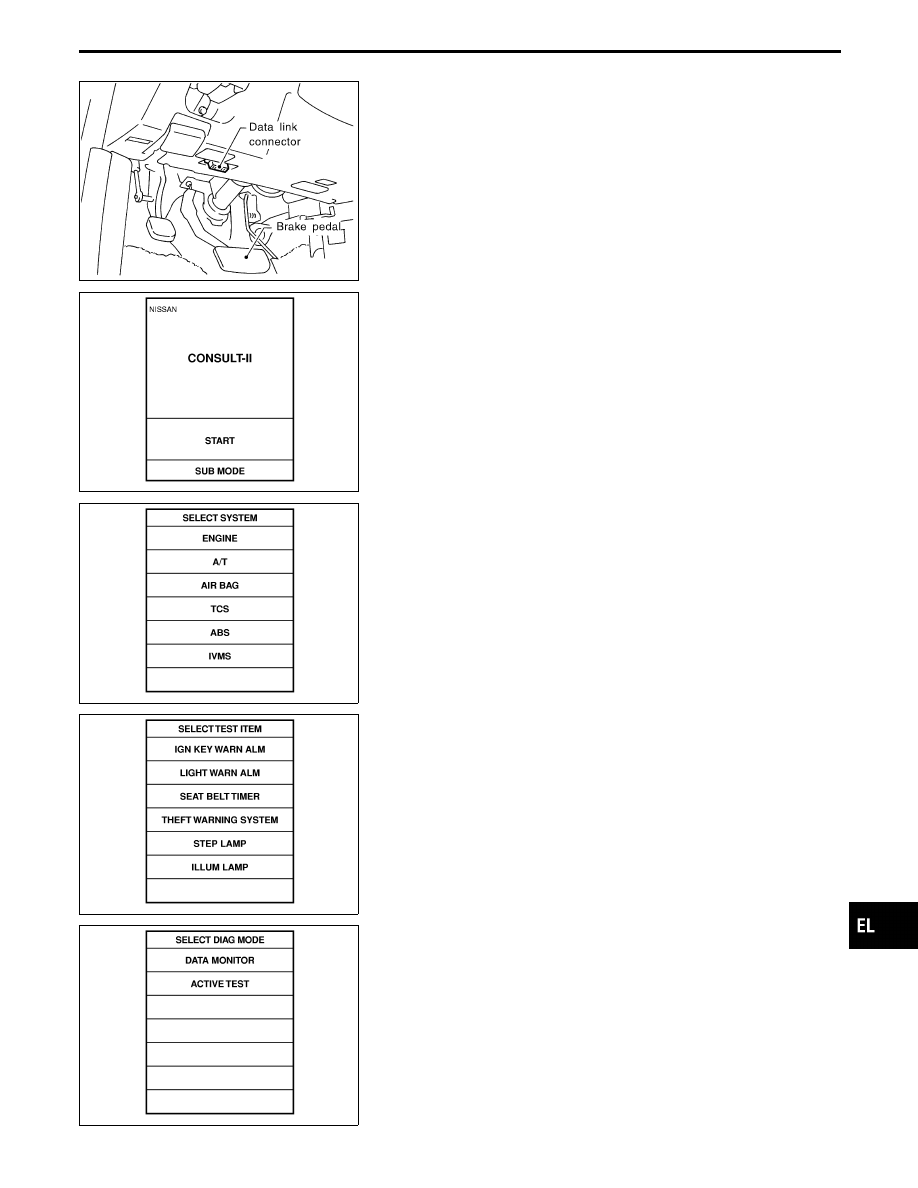

SEF046TA

CONSULT-II

CONSULT-II INSPECTION PROCEDURE

1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-II” to the data link connector.

PBR455D

3.

Turn ignition switch “ON”.

4.

Touch “START”.

SEL471W

5.

Touch “IVMS”.

SEL487W

6.

Touch “THEFT WARNING SYSTEM”.

SEL480W

I

DATA MONITOR and ACTIVE TEST are available for the
vehicle security system.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM — IVMS

EL-427

Trouble Diagnoses

WORK FLOW

CHECK IN

LISTEN TO CUSTOMER COMPLAINT

IVMS COMMUNICATION DIAGNOSIS (EL-291 or EL-297)
Do self-diagnostic results exist?

Yes

No

SYMPTOM
BASIS

E

Repair/Replace according to
the self-diagnostic results.
(EL-293)

Perform diagnostic procedure
according to the symptom chart
on the next page.

F

NG

IVMS COMMUNICATION
DIAGNOSIS (EL-291 or
EL-297)

OK

H

REPAIR/REPLACE

FINAL CHECK
Confirm that the malfunction is completely fixed by operating the
system.

OK

NG

CHECK OUT

NOTICE:

I

When LCU connectors are disconnected for more than 1 minute such as during trouble diagnoses,
the “disconnected” data will be memorized by the BCM. (While BCM memorizes the “disconnected”
data, IVMS communication diagnosis of CONSULT-II will display “PAST NO RESPONSE”.)
Therefore, after reconnecting the LCU connectors, erase the memory.

I

To erase the memory, perform the procedure below.
Erase the memory with CONSULT-II (Refer to EL-291.)
or turn the ignition switch to “OFF” position
and remove 7.5A fuse [No.

14

located in the fuse block (J/B)].

VEHICLE SECURITY (THEFT WARNING) SYSTEM — IVMS

H

H

H

H

H

H

H

H

EL-428

PRECAUTIONS FOR INFINITI COMMUNICATOR (IVCS)

The purpose of INFINITI Communicator is to increase security for the vehicle owner by providing a conve-
nient way to contact the most appropriate emergency assistance provider during an emergency.
Improper operation of the system may result in a police response.
The theft warning system also activates INFINITI Communicator. For details, refer to INFINITI Communicator
(IVCS), EL-506.

PRELIMINARY CHECK

The system operation is canceled by turning ignition switch to “ACC” at any step between START and ARMED
in the following flow chart.
NOTE: Before performing PRELIMINARY CHECK, disconnect IVCS unit connectors not to operate

INFINITI communicator.

System phase

START

Note: Before starting operation check, open front windows.

E

DISARMED

Turn ignition switch “OFF” and pull out key from key cylinder.
Close all doors, hood and trunk lid.

PRE-ARMED

Lock doors using key or multi-remote controller.
“SECURITY” indicator will illuminate for 30 seconds.

OK

E

NG

SYMPTOM 1

ARMED

Security indicator will start to blink.

ALARM

Unlock any door without key or multi-remote controller, or open
hood or trunk without key.

............................................................................................................

The vehicle security system will be in alarm phase.

............................................................................................................

Alarm (horn and headlamp) will operate.

OK

E

NG

SYMPTOM 2

E

NG

SYMPTOM 3

DISARMED

Unlock any door or open trunk lid using key or multi-remote con-
troller.
Alarm (horn and headlamp) will stop.

OK

E

NG

SYMPTOM 4

System is OK.

After performing preliminary check, go to symptom chart on next page.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

VEHICLE SECURITY (THEFT WARNING) SYSTEM — IVMS

Trouble Diagnoses (Cont’d)

H

H

H

H

H

H

H

H

H

H

EL-429

Before

starting

trouble

diagnoses

below

,

perform

preliminary

check,

EL-429.

Symptom

numbers

in
the

symptom

chart

correspond

with

those

of
preliminary

check.

SYMPT

OM

CHART

PROCEDURE

Diagnostic

procedure

REFERENCE

P

AGE

EL-429

EL-308

EL-431

EL-434

EL-435

EL-436

EL-438

EL-439

EL-440

EL-365

EL-292

SYMPT

OM

Preliminary check

Power supply circuit check for BCM

Diagnostic Procedure 1
(Door, hood and trunk room
lamp switch check)

Diagnostic Procedure 2
(Security indicator lamp check)

Diagnostic Procedure 3
(Door unlock sensor check)

Diagnostic Procedure 4
(Door key cylinder switch check)

Diagnostic Procedure 5
(Trunk lid key cylinder switch check)

Diagnostic Procedure 6
(Vehicle security horn alarm check)

Diagnostic Procedure 7
(Headlamp alarm check)

Check “MULTI-REMOTE
CONTROL” system.

WAKE-UP DIAGNOSES

1

Vehicle security

system cannot

be set by ....

All

items

X

X

X

X

Door

outside

key

X

X

X

(LCU01,

LCU02)

Multi-remote

con-

trol

X

X

Security

indicator

does

not

turn

“ON”.

XX

X

2

*1 Vehicle security

system does not

alarm when ...

Any

door

is

opened.

XX

Any

door

is

unlocked

without

using

key

or
multi-

remote

controller

XX

X

(LCU01,

02,

03,

04)

3

Vehicle security

alarm does not

activate.

Horn

alarm

X

X

Headlamp

alarm

X

X

4

Vehicle security

system cannot be

canceled by ....

Door

outside

key

X

X

X

(LCU01,

LCU02)

T

runk

lid
key

X

X

Multi-remote

con-

trol

X

X

X
:

Applicable

*1:

Make

sure

the

system

is
in
the

armed

phase.

VEHICLE

SECURITY

(THEFT

W

ARNING)

SYSTEM


IVMS

T

rouble

Diagnoses

(Cont’d)

EL-430
