NOTE

I

If you need to activate more than two additional new remote controllers, repeat the procedure
“Additional ID code entry” for each new remote controller.

I

Entry of maximum four ID codes is allowed. When more than four ID codes are entered, the old-
est ID code will be erased.

I

Even if the ID code that is already in the memory is input, the same ID code can be entered. The
code is counted as an additional code.

PROCEDURE 2 (With CONSULT-II)

NOTE:
If a remote controller is lost, the ID code of the lost remote controller must be erased to prevent unau-
thorized use. When the ID code of a lost remote controller is not known, all controller ID codes should
be erased. After all ID codes are erased, the ID codes of all remaining and/or new remote controllers
must be re-registered.

SEF046TA

1.

Turn ignition switch “OFF”.

2.

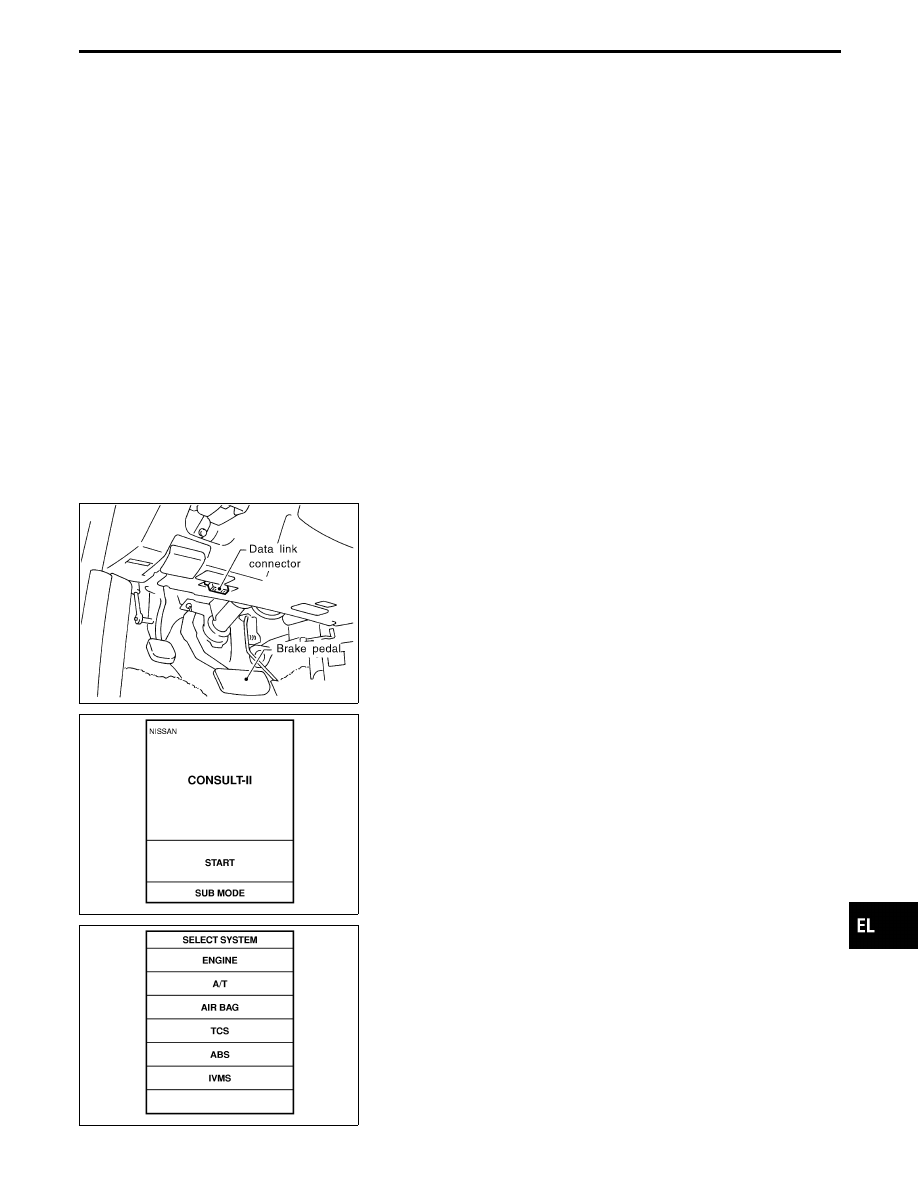

Connect “CONSULT-II” to Data link connector.

PBR455D

3.

Turn ignition switch “ON”.

4.

Touch “START”.

SEL471W

5.

Touch “IVMS”.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

MULTI-REMOTE CONTROL SYSTEM — IVMS

ID Code Entry Procedure (Cont’d)

EL-375

SEL485W

6.

Touch “MULTI-REMOTE CONT SYS”.

SEL486W

7.

Touch “WORK SUPPORT”.

SEL946W

8.

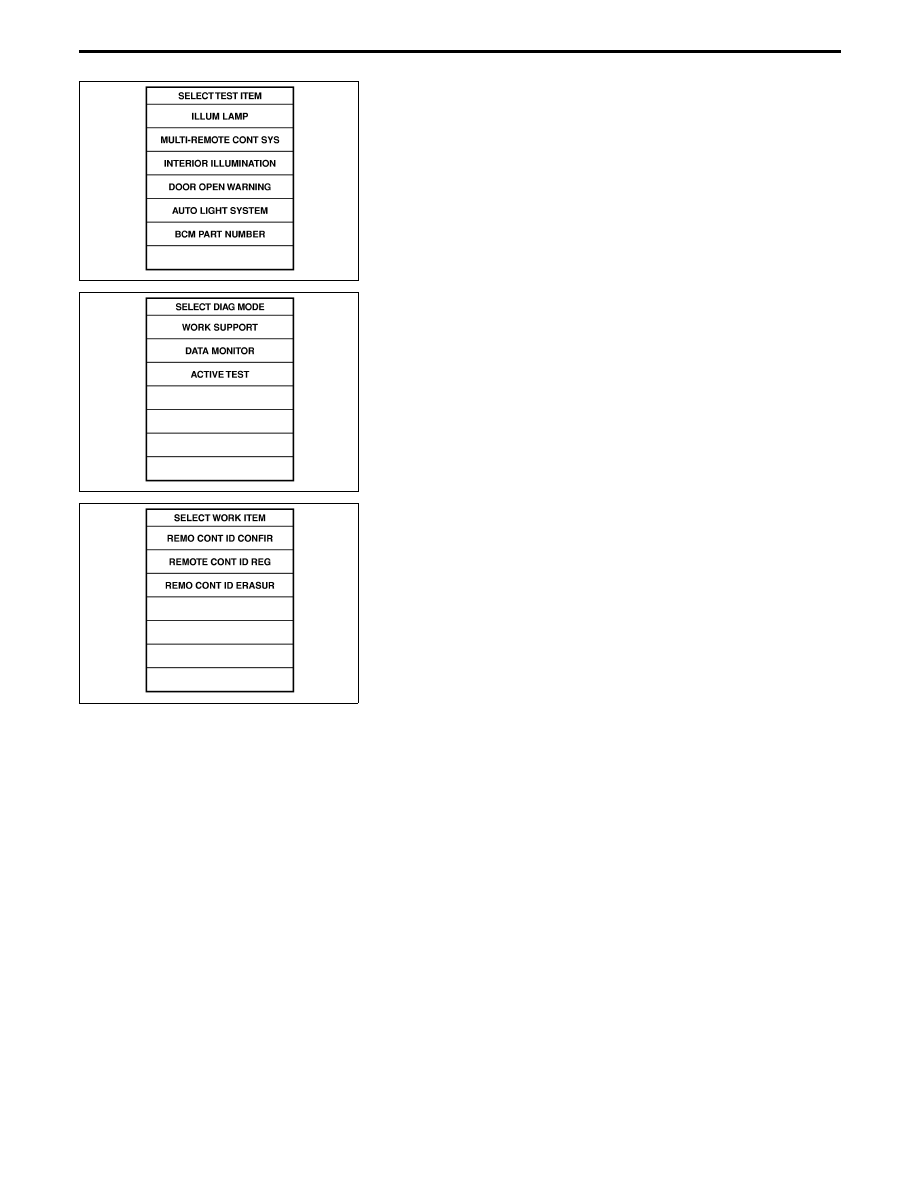

The items are shown on the figure at left can be set up.

I

“REMO CONT ID CONFIR”

I

Use this mode to confirm if a remote controller ID code is reg-
istered or not.

I

“REMOTE CONT ID REG”
Use this mode to register a remote controller ID code.

NOTE:
Register the ID code when remote controller or smart entrance
control unit is replaced, or when additional remote controller
is required.

I

“REMO CONT ID ERASUR”
Use this mode to erase a remote controller ID code.

MULTI-REMOTE CONTROL SYSTEM — IVMS

ID Code Entry Procedure (Cont’d)

EL-376

System Description

OUTLINE

Interior illumination system turns interior illumination lamps on and off while operating the timer. The system
operates by means of key switch, lighting switch, each door switch, driver side door unlock sensor, and
switches of each lamp. This system is controlled by BCM.

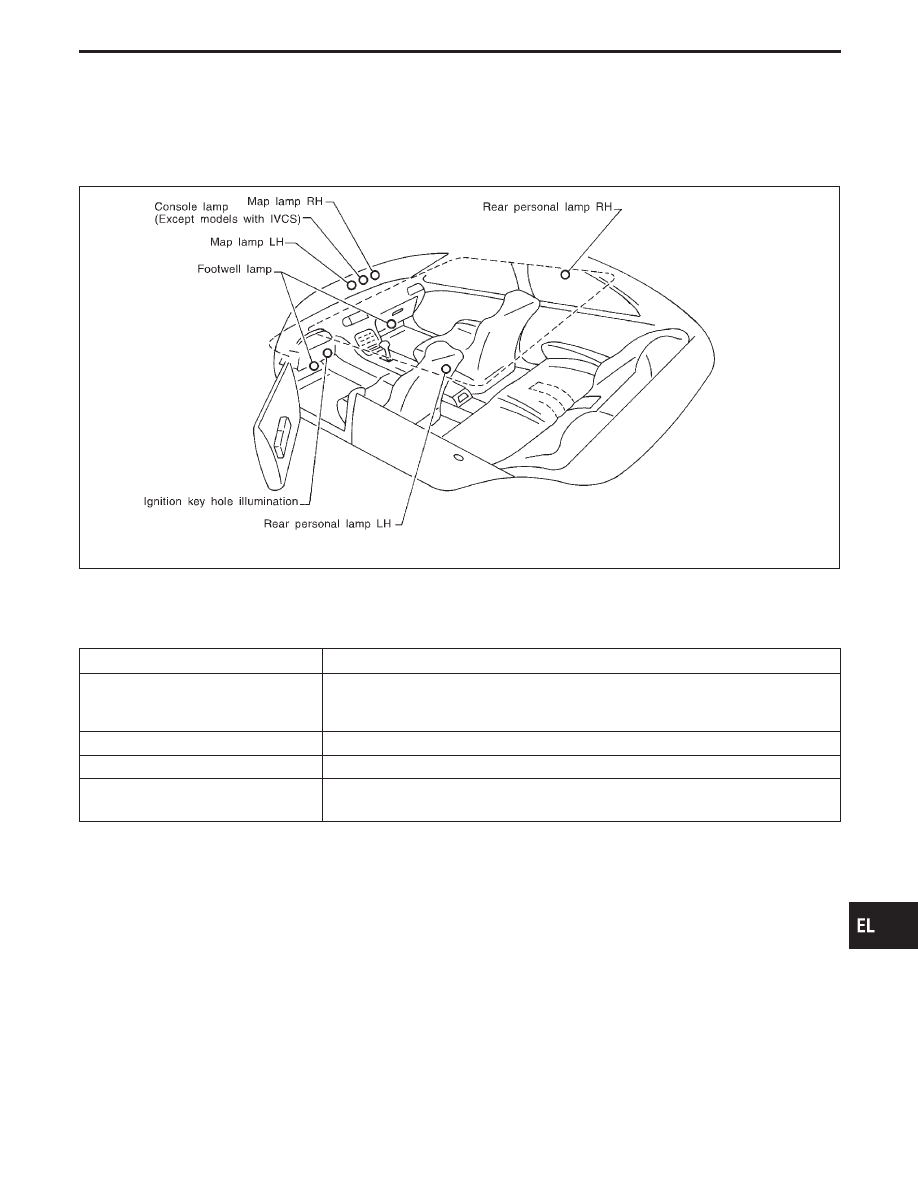

SEL073VA

TIMER OPERATION

The timer controls the lighting time of the interior illumination lamps via operation of the driver side door switch,
key switch, driver side unlock sensor, and ignition key switch.

Switch

Operation

Driver side door unlock sensor

With driver side door closed and key removed from ignition key cylinder, the timer oper-
ates when driver side door unlock signal is received. The timer cancels itself when driver
side door lock signal is received.

Driver side door switch

The timer operates when driver side door is opened and then closed.

Ignition key switch

The timer cancels itself when ignition key is in ACC or ON position while it is operating.

Key switch (Insert)

With driver side door closed, when key is removed from ignition key cylinder, the timer
operates.

I

For details of turning on/off function of each of the lamps, see the following charts.

BATTERY SAVER

When the main illumination switch and personal lamp switch are in AUTO position with ignition key in OFF or
ACC position, if interior illumination lamps are turned on by door switch open signal and remain lit for more
than 30 minutes, the lamps turn off automatically.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

INTERIOR ILLUMINATION CONTROL — IVMS

EL-377

TURN ON/OFF MODE OF DRIVER SIDE DOOR OPEN/CLOSE

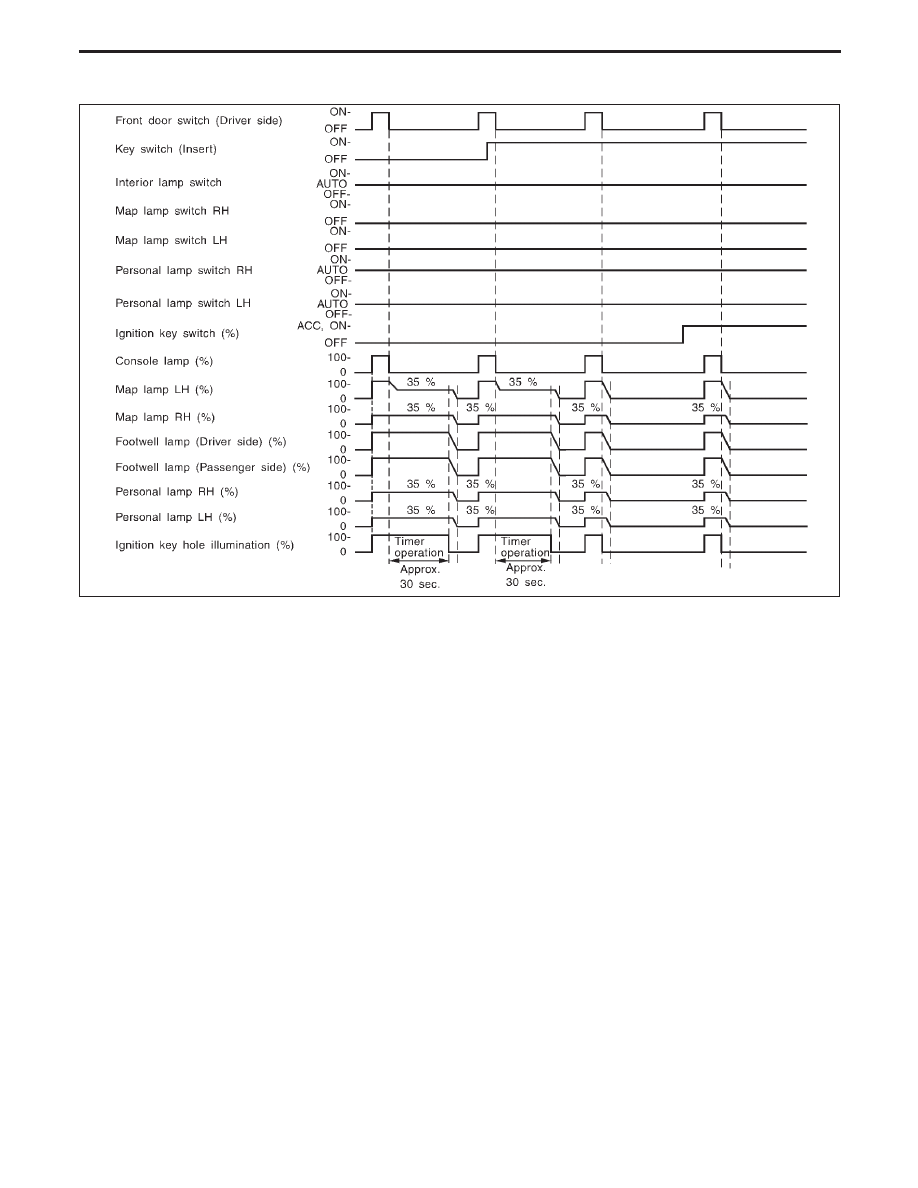

SEL638UB

Note: Illumination lamp lighting is available in both 100% and 35% luminosity modes.

INTERIOR ILLUMINATION CONTROL — IVMS

System Description (Cont’d)

EL-378
