Infiniti Q45 (FY33). Manual - part 338





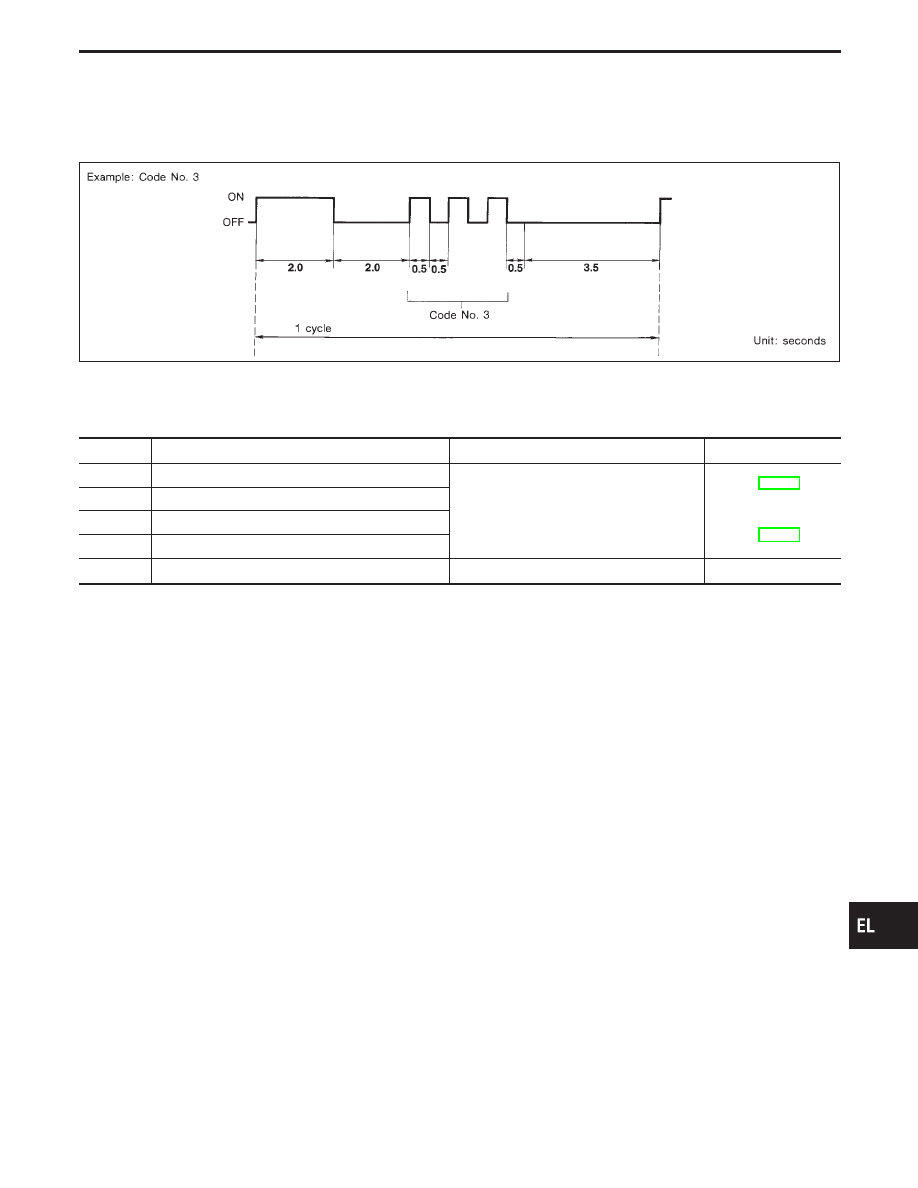

DESCRIPTION

In this mode, a malfunction code is indicated by the number of flashes from the front map lamps and step
lamps as shown below:

SEL472T

After indicator lamp turns ON for 2 seconds and then turns OFF, it flashes to indicate a malfunction code.
For example, the indicator lamp goes on and off for 0.5 seconds three times. This indicates malfunction code
“3”.

MALFUNCTION CODE TABLE

Code No.

Detected items

Diagnostic procedure

Reference page

1

Driver door lock actuator/unlock sensor

Procedure 5 (Door unlock sensor check)

Procedure 6 (Door lock actuator check)

EL-351

EL-352

2

Passenger door lock actuator/unlock sensor

3

Rear RH door lock actuator/unlock sensor

4

Rear LH door lock actuator/unlock sensor

9

No malfunction in the above items

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

POWER DOOR LOCK — IVMS

On board Diagnosis — Mode III (Power door
lock operation) (Cont’d)

EL-343

Trouble Diagnoses

WORK FLOW

CHECK IN

LISTEN TO CUSTOMER COMPLAINT

IVMS COMMUNICATION DIAGNOSIS (EL-291 or EL-297)
Do self-diagnostic results exist?

Yes

No

SYMPTOM
BASIS

E

Repair/Replace according to
the self-diagnostic results.
(EL-293)

Perform diagnostic procedure
according to the symptom chart
on the next page.

F

NG

IVMS COMMUNICATION
DIAGNOSIS (EL-291 or
EL-297)

OK

H

REPAIR/REPLACE

FINAL CHECK
Confirm that the malfunction is completely fixed by operating the
system.

OK

NG

CHECK OUT

NOTICE:

I

When LCU connectors are disconnected for more than 1 minute such as during trouble diagnoses,
the “disconnected” data will be memorized by the BCM. (While BCM memorizes the “disconnected”
data, IVMS communication diagnosis of CONSULT-II will display “PAST NO RESPONSE”.)
Therefore, after reconnecting the LCU connectors, erase the memory.

I

To erase the memory, perform the procedure below.
Erase the memory with CONSULT-II (Refer to EL-291.)
or turn the ignition switch to “OFF” position
and remove 7.5A fuse [No.

14

located in the fuse block (J/B)].

POWER DOOR LOCK — IVMS

H

H

H

H

H

H

H

H

EL-344

SYMPTOM CHART

PROCEDURE

Self-diagnosis

Diagnostic procedure

REFERENCE PAGE

EL-340

EL-342

EL-346

EL-347

EL-348

EL-349

EL-351

EL-352

EL-292

SYMPTOM

CONSUL

T

-II

On

board

diagnosis

(Mode

III)

Procedure

1

(Door

switch

check)

Procedure

2

(Key

switch

check)

Procedure

3

(Lock

&

unlock

switch

check)

Procedure

4

(Door

key

cylinder

switch

check)

Procedure

5

(Door

unlock

sensor

check)

Procedure

6

(Door

lock

actuator

check)

W

ake-up

diagnosis

Key reminder door system does not
operate properly.

X

X

X

X

X

X

Specific door lock actuator does not
operate.

X

X

X

X

Power door lock does not operate
with door lock & unlock switch on
power window main switch.

X

X

X

X

(LCU01)

Power door lock does not operate
with front door key cylinder opera-
tion.

X

X

X

X

(LCU01,

LCU02)

Power door lock does not operate
with front door lock knob switch.

X

X

X

X

(LCU01,

LCU02)

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

POWER DOOR LOCK — IVMS

Trouble Diagnoses (Cont’d)

EL-345

SEL524W

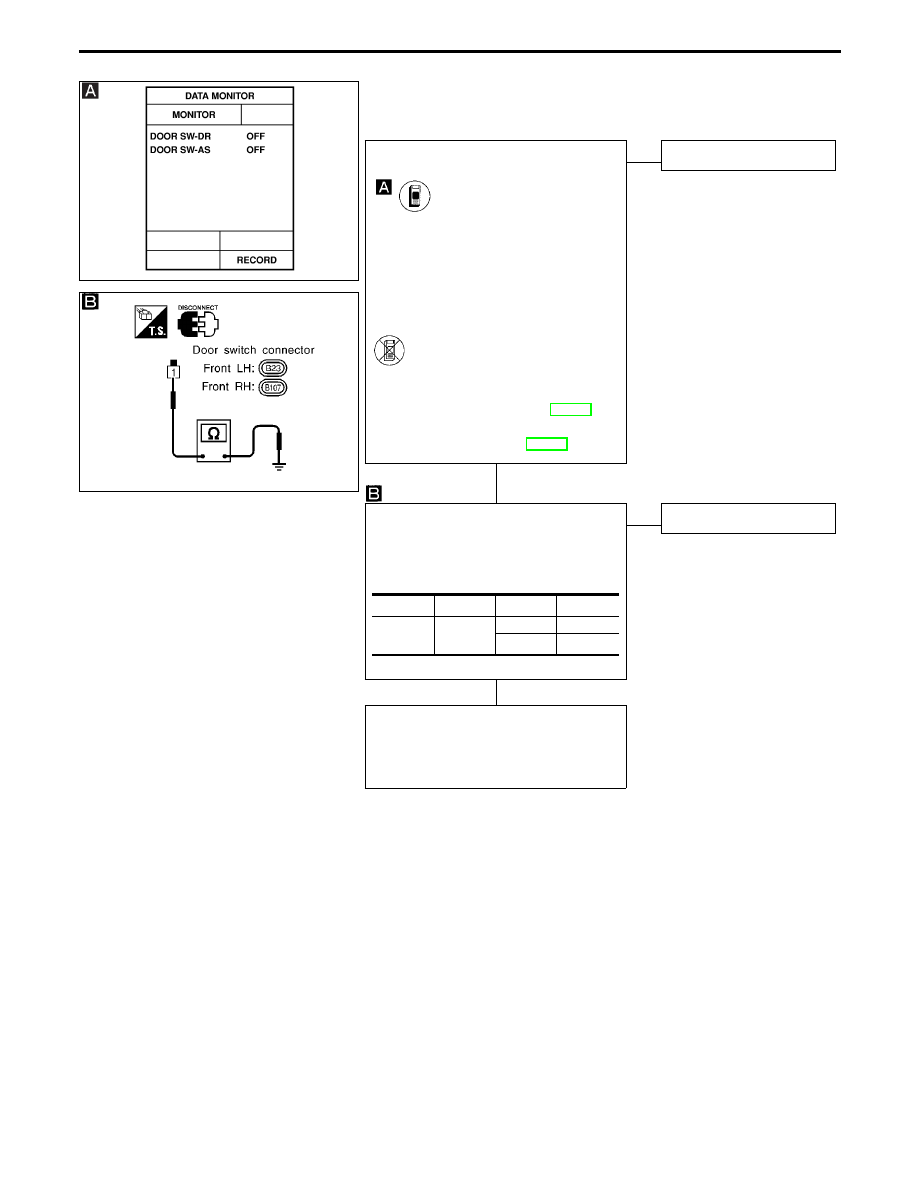

DIAGNOSTIC PROCEDURE 1

(Front door switch check)

SEL914U

CHECK FRONT DOOR SWITCH INPUT
SIGNAL.

CONSULT-II

See “DOOR SW” in DATA MONITOR
mode.
When door is open:

DOOR SW

ON

When door is closed:

DOOR SW

OFF

-------------------------------------------------------------------------------------------------------------------------------------- OR --------------------------------------------------------------------------------------------------------------------------------------

ON BOARD

Check front door switches in Switch moni-
tor (Mode II) mode.
(Refer to On board Diagnosis, EL-299.)

Refer to wiring diagram in EL-335.

NG

E

OK

Door switch is OK.

CHECK DOOR SWITCH.
1. Disconnect door switch connector.
2. Check continuity between terminal and

switch body ground.

OK

E

NG

Replace door switch.

Check the following.

I

Door switch ground condition

I

Harness for open or short between door
switch and BCM

Terminals

Condition

Continuity

Front door

switch

q

1

-

Ground

Pressed

No

Released

Yes

POWER DOOR LOCK — IVMS

Trouble Diagnoses (Cont’d)

H

H

EL-346
