Infiniti Q45 (FY33). Manual - part 331

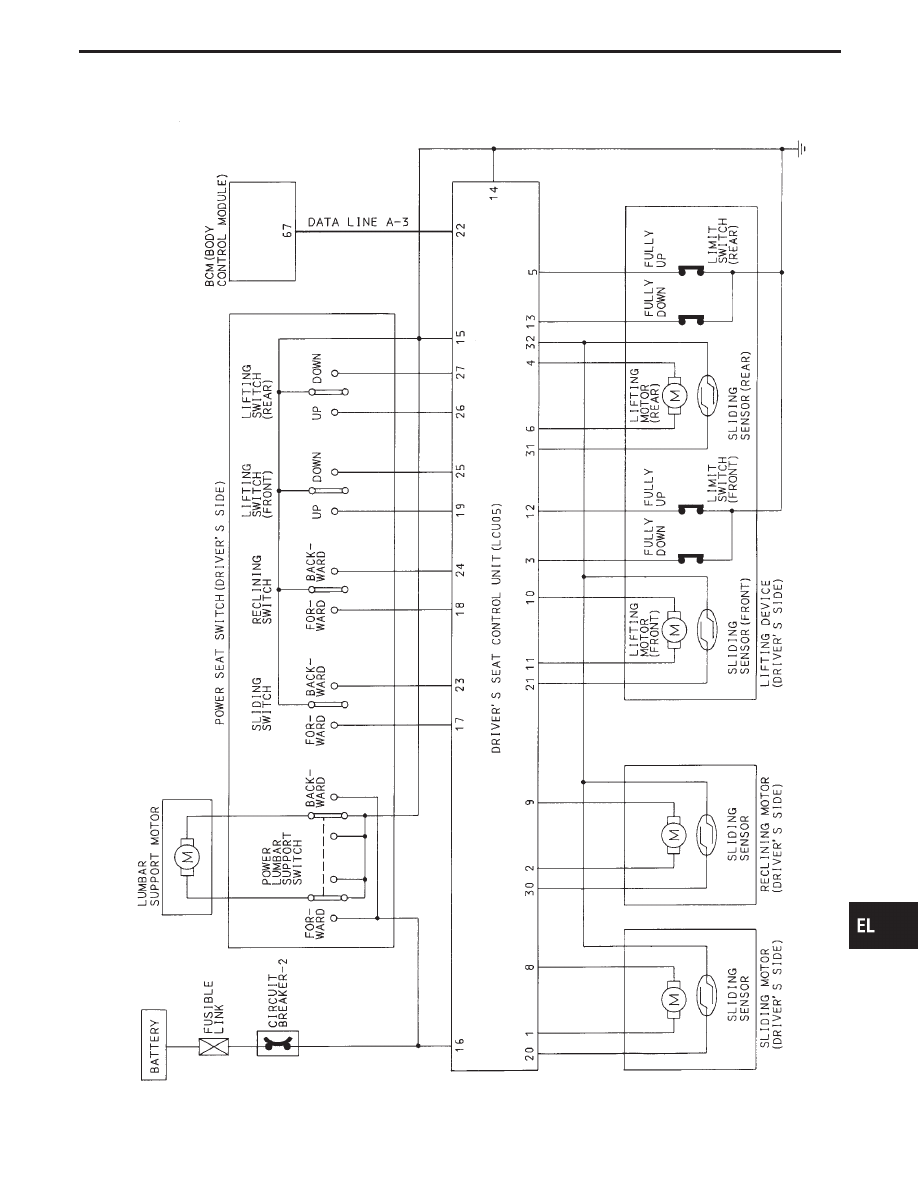

DRIVER’S SEAT CONTROL UNIT (LCU05)

TEL827

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

LOCAL CONTROL UNITS (LCUs)

Schematic (Cont’d)

EL-315

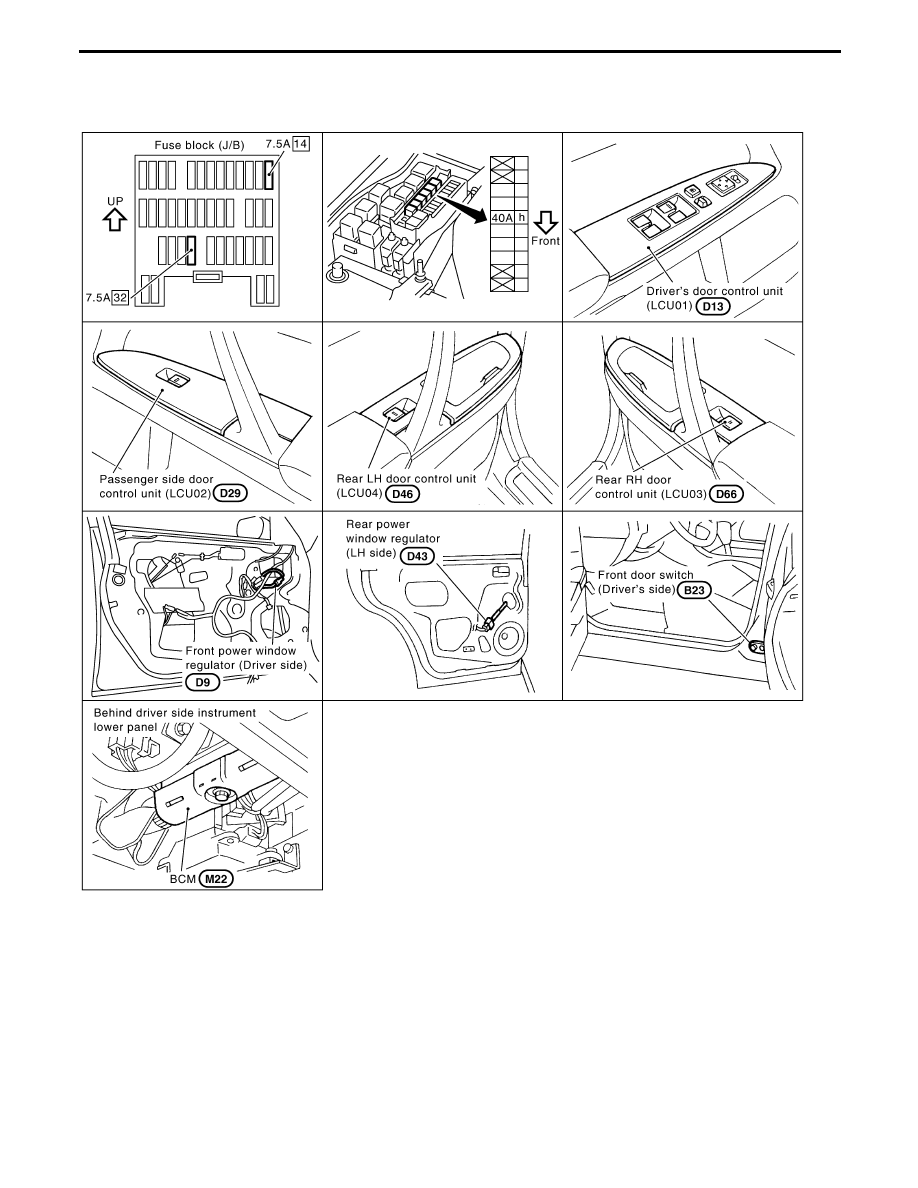

Component Parts and Harness Connector
Location

SEL866W

POWER WINDOW — IVMS

EL-316

System Description

OUTLINE

Power window system consists of

I

a BCM (Body Control Module)

I

four LCUs (Local Control Module)

I

four power window regulators

BCM is connected to each LCU via DATA LINE A-1 or A-2 and LCUs supply power and ground to each power
window regulator.
When ignition switch is in the “ON” position, power window will be operated depending on power window sub/
main switch (which is combined with each LCU) condition.

OPERATIVE CONDITION

I

Power windows can be raised or lowered with each sub-switch or the power window main switch located
on the driver’s door trim when ignition key is in the “ON” position and power window lock switch on the
driver’s door trim is unlocked.

I

When power window lock switch is locked, no windows can be raised or lowered except for driver side
window.

I

When ignition key is in the “ON” position, to fully open/close the front windows, press down/pull completely
on the automatic switch (main switch/front sub-switch) and release it; it needs not be held. The window
will automatically open/close all the way. To stop the window, pull up/press down then release the switch.

Delayed power operation

When the ignition switch is turned to the “OFF” position, the power window will still operate for up to approxi-
mately 45 seconds unless the driver side or passenger side door is opened.
(Power window timer)

Interruption detection function

Driver’s door control unit (LCU01)/passenger door control unit (LCU02) monitor the power window regulator
motor operation and the power window position (full closed or other) for front power window by the signals
from encoder and limit switch in front power window regulator (driver’s side/passenger side).
When driver’s door control unit (LCU01)/passenger door control unit (LCU02) detect interruption during the
following close operation in the each door,

I

automatic close operation when ignition switch is in the “ON” position

I

automatic close operation during power window timer operation

driver’s door control unit (LCU01)/passenger door control unit (LCU02) control each power window regulator
motor for open and the power window will be lowered about 150 mm (5.91 in).

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

POWER WINDOW — IVMS

EL-317

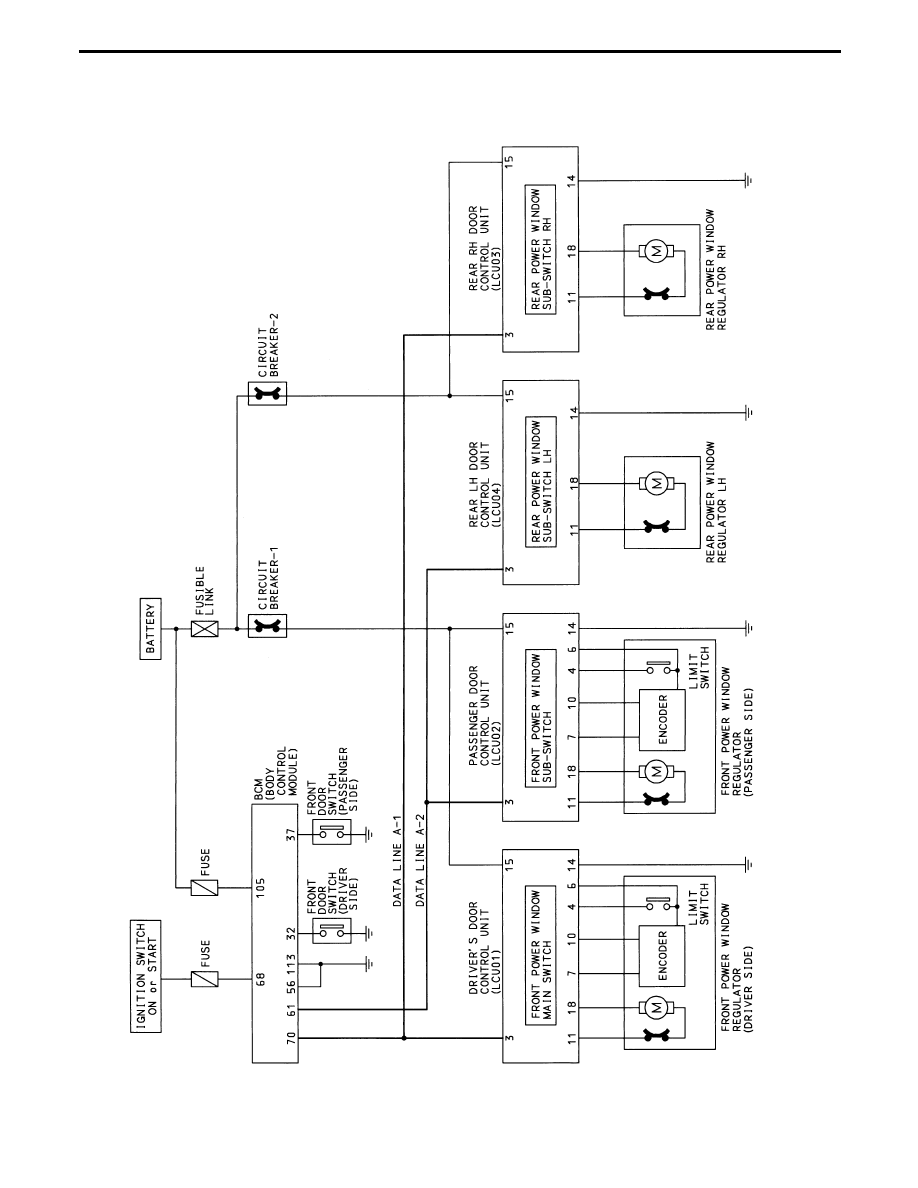

Schematic

TEL142M

POWER WINDOW — IVMS

EL-318
