Infiniti Q45 (FY33). Manual - part 311





TEL116M

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

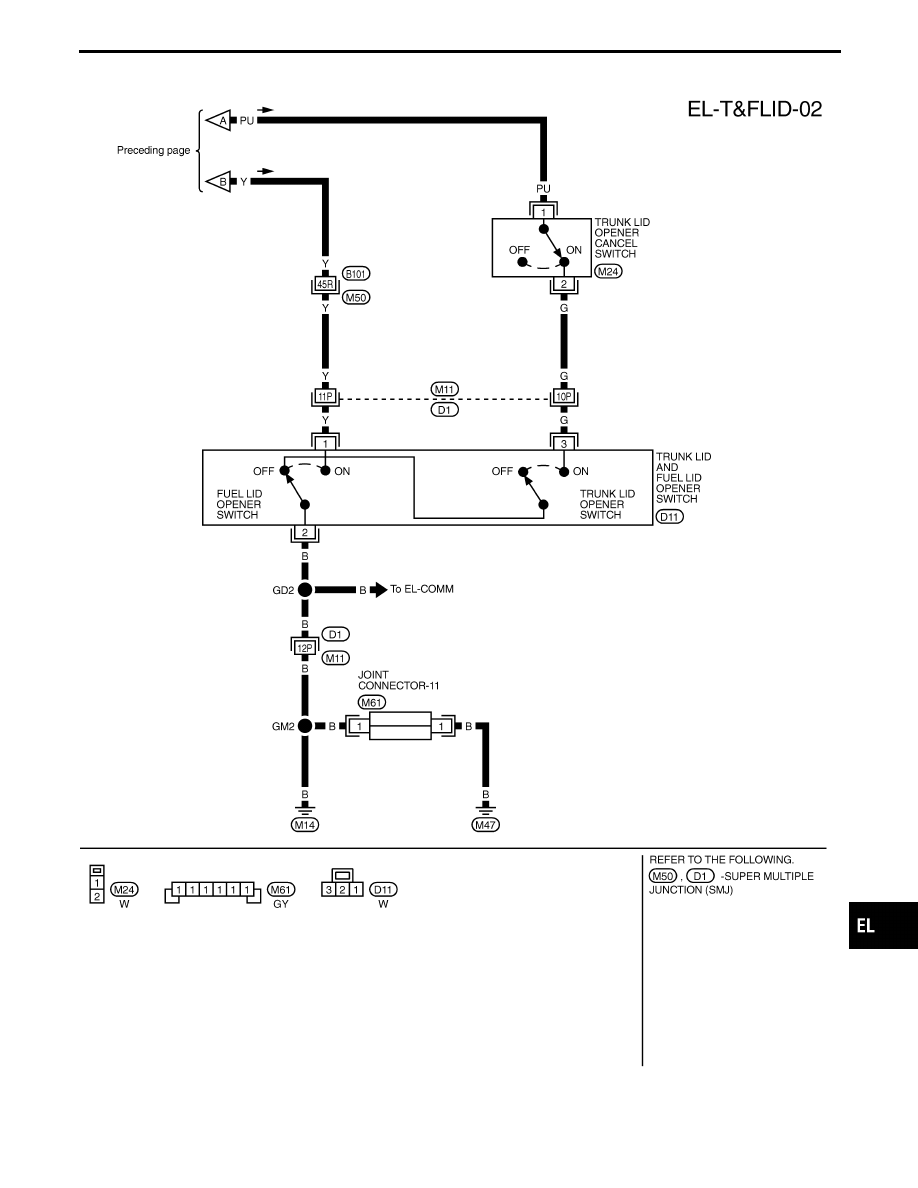

TRUNK LID AND FUEL FILLER LID OPENER

Wiring Diagram — T&FLID — (Cont’d)

EL-235

Component Parts and Harness Connector
Location

SEL861W

System Description

Power is supplied at all times

I

through 10A fuse [No.

28

, located in the fuse block (J/B)]

I

to trunk closure control unit terminal

q

2

.

Ground is supplied at all times

I

to trunk closure control unit terminal

q

4

I

through body ground

T12

.

Power is supplied at all times

I

through 10A fuse [No.

27

, located in the fuse block (J/B)] and trunk room lamp

I

to trunk room lamp switch (lock switch).

OPERATION

When trunk is closed

1. CLOSED (LOCK) signal is supplied from trunk room lamp switch (lock switch) to trunk closure control unit

terminal

q

1

(Battery voltage is supplied to trunk closure control unit terminal

q

1

when trunk room lamp

switch is turned to CLOSED (LOCK)).

2. When trunk closure control unit receive CLOSED (LOCK) signal from trunk room lamp switch, power is

supplied to trunk closure motor from trunk closure control unit within 40 msec.

3. When stop switch in trunk closure control unit is turned to OFF during closing operation, trunk closure

motor stops within 40 msec.

When trunk is opened

1. OPEN (UNLOCK) signal is supplied from trunk room lamp switch (lock switch) to trunk closure control unit

terminal

q

1

(Battery voltage to trunk closure control unit terminal

q

1

is cut off when trunk room lamp switch

is turned to OPEN (UNLOCK)).

2. OPEN signal is supplied to trunk closure control unit terminal

q

3

from striker switch.

3. When trunk closure control unit receives OPEN signal from striker switch, power is supplied to trunk clo-

sure motor from trunk closure control unit within 40 msec.

4. When stop switch in trunk closure control unit is turned to ON during opening operation, trunk closure motor

stops within 40 msec.

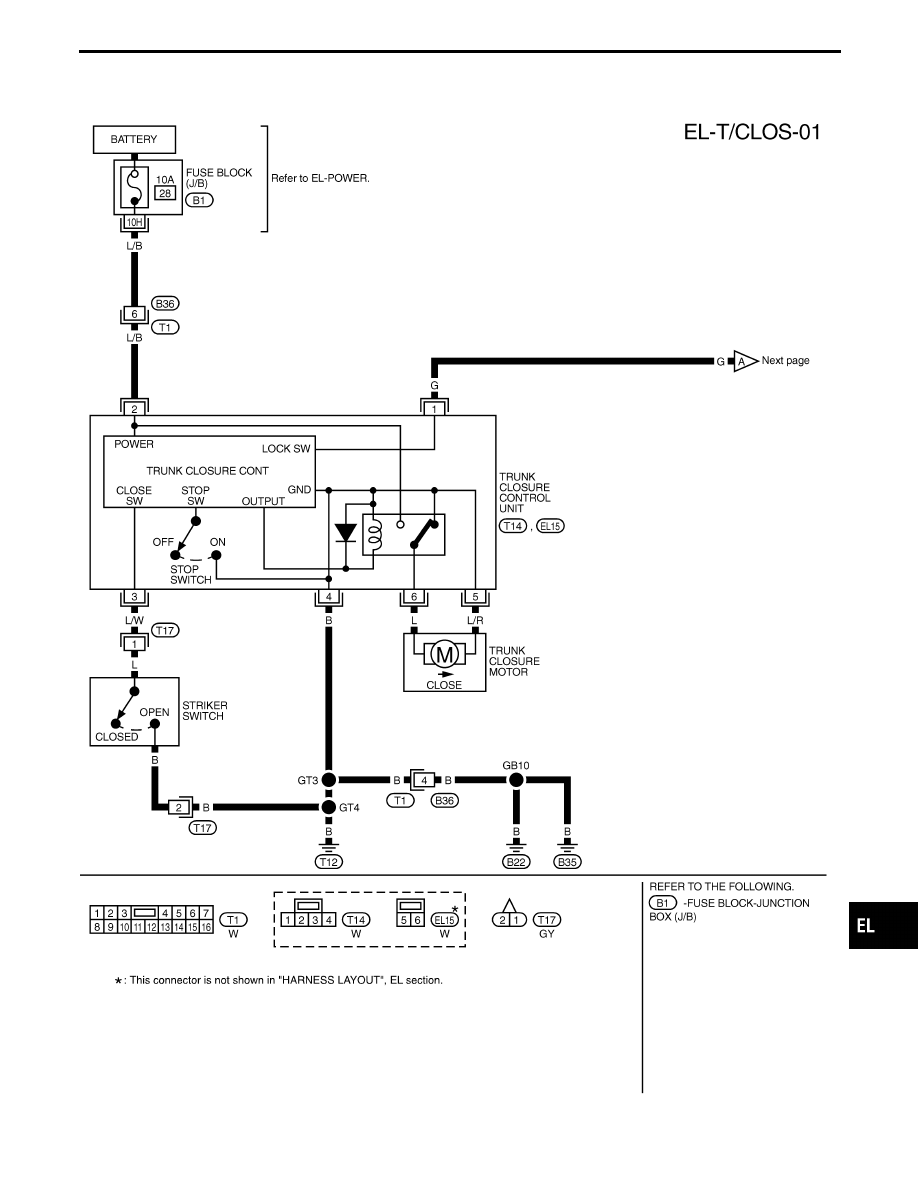

TRUNK CLOSURE

EL-236

Wiring Diagram — T/CLOS —

TEL117M

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

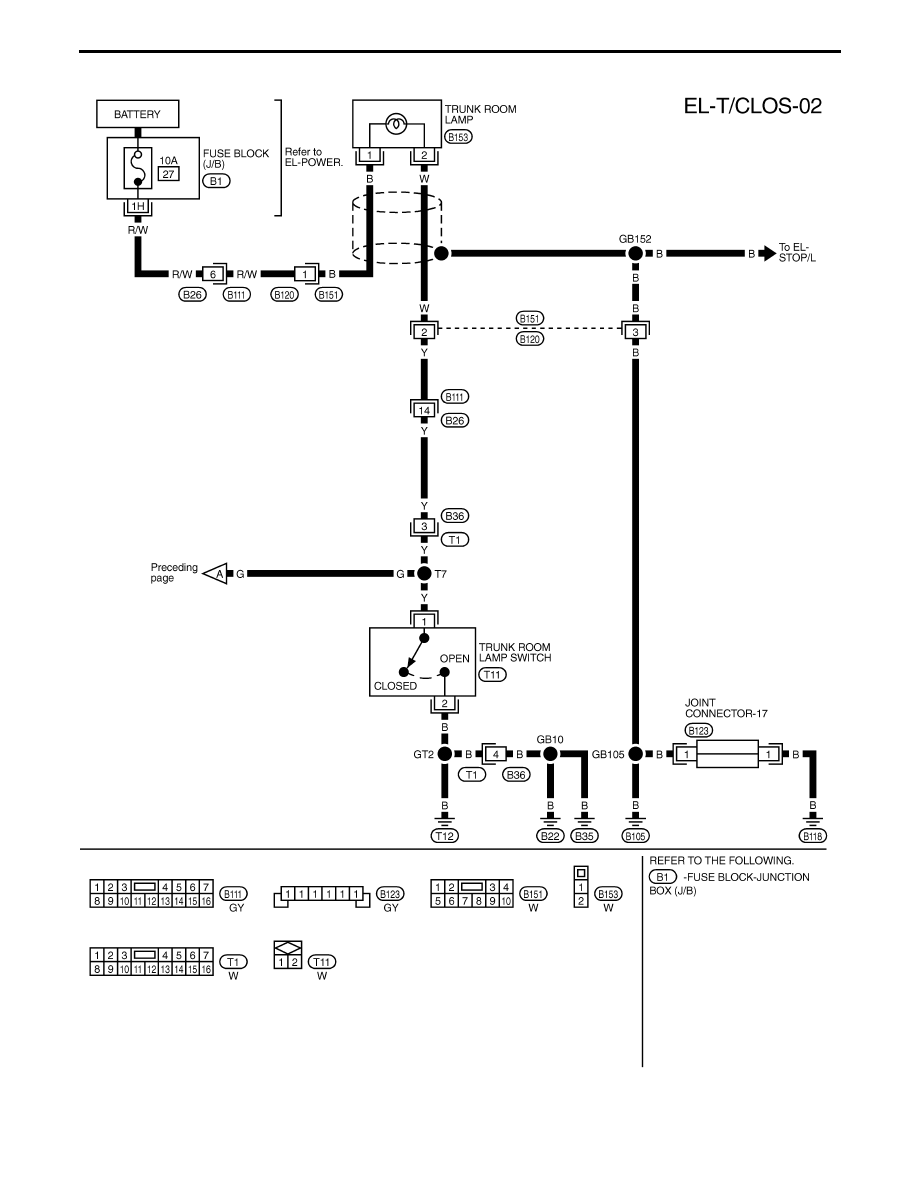

TRUNK CLOSURE

EL-237

TEL118M

TRUNK CLOSURE

Wiring Diagram — T/CLOS — (Cont’d)

EL-238
