CEL430

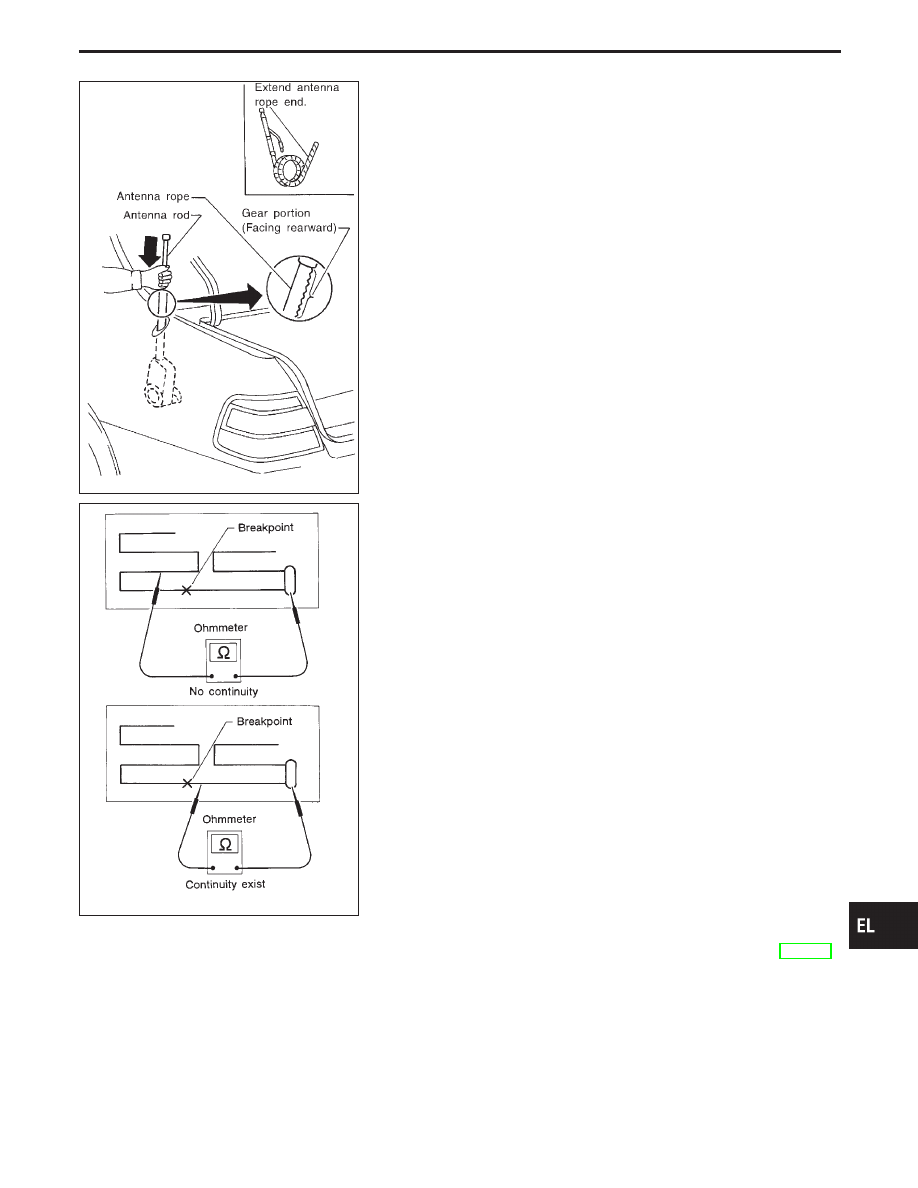

INSTALLATION
1.
Lower antenna rod by operating antenna motor.
2.
Insert gear section of antenna rope into place with it facing
toward antenna motor.
3.
As soon as antenna rope is wound on antenna motor, stop
antenna motor. Insert antenna rod lower end into antenna
motor pipe.
4.
Retract antenna rod completely by operating antenna motor.
5.
Install antenna nut and base.
SEL252I
Window Antenna Repair
ELEMENT CHECK
1.
Attach probe circuit tester (in ohm range) to antenna terminal
on each side.
2.
If an element is broken, no continuity will exist.
3.
To locate broken point, move probe along element. Tester
needle will swing abruptly when probe passes the point.
ELEMENT REPAIR
Refer to REAR WINDOW DEFOGGER “Filament Repair” (EL-215).
GI
MA
EM
LC
EC
FE
AT
PD
FA
RA
BR
ST
RS
BT
HA
IDX
AUDIO ANTENNA
Antenna Rod Replacement (Cont’d)
EL-231
