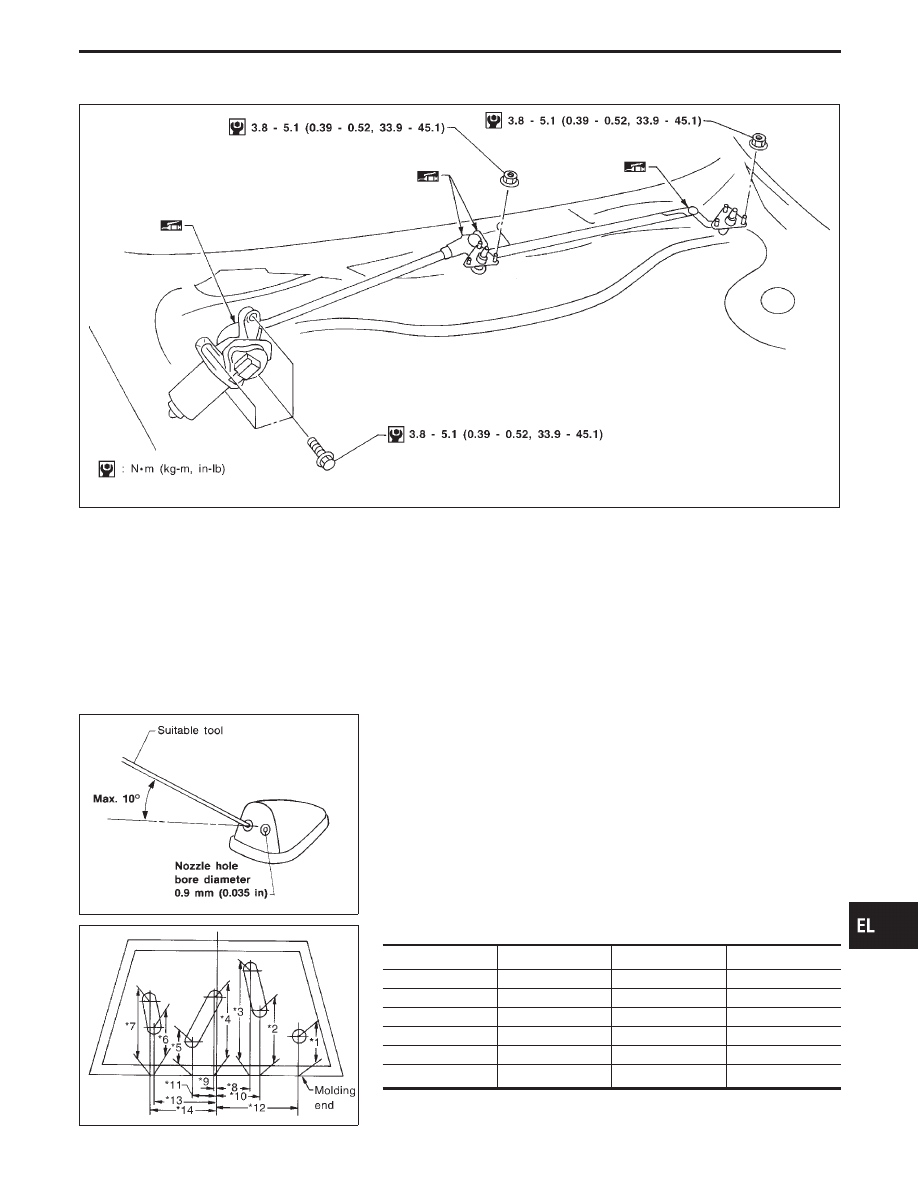

WIPER LINKAGE
CEL319
Removal
1.
Remove 4 bolts that secure wiper motor.
2.
Detach wiper motor from wiper linkage at ball joint.
3.
Remove wiper linkage.
Be careful not to break ball joint rubber boot.
Installation
I
Grease ball joint portion before installation.
1.
Installation is the reverse order of removal.
SEL241PA

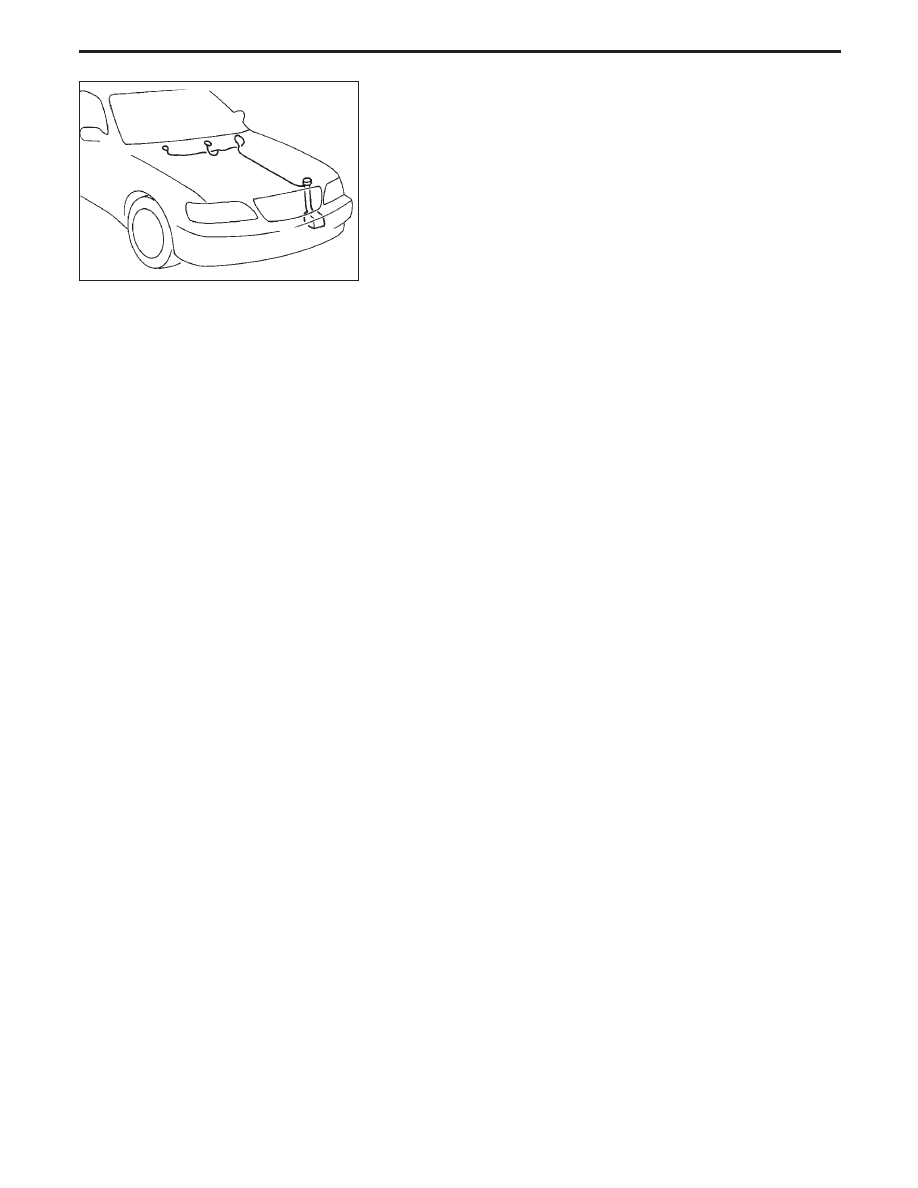

Washer Nozzle Adjustment
I
Adjust washer nozzle with suitable tool as shown in the figure
at left.
Adjustable range: ±10°
CEL425
Unit: mm (in)
*1
236 (9.29)
*8
136 (5.35)
*2
337 (13.27)
*9
8 (0.31)
*3
606 (23.86)
*10
216 (8.50)
*4
422 (16.61)
*11
149 (5.87)
*5
198 (7.80)
*12
482 (18.98)
*6
286 (11.26)
*13
376 (14.80)
*7
436 (17.17)
*14
385 (15.16)
*1: The diameter of a circle is less than 80 mm (3.15 in).
*2 - 7: The radius of the arc across the end of these areas is less than 40 mm
(1.57 in).
GI
MA
EM
LC
EC
FE
AT
PD
FA
RA
BR
ST
RS
BT
HA
IDX
WIPER AND WASHER
Removal and Installation (Cont’d)
EL-199
