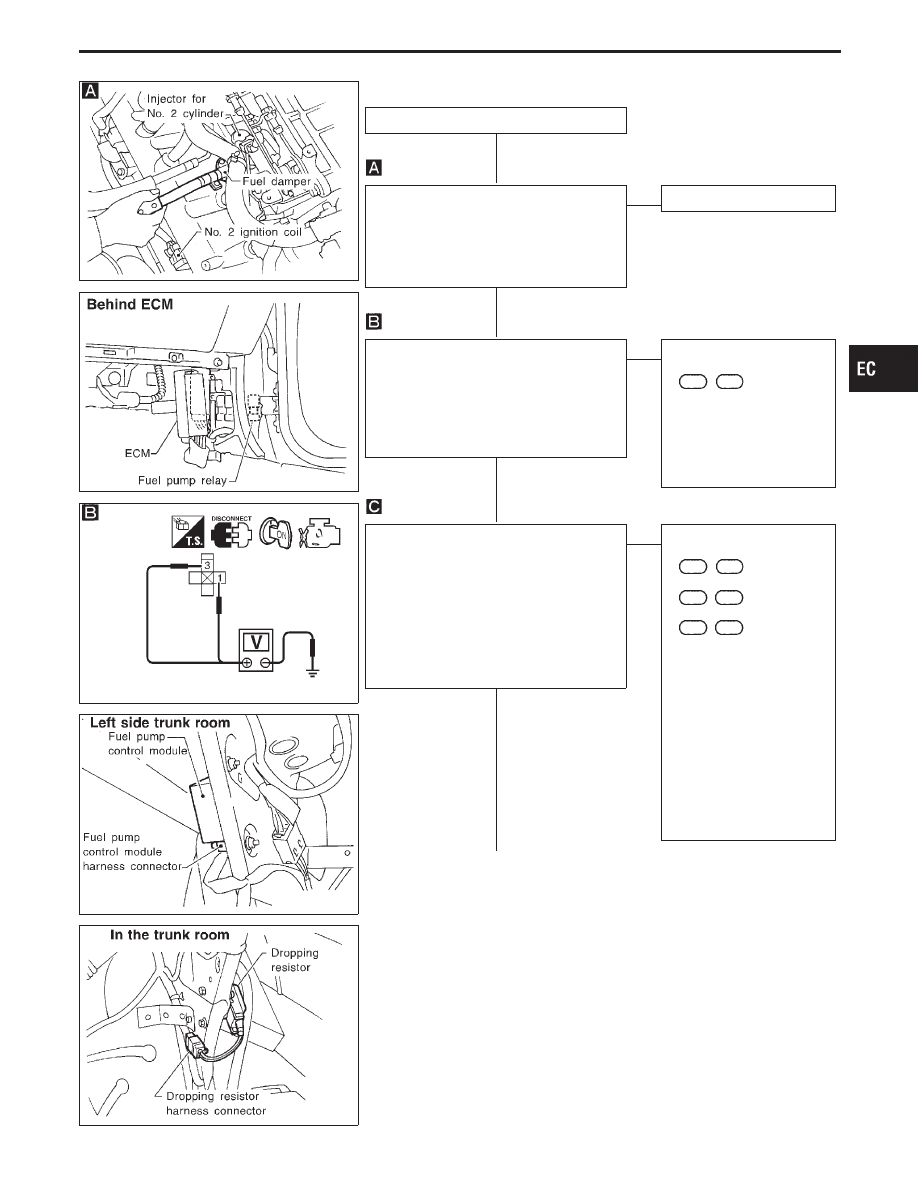

DIAGNOSTIC PROCEDURE

INSPECTION START

CHECK OVERALL FUNCTION.
1. Turn ignition switch “ON”.

2. Pinch fuel feed hose with fingers.

Fuel pressure pulsation should be felt
on the fuel feed hose for 5 seconds
after ignition switch is turned “ON”.

NG

E

OK

INSPECTION END

CHECK POWER SUPPLY.
1. Turn ignition switch “OFF”.

2. Disconnect fuel pump relay.
3. Turn ignition switch “ON”.
4. Check voltage between terminals

q

1

,

q

3

and ground with CONSULT-II or tester.
Voltage: Battery voltage

OK

E

NG

Check the following.

I

Harness connectors

F63

,

M49

I

15A fuse

I

Harness continuity
between fuel pump relay
and ignition switch

If NG, repair harness or
connectors.

CHECK GROUND CIRCUIT.
1. Turn ignition switch “OFF”.

2. Disconnect fuel pump harness connector

and dropping resistor harness connector.

3. Check harness continuity between relay

terminal

q

5

and terminal

q

1

, FPCM ter-

minal

q

3

and terminal

q

1

, terminal

q

2

and body ground.
Continuity should exist.
If OK, check harness for short to power.

OK

E

NG

Check the following.

I

Harness connectors

B3

,

M4

I

Harness connectors

M49

,

F63

I

Harness connectors

B111

,

B26

I

Joint connector-17

I

Harness for open or short
between fuel pump relay
and fuel pump

I

Harness for open or short
between fuel pump and
dropping resistor

I

Harness for open or short
between dropping resistor
and body ground

If NG, repair open circuit or
short to power in harness
or connectors.

q

A

GI

MA

EM

LC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR NON-DETECTABLE ITEMS

Fuel Pump Control (Cont’d)

H

H

H

H

EC-525

SEF329T

SEF628U

q

A

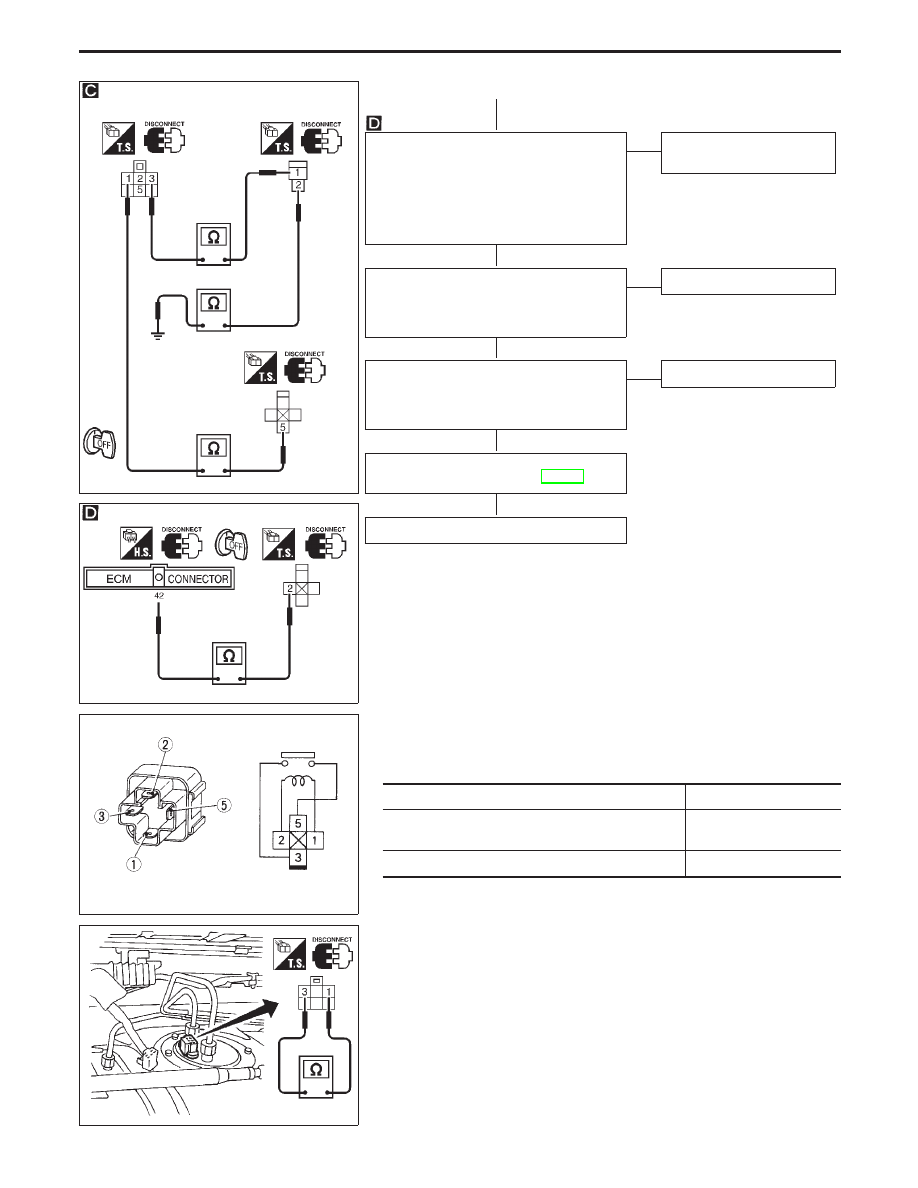

CHECK OUTPUT SIGNAL CIRCUIT.
1. Disconnect ECM harness connector.

2. Check harness continuity between ECM

terminal

q

42

and terminal

q

2

.

Continuity should exist.
If OK, check harness for short to ground
and short to power.

OK

E

NG

Repair harness or connec-
tor.

CHECK COMPONENT
(Fuel pump relay).
Refer to “COMPONENT INSPECTION”
below.

OK

E

NG

Replace fuel pump relay.

CHECK COMPONENT
(Fuel pump).
Refer to “COMPONENT INSPECTION”
below.

OK

E

NG

Replace fuel pump.

Perform “TROUBLE DIAGNOSIS FOR
INTERMITTENT INCIDENT”, EC-117.

INSPECTION END

SEF090M

COMPONENT INSPECTION

Fuel pump relay

Check continuity between terminals

q

3

and

q

5

.

Conditions

Continuity

12V direct current supply
between terminals

q

1

and

q

2

Yes

No current supply

No

If NG, replace relay.

SEF161T

Fuel pump

1.

Disconnect fuel pump harness connector.

2.

Check resistance between terminals

q

1

and

q

3

.

Resistance: 0.2 - 5.0

at 25°C (77°F)

If NG, replace fuel pump.

TROUBLE DIAGNOSIS FOR NON-DETECTABLE ITEMS

Fuel Pump Control (Cont’d)

H

H

H

H

H

EC-526

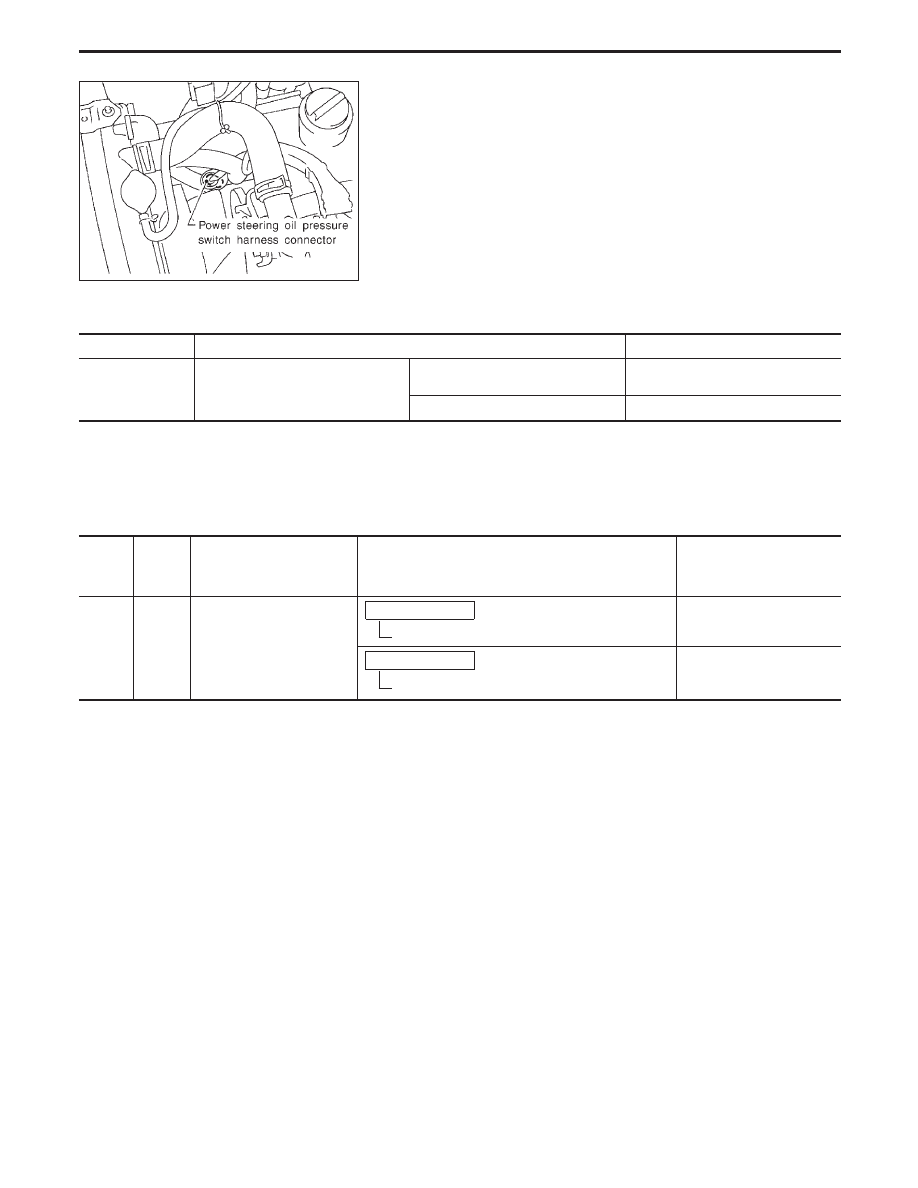

Power Steering Oil Pressure Switch

TEC078M

GI

MA

EM

LC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR NON-DETECTABLE ITEMS

EC-527

SEF071T

COMPONENT DESCRIPTION

The power steering oil pressure switch is attached to the power
steering high-pressure tube and detects a power steering load.
When a power steering load is detected, it signals the ECM. The
ECM adjusts the IACV-FICD solenoid valve to increase the idle
speed and adjust for the increased load.

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

PW/ST SIGNAL

I

Engine: After warming up, idle the
engine

Steering wheel in neutral position
(forward direction)

OFF

The steering wheel is turned

ON

ECM TERMINALS AND REFERENCE VALUE

Specification data are reference values, and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring voltage. Doing so may result in damage to the
ECM’s transistor. Use a ground other than ECM terminals such as the body ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC voltage)

100

G

Power steering oil pres-
sure switch

Engine is running.

Steering wheel is being turned.

0 - 1.5V

Engine is running.

Steering wheel is not being turned.

BATTERY VOLTAGE
(11 - 14V)

TROUBLE DIAGNOSIS FOR NON-DETECTABLE ITEMS

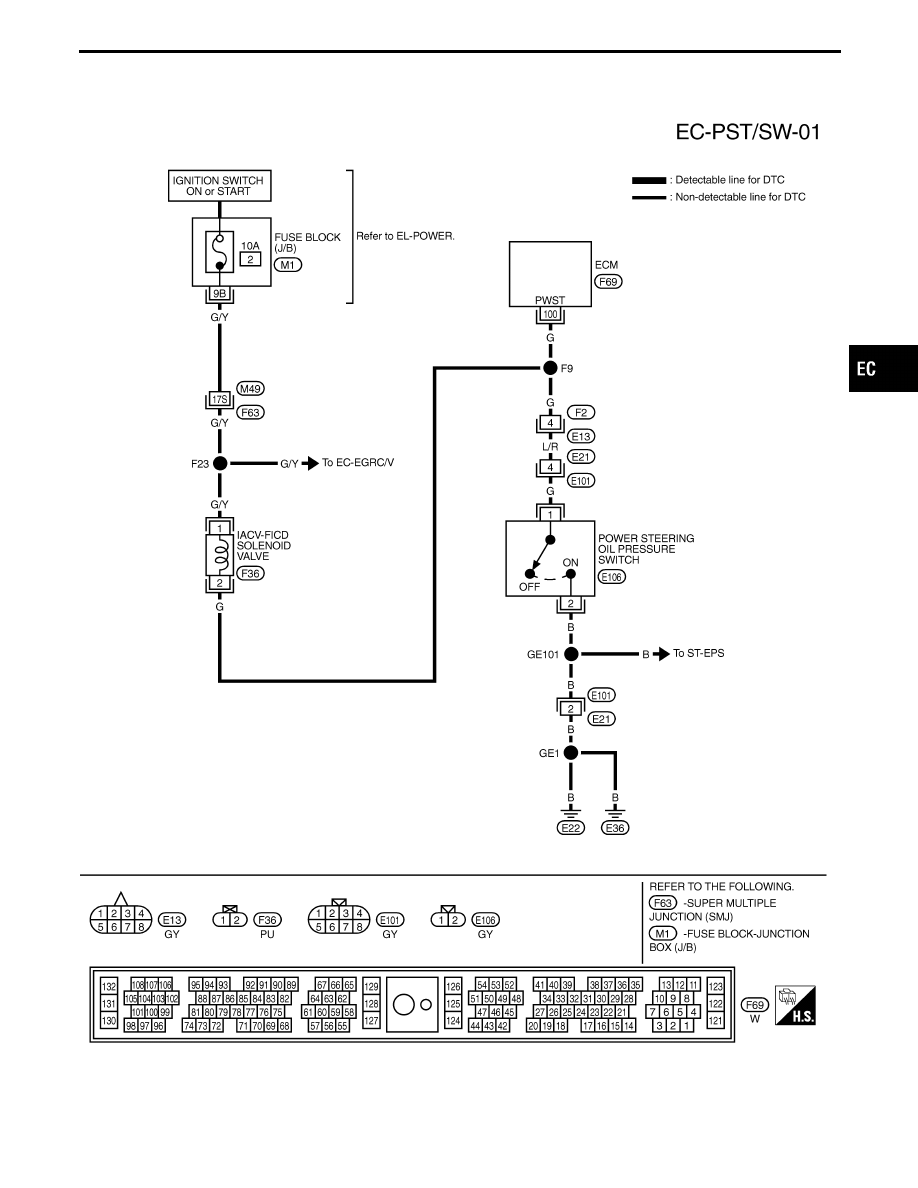

Power Steering Oil Pressure Switch (Cont’d)

EC-528
