Infiniti Q45 (FY33). Manual - part 244





AEC640

SEF792X

SEF784T

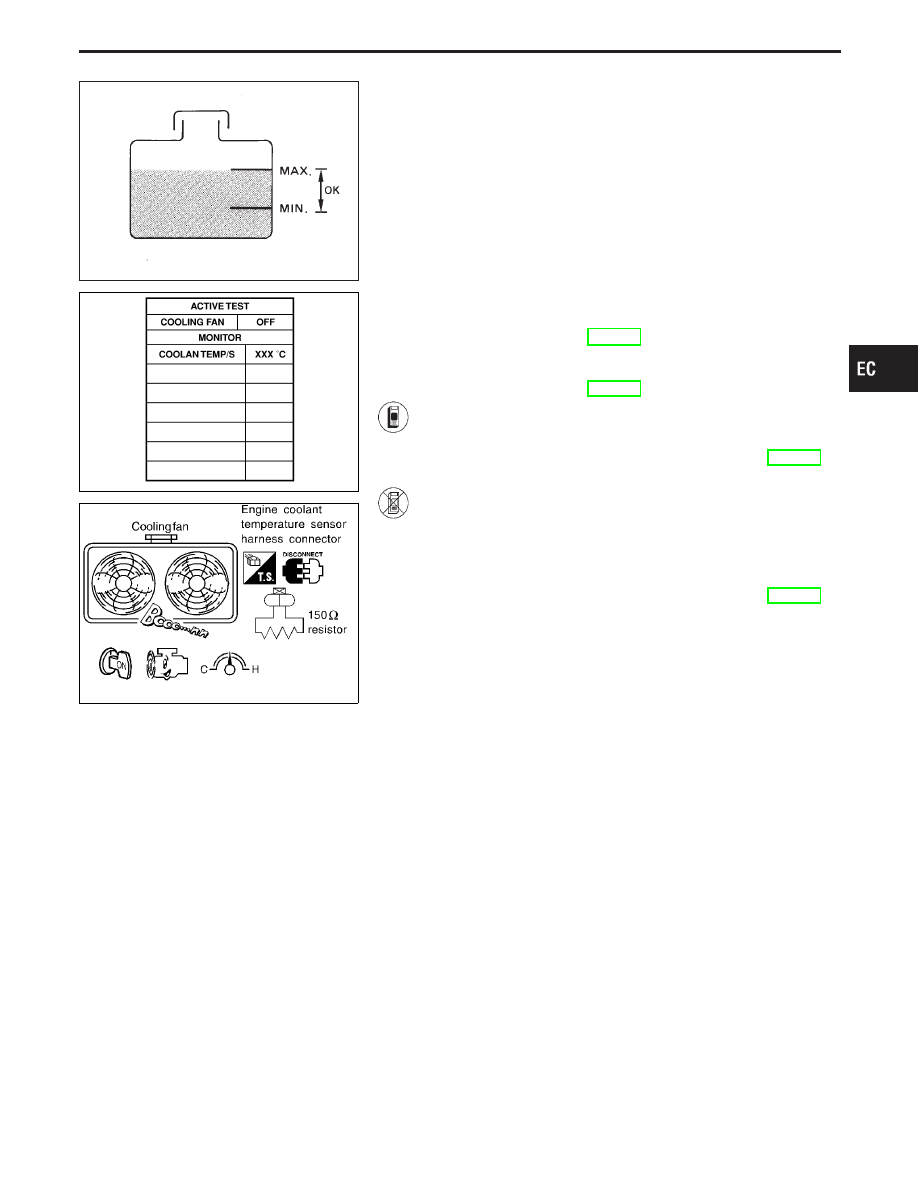

OVERALL FUNCTION CHECK

Use this procedure to check the overall function of the cooling fan.
During this check, a 1st trip DTC might not be confirmed.

WARNING:

Never remove the radiator cap when the engine is hot. Serious
burns could be caused by high pressure fluid escaping from
the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by
turning it a quarter turn to allow built-up pressure to escape.
Then turn the cap all the way off.
1)

Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to “DIAG-
NOSTIC PROCEDURE”, EC-507.

2)

Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to “DIAG-
NOSTIC PROCEDURE”, EC-507.

3) Turn ignition switch “ON”.
4) Perform “COOLING FAN” in “ACTIVE TEST” mode with

CONSULT-II.

5) If NG, go to “DIAGNOSTIC PROCEDURE”, EC-507.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ OR ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

3) Disconnect engine coolant temperature sensor harness

connector.

4) Connect 150

resistor to engine coolant temperature

sensor harness connector.

5) Start engine and make sure that cooling fan operates.

Be careful not to overheat engine.

6) If NG, go to “DIAGNOSTIC PROCEDURE”, EC-507.

GI

MA

EM

LC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR OVERHEAT

Overheat (Cont’d)

EC-505

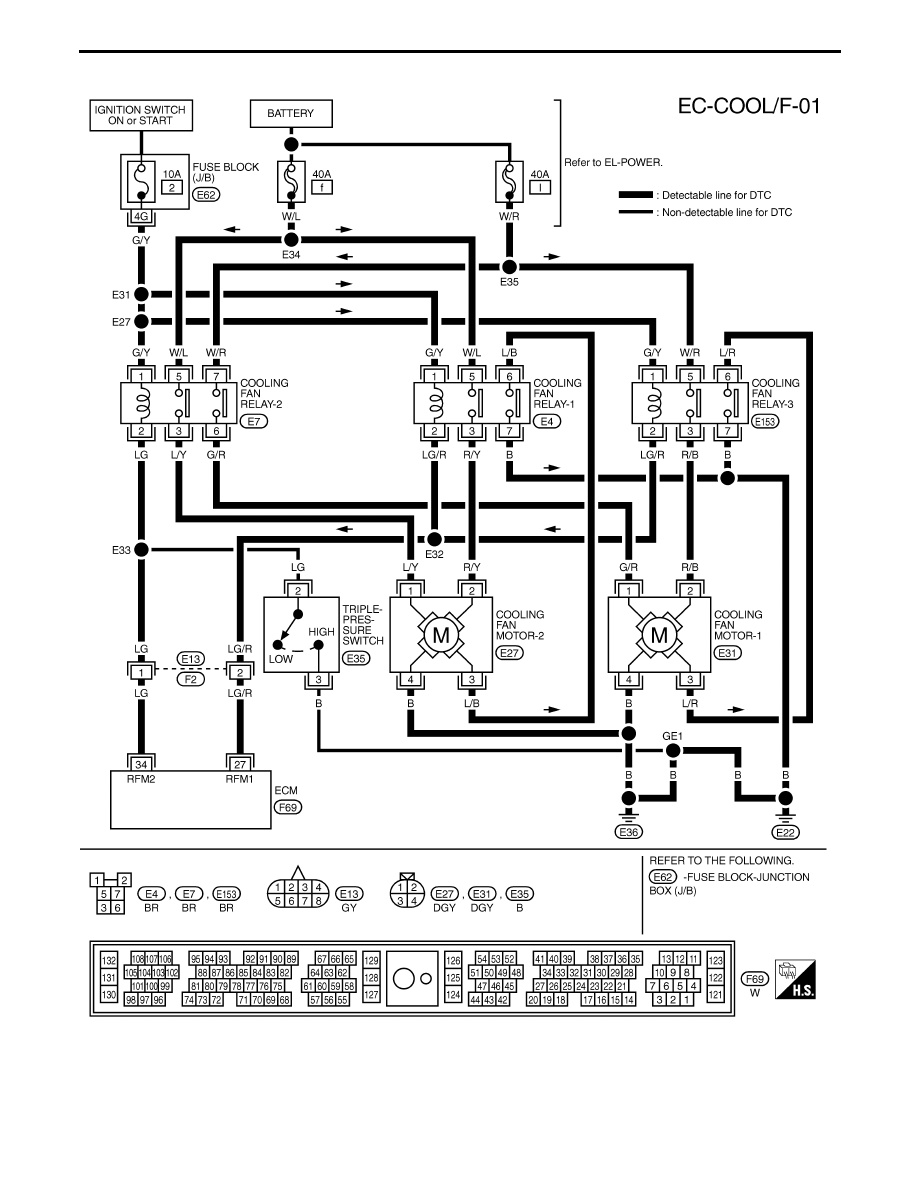

TEC074M

TROUBLE DIAGNOSIS FOR OVERHEAT

Overheat (Cont’d)

EC-506

SEF160T

SEF792X

SEF784T

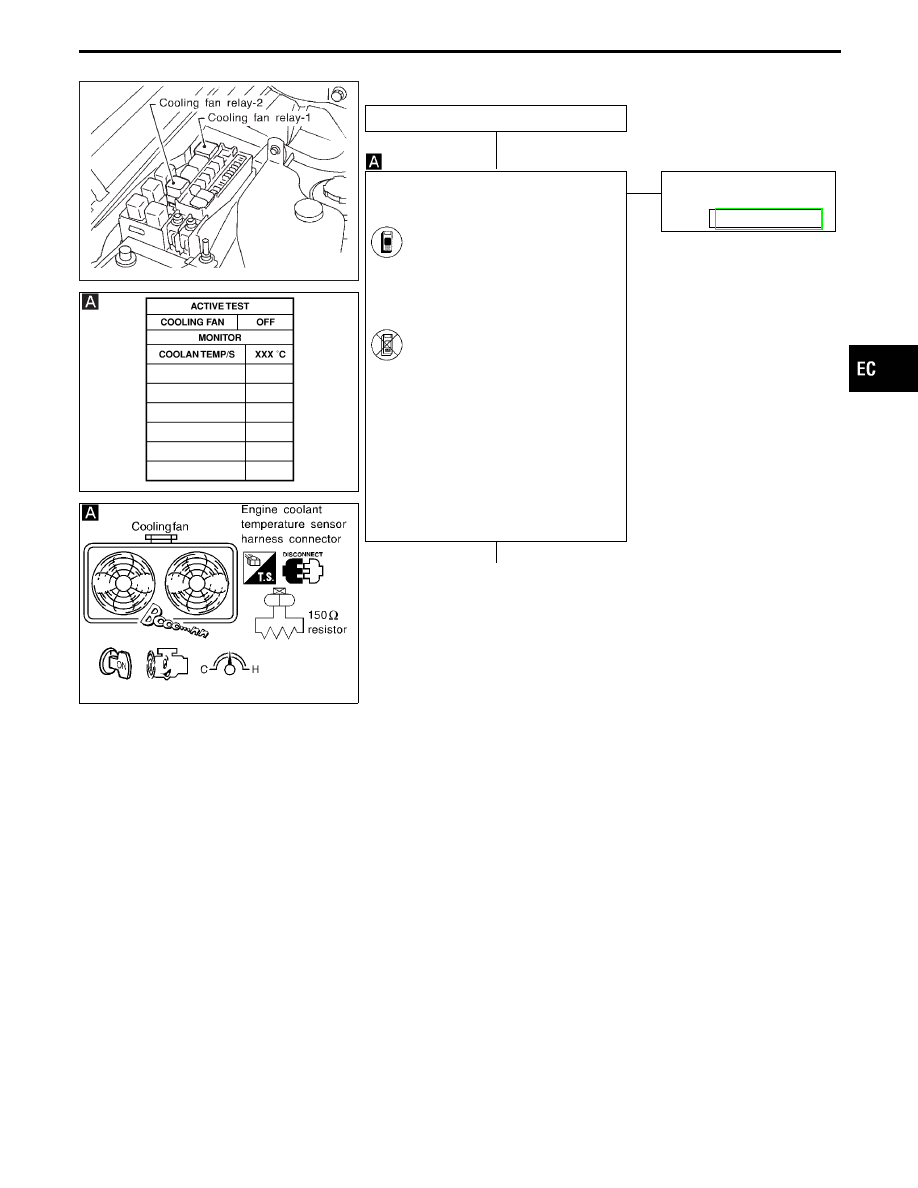

DIAGNOSTIC PROCEDURE

INSPECTION START

CHECK COOLING FAN MOTOR OPERA-
TION-I.
1. Disconnect cooling fan relay-1 and -3.

2. Turn ignition switch “ON”.
3. Perform “COOLING FAN” in

“ACTIVE TEST” mode with CON-
SULT-II.
Cooling fans should operate.

-------------------------------------------------------------------------------------------------------------------------------------- OR --------------------------------------------------------------------------------------------------------------------------------------

2. Disconnect engine coolant tem-

perature sensor harness connec-
tor.

3. Connect 150

resistor to engine

coolant temperature sensor har-
ness connector.

4. Start engine and wait at least 15

seconds.

5. Make sure that cooling fan

motors operate.
Be careful not to overheat
engine.

OK

E

NG

Check cooling fan motor-I
speed control circuit.
(Go to

PROCEDURE A .)

q

A

(Go to next page.)

GI

MA

EM

LC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR OVERHEAT

Overheat (Cont’d)

H

H

EC-507

SEF792X

SEF784T

q

A

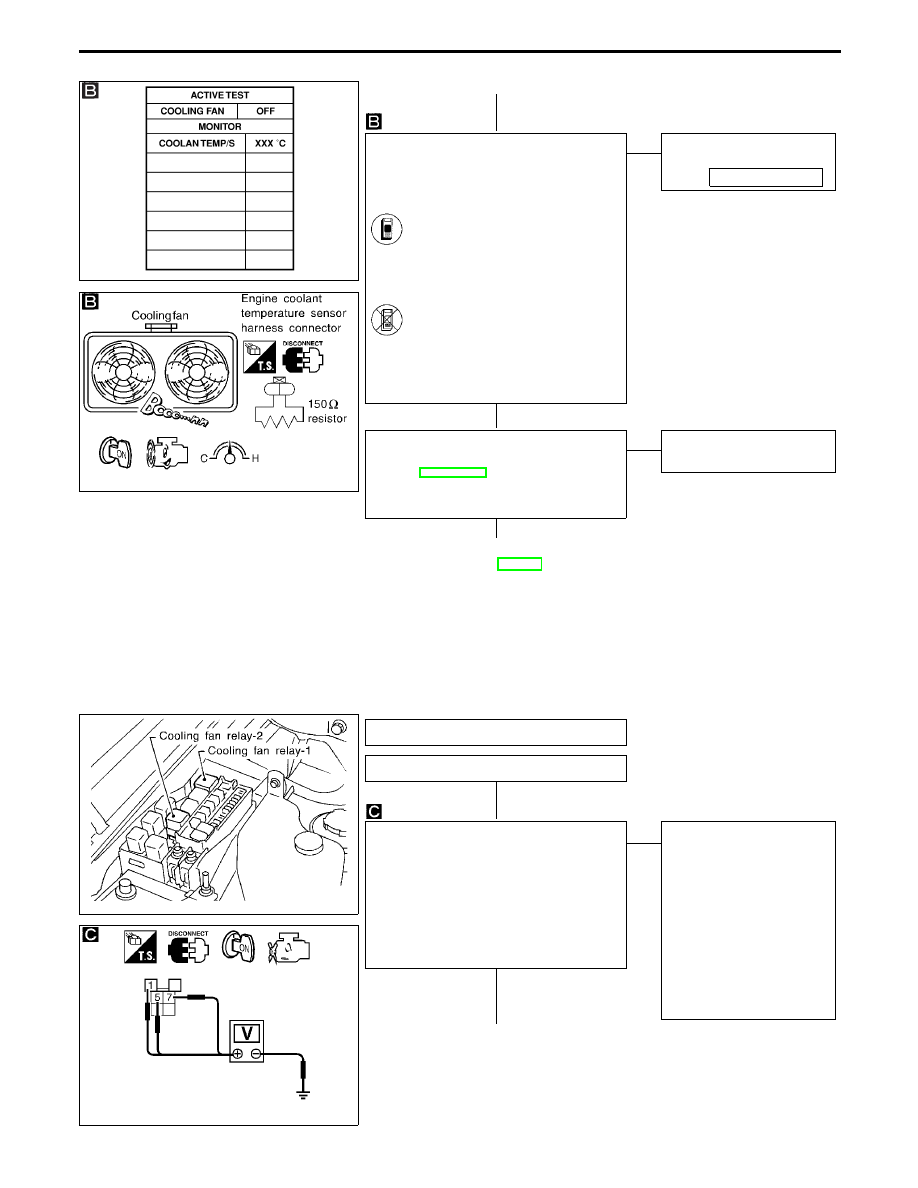

CHECK COOLING FAN MOTOR OPERA-
TION-II.
1. Turn ignition switch “OFF”.

2. Reconnect cooling fan relay-1 and -3.
3. Disconnect cooling fan relay-2.

4. Turn ignition switch “ON”.
5. Perform “COOLING FAN” in

“ACTIVE TEST” mode with CON-
SULT-II.
Cooling fans should operate.

-------------------------------------------------------------------------------------------------------------------------------------- OR --------------------------------------------------------------------------------------------------------------------------------------

4. Restart engine and wait at least

15 seconds.

5. Make sure that cooling fan

motors operate.
Be careful not to overheat
engine.

OK

E

NG

Check cooling fan motor-II
control circuit.
(Go to

PROCEDURE B .)

CHECK COMPONENT
(Triple-pressure switch).
Refer to HA section (“Electrical Compo-
nents Inspection”, “TROUBLE DIAG-
NOSES”).

OK

E

NG

Replace triple-pressure
switch.

q

B

(Go to EC-512.)

SEF160T

SEF753W

PROCEDURE A

INSPECTION START

CHECK POWER SUPPLY.
1. Turn ignition switch “OFF”.

2. Disconnect cooling fan relay-2.
3. Turn ignition switch “ON”.
4. Check voltage between terminals

q

1

,

q

5

,

q

7

and ground with CONSULT-II or

tester.
Voltage: Battery voltage

OK

E

NG

Check the following.

I

10A fuse

I

40A fusible links

I

Harness for open or short
between cooling fan
relay-2 and fuse

I

Harness for open or short
between cooling fan
relay-2 and battery

If NG, repair harness or
connectors.

q

A

(Go to next page.)

TROUBLE DIAGNOSIS FOR OVERHEAT

Overheat (Cont’d)

H

H

H

H

H

EC-508
