Infiniti Q45 (FY33). Manual - part 210





ON BOARD DIAGNOSIS LOGIC

Diagnostic Trouble

Code No.

Malfunction is detected when ....

Check Items

(Possible Cause)

P1110
0805
(Bank 1)

Comparing the intake valve timing position when the
intake valve timing solenoid is ON with that when the
solenoid is OFF, the difference does not exceed a cer-
tain limit.

I

Harness or connectors
(The left bank intake valve timing control position
sensor circuit is open.)

I

Intake valve timing control position sensor

I

Accumulation of debris to the signal pick-up portion
of the camshaft

P1135
1301
(Bank 2)

SEF275Y

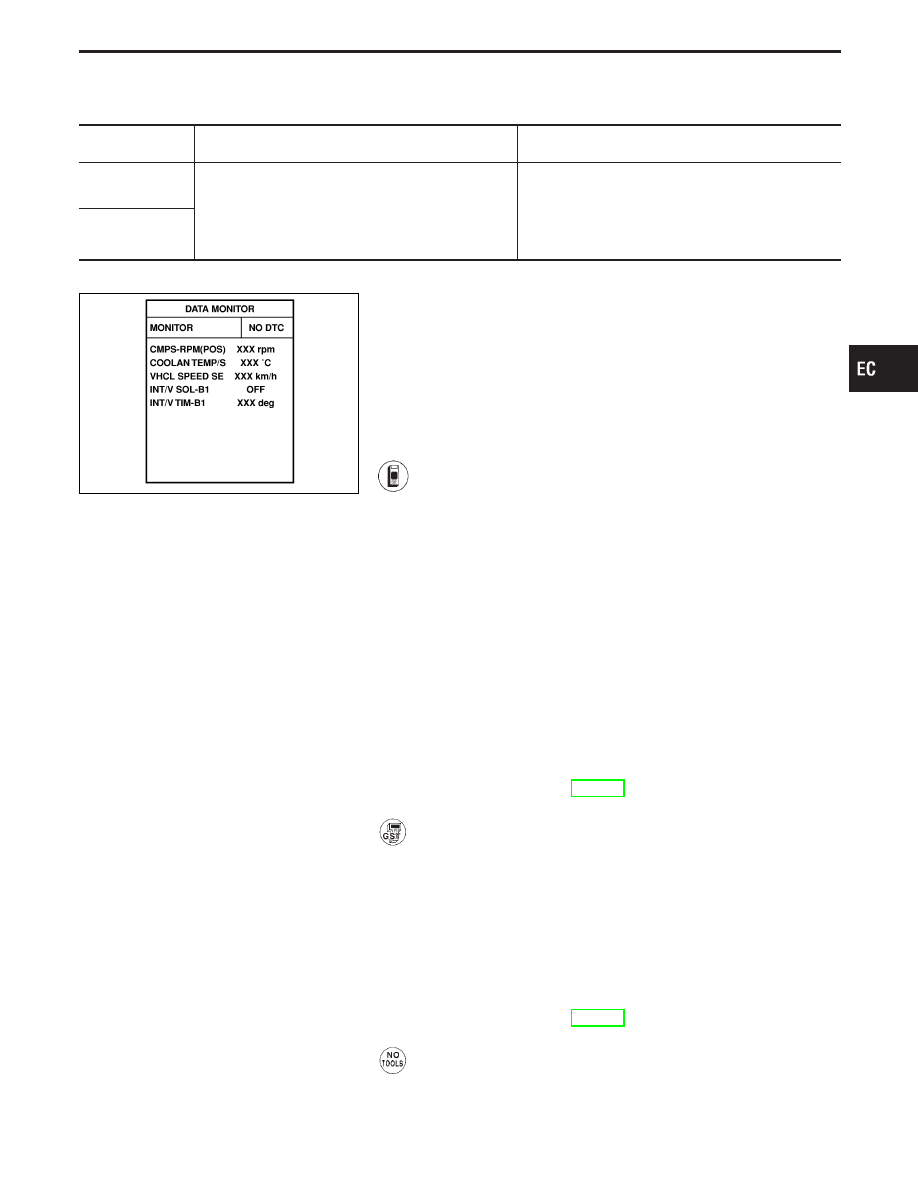

DIAGNOSTIC TROUBLE CODE CONFIRMATION
PROCEDURE

CAUTION:

Always drive at safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting
the next test.

1) Warm up engine to normal operating temperature [more

than 82°C (180°F)].

2) Turn ignition switch “OFF” and wait at least 5 seconds.
3) Turn ignition switch “ON” and select “DATA MONITOR”

mode with CONSULT-II.

4) Restart engine and wait at least 30 seconds.
5) Turn TCS switch “OFF”.
6) Shift A/T selector lever to “2nd” position.
7) Gradually raise engine speed and keep it between

1,100 rpm and 1,500 rpm for at least 20 seconds. (Test
is completed when “INT/V SOL - B1 in “DATA MONI-
TOR” with CONSULT-II remains “OFF”. If indication is
“ON”, repeat 7.

8) Quickly raise engine speed to more than 2,500 rpm and

keep it there for at least 6 seconds. (Test is completed
when “INT/V SOL - B1 in “DATA MONITOR” with CON-
SULT-II remains “ON”. If indication is “OFF”, repeat 8.

9) If 1st trip DTC is detected, go to “DIAGNOSTIC

PROCEDURE”, EC-373.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ OR ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1) Warm up engine to normal operating temperature.
2) Turn ignition switch “OFF” and wait at least 5 seconds.
3) Restart engine and wait at least 30 second.
4) Turn TCS switch “OFF”.
5) Shift A/T selector lever to “2nd” positions.
6) Gradually raise engine speed and keep it between

1,000 rpm and 1,500 rpm for at least 12 seconds.

7) Quickly raise engine speed to more than 2,500 rpm and

keep it there for at least 6 seconds.

8) Select “MODE 7” with GST.
9) If 1st trip DTC is detected, go to “DIAGNOSTIC

PROCEDURE”, EC-373.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ OR ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1) Warm up engine to normal operating temperature.
2) Turn ignition switch “OFF” and wait at least 5 seconds.
3) Restart engine and wait at least 30 seconds.
4) Turn TCS switch “OFF”.
5) Shift A/T selector lever to “D” position.

GI

MA

EM

LC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR DTC P1110 (B1), P1135 (B2)

Intake Valve Timing Control (P1110: Left bank),
(P1135: Right bank) (Cont’d)

EC-369

6) Gradually raise engine speed and keep it between

1,000 rpm and 1,500 rpm for at least 12 seconds.

7) Quickly raise engine speed to more than 2,500 rpm and

keep it there for at least 6 seconds.

8) Turn ignition switch “OFF”, wait at least 5 seconds and

then turn “ON”.

9) Perform “Diagnostic Test Mode II (Self-diagnostic

results)” with ECM.

10) If 1st trip DTC is detected, go to “DIAGNOSTIC

PROCEDURE”, EC-373.

TROUBLE DIAGNOSIS FOR DTC P1110 (B1), P1135 (B2)

Intake Valve Timing Control (P1110: Left bank),
(P1135: Right bank) (Cont’d)

EC-370

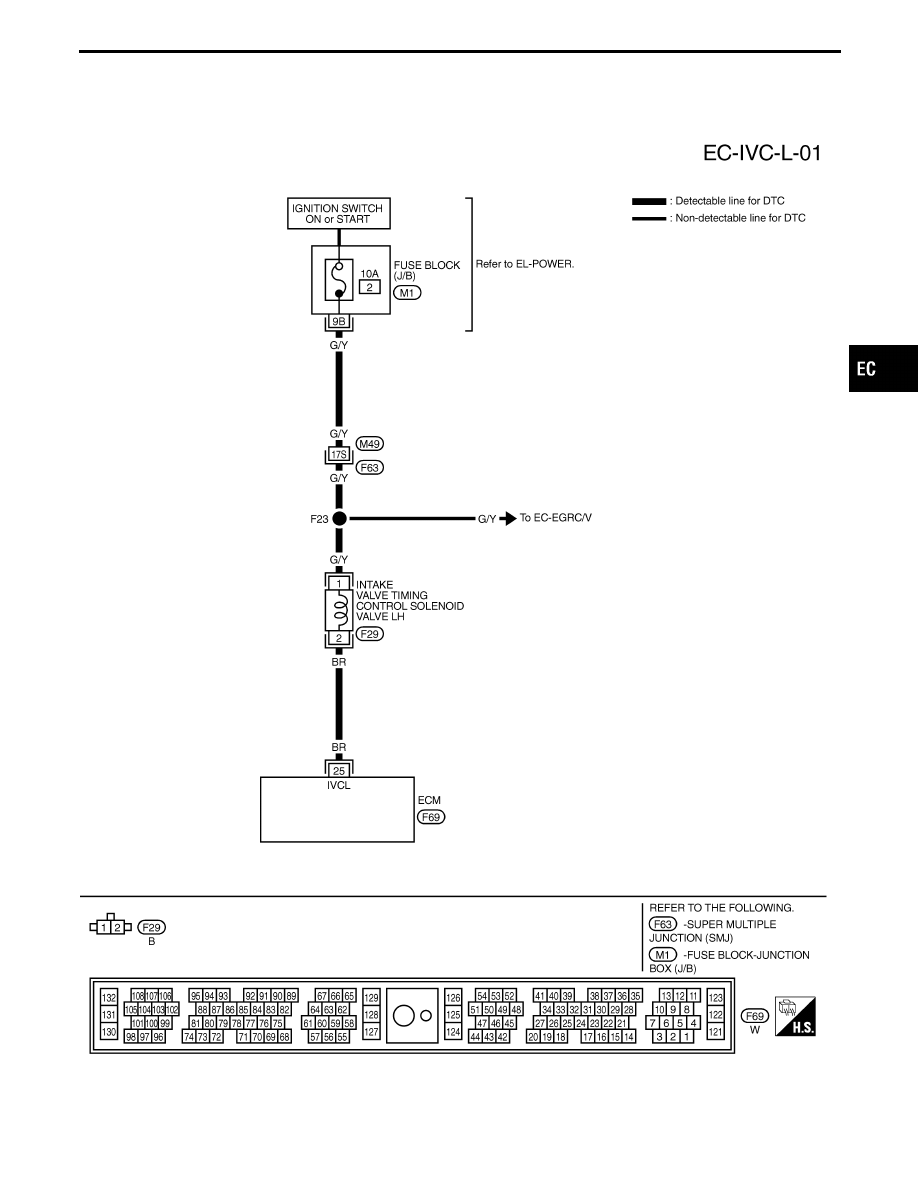

LEFT BANK

TEC064M

GI

MA

EM

LC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR DTC P1110 (B1), P1135 (B2)

Intake Valve Timing Control (P1110: Left bank),
(P1135: Right bank) (Cont’d)

EC-371

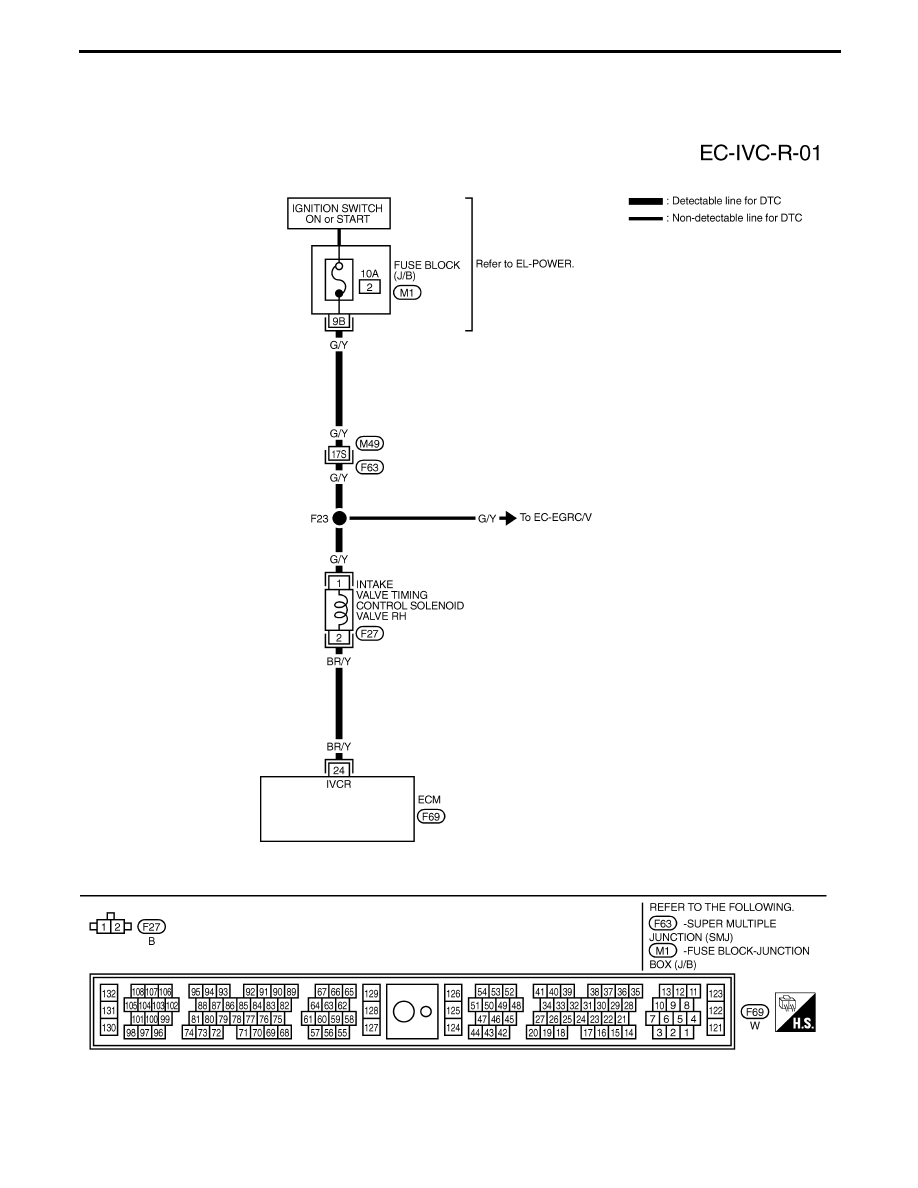

RIGHT BANK

TEC065M

TROUBLE DIAGNOSIS FOR DTC P1110 (B1), P1135 (B2)

Intake Valve Timing Control (P1110: Left bank),
(P1135: Right bank) (Cont’d)

EC-372
