Infiniti Q45 (FY33). Manual - part 167





Diagnostic Trouble

Code No.

Malfunction is detected when ...

Check Items

(Possible Cause)

P0134
0142
(Bank 1)

I

An excessively high voltage from the sensor is sent to ECM.

I

Harness or connectors
(The sensor circuit is open or shorted.)

I

Heated oxygen sensor 1 (front)

P0154
0509
(Bank 2)

SEC026C

DIAGNOSTIC TROUBLE CODE CONFIRMATION
PROCEDURE

NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting
the next test.

With CONSULT-II
1) Start engine and warm it up to normal operating tem-

perature.

2) Turn ignition switch “OFF” and wait at least 5 seconds.

3) Turn ignition switch “ON”.
4) Select “DATA MONITOR” mode with CONSULT-II.
5) Restart engine and let it idle for 32 seconds.
6) If 1st trip DTC is detected, go to “DIAGNOSTIC

PROCEDURE”, EC-200.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ OR ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Wtih GST
1) Start engine and warm it up to normal operating tem-

perature.

2) Turn ignition switch “OFF” and wait at least 5 seconds.
3) Restart engine and let it idle for 32 seconds.
4) Turn ignition switch “OFF” and wait at least 5 seconds.
5) Restart engine and let it idle for 32 seconds.
6) Select “MODE 3” with GST.
7) If

DTC

is

detected,

go

to

“DIAGNOSTIC

PROCEDURE”, EC-200.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ OR ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Not Tools
1) Start engine and warm it up to normal operating tem-

perature.

2) Turn ignition switch “OFF” and wait at least 5 seconds.
3) Restart engine and let it idle for 32 seconds.
4) Turn ignition switch “OFF”, wait at least 5 seconds and

then turn “ON”.

5) Perform “Diagnostic Test Mode II (Self-diagnostic

results)” with ECM.

6) If 1st trip DTC is detected, go to “DIAGNOSTIC

PROCEDURE”, EC-200.

I

When using GST, “DTC CONFIRMATION PROCEDURE”
should be performed twice as much as when using CON-
SULT-II or ECM (Diagnostic Test Mode II) because GST can-
not display MODE 7 (1st trip DTC) concerning this diagno-
sis. Therefore, using CONSULT-II or ECM (Diagnostic Test
Mode II) is recommended.

GI

MA

EM

LC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR DTC P0134 (B1), P0154 (B2)

Heated Oxygen Sensor 1 (Front) (P0134: Bank
1), (P0154: Bank 2) (Cont’d)

EC-197

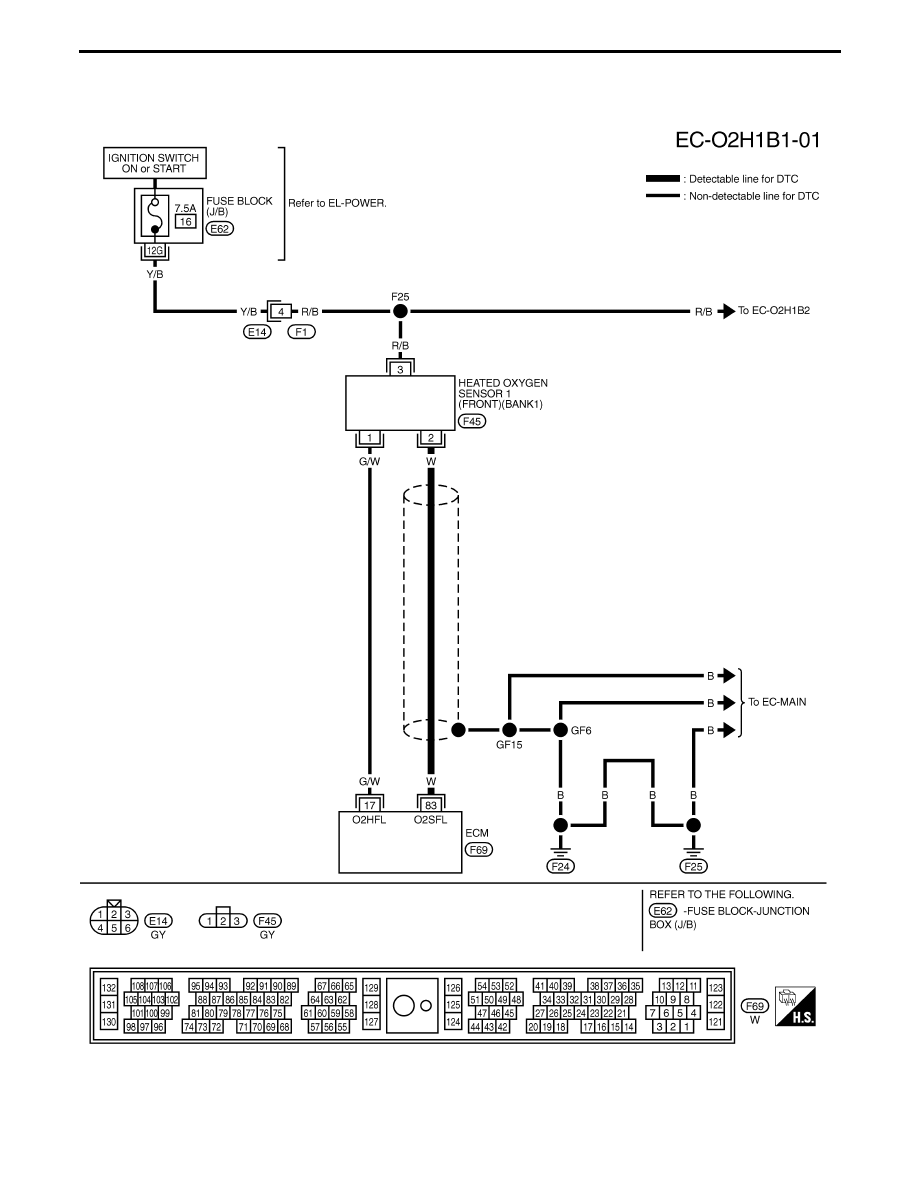

BANK 1

TEC783

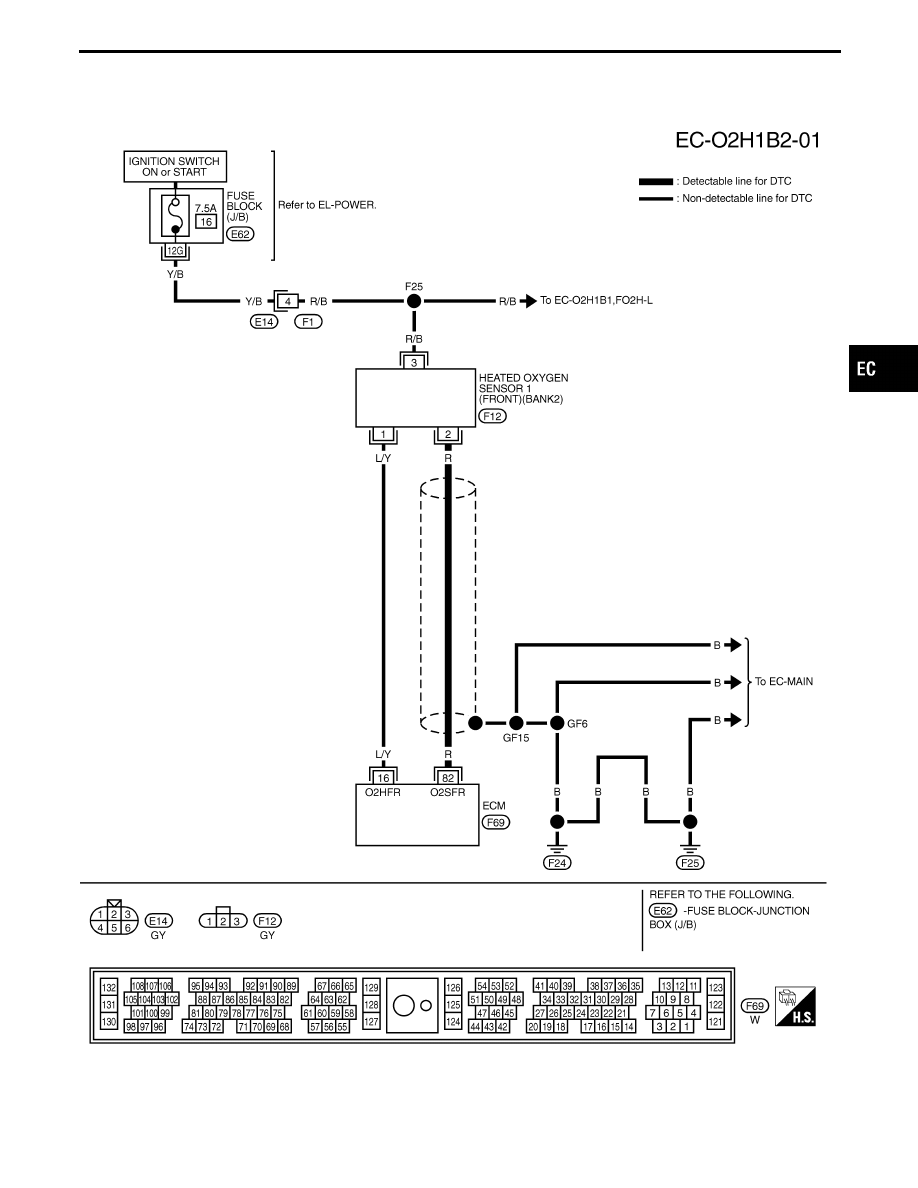

TROUBLE DIAGNOSIS FOR DTC P0134 (B1), P0154 (B2)

Heated Oxygen Sensor 1 (Front) (P0134: Bank
1), (P0154: Bank 2) (Cont’d)

EC-198

BANK 2

TEC784

GI

MA

EM

LC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR DTC P0134 (B1), P0154 (B2)

Heated Oxygen Sensor 1 (Front) (P0134: Bank
1), (P0154: Bank 2) (Cont’d)

EC-199

SEF833UA

SEF377U

SEF054TI

SEF056TH

SEF409WA

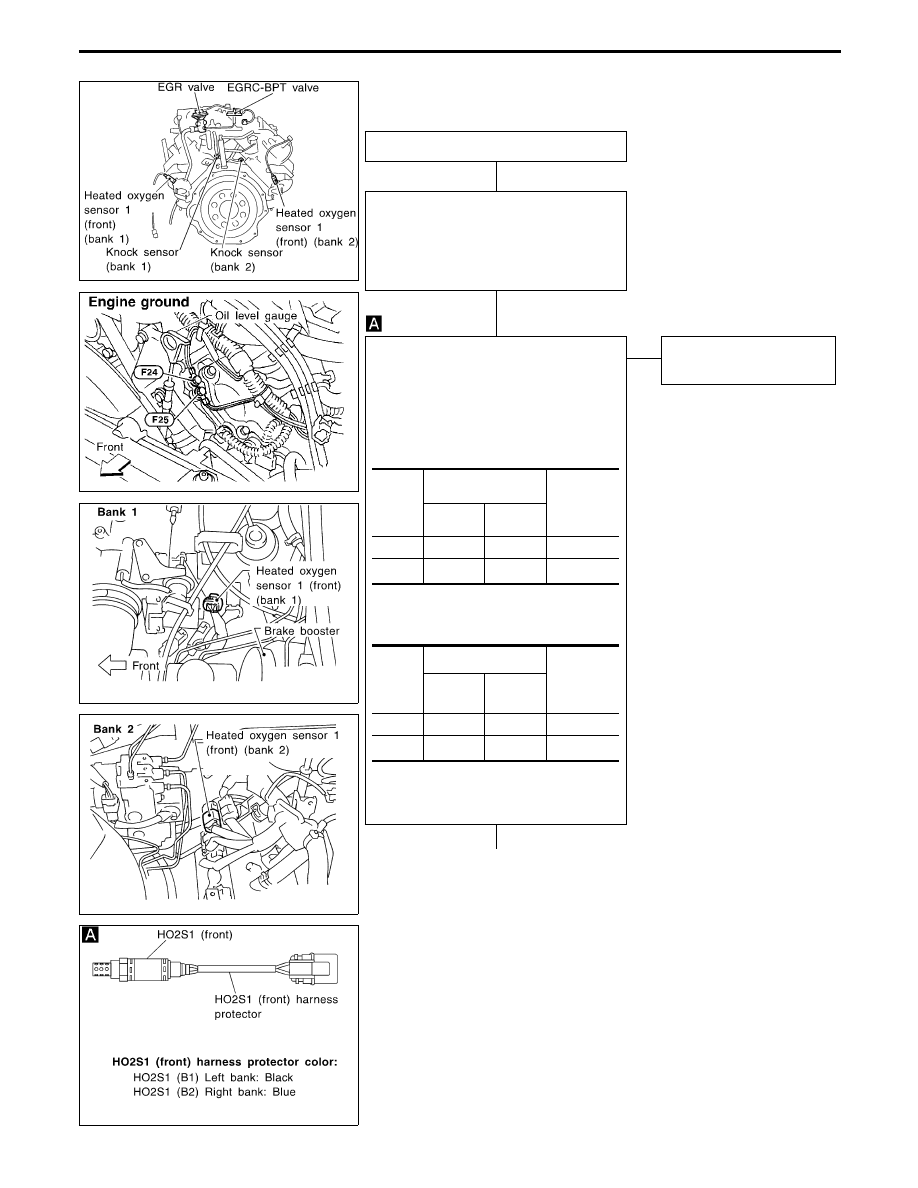

DIAGNOSTIC PROCEDURE

INSPECTION START

Loosen and retighten heated oxygen sen-
sor 1 (front).
Tightening torque:

40 - 50 N

m (4.1 - 5.1 kg-m, 30 - 37

ft-lb)

CHECK INPUT SIGNAL CIRCUIT.
1. Turn ignition switch “OFF”.
2. Disconnect corresponding heated oxy-

gen sensor 1 (front) harness connector
and ECM harness connector.

3. Check harness continuity between ECM

and sensor terminals.

Continuity should exist.

4. Check harness continuity between ECM

and sensor or ground.

Continuity should not exist.
If OK, check harness for short to
ground and short to power.

OK

E

NG

Repair harness or connec-
tors.

q

A

(Go to next page.)

DTC

Terminals

Bank

(Harness

protector

color)

ECM

Sensor

P0134

83

2

B1 (Black)

P0154

82

2

B2 (Blue)

DTC

Terminals

Bank

(Harness

protector

color)

ECM or

sensor

Ground

P0134

83 or 2

Ground

B1 (Black)

P0154

82 or 2

Ground

B2 (Blue)

TROUBLE DIAGNOSIS FOR DTC P0134 (B1), P0154 (B2)

Heated Oxygen Sensor 1 (Front) (P0134: Bank
1), (P0154: Bank 2) (Cont’d)

H

H

H

EC-200
