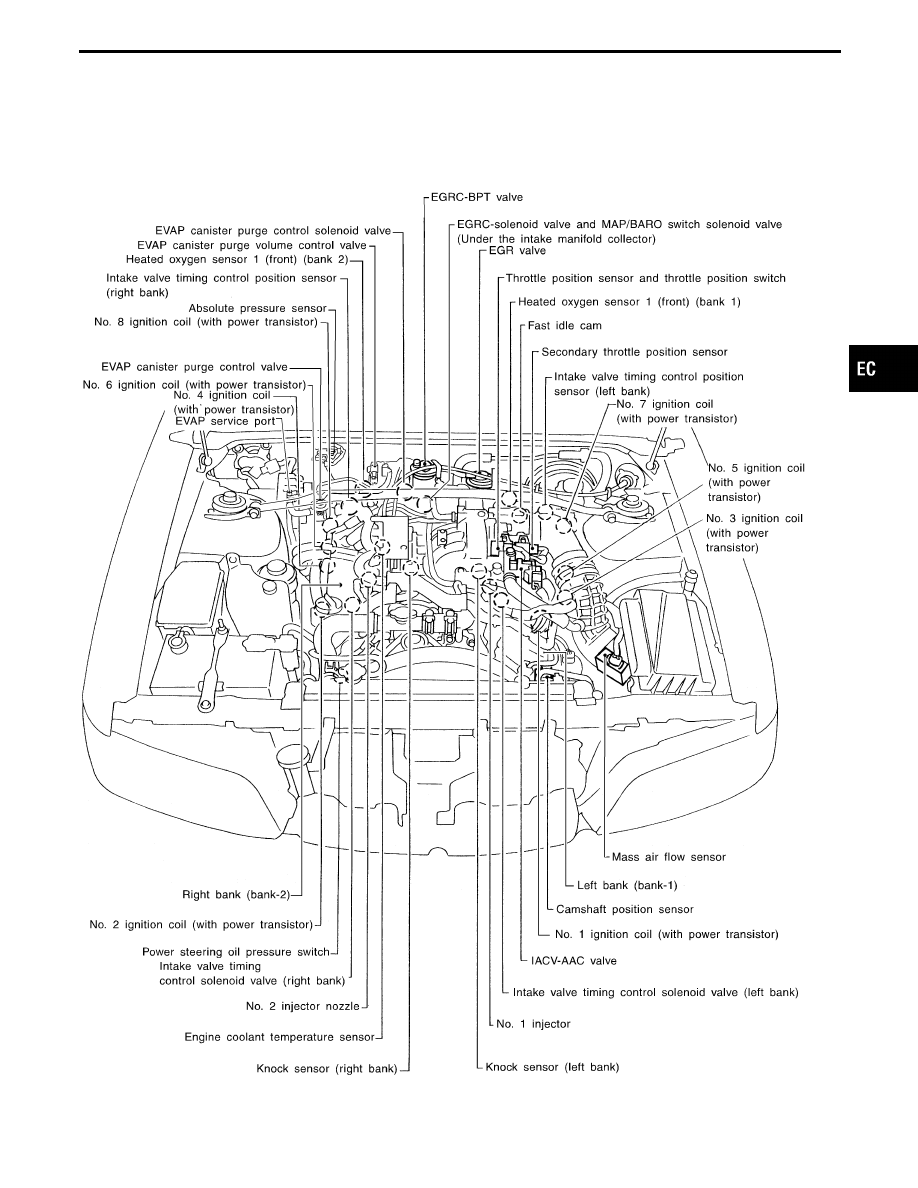

Engine Control Component Parts Location

SEF347WA

GI

MA

EM

LC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

ENGINE AND EMISSION CONTROL OVERALL SYSTEM

EC-17

SEF348WA

SEF554T

SEF392WA

SEF386X

SEF037T

SEF038TA

SEF039TA

SEF349W

ENGINE AND EMISSION CONTROL OVERALL SYSTEM

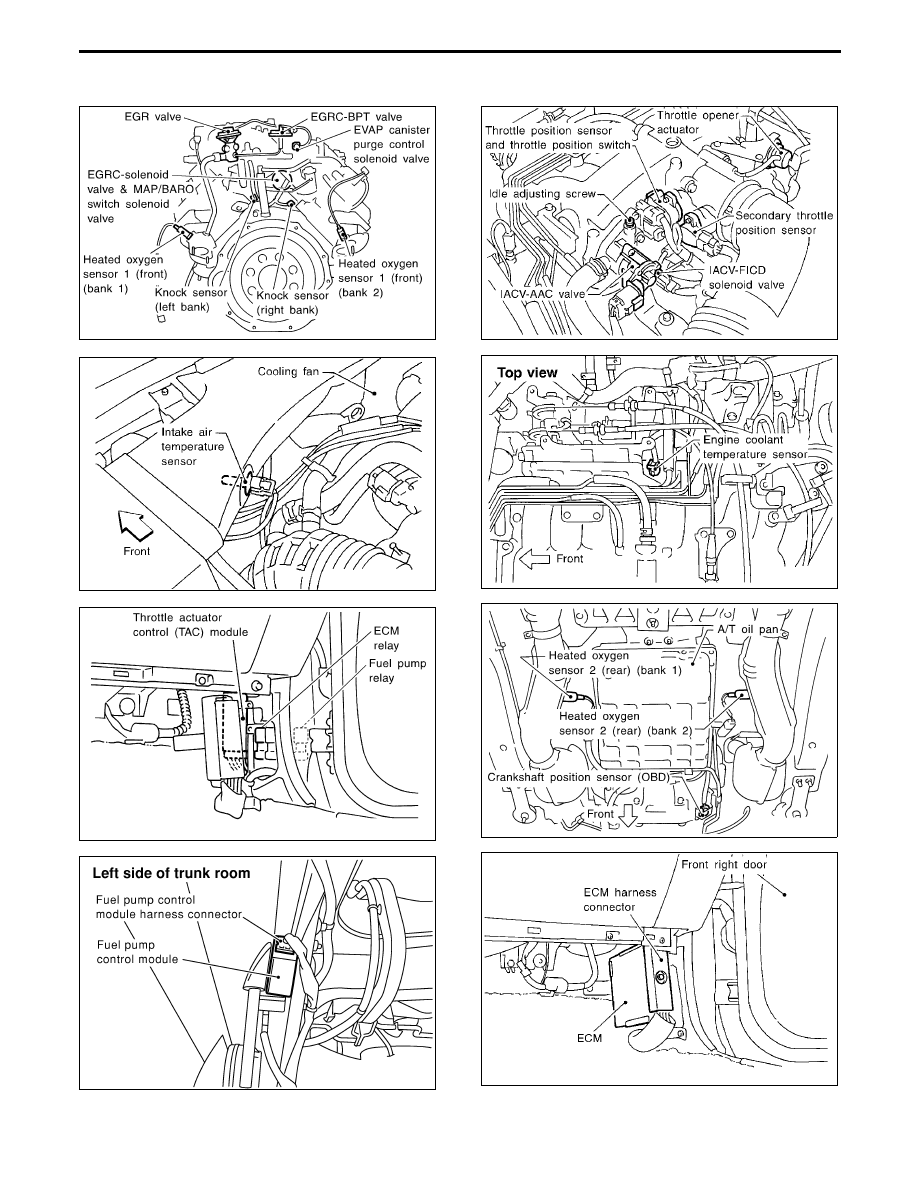

Engine Control Component Parts Location
(Cont’d)

EC-18

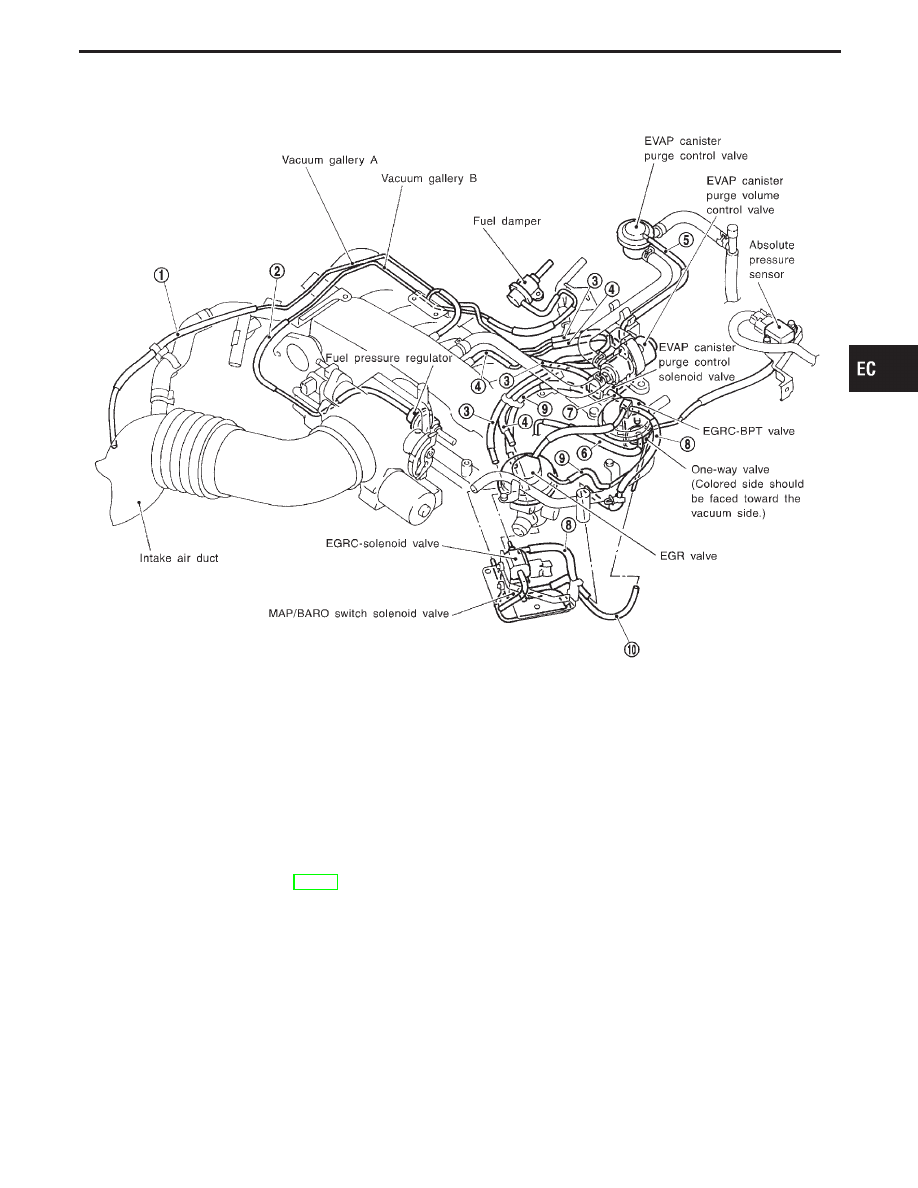

Vacuum Hose Drawing

SEF208U

q

1

Intake air duct to vacuum gallery A

q

2

Fuel pressure regulator to vacuum gallery B

q

3

Vacuum gallery A to EGRC-solenoid valve, MAP/BARO

switch solenoid valve and EVAP canister purge control

solenoid valve

q

4

Intake manifold collector to EGRC-solenoid valve

q

5

EVAP canister purge control valve to EVAP canister purge

control solenoid valve

q

6

Intake manifold collector to One-way valve

q

7

One-way valve to EVAP canister purge control solenoid

valve

q

8

EGRC-BPT valve to EGRC-solenoid valve

q

9

Intake manifold collector to MAP/BARO switch solenoid

valve

q

10

Absolute pressure sensor to MAP/BARO switch solenoid

valve

Refer to “System Diagram”, EC-16, for vacuum control system.
