Infiniti Q45 (FY33). Manual - part 109

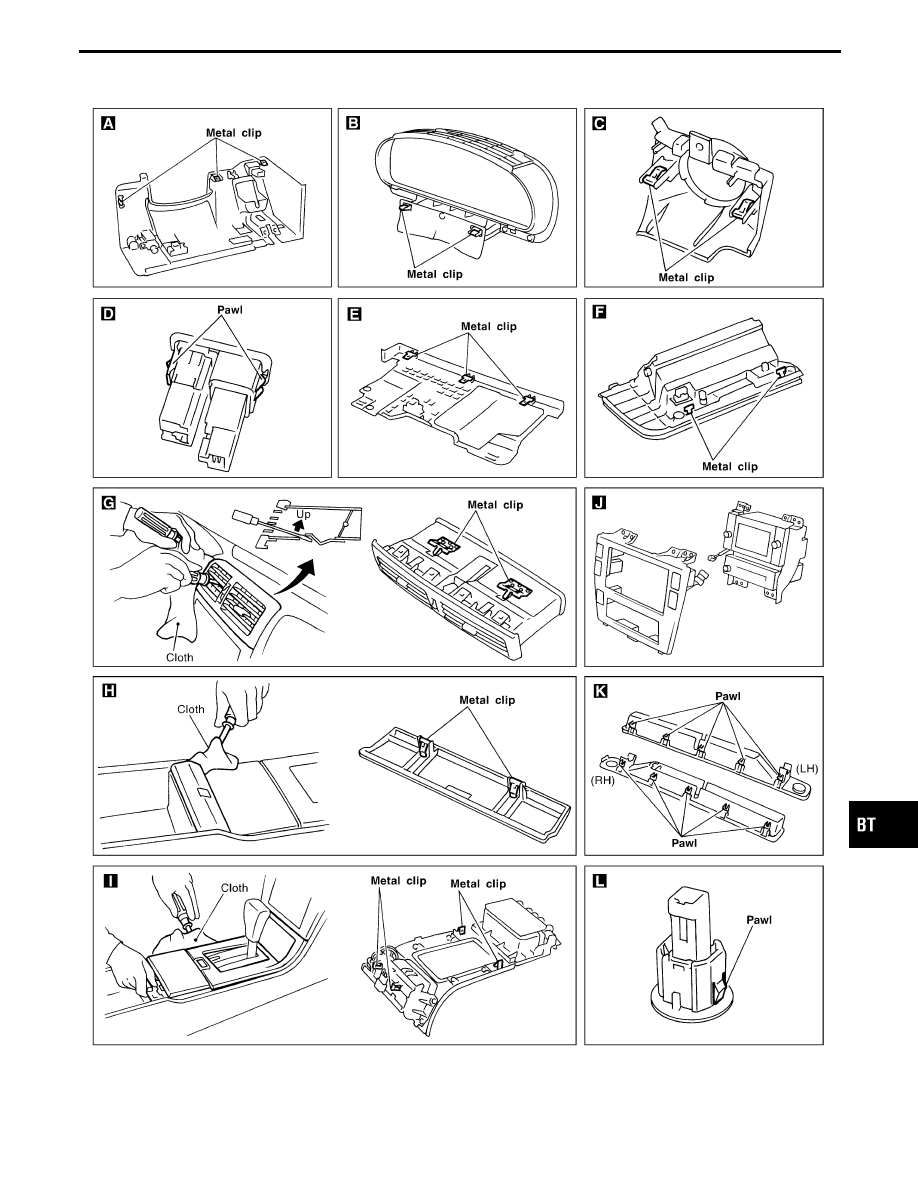

MBT100A

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

HA

EL

IDX

INSTRUMENT PANEL

BT-25

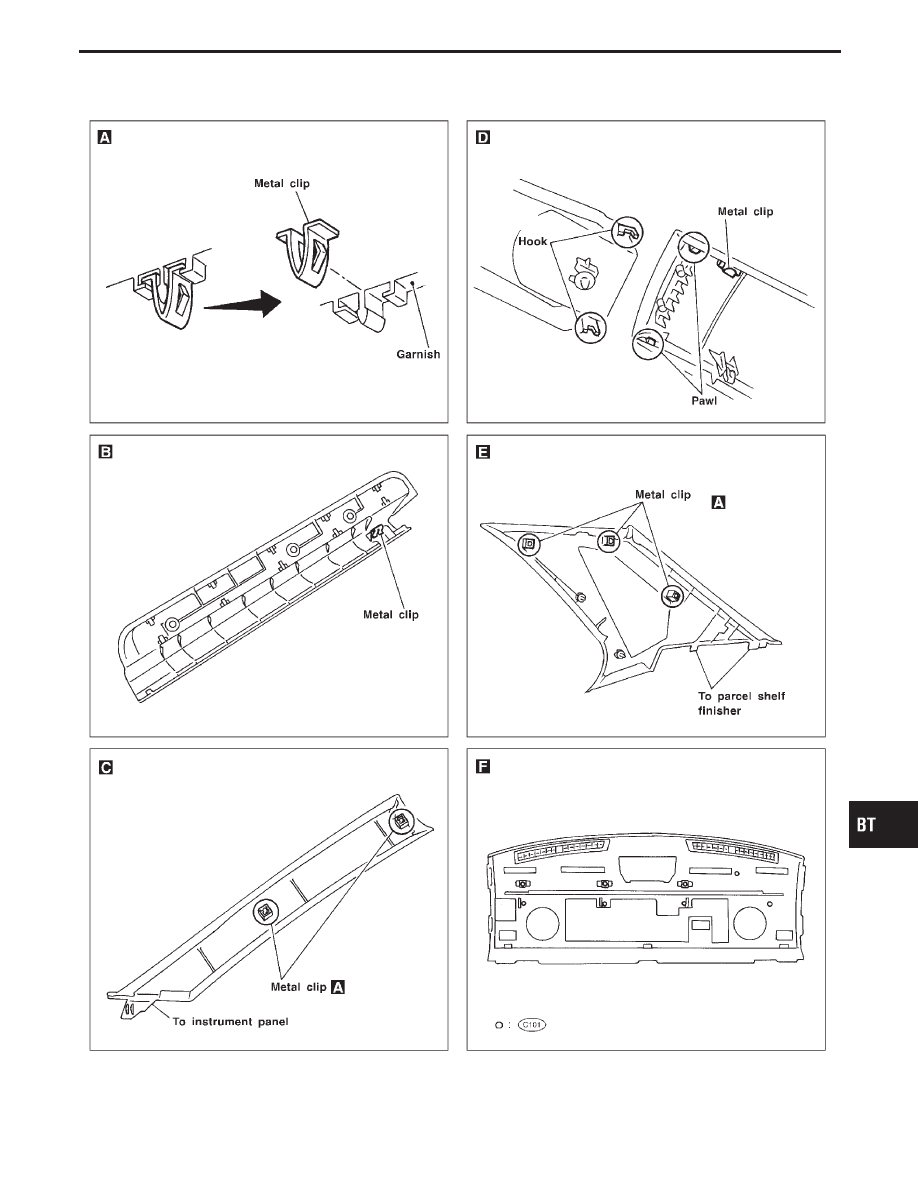

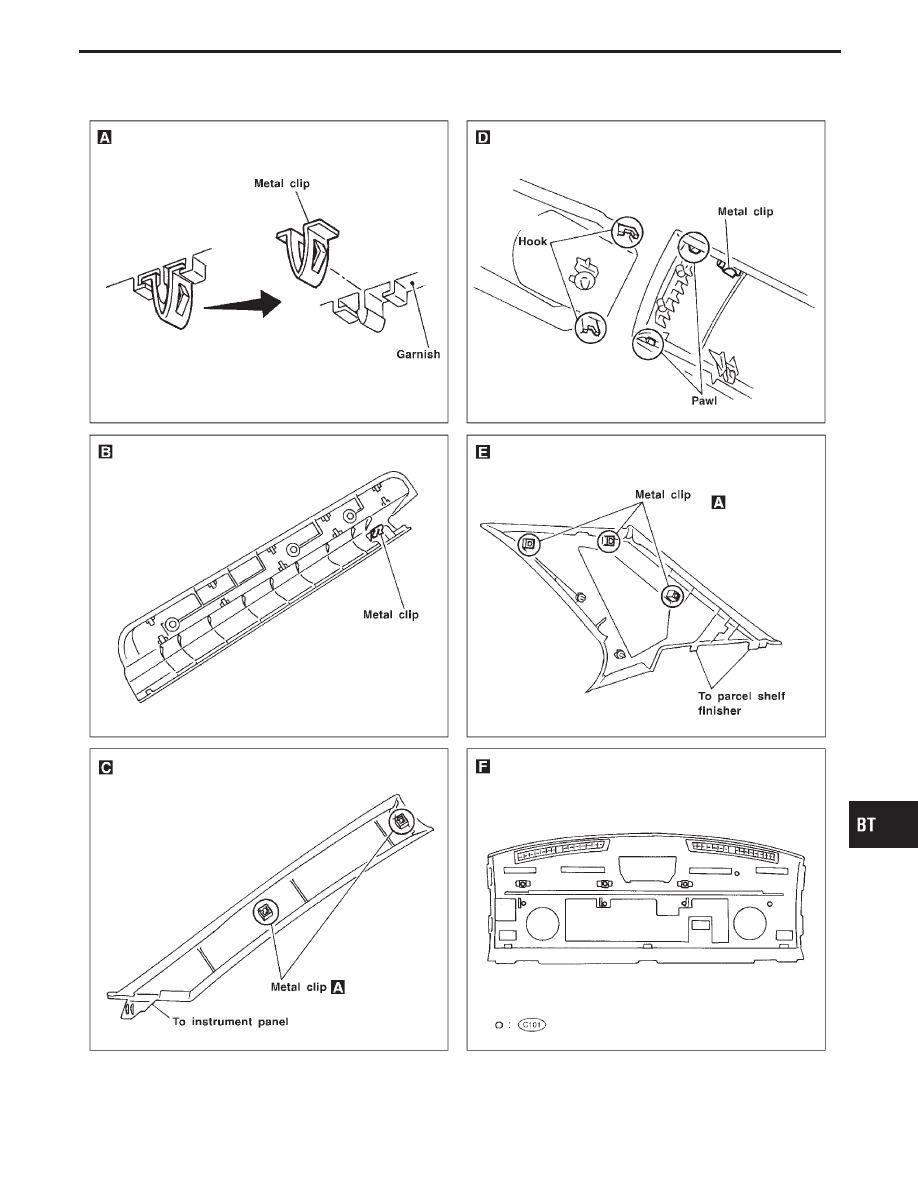

Side and Floor Trim

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

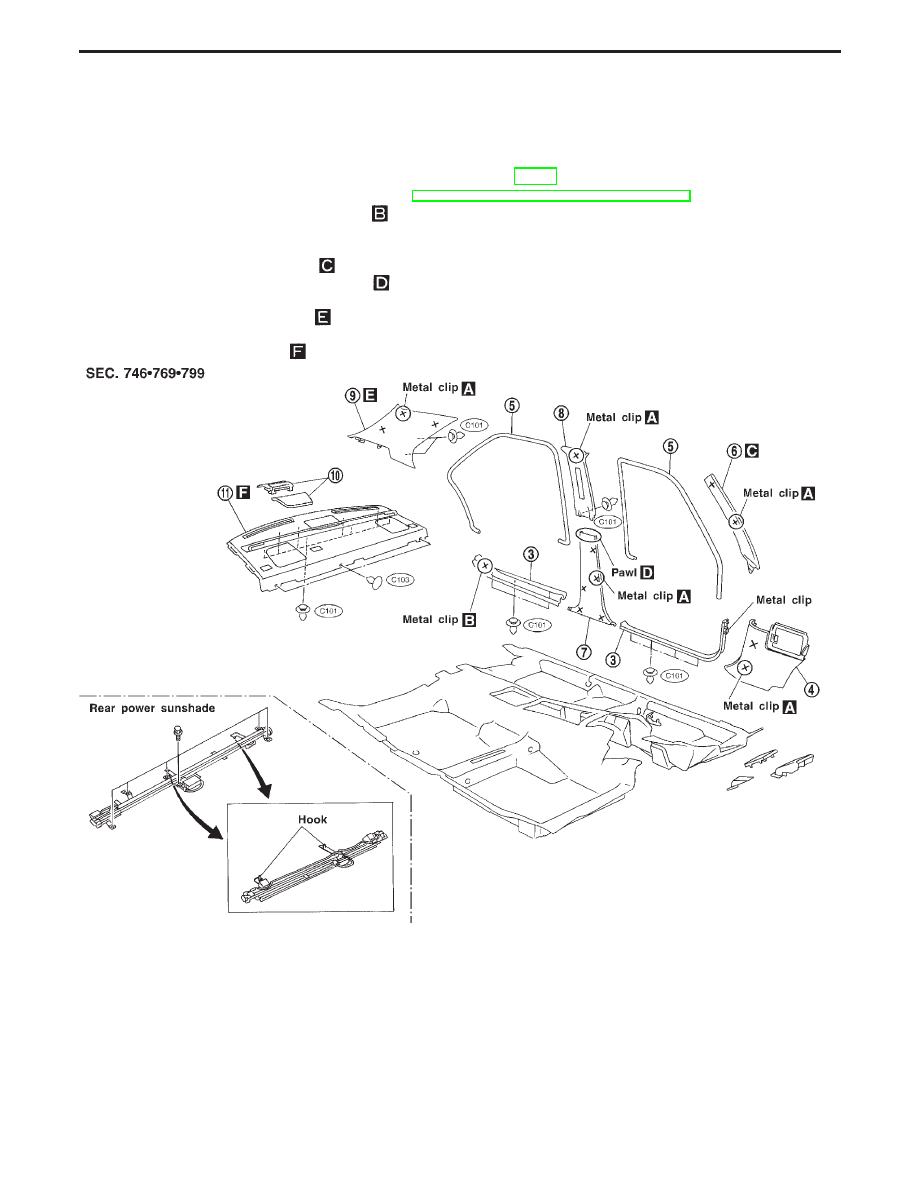

REMOVAL — Body side trim

q

1

Remove front and rear seats. Refer to “SEAT” for details, BT-42.

q

2

Remove front and rear seat belts. Refer to “SEAT BELTS” in RS section for details.

q

3

Remove front and rear kicking plates.

q

4

Remove dash side lower finishers.

q

5

Remove front and rear body side welts.

q

6

Remove front pillar garnishes.

q

7

Remove center pillar lower garnishes.

q

8

Remove center pillar upper garnishes.

q

9

Remove rear pillar garnishes.

q

10

Remove high-mounted stop lamp cover and high-mounted stop lamp.

q

11

Remove rear parcel shelf.

SBT667

INTERIOR TRIM

BT-26

SBT668-A

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

HA

EL

IDX

INTERIOR TRIM

Side and Floor Trim (Cont’d)

BT-27

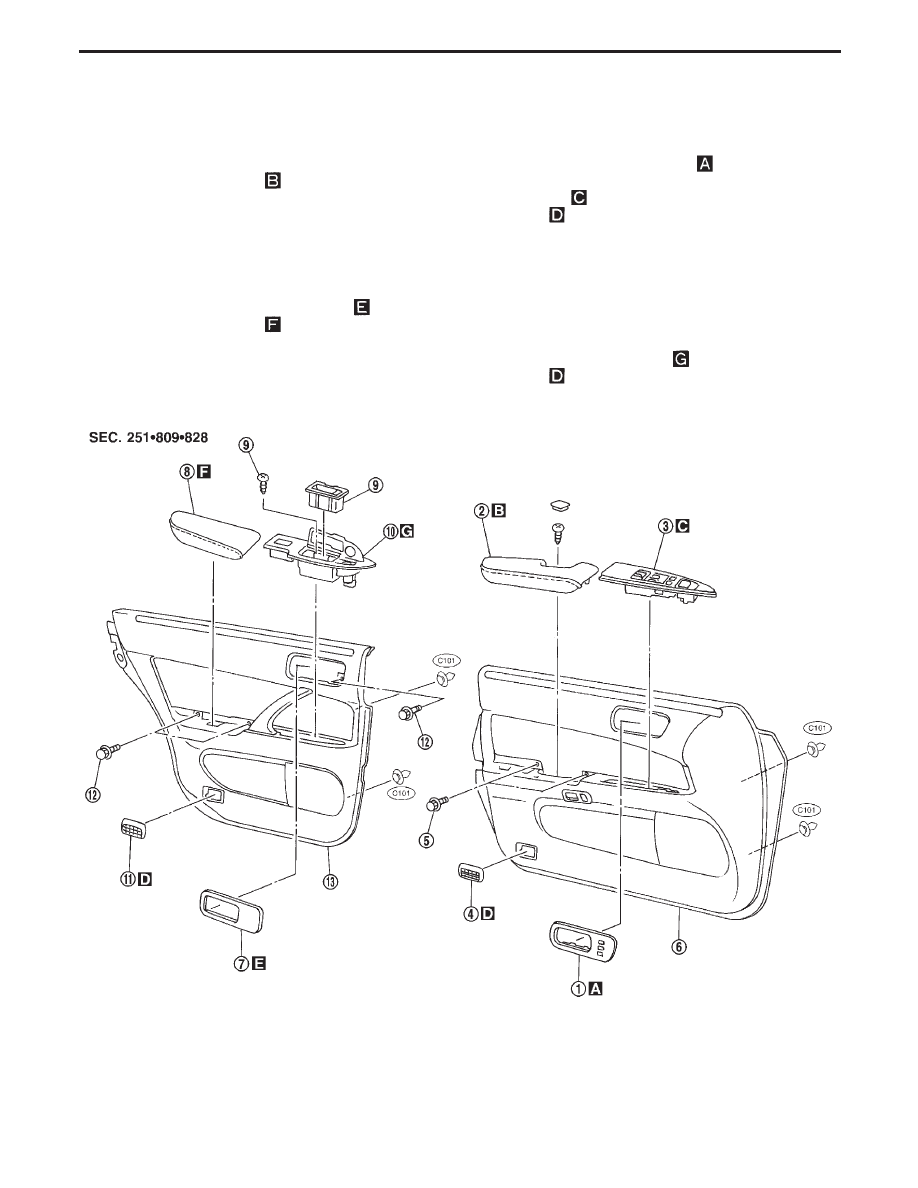

Door Trim

REMOVAL — Door trim

Front door trim

q

1

Remove inside handle escutcheon, then disconnect auto drive positioner connector.

q

2

Remove door armrest.

q

3

Remove power window switches, then disconnect the connectors.

q

4

Remove door step lamp, then disconnect step lamp connector.

q

5

Remove bolts securing door finisher.

q

6

Pull on door finisher to remove clip from door panel and remove door finisher, then disconnect trunk lid
and fuel lid opener switch connector.

Rear door trim

q

7

Remove inside handle escutcheon.

q

8

Remove door armrest.

q

9

Remove ash tray, then remove screw securing power window switch.

q

10

Remove power window switch, then disconnect power window switch connector.

q

11

Remove door step lamp, then disconnect step lamp connector.

q

12

Remove bolts securing door finisher.

q

13

Pull on door finisher to remove clips from door panel and remove door finisher.

SBT289-A

INTERIOR TRIM

BT-28
