Infiniti Q45 (FY33). Manual - part 34





SAT341H

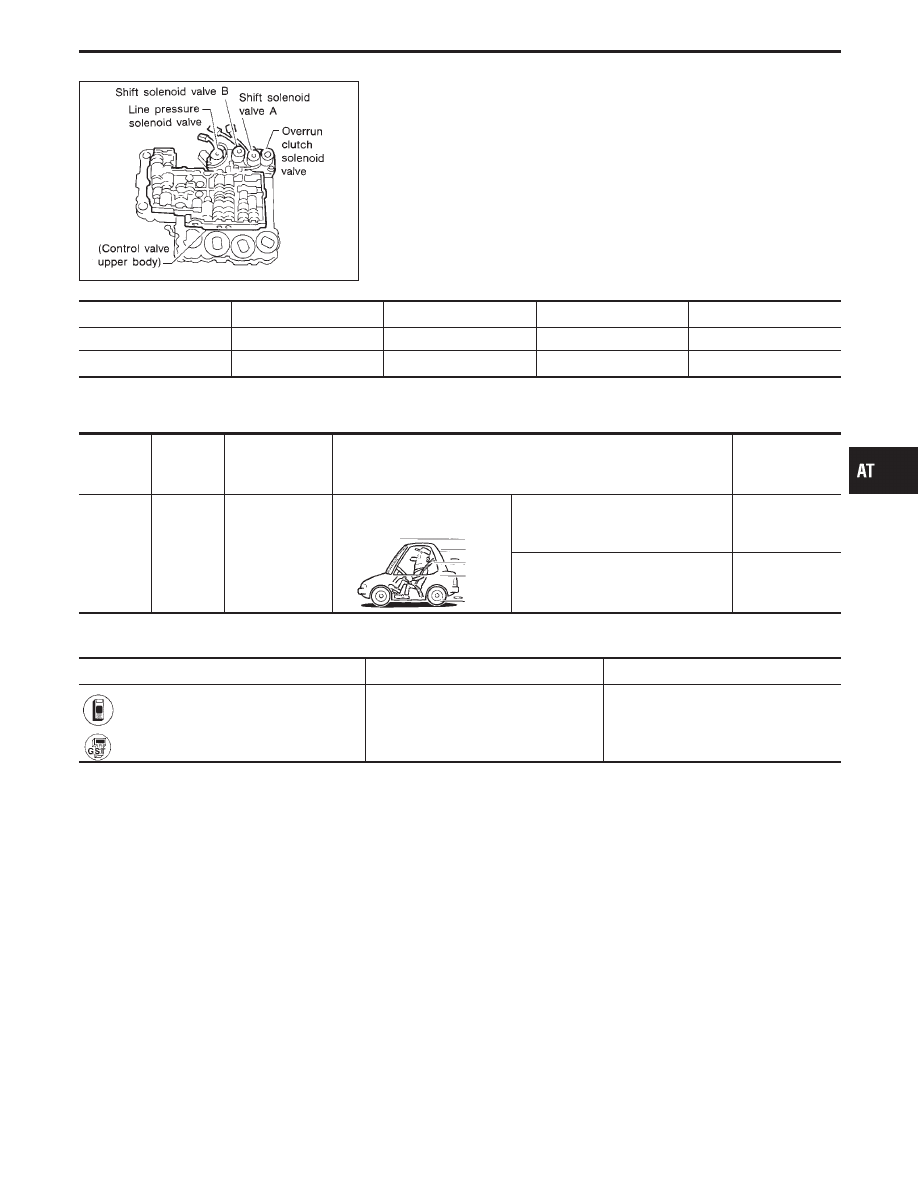

Shift Solenoid Valve B

DESCRIPTION

Shift solenoid valves A and B are turned “ON” or “OFF” by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.

Gear position

1

2

3

4

Shift solenoid valve A

ON (Closed)

OFF (Open)

OFF (Open)

ON (Closed)

Shift solenoid valve B

ON (Closed)

ON (Closed)

OFF (Open)

OFF (Open)

TCM TERMINALS AND REFERENCE VALUE

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

7

LG/B

Shift solenoid
valve B

When shift solenoid valve B oper-
ates.
(When driving in “D

1

” or “D

2

”.)

Battery voltage

When shift solenoid valve B does
not operate.
(When driving in “D

3

” or “D

4

”.)

0V

ON BOARD DIAGNOSIS LOGIC

Diagnostic trouble code

Malfunction is detected when ...

Check item (Possible cause)

: SFT SOL B/CIRC

TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.

I

Harness or connectors
(The solenoid circuit is open or
shorted.)

I

Shift solenoid valve B

: P0755

GI

MA

EM

LC

EC

FE

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR DTC P0755

AT-133

SAT014K

SEF949Y

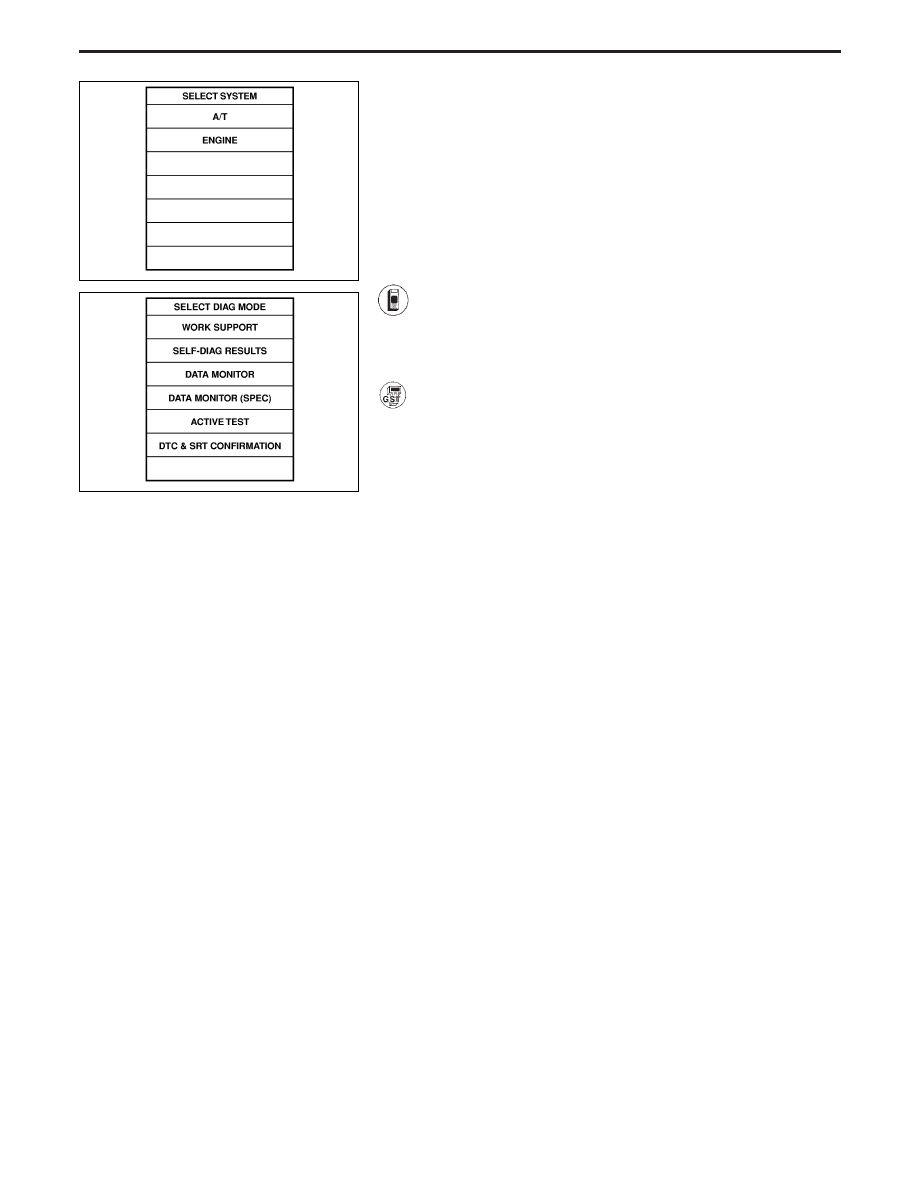

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMA-
TION PROCEDURE

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.

1)

Turn ignition switch “ON” and select “DATA MONITOR”
mode for “ENGINE” with CONSULT-II.

2)

Start engine.

3)

Drive vehicle in “D” position and allow the transmission
to shift 1

,

2

,

3 (“GEAR”).

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ OR ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Follow the procedure “With CONSULT-II”.

TROUBLE DIAGNOSIS FOR DTC P0755

Shift Solenoid Valve B (Cont’d)

AT-134

SAT555I

SAT390J

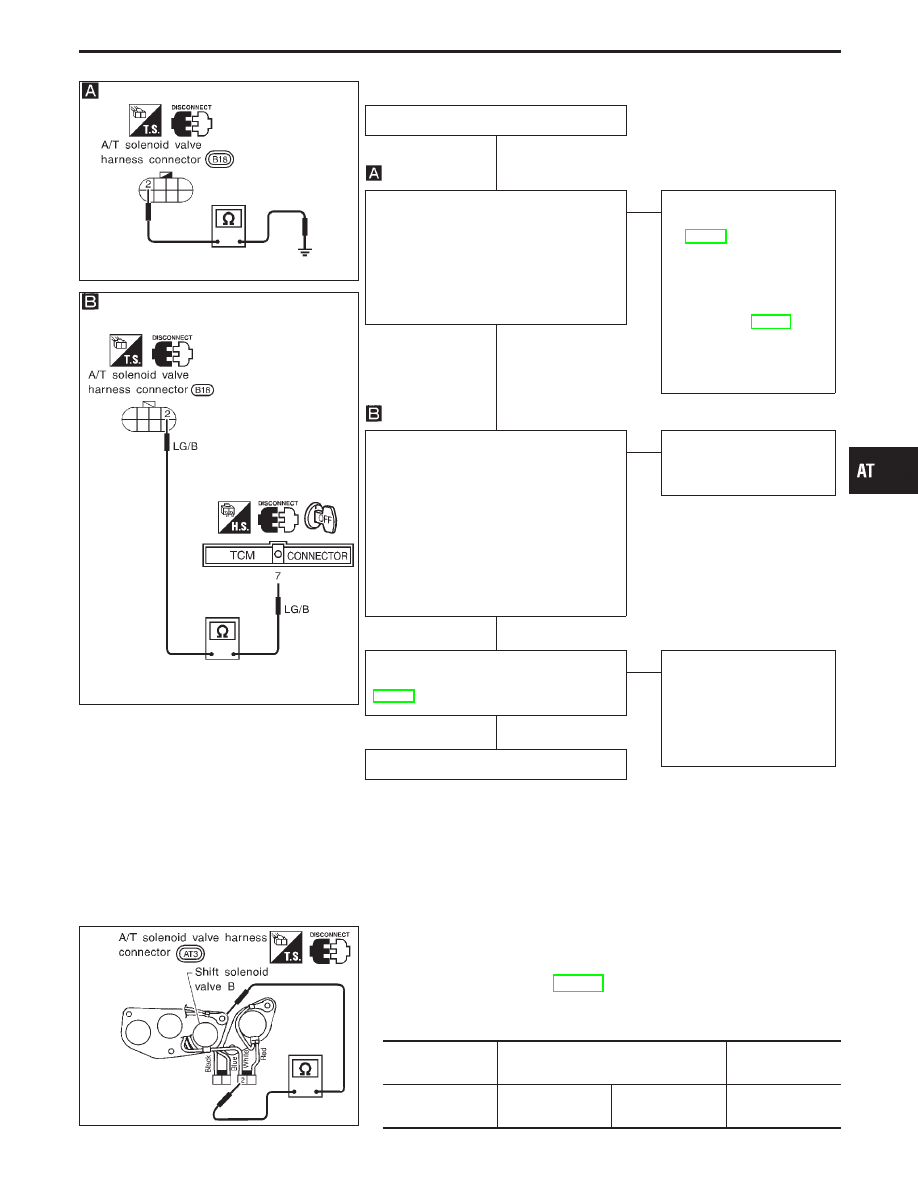

DIAGNOSTIC PROCEDURE

INSPECTION START

CHECK GROUND CIRCUIT.
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly con-

nector at the end of A/T assembly.

3. Check resistance between terminal

q

2

and ground.
Resistance: 20 - 40

OK

E

NG

1. Remove control valve

assembly. Refer to
AT-195.

2. Check the following

items:

I

Shift solenoid valve B
Refer to “Component
Inspection”, AT-135.

I

Harness of terminal cord
assembly for short or
open

CHECK POWER SOURCE CIRCUIT.
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal

q

2

and TCM harness connector terminal

q

7

.

Continuity should exist.
If OK, check harness for short to
ground and short to power.

4. Reinstall any part removed.

OK

E

NG

Repair open circuit or short
to ground or short to power
in harness or connectors.

Perform DIAGNOSTIC TROUBLE CODE
(DTC) CONFIRMATION PROCEDURE,
AT-134.

OK

E

NG

1. Perform TCM input/

output signal inspection.

2. If NG, recheck TCM pin

terminals for damage or
loose connection with
harness connector.

INSPECTION END

SAT535I

COMPONENT INSPECTION

Shift solenoid valve B

I

For removal, refer to AT-195.

Resistance check

I

Check resistance between two terminals.

Solenoid valve

Terminal No.

Resistance

(Approx.)

Shift solenoid
valve B

q

2

Ground

20 - 40

GI

MA

EM

LC

EC

FE

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR DTC P0755

Shift Solenoid Valve B (Cont’d)

H

H

H

H

AT-135

SAT534I

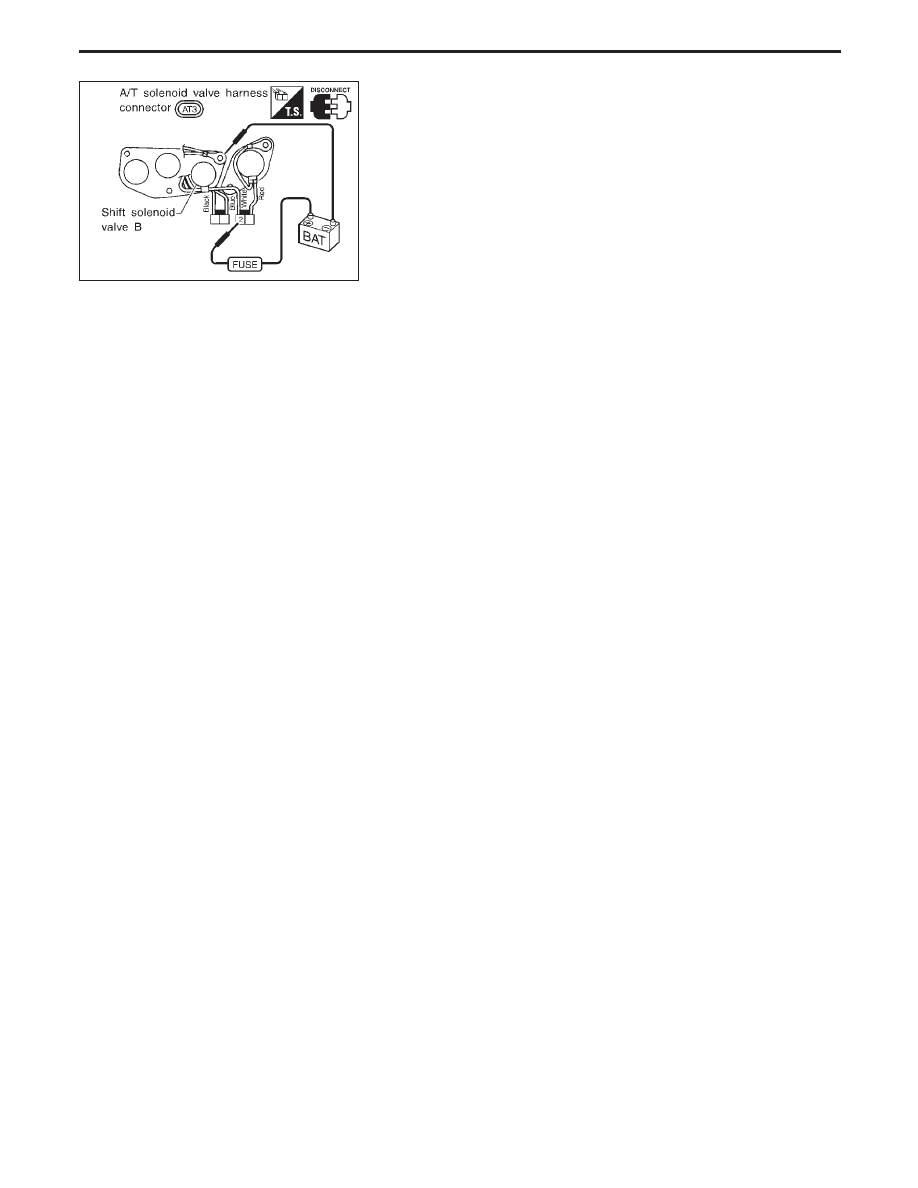

Operation check

I

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.

TROUBLE DIAGNOSIS FOR DTC P0755

Shift Solenoid Valve B (Cont’d)

AT-136
