Infiniti Q45 (FY33). Manual - part 29





SAT539I

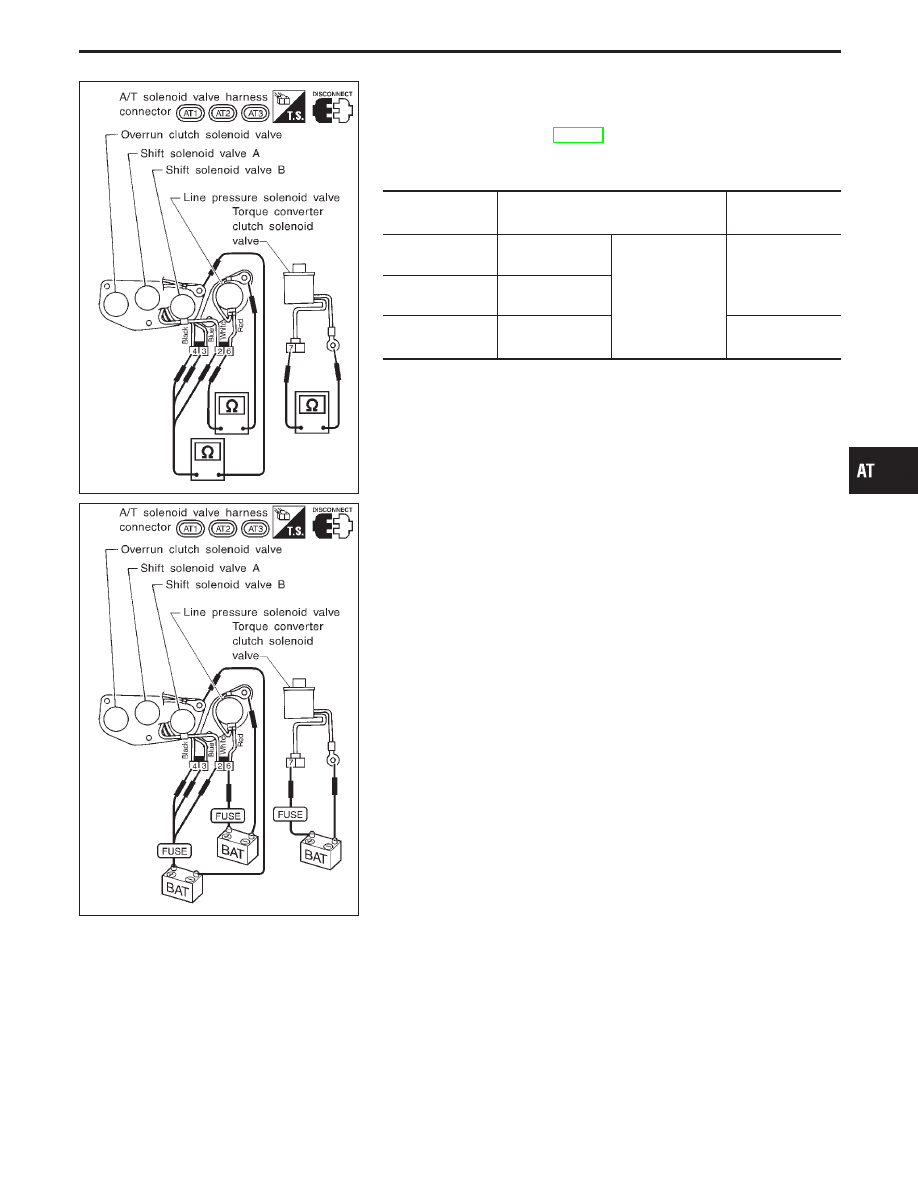

COMPONENT INSPECTION

Solenoid valves

I

For removal, refer to AT-195.

Resistance check

I

Check resistance between two terminals.

Solenoid valve

Terminal No.

Resistance

(Approx.)

Shift solenoid
valve A

q

3

Ground

20 - 40

Shift solenoid
valve B

q

2

Line pressure
solenoid valve

q

6

2.5 - 5

SAT538I

Operation check

I

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.

GI

MA

EM

LC

EC

FE

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR DTC P0734

A/T 4th Gear Function (Cont’d)

AT-113

SAT342HA

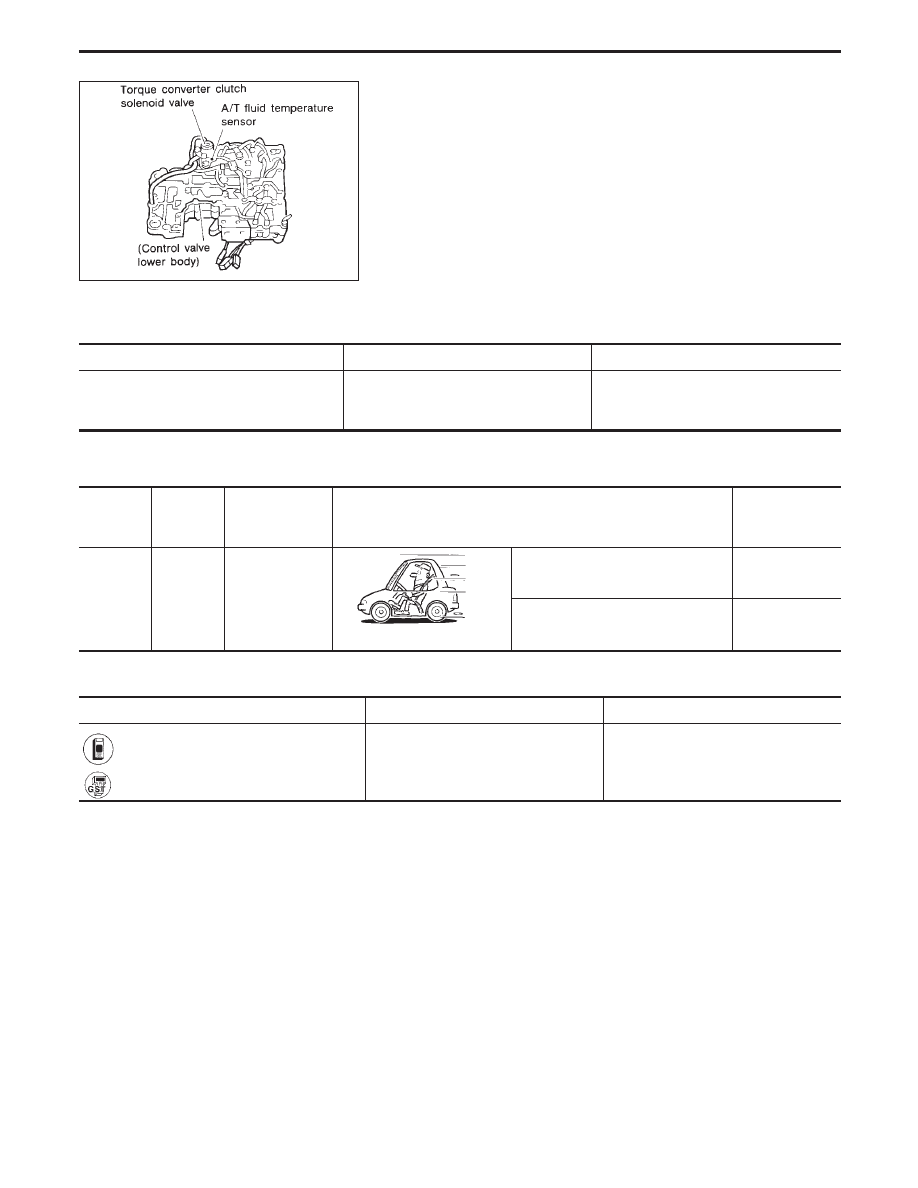

Torque Converter Clutch Solenoid Valve

DESCRIPTION

The torque converter clutch solenoid valve is activated, with the
gear in “D

4

”, by the TCM in response to signals sent from the

vehicle speed and throttle position sensors. Lock-up piston opera-
tion will then be controlled.
Lock-up operation, however, is prohibited when A/T fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is
a big jump in engine speed, there is no lock-up.

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE

Remarks: Specification data are reference values.

Monitor item

Condition

Specification

Torque converter clutch solenoid valve duty

Lock-up “OFF”

"

Lock-up “ON”

Approximately 4%

"

Approximately 94%

TCM TERMINALS AND REFERENCE VALUE

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

5

G/B

Torque converter
clutch solenoid
valve

When A/T performs lock-up.

8 - 15V

When A/T does not perform lock-up.

0V

ON BOARD DIAGNOSIS LOGIC

Diagnostic trouble code

Malfunction is detected when ...

Check item (Possible cause)

: TCC SOLENOID/CIRC

TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.

I

Harness or connectors
(The solenoid circuit is open or
shorted.)

I

T/C clutch solenoid valve

: P0740

TROUBLE DIAGNOSIS FOR DTC P0740

AT-114

SAT014K

SEF949Y

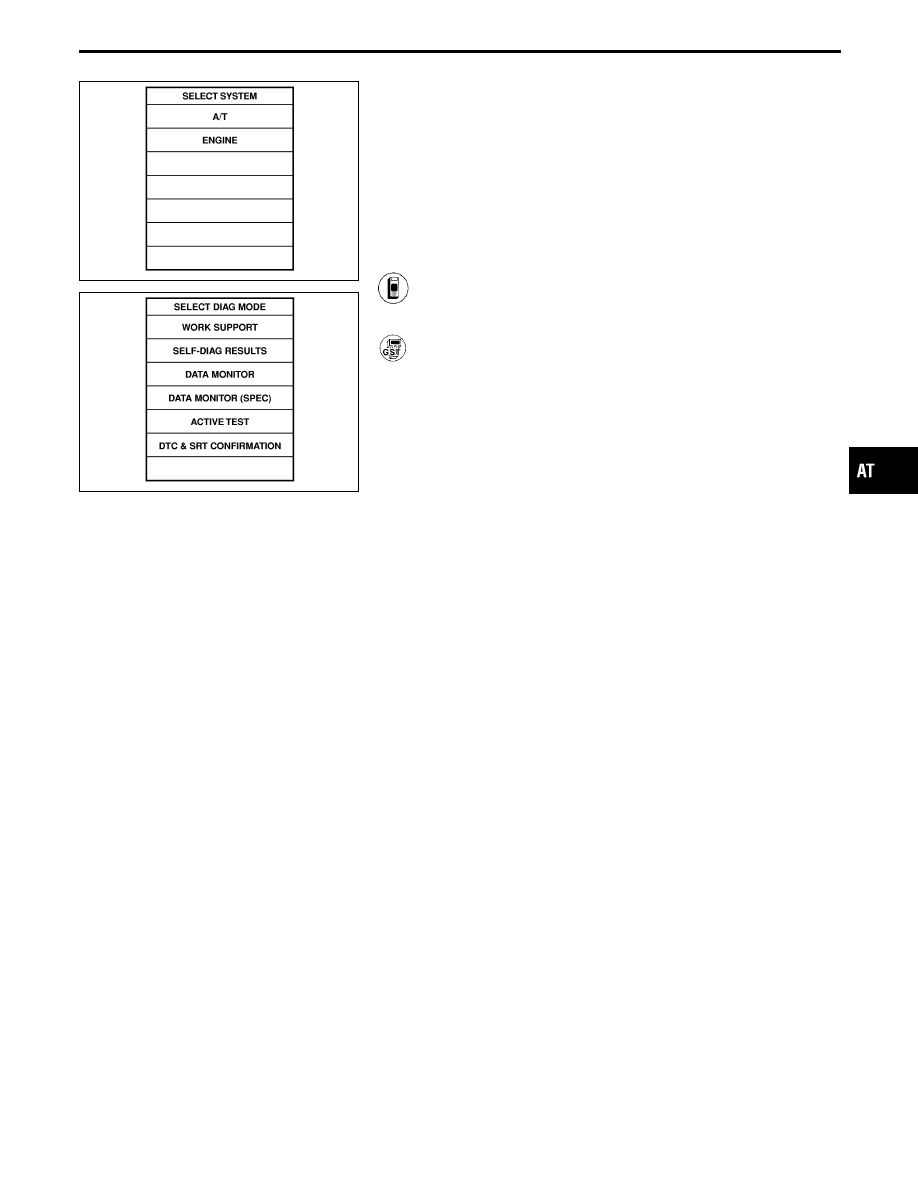

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMA-
TION PROCEDURE

NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode for “ENGINE” with
CONSULT-II and wait at least 1 second.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ OR ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Follow the procedure “With CONSULT-II”.

GI

MA

EM

LC

EC

FE

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

TROUBLE DIAGNOSIS FOR DTC P0740

Torque Converter Clutch Solenoid Valve
(Cont’d)

AT-115

SAT541I

SAT387J

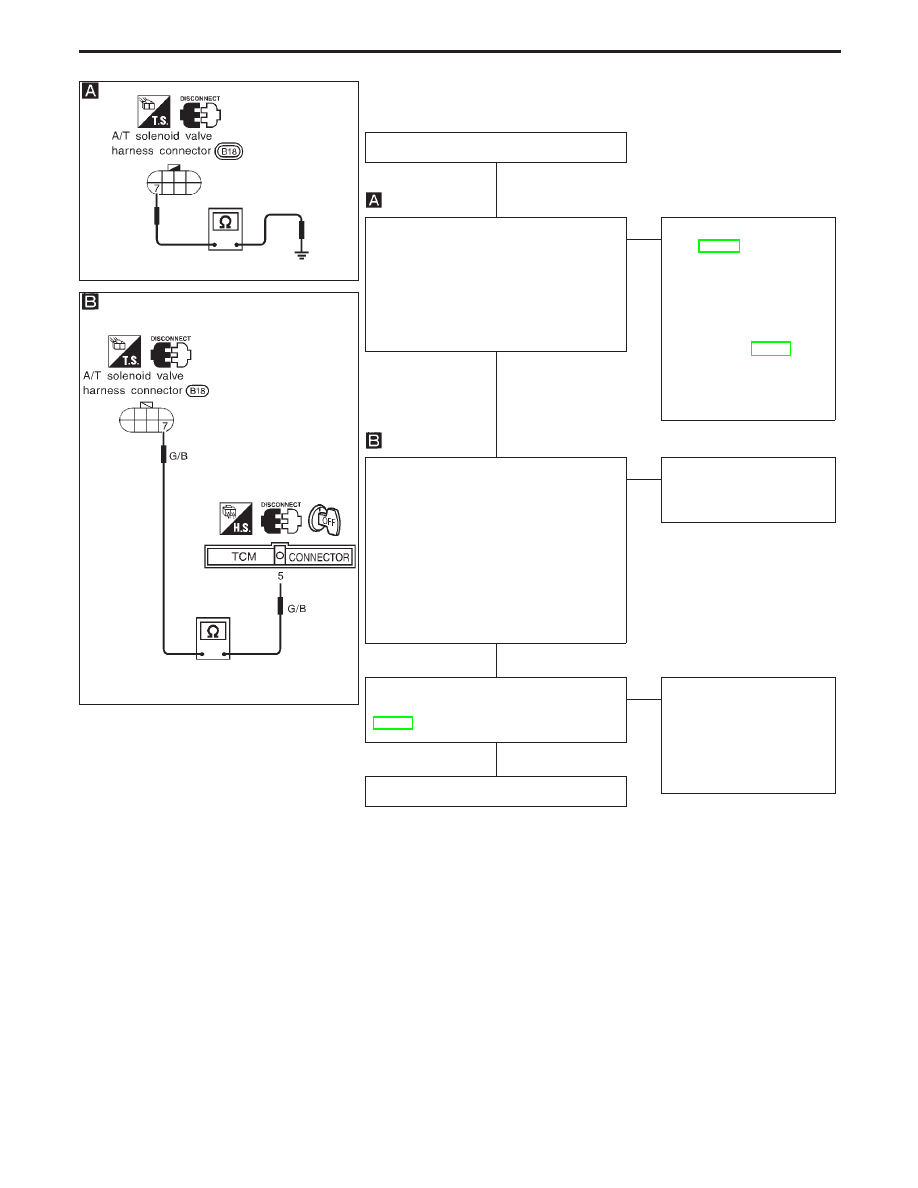

DIAGNOSTIC PROCEDURE

INSPECTION START

CHECK GROUND CIRCUIT.
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly con-

nector at the end of A/T assembly.

3. Check resistance between terminal

q

7

and ground.
Resistance: 10 - 20

OK

E

NG

1. Remove oil pan. Refer

to AT-195.

2. Check the following

items:

I

Torque converter clutch
solenoid valve
Refer to “Component
Inspection”, AT-117.

I

Harness of terminal cord
assembly for short or
open

CHECK POWER SOURCE CIRCUIT.
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal

q

7

and TCM harness connector terminal

q

5

.

Continuity should exist.
If OK, check harness for short to
ground and short to power.

4. Reinstall any part removed.

OK

E

NG

Repair open circuit or short
to ground or short to power
in harness or connectors.

Perform DIAGNOSTIC TROUBLE CODE
(DTC) CONFIRMATION PROCEDURE,
AT-115.

OK

E

NG

1. Perform TCM input/

output signal inspection.

2. If NG, recheck TCM pin

terminals for damage or
loose connection with
harness connector.

INSPECTION END

TROUBLE DIAGNOSIS FOR DTC P0740

Torque Converter Clutch Solenoid Valve
(Cont’d)

H

H

H

H

AT-116
