Infiniti Q45 (FY33). Manual - part 13





Diagnostic Procedure without CONSULT-II

OBD-II SELF-DIAGNOSTIC PROCEDURE (With
GST)

Refer to EC section [“Generic Scan Tool (GST)”, “ON BOARD
DIAGNOSTIC SYSTEM DESCRIPTION”].

OBD-II SELF-DIAGNOSTIC PROCEDURE (No Tools)

Refer to EC section [“Malfunction Indicator Lamp (MIL)”, “ON
BOARD DIAGNOSTIC SYSTEM DESCRIPTION”].

SAT491J

SAT521I

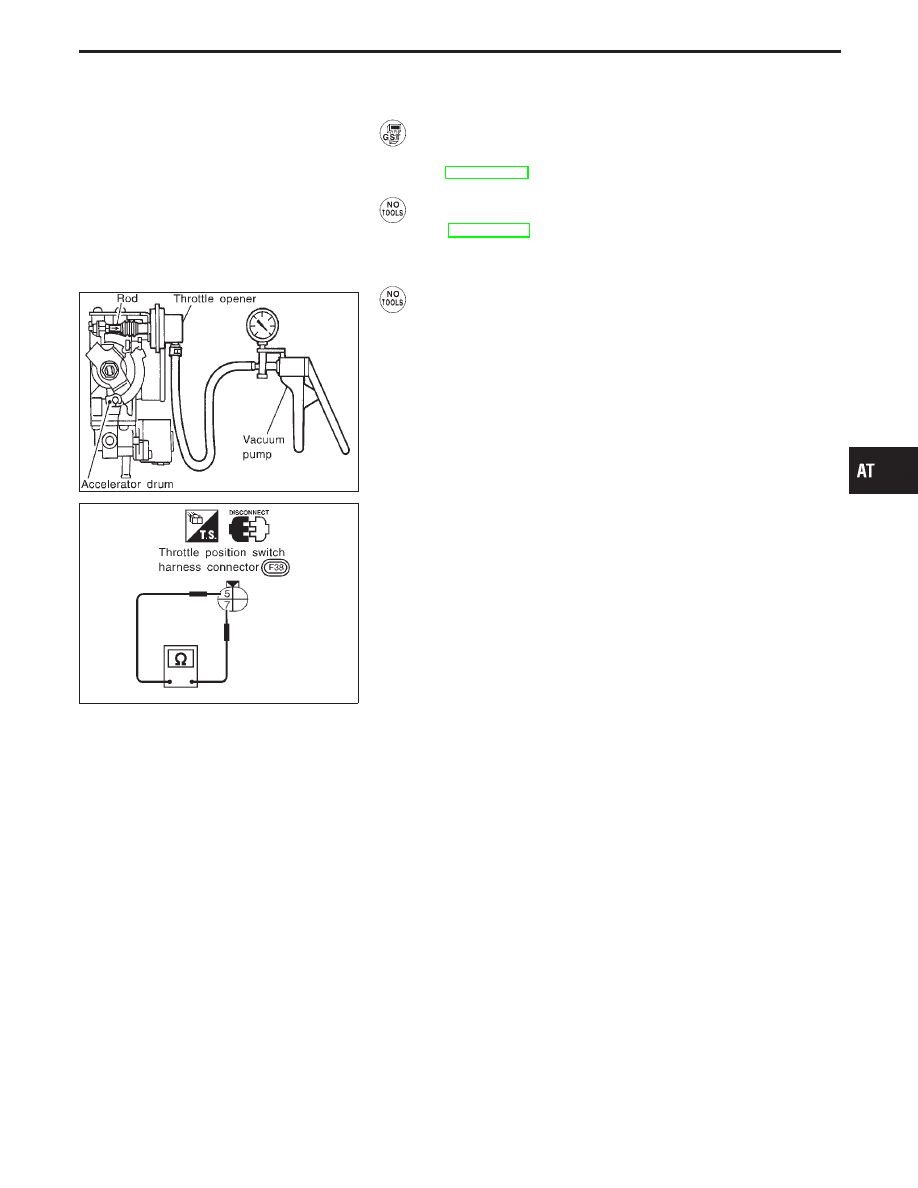

TCM SELF-DIAGNOSTIC PROCEDURE (No Tools)

Preparation

1.

Turn ignition switch to “OFF” position.

2.

Connect the handy type vacuum pump to the throttle opener
and apply vacuum −25.3 kPa (−190 mmHg, −7.48 inHg).

3.

Disconnect the throttle position switch harness connector.

4.

Turn ignition switch to “ON” position.

5.

Check continuity of the closed throttle position switch.
Continuity should exist.
(If continuity does not exist, check throttle opener and
closed throttle position switch. Then increase vacuum
until closed throttle position switch shows continuity.)

6.

Go to “DIAGNOSIS START” on next page.

GI

MA

EM

LC

EC

FE

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

AT-49

SAT967I

SAT511I

SAT968I

SAT969I

SAT970I

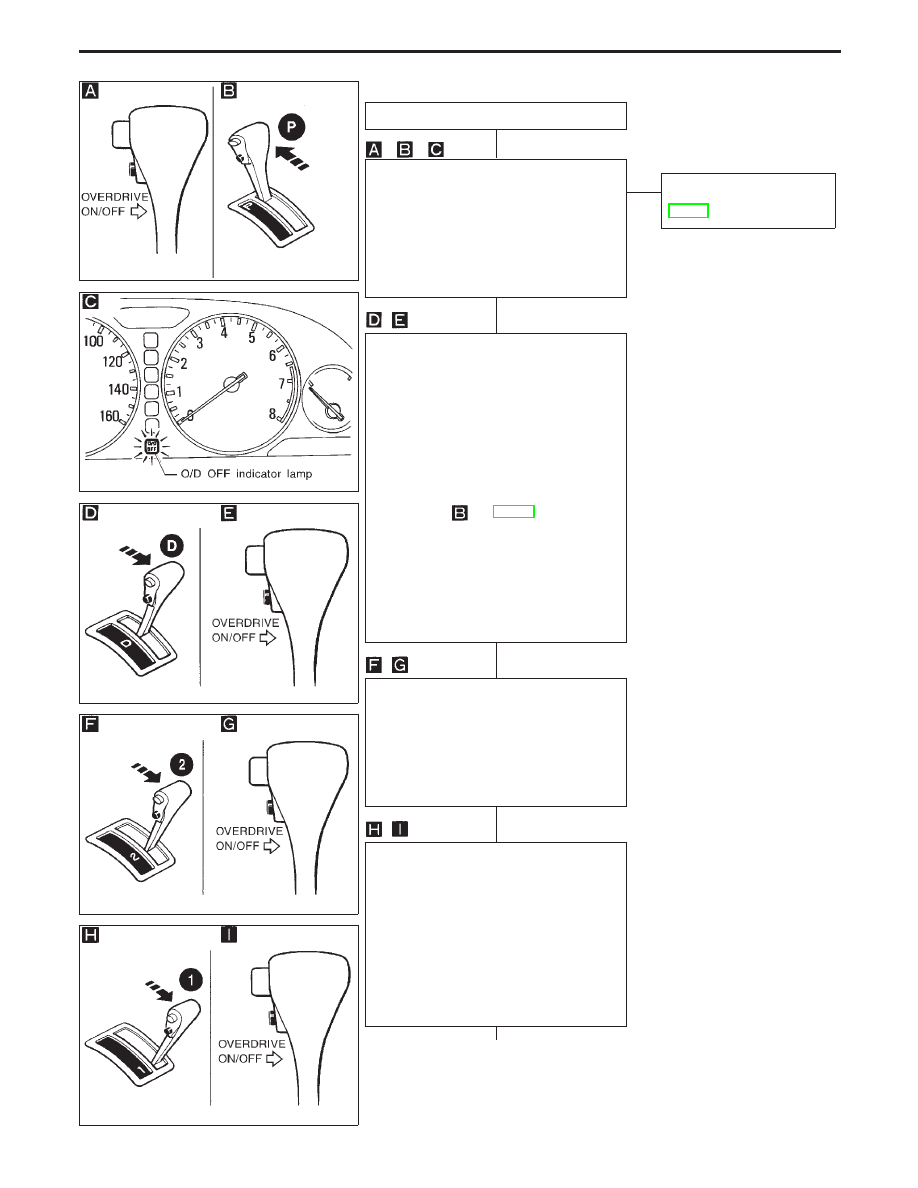

DIAGNOSIS START

1. Start the engine with selector lever in

“P” position. Warm engine to normal
operating temperature.

2. Turn ignition switch to “OFF” position.
3. Wait 5 seconds.
4. Turn ignition switch to “ON” position.

(Do not start engine.)

5. Does O/D OFF indicator lamp come on

for about 2 seconds?

Yes

E

No

Go to “1. O/D OFF Indicator
Lamp Does Not Come On”,
AT-162.

1. Turn ignition switch to “OFF” position.
2. Turn ignition switch to “ACC” position.

(“Push” shift lock release knob)

3. Move selector lever from “P” to “D”

position.

4. Turn ignition switch to “ON” position.

(Do not start engine.)

5. Depress and hold overdrive control

switch in “OFF” position (the O/D OFF
indicator lamp will be “ON”) until
directed to release the switch. (If O/D
OFF indicator lamp does not come on,
go to step

on AT-179.)

6. Turn ignition switch to “OFF” position.
7. Turn ignition switch to “ON” position (Do

not start engine.)

8. Release the overdrive control switch

(the O/D OFF indicator lamp will be
“OFF”).

9. Wait 2 seconds after ignition switch

“ON”.

1. Move selector lever to “2” position.
2. Depress and release the overdrive con-

trol switch (the O/D OFF indicator lamp
will be “ON”).

3. Depress and hold the overdrive control

switch (the O/D OFF indicator lamp will
be “OFF”) until directed to release the
switch.

1. Move selector lever to “1” position.
2. Release the overdrive control switch.
3. Depress and release the overdrive con-

trol switch (the O/D OFF indicator lamp
will be “ON”).

4. Depress and release the overdrive con-

trol switch (the O/D OFF indicator lamp
will be “OFF”).

5. Depress and hold the overdrive control

switch (the O/D OFF indicator lamp will
be “ON”) until directed to release the
switch.

q

A

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Diagnostic Procedure without CONSULT-II
(Cont’d)

H

H

H

H

H

AT-50

SAT981F

SAT511I

q

A

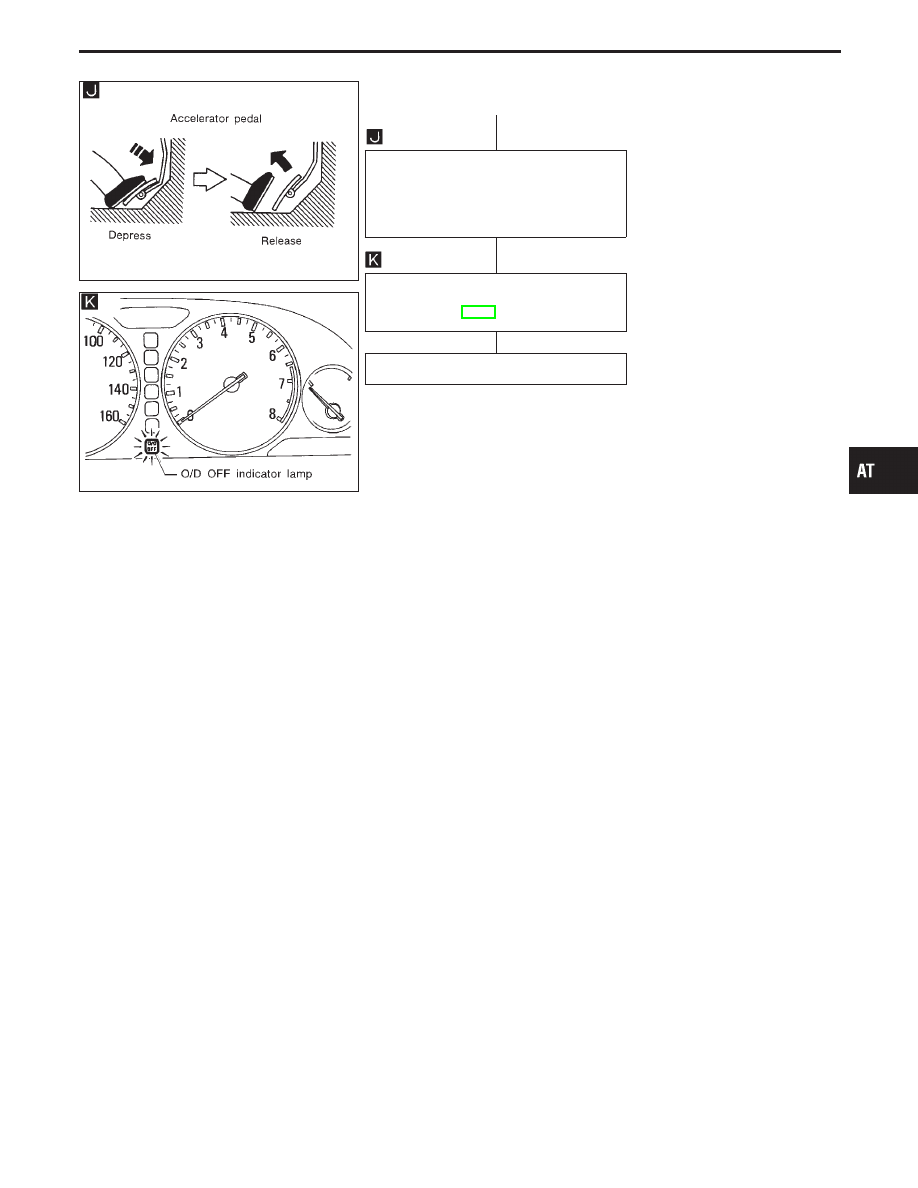

1. Depress accelerator pedal fully and

release.

2. Release the overdrive control switch

(the O/D OFF indicator lamp will begin
to flash “ON” and “OFF”).

Check O/D OFF indicator lamp.
Refer to JUDGEMENT OF SELF-DIAG-
NOSIS CODE, AT-52.

DIAGNOSIS END

GI

MA

EM

LC

EC

FE

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Diagnostic Procedure without CONSULT-II
(Cont’d)

H

H

H

AT-51

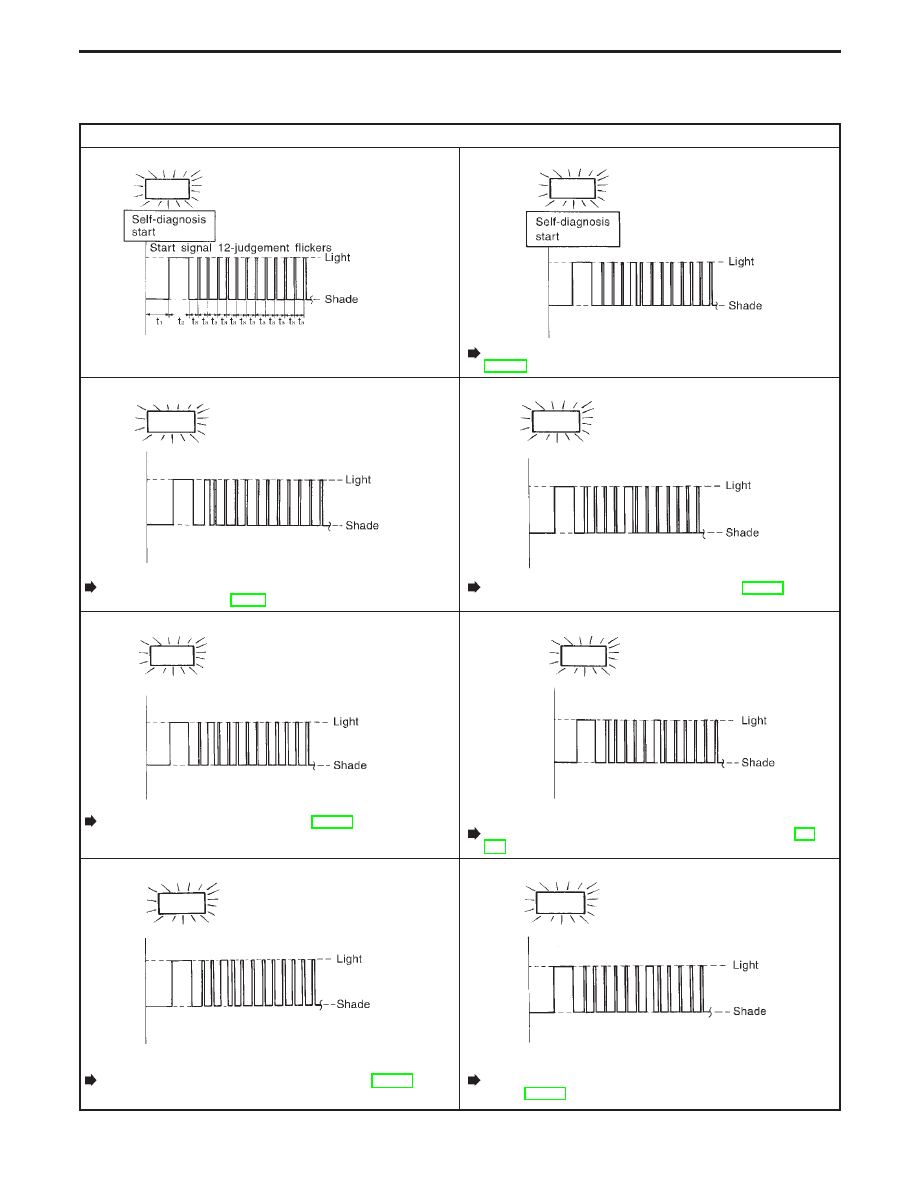

JUDGEMENT OF SELF-DIAGNOSIS CODE

O/D OFF indicator lamp

All judgement flickers are same.

SAT666I

All circuits that can be confirmed by self-diagnosis are OK.

4th judgement flicker is longer than others.

SAT670I

Shift solenoid valve A circuit is short-circuited or disconnected.

Go to Shift Solenoid Valve A (DTC: 1108),
AT-129.

1st judgement flicker is longer than others.

SAT667I

Revolution sensor circuit is short-circuited or disconnected.

Go to Vehicle Speed Sensor

A/T (Revolution

Sensor) (DTC: 1102), AT-89.

5th judgement flicker is longer than others.

SAT671I

Shift solenoid valve B circuit is short-circuited or disconnected.

Go to Shift Solenoid Valve B (DTC: 1201), AT-133.

2nd judgement flicker is longer than others.

SAT668I

Vehicle speed sensor circuit is short-circuited or disconnected.

Go to Vehicle Speed Sensor

MTR, AT-151.

6th judgement flicker is longer than others.

SAT672I

Overrun clutch solenoid valve circuit is short-circuited or
disconnected.

Go to Overrun Clutch Solenoid Valve (DTC: 1203), AT-
143.

3rd judgement flicker is longer than others.

SAT669I

Throttle position sensor circuit is short-circuited or
disconnected.

Go to Throttle Position Sensor (DTC: 1206), AT-137.

7th judgement flicker is longer than others.

SAT673I

Torque converter clutch solenoid valve circuit is short-circuited
or disconnected.

Go to Torque Converter Clutch Solenoid Valve (DTC:
1204), AT-114.

t

1

= 2.5 seconds

t

2

= 2.0 seconds

t

3

= 1.0 second

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Diagnostic Procedure without CONSULT-II
(Cont’d)

AT-52
