CIGARETTE LIGHTER

WW-27

C

D

E

F

G

H

I

J

L

M

A

B

WW

CIGARETTE LIGHTER

PFP:35330

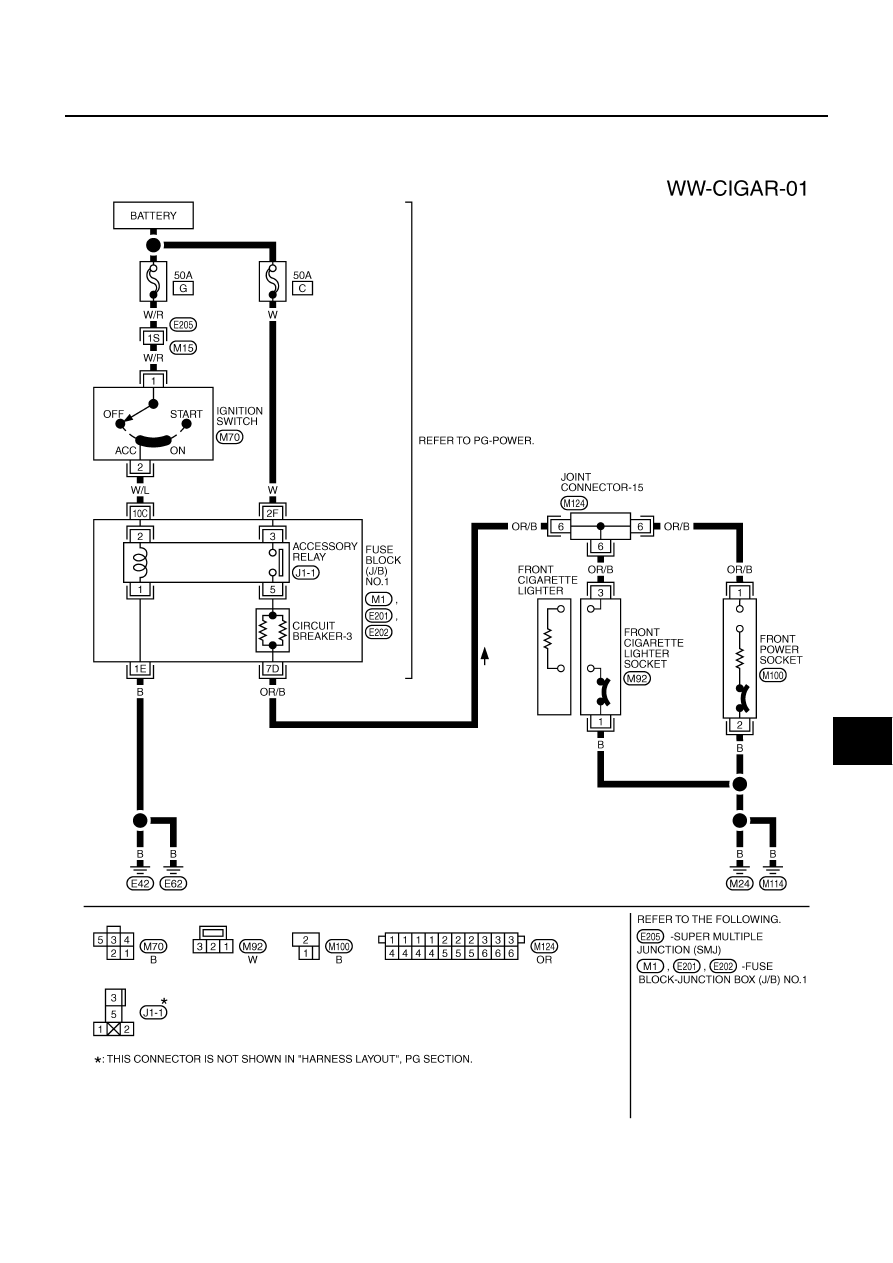

Wiring Diagram — CIGAR —

AKS002LW

TKWA0631E

WW-28

CIGARETTE LIGHTER

Removal and Installation

AKS002LX

REMOVAL

1.

Remove A/T console finisher. Refer to

IP-11, "WORK STEPS"

in “IP” section.

2.

Pull out cigarette lighter.

3.

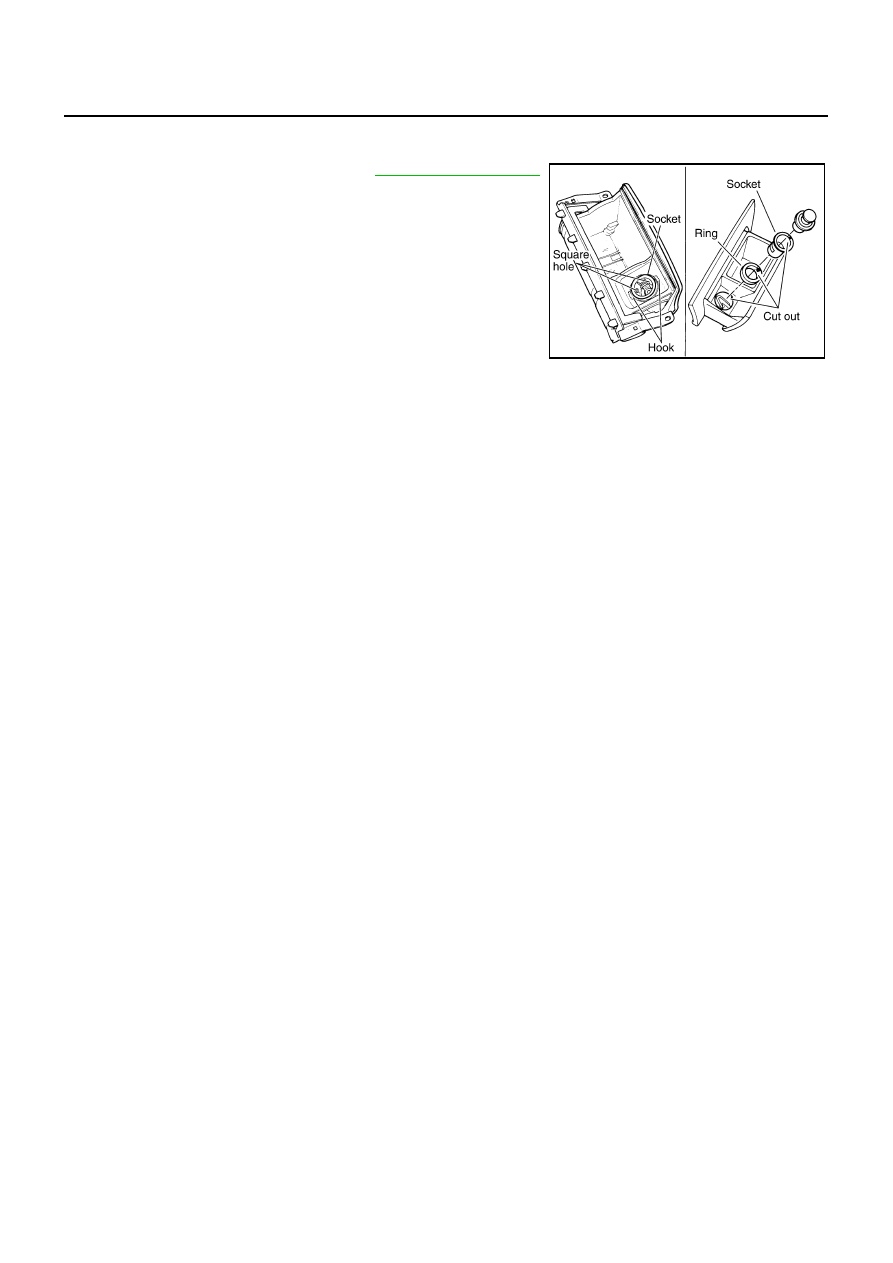

Remove socket from the ring, while pressing the hook on the
ring out from square hole.

4.

Press out ring from the back of ashtray.

INSTALLATION

Install in the reverse order of removal.

PKIA2290E

POWER SOCKET

WW-29

C

D

E

F

G

H

I

J

L

M

A

B

WW

POWER SOCKET

PFP:253A2

Wiring Diagram — CIGAR —

AKS002LY

TKWA0631E

WW-30

POWER SOCKET

Removal and Installation

AKS002LZ

REMOVAL

1.

Remove console box assembly. Refer to

IP-11, "WORK STEPS"

in “IP” section.

2.

Disconnect power socket connector.

3.

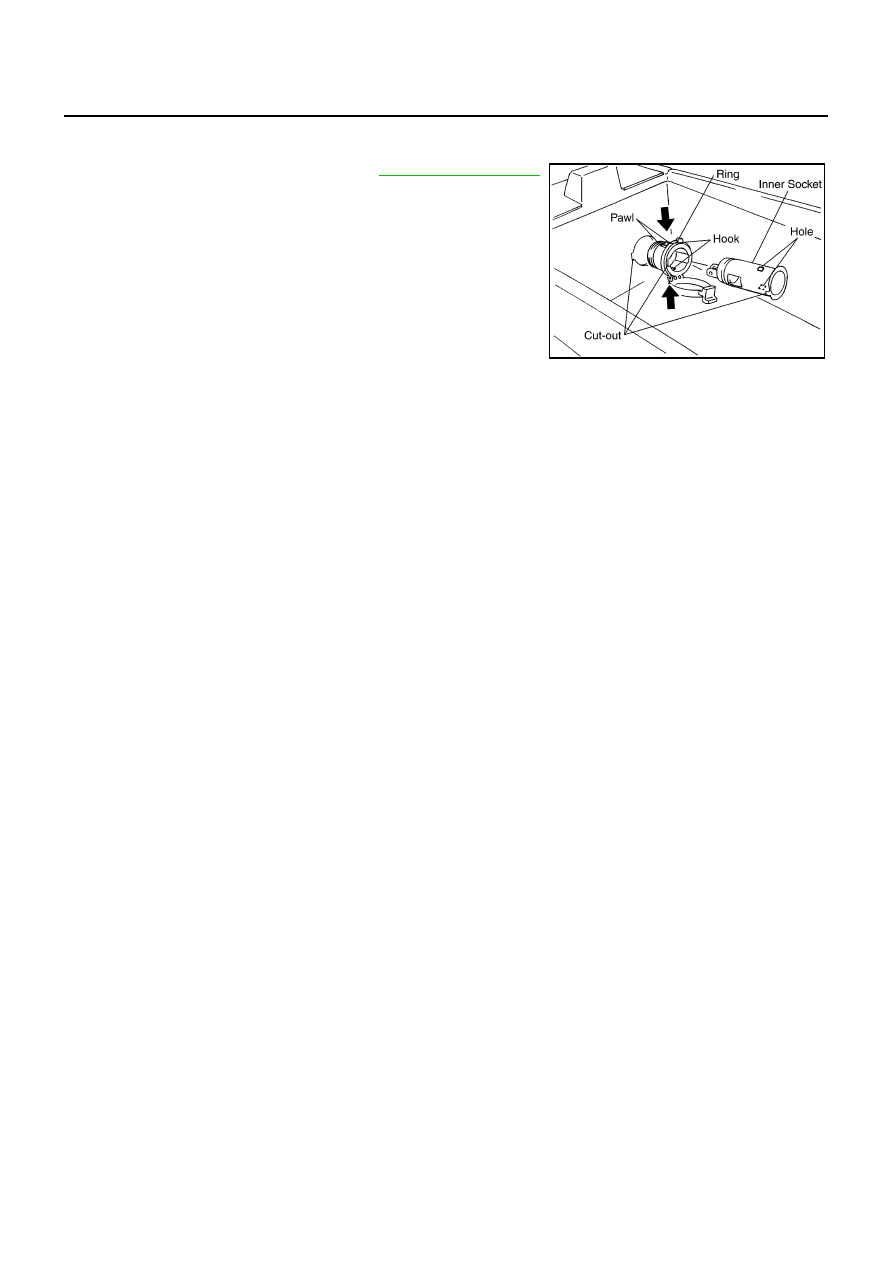

Remove inner socket from the ring, while pressing the hook on
the ring out from square hole.

4.

Remove ring from console box while pressing pawls.

INSTALLTION

Install in the reverse order of removal.

PKIA2287E
