Infiniti M45 (Y34). Manual - part 800





ROAD WHEEL TIRE ASSEMBLY

WT-5

C

D

F

G

H

I

J

K

L

M

A

B

WT

ROAD WHEEL TIRE ASSEMBLY

PFP:40300

Balancing Wheels (Bonding Weight Type)

AES000DQ

REMOVAL

1.

Remove inner and outer balance weights from the road wheel.

CAUTION:

Be careful not to scratch the road wheel during removal.

2.

Using releasing agent, remove double-faced adhesive tape from the road wheel.

CAUTION:

Be careful not to scratch the road wheel during removal.

After removing double-faced adhesive tape, wipe clean traces of releasing agent from the road
wheel.

WHEEL BALANCE ADJUSTMENT

If a tire balance machine has adhesion balance weight mode settings and drive-in weight mode setting,
select and adjust a drive-in weight mode suitable for road wheels.

1.

Set road wheel on wheel balancer using the center hole as a guide. Start the tire balance machine.

2.

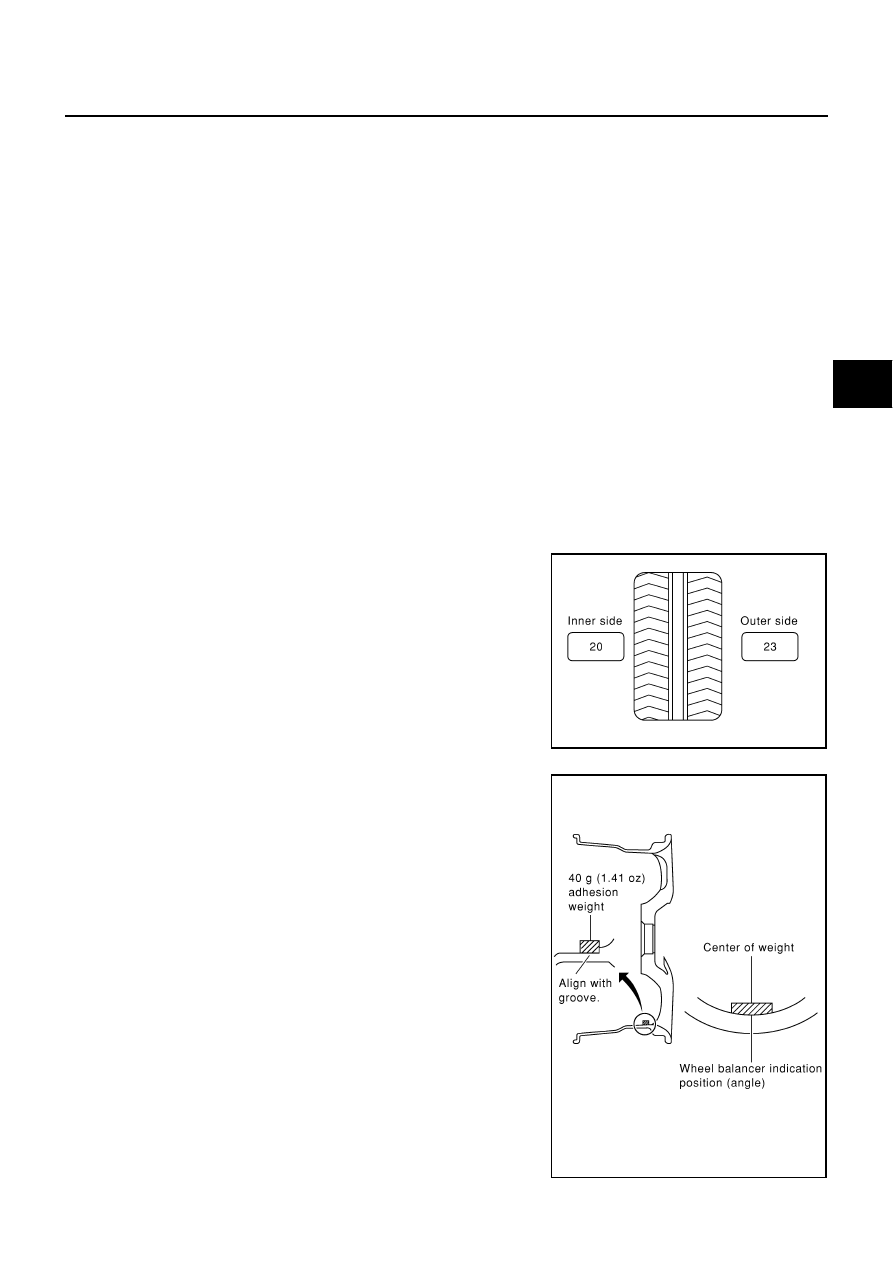

When inner and outer unbalance values are shown on the wheel balancer indicator, multiply outer unbal-
ance value by 5/3 to determine balance weight that should be used. Select the outer balance weight with
a value closest to the calculated value above and install it to the designated outer position of, or at the
designated angle in relation to the road wheel.

CAUTION:

Do not install the inner balance weight before installing the outer balance weight.

Before installing the balance weight, be sure to clean the
mating surface of the road wheel.

Indicated unbalance value

×

 5/3 = balance weight to be installed

Calculation example:
23 g (0.81 oz)

×

 5/3 = 38.33 g (1.35 oz) = 40 g (1.41 oz) balance

weight (closer to calculated balance weight value)
Note that balance weight value must be closer to the calculated
balance weight value.
Example:
37.4 = 35 g (1.23 oz)
37.5 = 40 g (1.41 oz)

a.

Install balance weight in the position shown in the figure.

b.

When installing balance weight to road wheels, set it into the
grooved area on the inner wall of the road wheel as shown in the
figure so that the balance weight center is aligned with the wheel
balancer indication position (angle).

CAUTION:

Always use genuine Nissan adhesion balance weights.

Balance weights are unreusable; always replace with new
ones.

Do not install more than three sheets of balance weight.

SMA054D

SEIA0271E

WT-6

ROAD WHEEL TIRE ASSEMBLY

c.

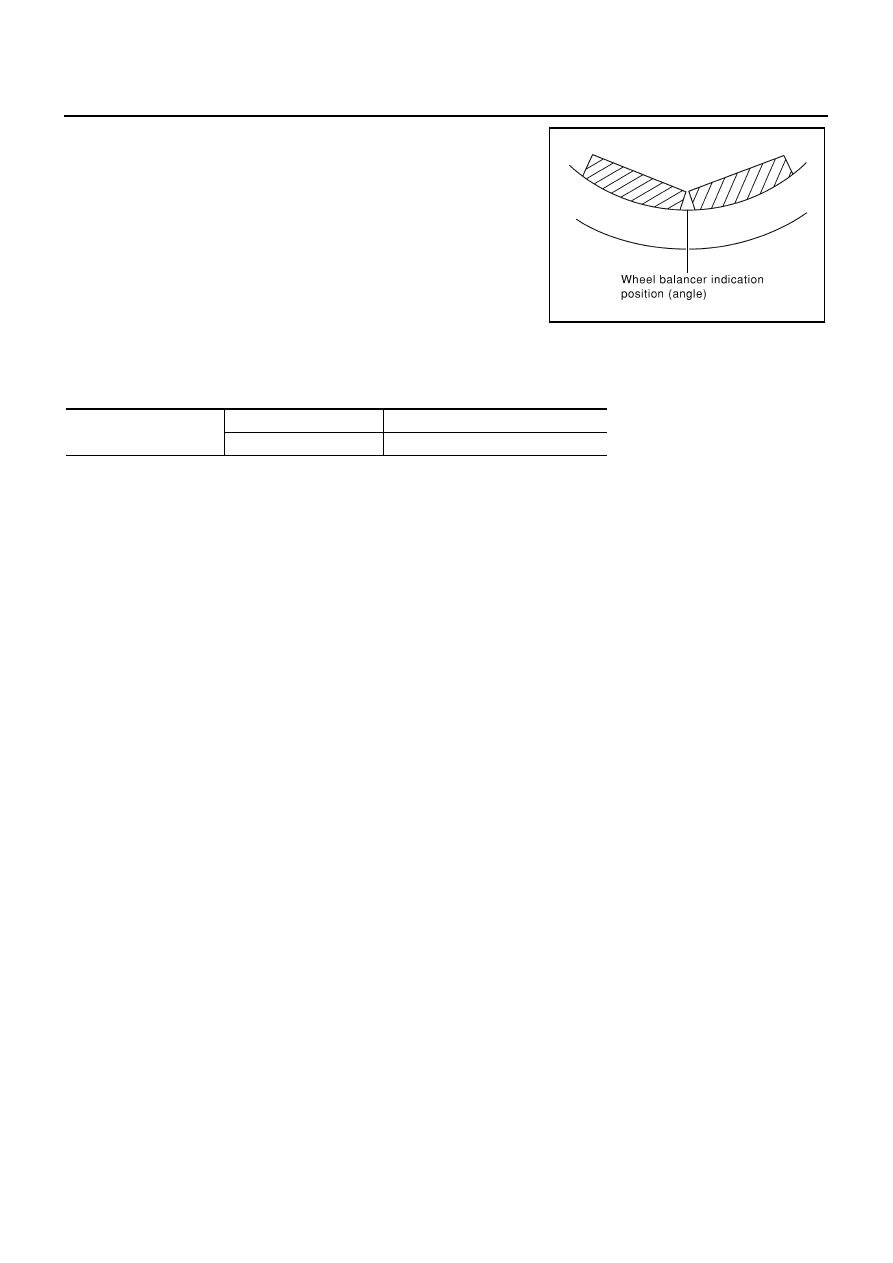

If calculated balance weight value exceeds 50 g (1.76 oz), install
two balance weight sheets in line with each other (as shown in
the figure).

CAUTION:

Do not install one balance weight sheet on top of another.

3.

Start wheel balancer again.

4.

Install drive-in balance weight on inner side of road wheel in the
wheel balancer indication position (angle).

CAUTION:

Do not install more than two balance weights.

5.

Start wheel balancer. Make sure that inner and outer residual
unbalance values are 10 g (0.35 oz) each or below.

If either residual unbalance value exceeds 10 g (0.35 oz), repeat installation procedures.

Wheel balance (Maximum allowable unbalance):

Rotation

AES0003Z

Do not include the T-type spare tire when rotating the tires.

CAUTION:

When installing wheels, tighten them diagonally by dividing the work two to three times in order to
prevent the wheels from developing any distortion.

Maximum allowable
unbalance

Dynamic (At rim flange)

Less than 10 g (0.35 oz) (one side)

Static (At rim flange)

Less than 20 g (0.70 oz)

SMA056D

Tightening torque of wheel nut

: 98 - 118 N·m (10 - 12 kg-m, 72 - 87 ft-lb)

LOW TIRE PRESSURE WARNING SYSTEM

WT-7

C

D

F

G

H

I

J

K

L

M

A

B

WT

LOW TIRE PRESSURE WARNING SYSTEM

PFP:40300

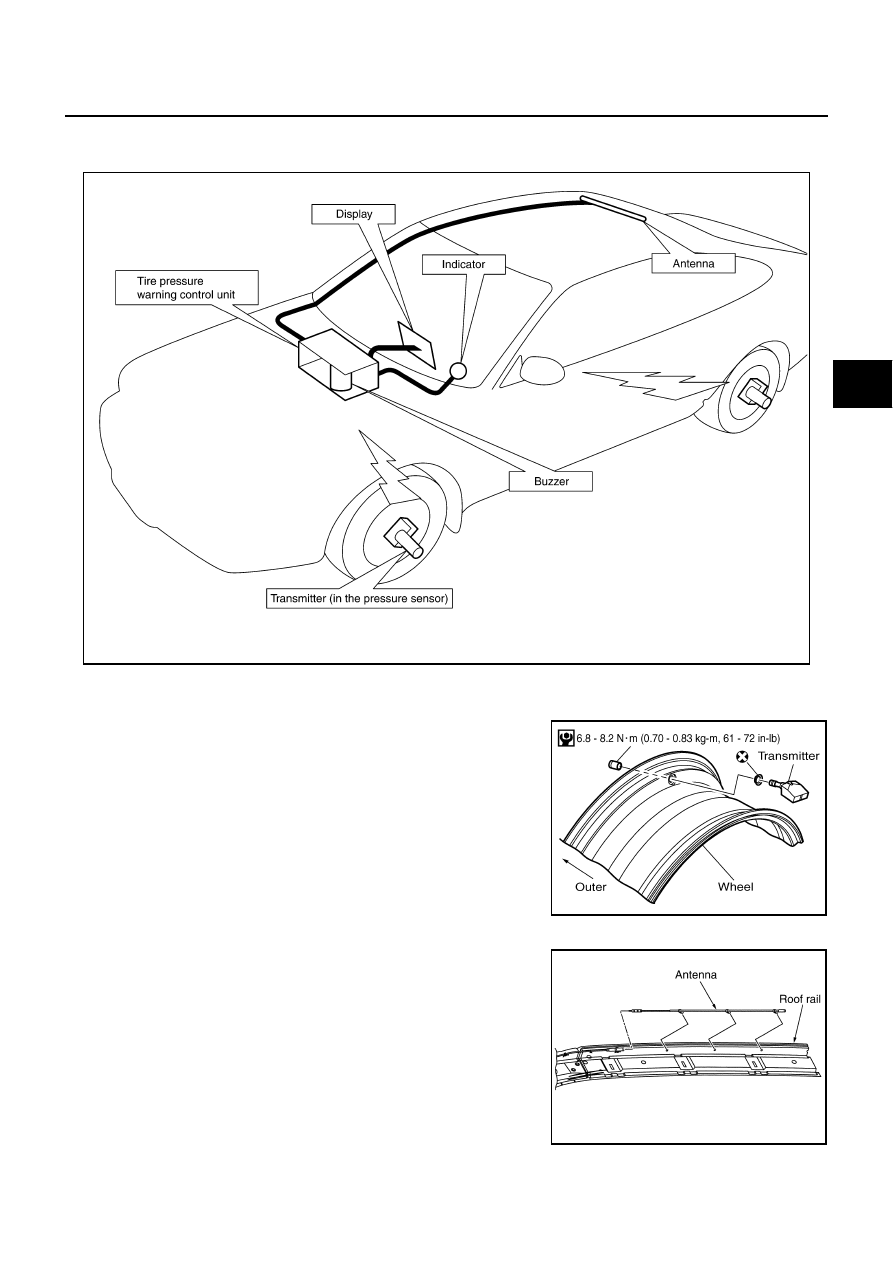

System Components

AES00040

System Description

AES00041

TRANSMITTER

A sensor-transmitter integrated with a valve is installed on a wheel,
and transmits a detected air pressure signal in the form of a radio
wave.

ANTENNA

Receives the radio wave signal transmitted by the transmitter.

SEIA0202E

SEIA0203E

SEIA0042E

WT-8

LOW TIRE PRESSURE WARNING SYSTEM

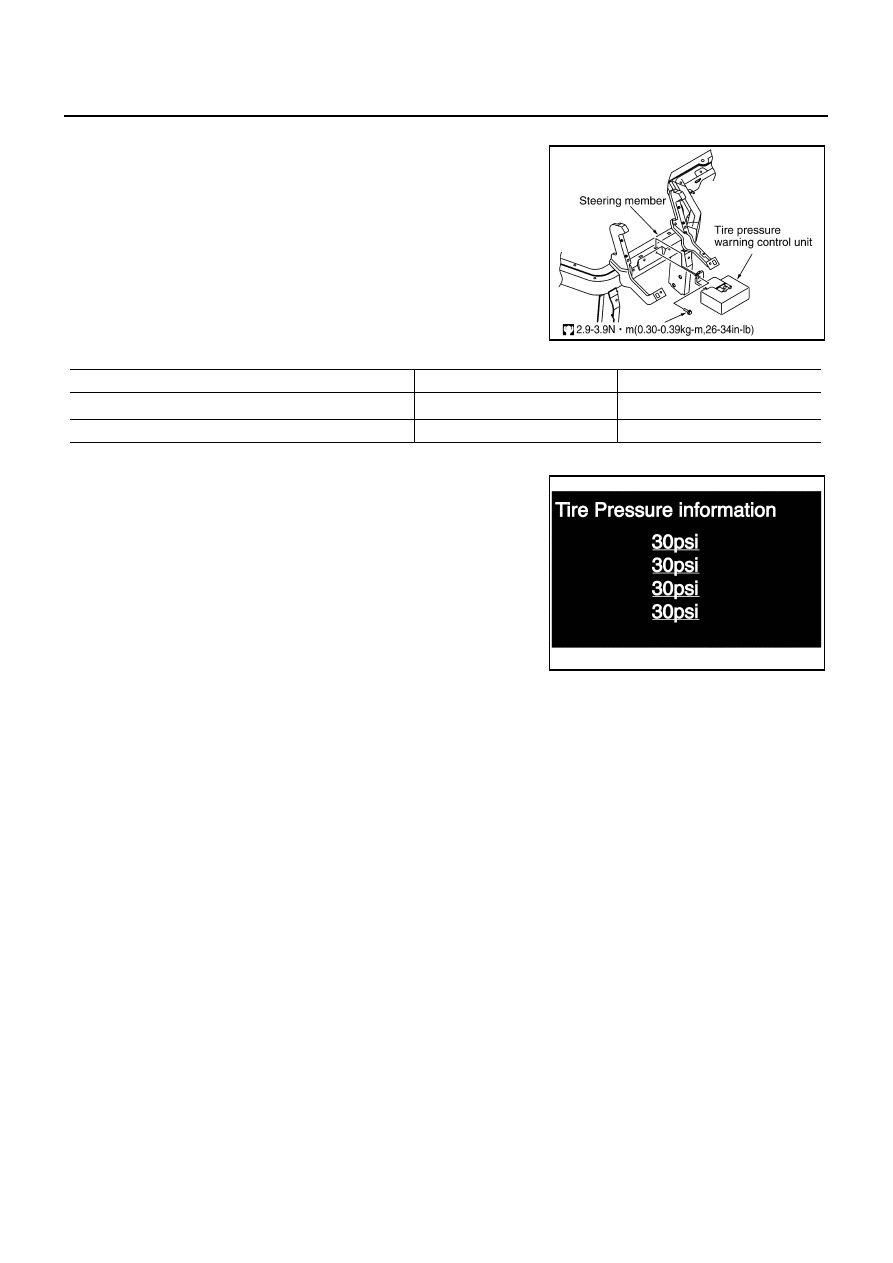

TIRE PRESSURE WARNING CONTROL UNIT

Reads the radio wave signal received by the antenna, and controls
the warning lamp and the buzzer operations as shown below. It also
has a judgement function to detect a system malfunction.

DISPLAY

Displays the air pressure of each tire.

After the ignition switch is turned ON, the pressure values are
not be displayed until the data of all four wheels stabilizes.

SEIA0204E

Condition

Warning lamp

Buzzer

Less than 190 kPa (1.9 kg/cm

2

 , 27 psi) [Flat tire]

ON

Sounds for 10 sec.

System malfunction

ON

OFF

SEIA0044E
