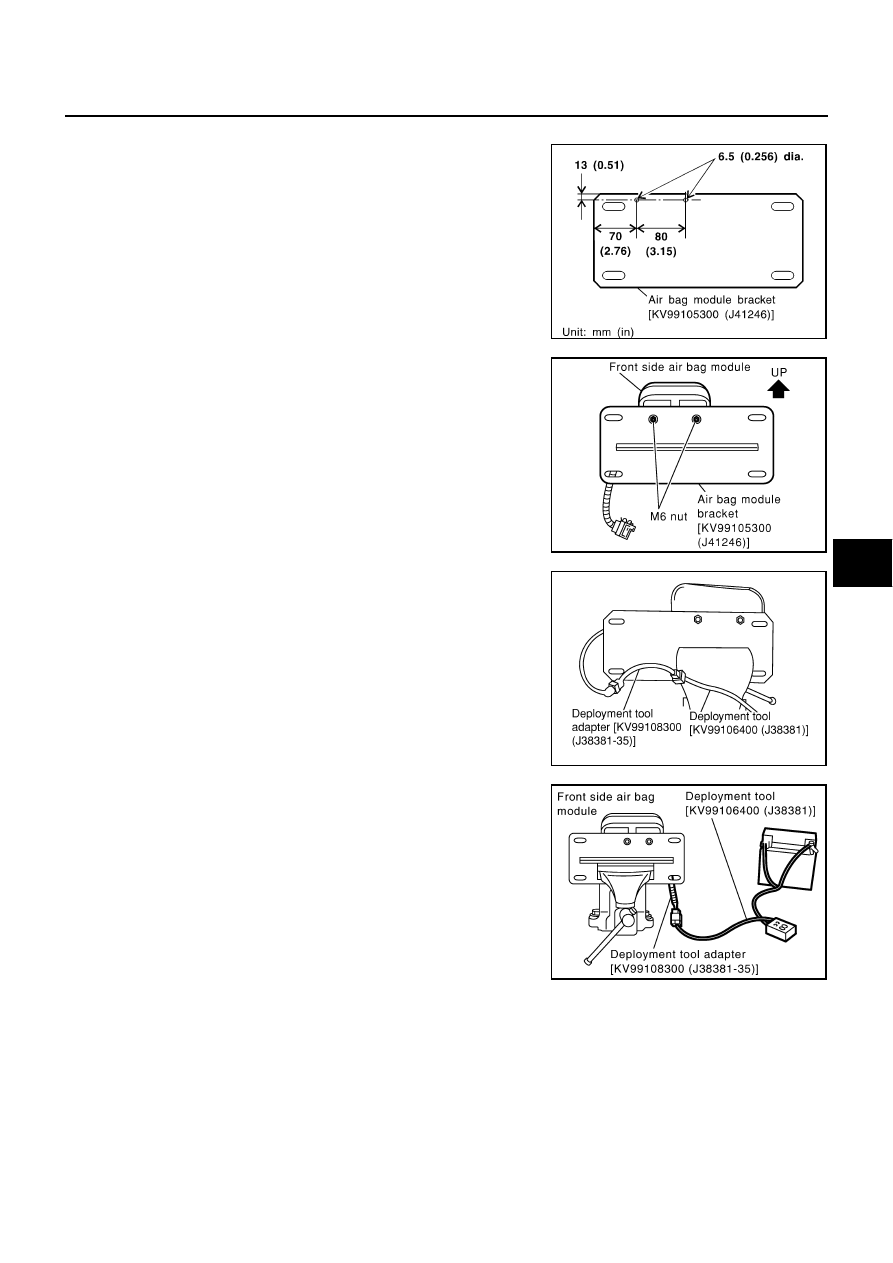

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER SRS-55 C D E F G I J K L M A B SRS Deployment of Front Side Air Bag Module (Outside of Vehicle) 1. Make 6.5 mm (0.256 in) diameter holes in air bag module 2. Firmly secure air bag module bracket [SST: KV99105300 3. Insert the stud bolts of side air bag module into the two holes in CAUTION: Side air bag module should be secured to air bag module 4. Connect deployment tool adapter [SST: KV99108300 (J38381- 5. Connect red clip of deployment tool to battery positive terminal 6. The lamp on the right side of the tool, marked “deployment tool 7. Press the button on the deployment tool. The left side lamp on CAUTION: When deploying the front side air bag module, stand at SRS490-B SHIA0197E SHIA0176E PHIA0697E |
