SIDE CURTAIN AIR BAG MODULE

SRS-47

C

D

E

F

G

I

J

K

L

M

A

B

SRS

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Always work from the side of the side curtain air bag module.

After replacement of side curtain air bag module, perform self-diagnosis to check that no malfunc-
tion is detected. Refer to

SRS-19, "SRS Operation Check"

 .

SRS-48

CRASH ZONE SENSOR

CRASH ZONE SENSOR

PFP:98531

Removal and Installation

AHS0008Z

REMOVAL

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.

1.

Remove front grille. Refer to

EI-19, "FRONT GRILLE"

 .

2.

Remove crash zone sensor connector.

3.

Remove crash zone sensor fixing nuts.

CAUTION:

Replace crash zone sensor if it has been dropped or sustained an impact.

Do not attempt to disassemble crash zone sensor.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check crash zone sensor for proper installation.

After the work is complete, perform self-diagnosis to make sure that no malfunction is detected.
Refer to

SRS-19, "SRS Operation Check"

 .

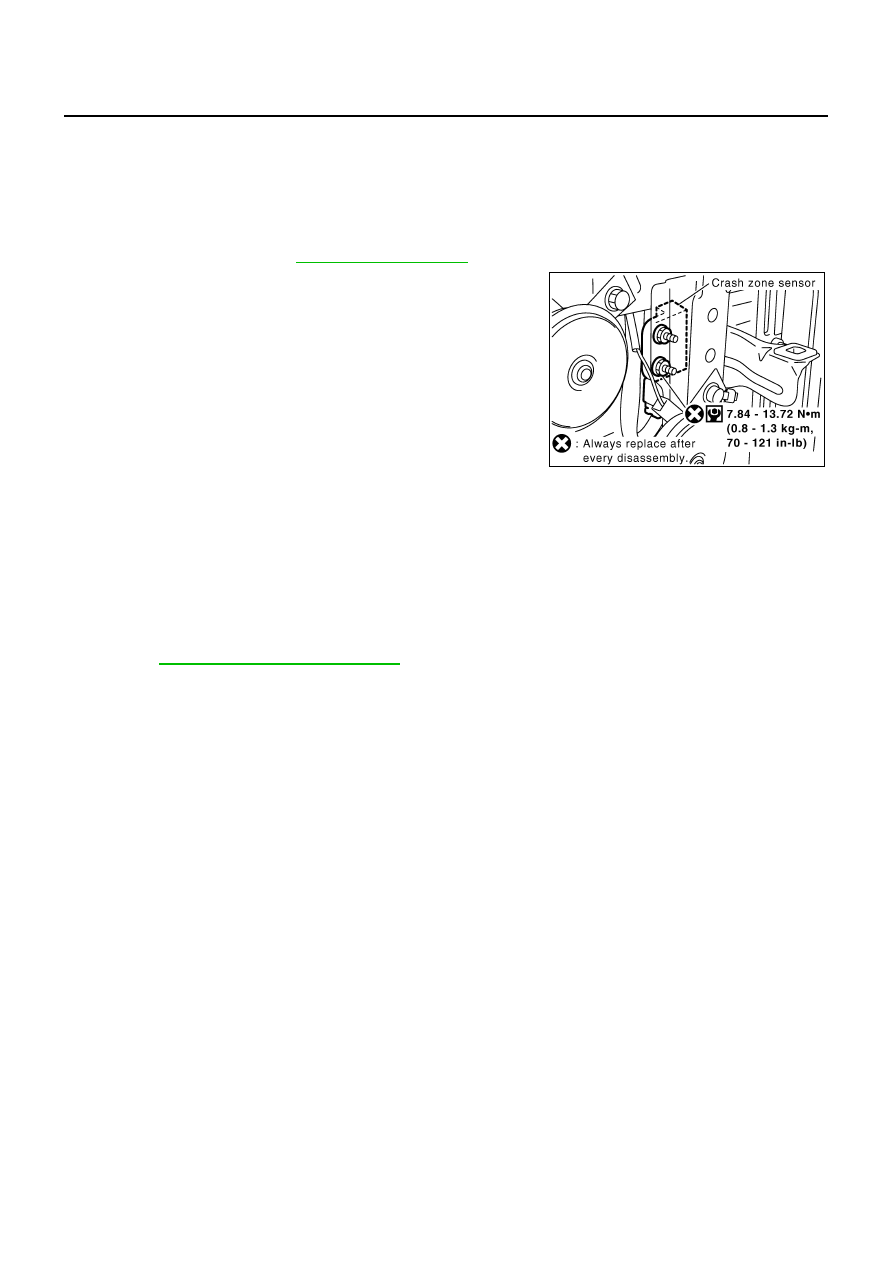

PHIA0201E

SIDE AIR BAG (SATELLITE) SENSOR

SRS-49

C

D

E

F

G

I

J

K

L

M

A

B

SRS

SIDE AIR BAG (SATELLITE) SENSOR

PFP:98830

Removal and Installation

AHS00090

REMOVAL

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.

1.

Remove seat belt pre-tensioner. Refer to

SB-4, "Removal and Installation of Front Seat Belt"

 .

2.

Remove side air bag (Satellite) sensor fixing nuts.

3.

Remove the side air bag (Satellite) sensor connector.

CAUTION:

Do not use old bolts; replace with new ones.

Check side air bag (Satellite) sensor to ensure it is free of deformities, dents, cracks or rust. If it
shows any visible signs of damage, replace it with new one.

Do not attempt to disassemble side air bag (Satellite) sensor.

Replace side air bag (Satellite) sensor if it has been dropped or sustained an impact.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check side air bag (Satellite) sensor for proper installation.

After replacement of side air bag (Satellite) sensor, perform self-diagnosis to make sure that no
malfunction is detected. Refer to

SRS-19, "SRS Operation Check"

 .

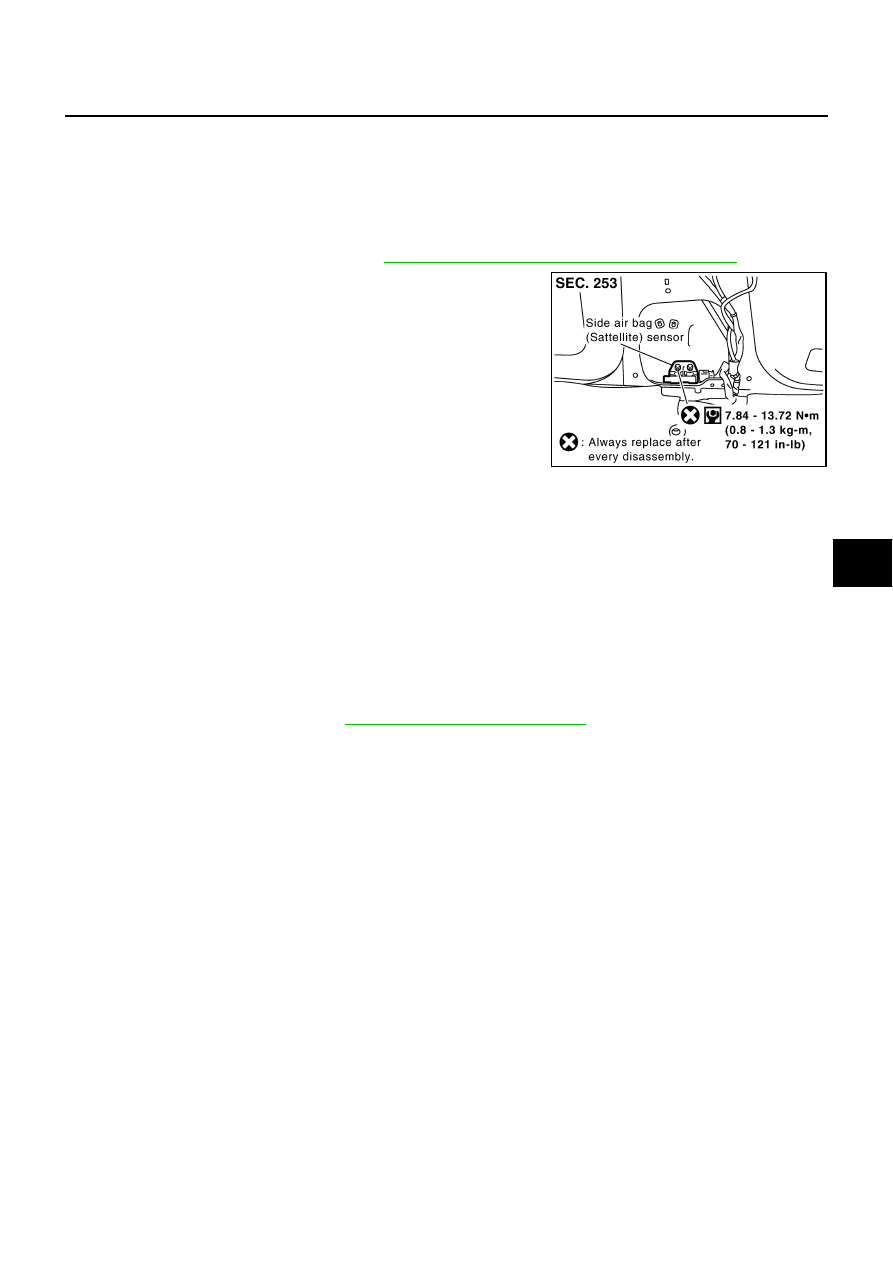

PHIA0696E

SRS-50

FRONT SEAT BELT PRE-TENSIONER

FRONT SEAT BELT PRE-TENSIONER

PFP:86884

Removal and Installation

AHS00091

For removal and installation procedures, refer to

SB-4, "Removal and Installation of Front Seat Belt"

 .
