AUTOMATIC DRIVE POSITIONER
SE-13
C
D
E
F
G
H
J
K
L
M
A
B
SE
AUTOMATIC DRIVE POSITIONER
PFP:28491
Manual Operation
AIS002J0
The driving position (seat position, steering wheel position, door mirror position) can be adjusted with the
power seat switch or ADP (Automatic Drive Positioned) steering switch.
NOTE:
●
The seat and steering wheel position can be manually operated with the ignition switch OFF.
●
The door mirrors can be manually operated with the ignition switch in either ACC or ON.

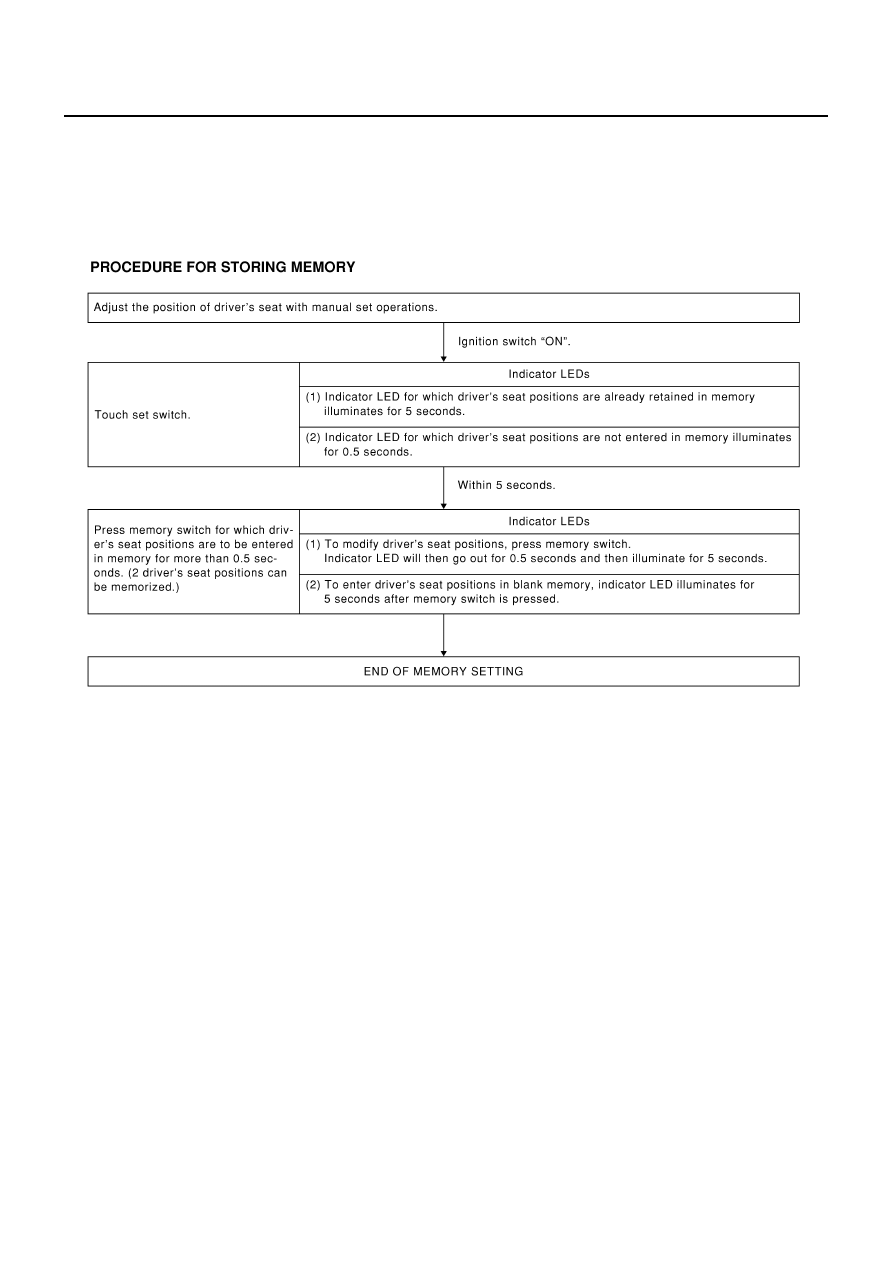

Automatic Operation
AIS002J1
NOTE:
●
Disconnecting the battery erases the stored memory.
●
After connecting the battery, insert the key into the ignition cylinder and turn the driver door switch ON (open)
→
OFF (close)
→
ON
(open), the Entry / Exiting function becomes possible.
NOTE:
During automatic operation, if the ignition switch is turned ON
→
START, the automatic operation is suspended. When the ignition switch
returns to ON, it resumes.
System Description
AIS001JL
●
The system automatically moves the driver seat and steering wheel to facilitate entry/exit to/from the vehi-
cle by connecting the BCM (Body Control Module) to the driver seat control unit the multiple communica-
tion line. The BCM can also store the optimum driving positions (driver seat, steering wheel and door
mirror position) for 2 people. If the driver is changes, one-touch operation allows changing to the other
driving position.
●
The settings (ON/OFF) of the automatic tilt steering wheel and sliding seat (Entry/exiting function) at
entry/exit can be changed as desired, using the display unit in the center of the instrument panel.
FAIL–SAFE MODE
When the ignition switch is in the ON position, if any of the parts (indicated in the following chart) move more
than the specified amount within a period “T2” when no ON input is sent from any of the switches (indicated in
the following chart), or an output from the automatic drive positioner is not produced, an output malfunction is
sensed. Motor operation will be suspended automatically, and all automatic operations will be ineffective. (In
this case, the motor will not operate manually).
Function Description
Memory switch operation
The seat, steering wheel and door mirror move to the stored driving position by push-
ing memory switch.
Entry / Exiting function

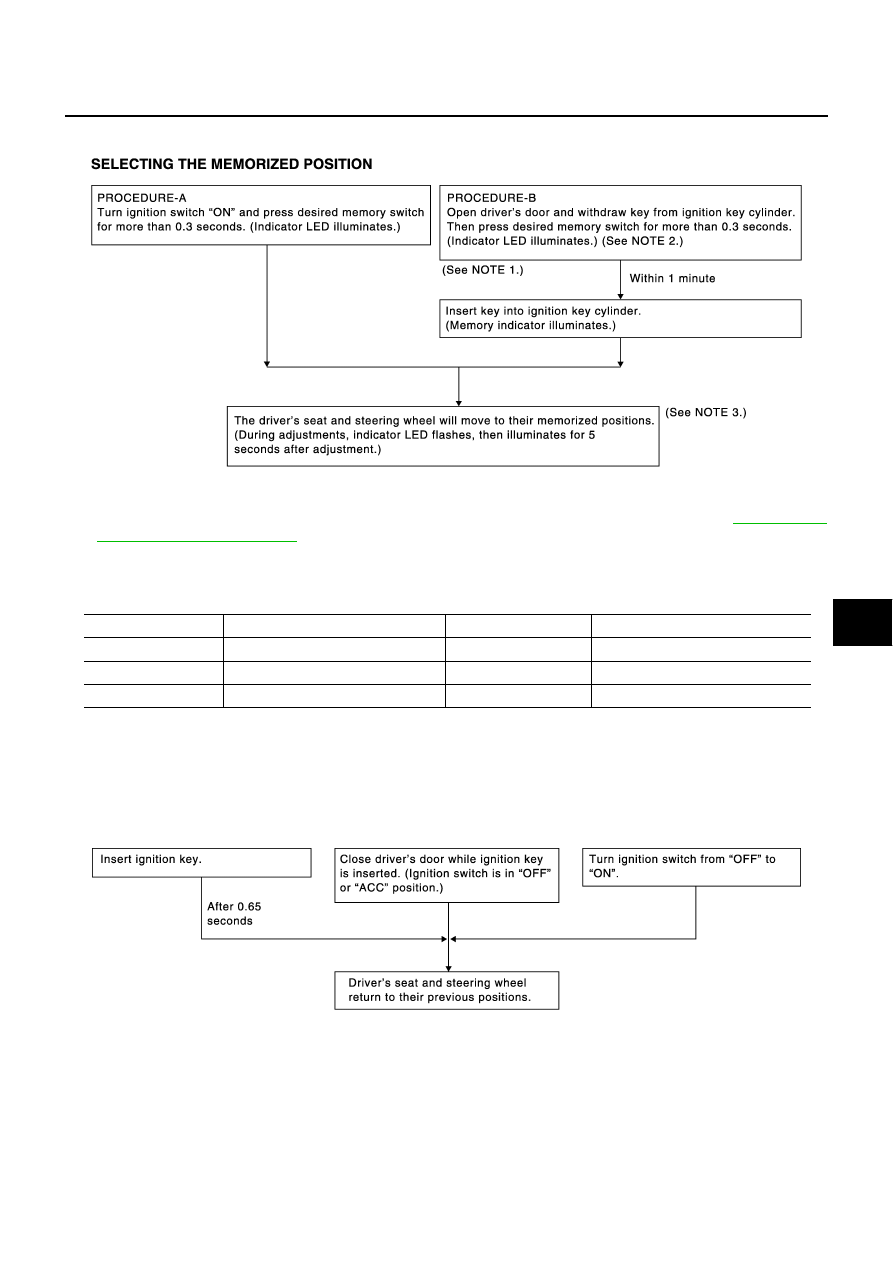

Return operation
At entry, the seat and steering wheel return from the exiting position to the previous
driving position. before the turnout operation.

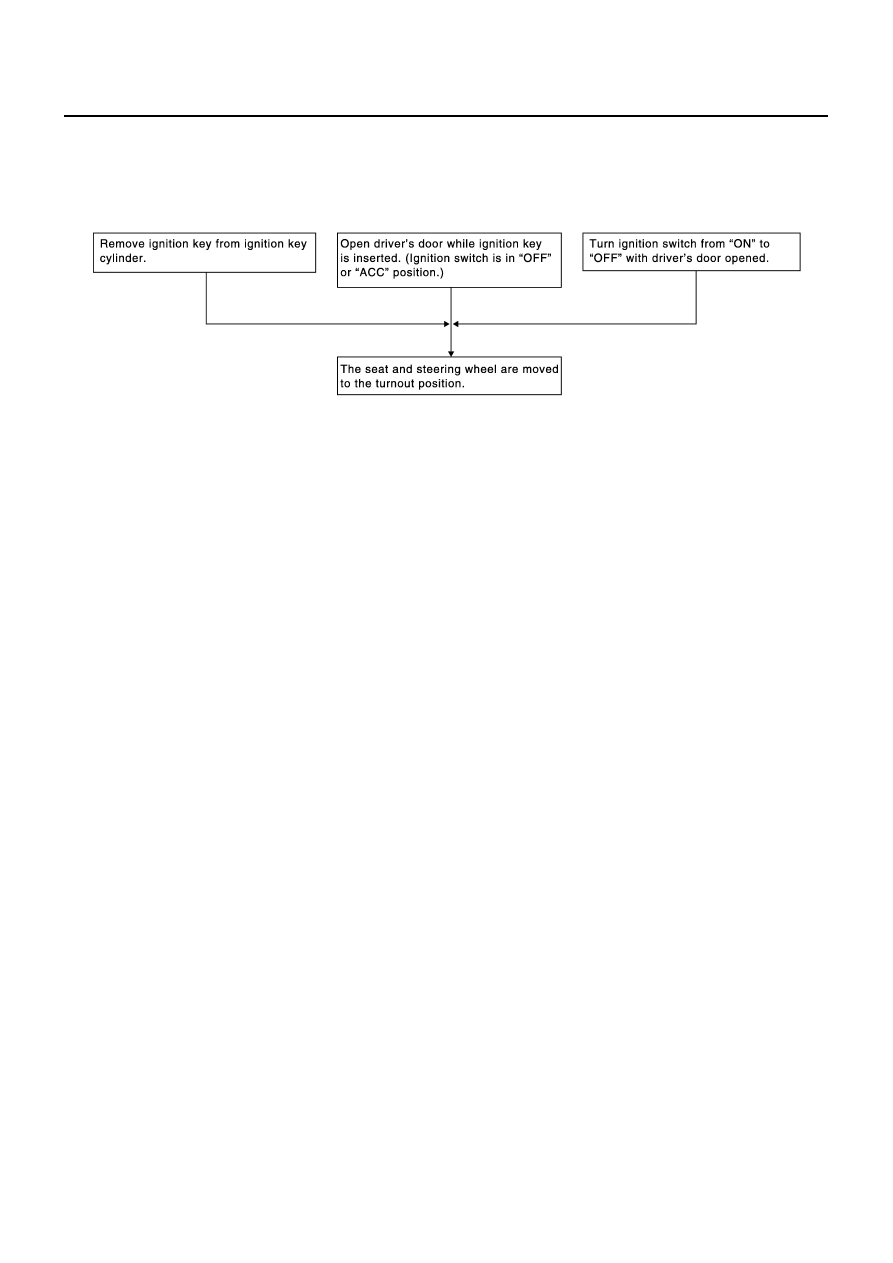

Turnout operation
At exit, the seat moves backward, and the steering wheel moves forward and
upward.(turnout position)
Auto operation stop conditions.
●
When the vehicle speed becomes 7 km/h (4 MPH) or higher.
●
When the manual switch is operated.
●
When any two or more switches among the setting switch, memory switch 1, or 2 are
pressed simultaneously.
●
When the tilt sensor or telescoping sensor malfunction is detected.
●
When the A/T selector lever is shifted to a position other than P-position.
OPERATED PORTION
T2
Allowable measurement
Seat sliding
Approx. 2.5 sec.
Within 6 mm (0.24 in).
Seat reclining
Same as above
Change angel within 2.22
°
Steering wheel
Same as above
Change angel within 1
°
