Infiniti M45 (Y34). Manual - part 743





CHARGING SYSTEM

SC-23

C

D

E

F

G

H

I

J

L

M

A

B

SC

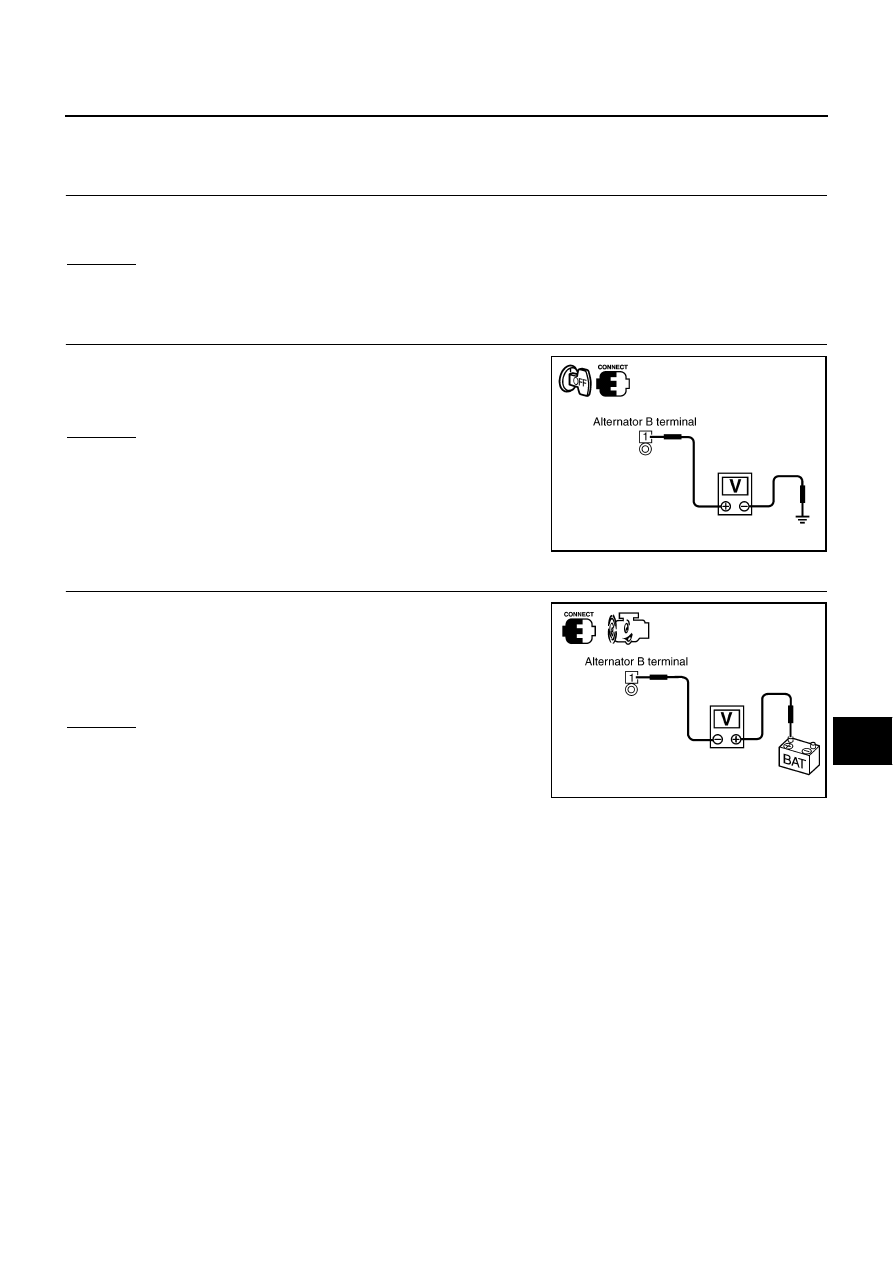

DIAGNOSTIC PROCEDURE 2
Check “B” Terminal Circuit

1.

CHECK “B” TERMINAL CONNECTION

1.

Turn ignition switch OFF.

2.

Check to see if “B” terminal is clean and tight.

OK or NG

OK

>> GO TO 2. Confirm repair by performing complete Battery/Starting/Charging system test.

NG

>> Repair “B” terminal connection.

2.

CHECK ALTERNATOR “B” TERMINAL CIRCUIT

Check voltage between alternator B terminal E309 terminal 1 (B/R)
and ground using a digital circuit tester.

OK or NG

OK

>> GO TO 3.

NG

>> Check harness for open or short between alternator and

fusible link.

3.

CHECK “B” TERMINAL CONNECTION QUALITY (VOLTAGE DROP TEST)

1.

Start the engine.

2.

When the engine running at idle and warm, check voltage
between alternator B terminal E309 terminal 1 (B/R) and battery
positive terminal using a digital tester.

OK or NG

OK

>> Replace the alternator. Confirm repair by performing

complete Battery/Starting/Charging system test.

NG

>> Check harness between the battery and the alternator

for poor continuity.

Battery voltage should exist.

PKIA2944E

Voltage: Less than 0.2 V

PKIA2366E

SC-24

CHARGING SYSTEM

DIAGNOSTIC PROCEDURE 3
Check “L” Terminal Circuit

1.

CHECK “L” TERMINAL CONNECTION

1.

Turn ignition switch OFF.

2.

Check to see if “L” terminal is clean and tight.

OK or NG

OK

>> GO TO 2.

NG

>> Repair “L” terminal connection. Confirm repair by performing complete Battery/Starting/Charging

system test.

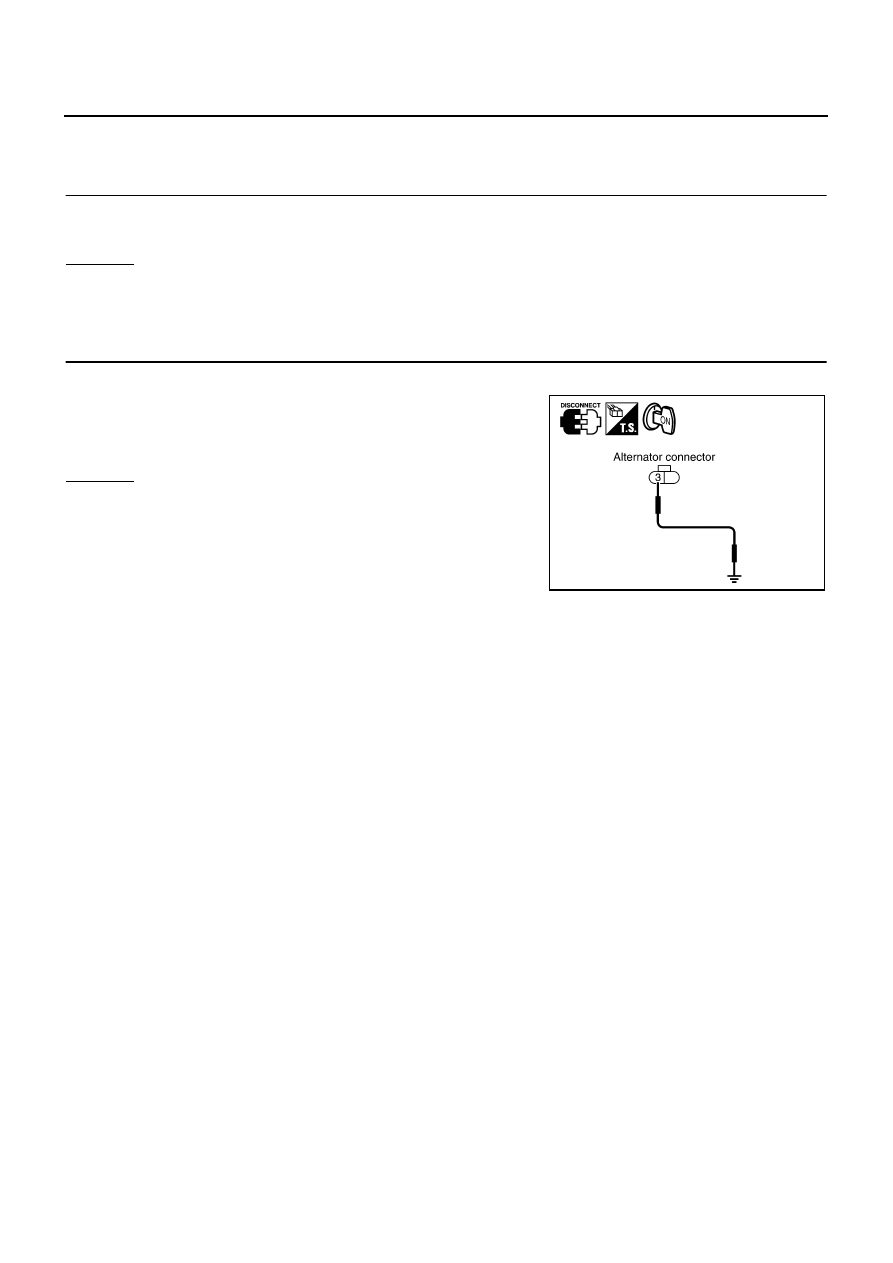

2.

CHECK “L” TERMINAL CIRCUIT

1.

Disconnect alternator connector.

2.

Apply ground to alternator harness connector E310 terminal 3
(W/R) with the ignition switch in the ON position.

OK or NG

OK

>> Replace the alternator. Confirm repair by performing

complete Battery/Starting/Charging system test.

NG

>> Check the following.

10A fuse [No. 9, located in fuse block (J/B) No.1]

CHARGE lamp

Harness for open or short between combination
meter and fuse

Harness for open or short between combination meter and alternator

CHARGE lamp should light up.

PKIA2815E

CHARGING SYSTEM

SC-25

C

D

E

F

G

H

I

J

L

M

A

B

SC

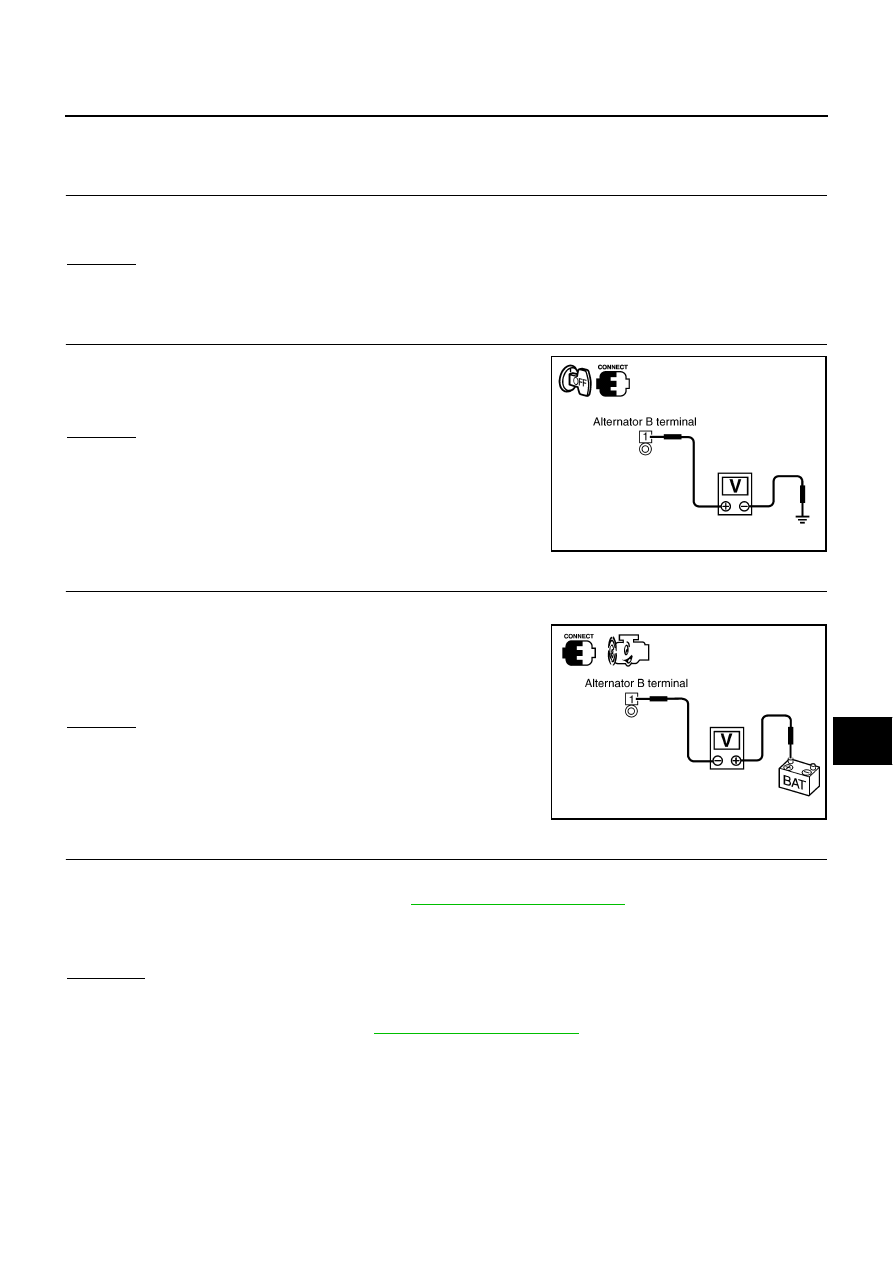

DIAGNOSTIC PROCEDURE 4
Check “B” Terminal Circuit

1.

CHECK “B” TERMINAL CONNECTION

1.

Turn ignition switch OFF.

2.

Check to see if “B” terminal is clean and tight.

OK or NG

OK

>> GO TO 2. Confirm repair by performing complete Battery/Starting/Charging system test.

NG

>> Repair “B” terminal connection.

2.

CHECK ALTERNATOR “B” TERMINAL CIRCUIT

Check voltage between alternator B terminal E309 terminal 1 (B/R)
and ground using a digital circuit tester.

OK or NG

OK

>> GO TO 3.

NG

>> Check harness for open or short between alternator and

fusible link.

3.

CHECK “B” TERMINAL CONNECTION QUALITY (VOLTAGE DROP TEST)

1.

Start the engine.

2.

When the engine running at idle and warm, check voltage
between alternator B terminal E309 terminal 1 (B/R) and battery
positive terminal using a digital circuit tester.

OK or NG

OK

>> GO TO 4.

NG

>> Check harness between the battery and the alternator

for poor continuity.

4.

CHECK ALTERNATOR DRIVE BELT TENSION

1.

Turn ignition switch OFF.

2.

Check alternator drive belt tension. Refer to

EM-13, "Checking Drive Belts"

  in “ENGINE MECHANICAL

(EM)” section.

YES or NO

YES

>> Replace the alternator. Confirm repair by performing complete Battery/Starting/Charging system

test.

NO

>> Readjust belt tension. Refer to

EM-13, "Tension Adjustment"

  in “ENGINE MECHANICAL (EM)”

section.

Battery voltage should exist.

PKIA2944E

Voltage: Less than 0.2 V

PKIA2366E

Does drive belt tension normal?

SC-26

CHARGING SYSTEM

DIAGNOSTIC PROCEDURE 5
Check “S” Terminal Circuit

1.

CHECK “S” TERMINAL CONNECTION

1.

Turn ignition switch OFF.

2.

Check to see if “S” terminal is clean and tight.

OK or NG

OK

>> GO TO 2.

NG

>> Repair “S” terminal connection. Confirm repair by performing complete Battery/Starting/Charging

system test.

2.

CHECK ALTERNATOR “S” TERMINAL CIRCUIT

Check voltage between alternator harness connector E310 terminal
4 (Y/B) and ground using a digital circuit tester.

OK or NG

OK

>> GO TO 3.

NG

>> Check the following.

15A fuse [No. 56, located in fuse, fusible link and
relay block (J/B)]

Harness for open or short between alternator and
fuse

3.

CHECK “S” TERMINAL CONNECTION QUALITY (VOLTAGE DROP TEST)

1.

Start the engine.

2.

When the engine running at idle and warm, check voltage
between alternator connector E310 terminal 4 (Y/B) and battery
positive terminal using a digital circuit tester.

OK or NG

OK

>> Replace the alternator. Confirm repair by performing

complete Battery/Starting/Charging system test.

NG

>> Check harness between the battery and the alternator

for poor continuity.

MALFUNCTION INDICATOR

The IC regulator warning function activates to illuminate “CHARGE” warning lamp, if any of the following
symptoms occur while alternator is operating:

Excessive voltage is produced.

No voltage is produced.

Battery voltage should exist.

PKIA2816E

Voltage: Less than 0.2 V

PKIA2817E
