Infiniti M45 (Y34). Manual - part 722





RFD-1

REAR FINAL DRIVE

D  DRIVELINE/AXLE

CONTENTS

C

E

F

G

H

I

J

K

L

M

SECTION

RFD

A

B

RFD

REAR FINAL DRIVE

PRECAUTIONS .......................................................... 2

Precautions .............................................................. 2

PREPARATION ........................................................... 3

Special Service Tools  ............................................... 3
Commercial Service Tools ........................................ 5

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 6

NVH Troubleshooting Chart  ..................................... 6

FRONT OIL SEAL  ...................................................... 7

Removal and Installation  .......................................... 7

REMOVAL ............................................................. 7
INSTALLATION ..................................................... 7

SIDE OIL SEAL  .......................................................... 9

Removal and Installation  .......................................... 9

REMOVAL ............................................................. 9
INSTALLATION ..................................................... 9

REAR FINAL DRIVE ASSEMBLY  .............................11

Removal and Installation  .........................................11

REMOVAL ............................................................11
INSTALLATION ....................................................11

Components ........................................................... 12

R200 2–PINION  .................................................. 12

Pre-Inspection ........................................................ 13

TOTAL PRELOAD ............................................... 13
DRIVE GEAR TO DRIVE PINION BACKLASH ... 13
DRIVE GEAR RUNOUT ...................................... 13
COMPANION FLANGE RUNOUT  ...................... 14
TOOTH CONTACT .............................................. 14

Disassembly and Assembly  ................................... 14

REMOVAL OF DIFFERENTIAL CASE ASSEM-

BLY ...................................................................... 14
REMOVAL OF DRIVE PINION ASSEMBLY ........ 15
DISASSEMBLY OF DIFFERENTIAL CASE
ASSEMBLY ......................................................... 17
INSPECTION ...................................................... 18
ADJUSTMENT OF DIFFERENTIAL CASE  ......... 19
SIDE BEARING PRELOAD ................................. 20
PINION GEAR HEIGHT  ...................................... 21
TOOTH CONTACT .............................................. 25
ASSEMBLY OF DIFFERENTIAL CASE ASSEM-
BLY ...................................................................... 26
INSTALLATION OF DRIVE PINION ASSEMBLY ... 27
INSTALLATION OF DIFFERENTIAL CASE
ASSEMBLY ......................................................... 28

SERVICE DATA AND SPECIFICATIONS (SDS)  ...... 31

General Specifications ............................................ 31
Drive Gear Runout .................................................. 31
Side Gear Adjustment  ............................................ 31

AVAILABLE SIDE GEAR THRUST WASHERS ... 31

Drive Pinion Height Adjustment .............................. 32

AVAILABLE PINION HEIGHT ADJUSTING
WASHERS .......................................................... 32

Drive Pinion Preload Adjustment ............................ 32
Side Bearing Preload Adjustment ........................... 32

SIDE BEARING ADJUSTING WASHERS  .......... 32

Total Preload Adjustment ........................................ 32
Companion Flange  ................................................. 32

RFD-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

Precautions

ADS000W6

CAUTION:

Before starting diagnosis of the vehicle, understand symptoms well. Perform correct and system-
atic operations.

Check for the correct installation status prior removal or disassembly. When matching marks are
required, be sure they do not interfere with the function of the parts they are applied to.

Carry out an overhaul in a clean work place, Using a dust proof room is recommended.

Before disassembly, using steam or white gasoline, completely remove sand and mud from the
exterior the unit, preventing them from entering into the unit during disassembly or assembly.

Check appearance of the disassembled parts for damage, deformation, and abnormal wear. If a
malfunction is detected, replace it with a new one.

Normally replace lock pins, oil seals, and bearings with new ones every times they are removed.

In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to out-
side. If tightening sequence is specified, observe it.

Clean and flush the parts sufficiently and blow them dry.

Be careful not to damage the sliding surfaces and mating surface.

When applying sealant, remove the old sealant from the mounting surface; then remove any mois-
ture, oil, and foreign materials from the application and mounting surfaces.

Always use shop paper for cleaning the inside of components.

Avoid using cotton gloves or a shop cloth to prevent entering of lint.

During assembly, observe the specified tightening torque, and new differential  gear oil, Vaseline,
or multi-purpose grease, as specified for each vehicle, when necessary.

PREPARATION

RFD-3

C

E

F

G

H

I

J

K

L

M

A

B

RFD

PREPARATION

PFP:00002

Special Service Tools

ADS0001G

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number (Kent-Moore No.)
Tool name

Description

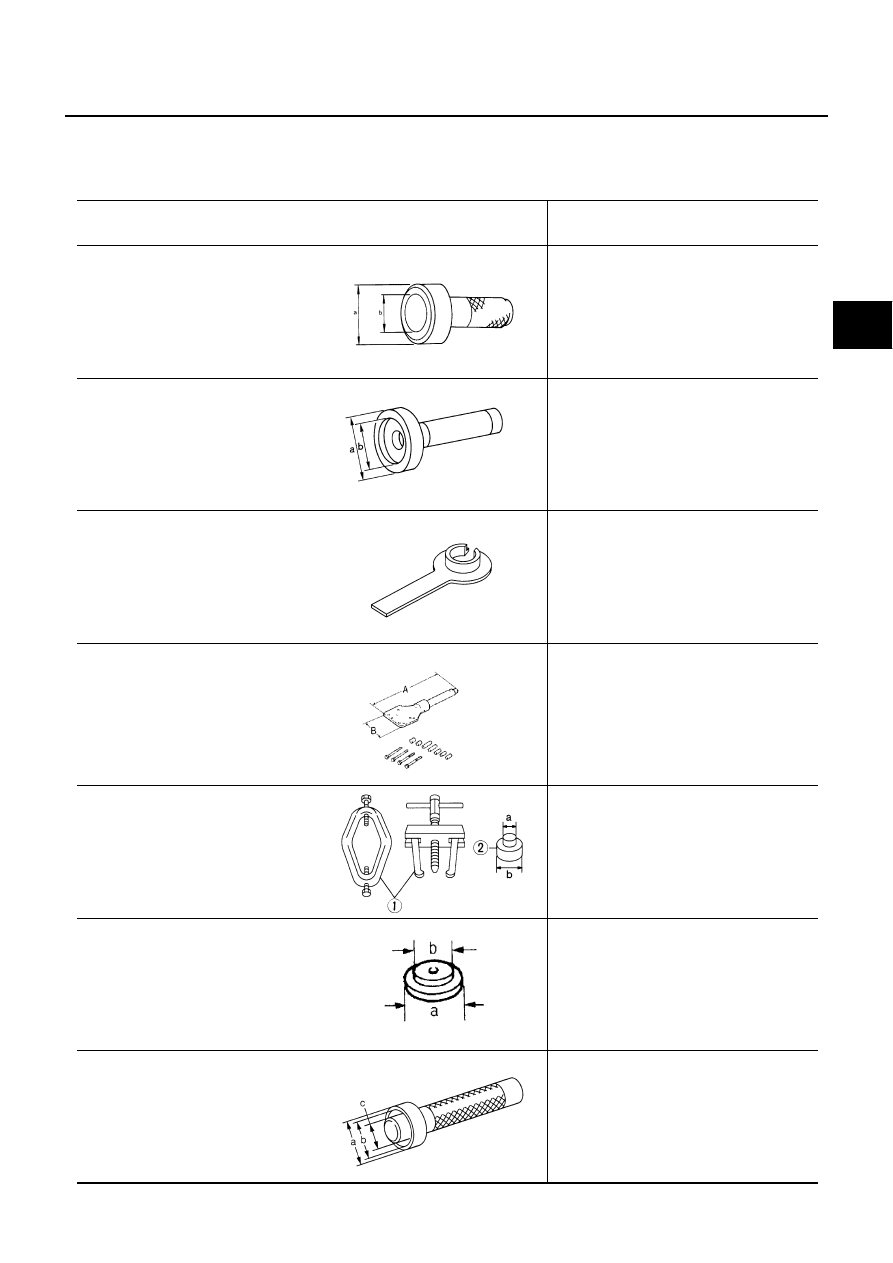

ST30720000 (J25405)
Drift
a: 77 mm (3.03 in) dia.
b: 55 mm (2.17 in) dia.

Installing front oil seal

KV38100200 (J26233)
Drift
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

Installing side oil seal

KV38107900 (J39352)
Protector

Installing side flange

KV38100800 (J25604-01)
Attachment
a: 541 mm (21.30 in)
b: 200 mm (7.87 in)

 Fixing unit assembly

ST3306S001 ( – )
Differential side bearing puller set
1.ST33051001 ( J22888-20 )
2.ST33061000 (J8107–2)
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

Removing and installing side bearing

ST30613000 (J25742-3)
Drift
a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.

Installing pinion front and rear bearing outer
race

KV38100300 (J25523)
Drift
a: 54 mm (2.13 in) dia.
b: 46 mm (1.81 in) dia.
c: 32 mm (1.26 in) dia.

Installing side bearing

ZZA0811D

ZZA1143D

S-NT129

SDIA0267E

NT072

ZZA0810D

ZZA1046D

RFD-4

PREPARATION

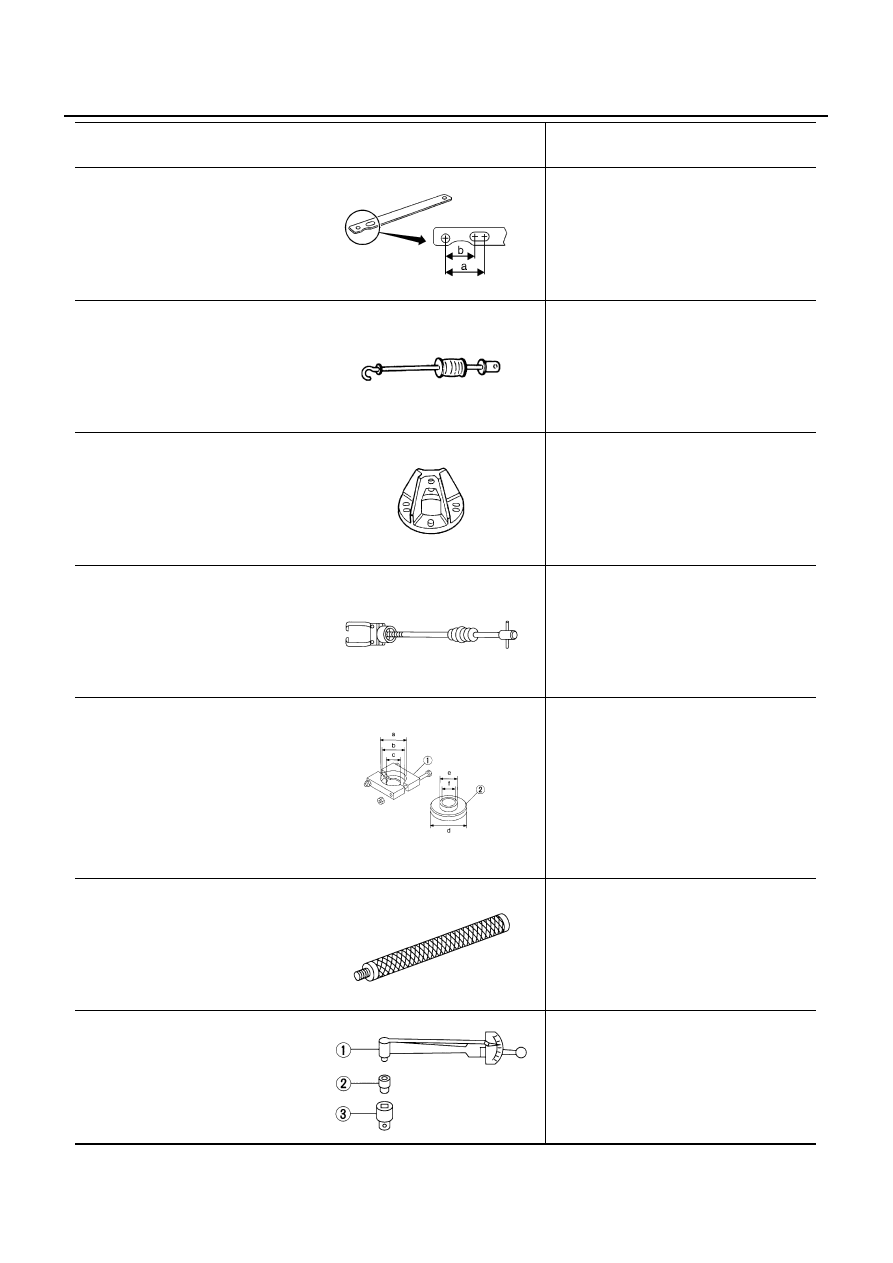

KV40104000 (   –   )
Drive pinion flange wrench
a : 85 mm (3.35 in) dia.
b : 65 mm (2.56 in) dia.

Removing and installing drive pinion nut

ST36230000 (J25840-A)
Sliding hammer

Removing side flange

KV40104100 (   –   )
Axle stand

Removing side flange

HT72400000 (   –   )
Sliding hammer

Removing differential case assembly

ST3090S000 ( – )
Drive pinion rear inner race puller set
1. ST30031000 (J22912-01) Puller
2. ST30901000 ( – ) Base
Equivalent tool (J26010-01)
a : 90 mm (3.54 in) dia.
b : 80 mm (3.15 in) dia.
c : 50 mm (1.97 in) dia.
d : 79 mm (3.11 in) dia.
e : 45 mm (1.77 in) dia.
f : 35 mm (1.38 in) dia.

Removing and installing drive pinion rear
bearing inner race

ST30611000 (J25742–1)
Drift

Installing pinion rear bearing outer race
(Use with ST30613000)

ST3127S000 (see J25765-A)
Preload gauge
1. GG91030000
               Torque wrench (J25765)
2. HT62940000 ( – )
               Socket adapter (1/2

)

3. HT62900000 ( – )
               Socket adapter (3/8

)

Measuring pinion bearing preload and total
preload

Tool number (Kent-Moore No.)
Tool name

Description

NT659

ZZA0803D

ZZA0804D

S-NT125

S-NT640

S-NT090

NT124
