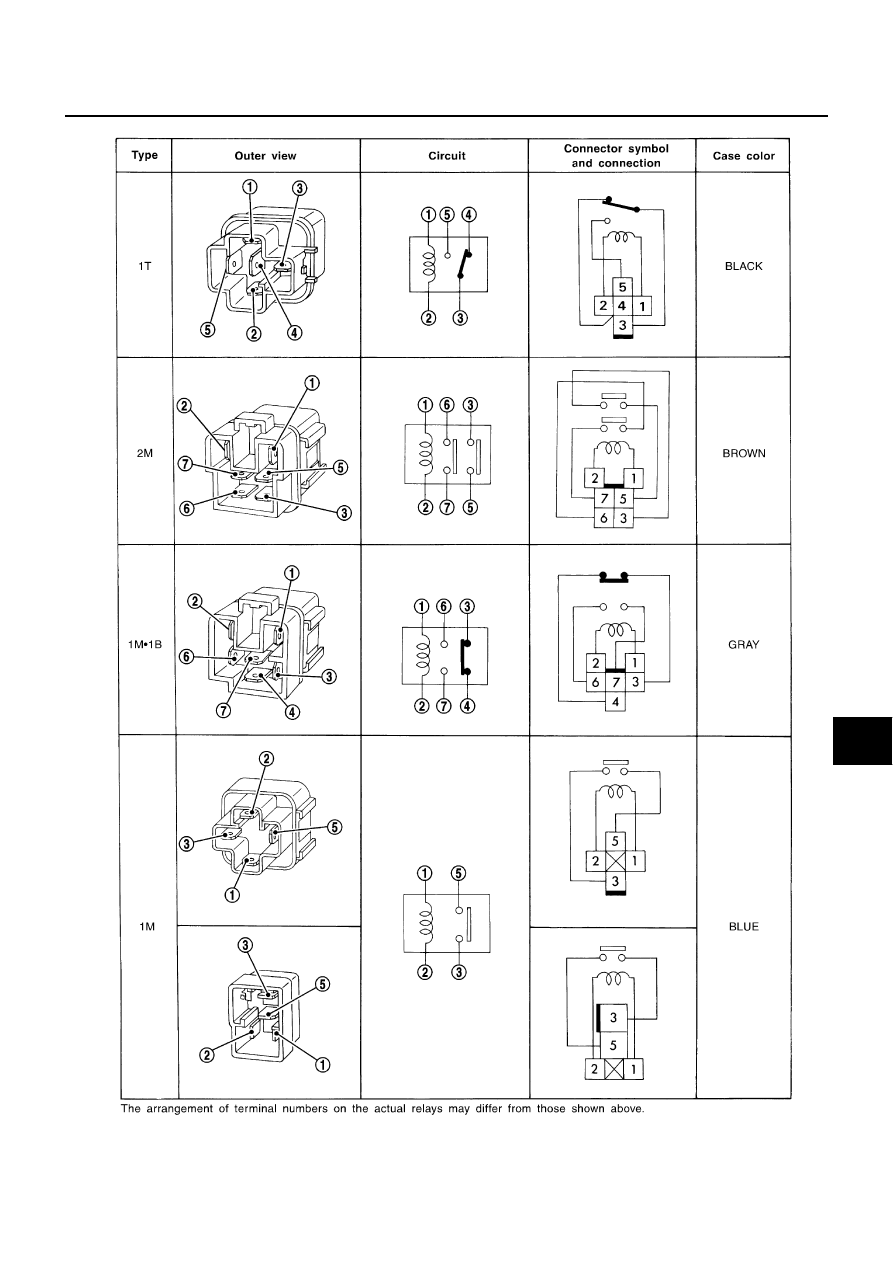

STANDARDIZED RELAY

PG-61

C

D

E

F

G

H

I

J

L

M

A

B

PG

SEL188W

PG-62

FUSE BLOCK - JUNCTION BOX (J/B) NO.1

FUSE BLOCK - JUNCTION BOX (J/B) NO.1

PFP:24350

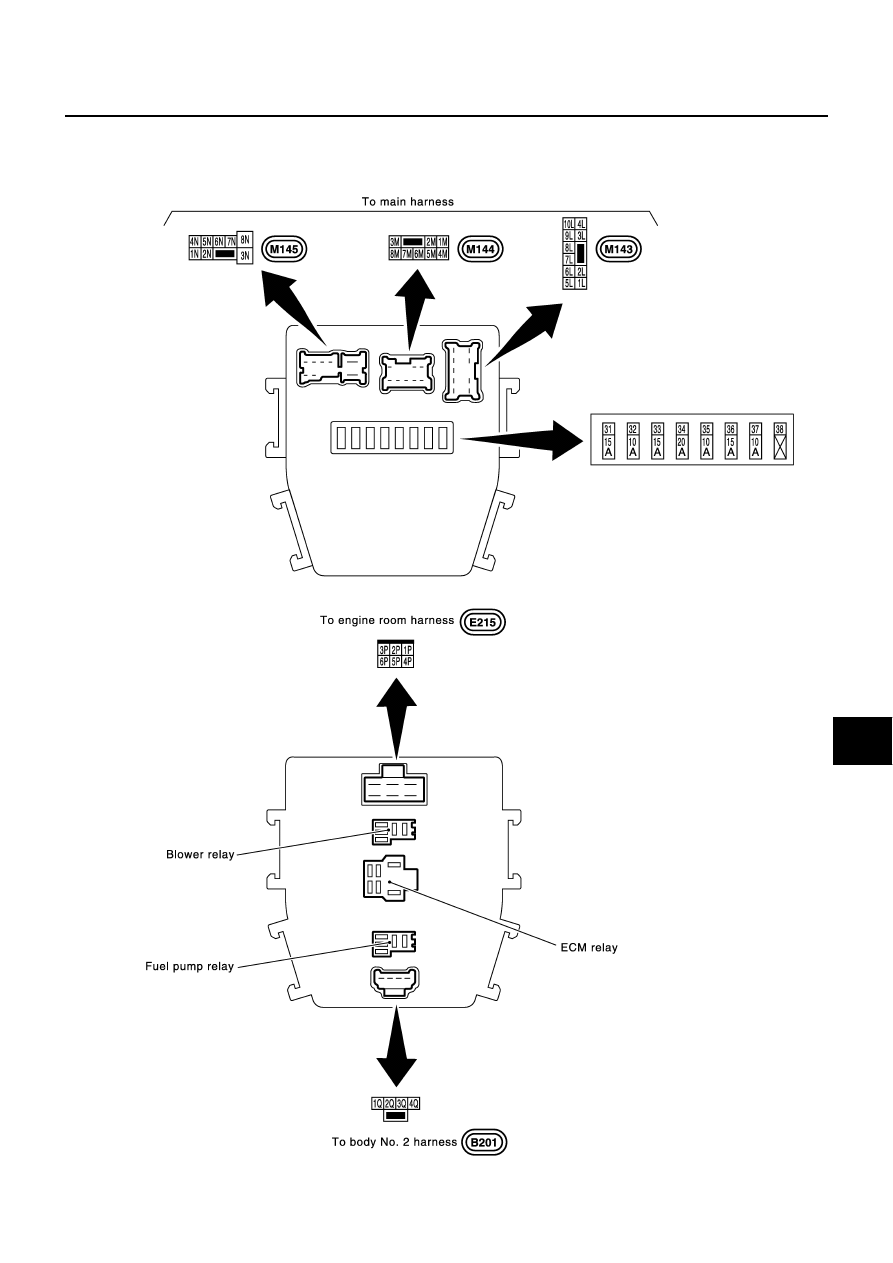

Terminal Arrangement

AKS002S5

CKIA0265E

FUSE BLOCK - JUNCTION BOX (J/B) NO.2

PG-63

C

D

E

F

G

H

I

J

L

M

A

B

PG

FUSE BLOCK - JUNCTION BOX (J/B) NO.2

PFP:24350

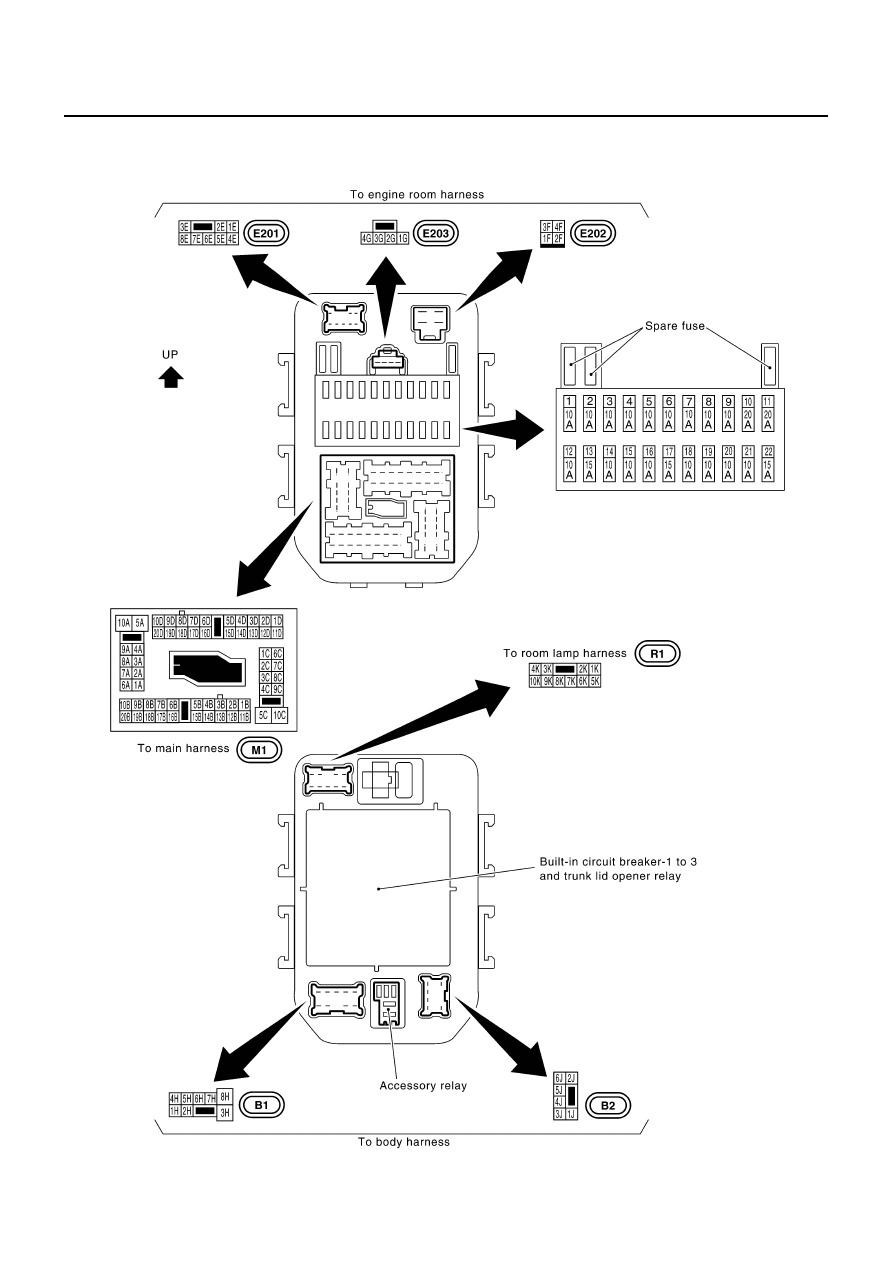

Terminal Arrangement

AKS002S6

CKIM0065E

PG-64

FUSE, FUSIBLE LINK AND RELAY BLOCK (J/B)

FUSE, FUSIBLE LINK AND RELAY BLOCK (J/B)

PFP:24382

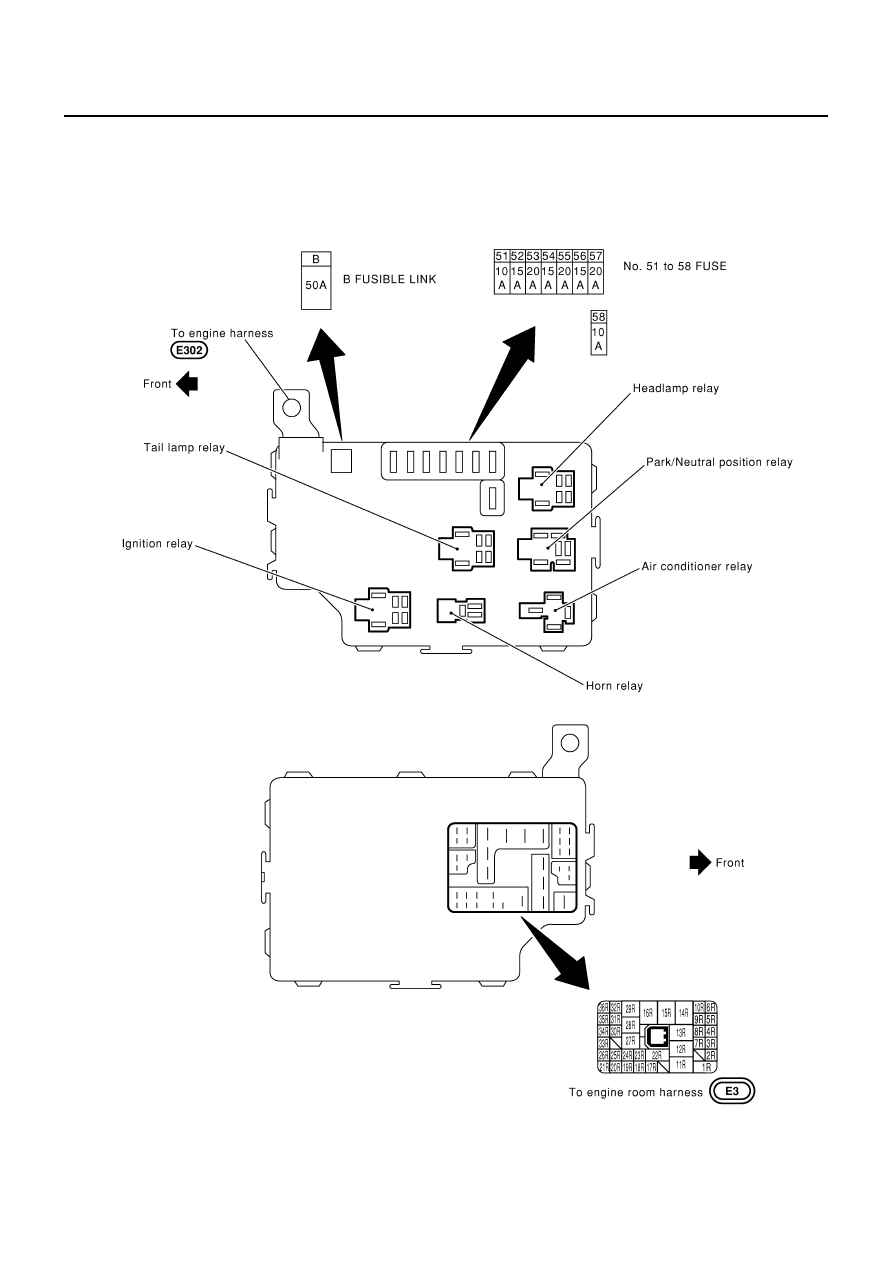

Terminal Arrangement

AKS002S7

CKIM0066E
