ELECTRICAL UNITS LOCATION

PFP:25230

Electrical Units Location

AKS002RW

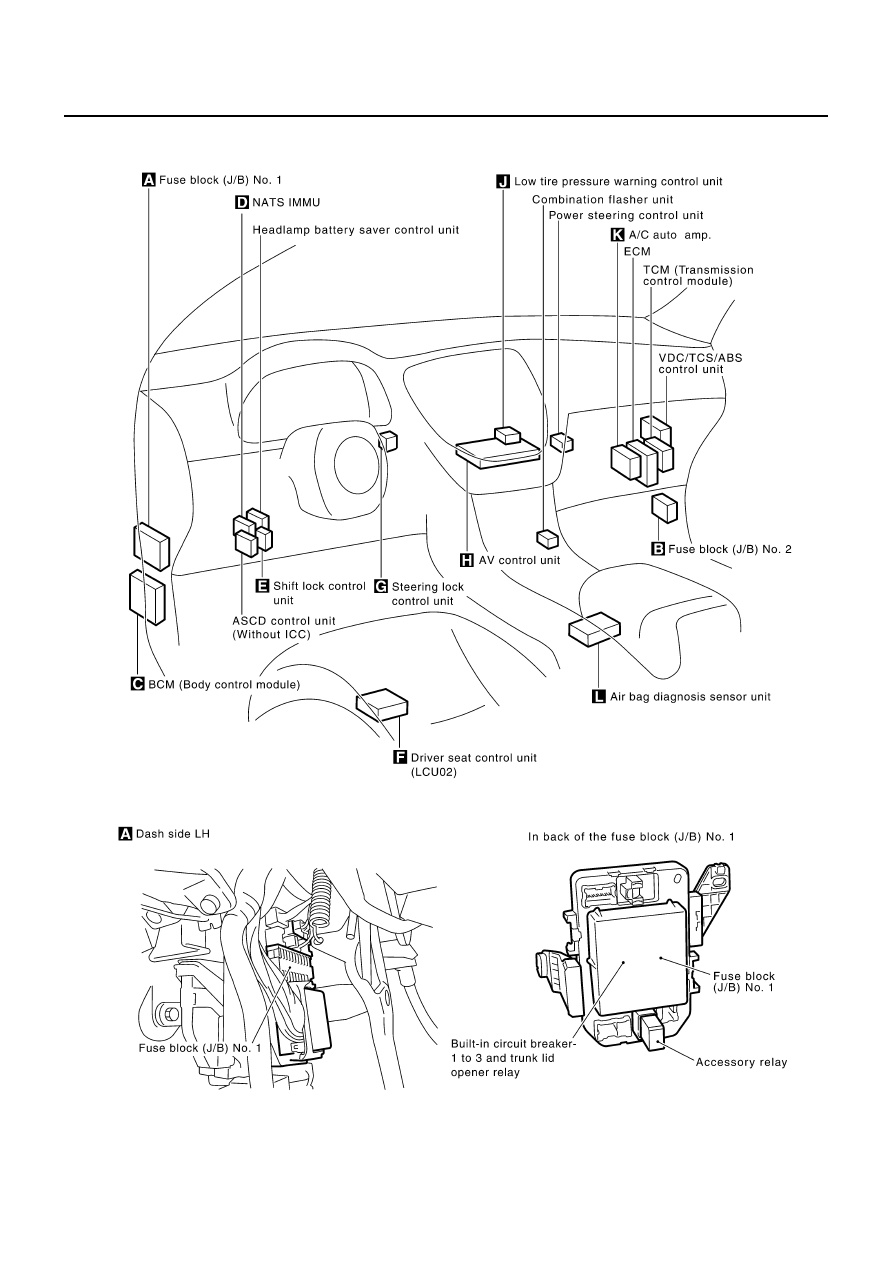

ENGINE COMPARTMENT

CKIA0227E

PG-50

ELECTRICAL UNITS LOCATION

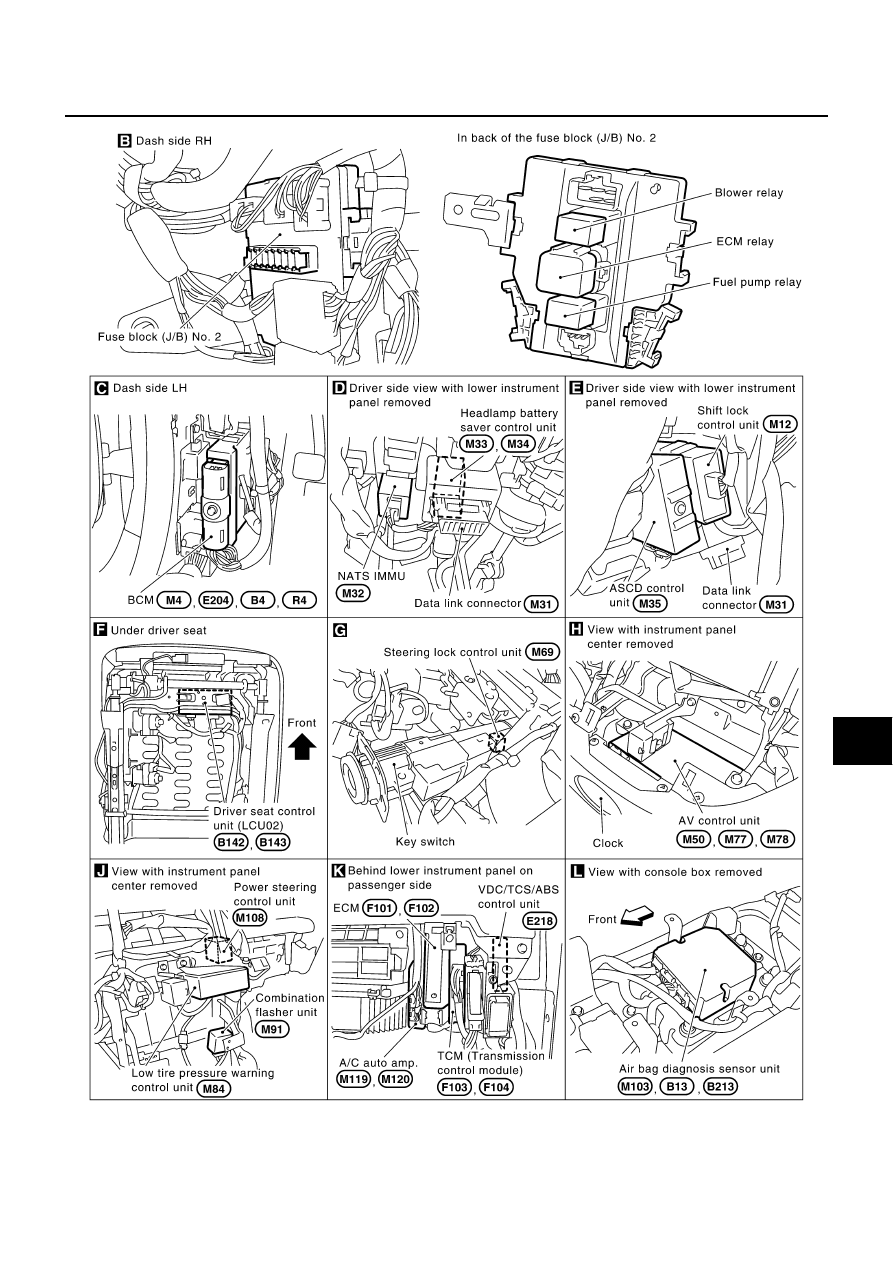

PASSENGER COMPARTMENT

CKIA0228E

ELECTRICAL UNITS LOCATION

PG-51

C

D

E

F

G

H

I

J

L

M

A

B

PG

CKIA0229E

PG-52

ELECTRICAL UNITS LOCATION

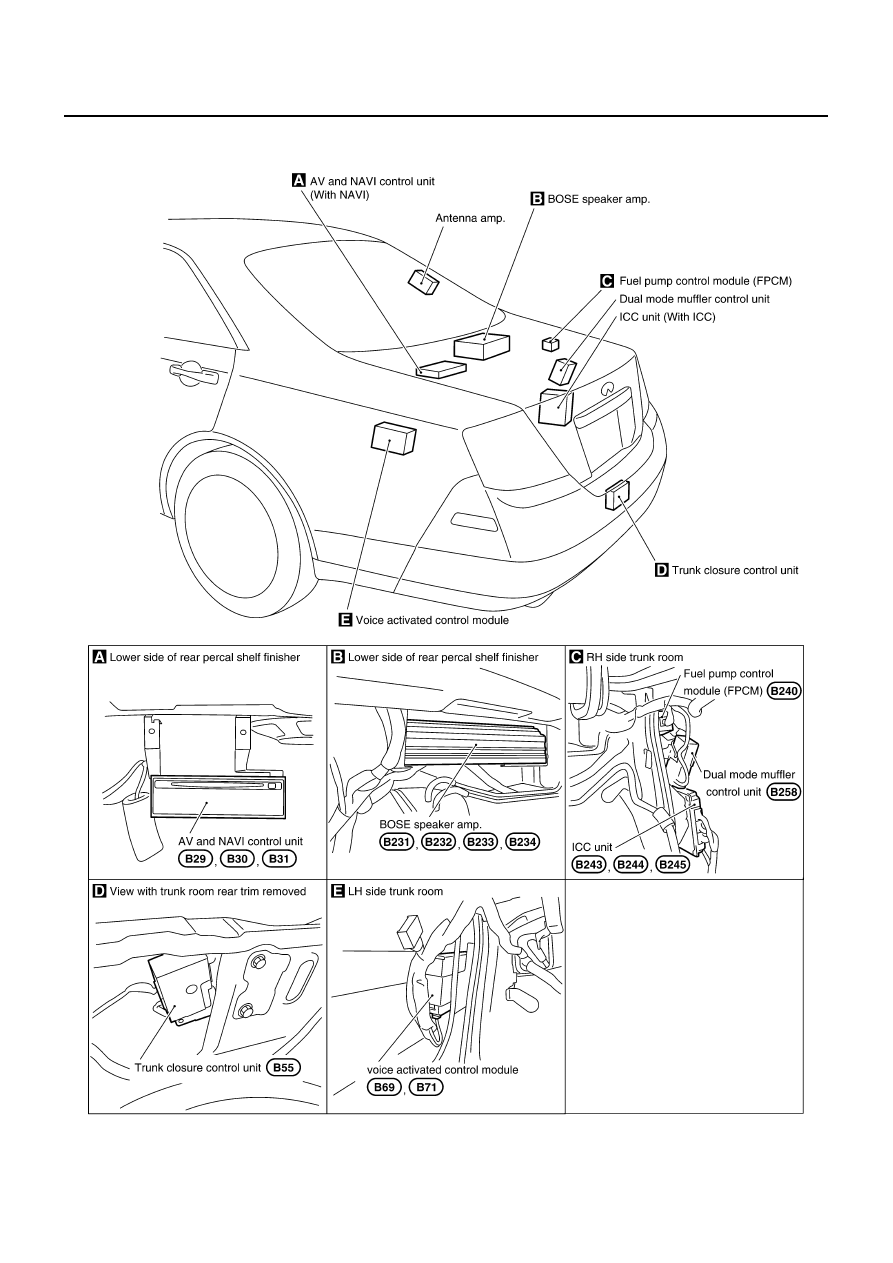

LUGGAGE COMPARTMENT

CKIA0230E
