Infiniti M45 (Y34). Manual - part 690





GROUND

PG-25

C

D

E

F

G

H

I

J

L

M

A

B

PG

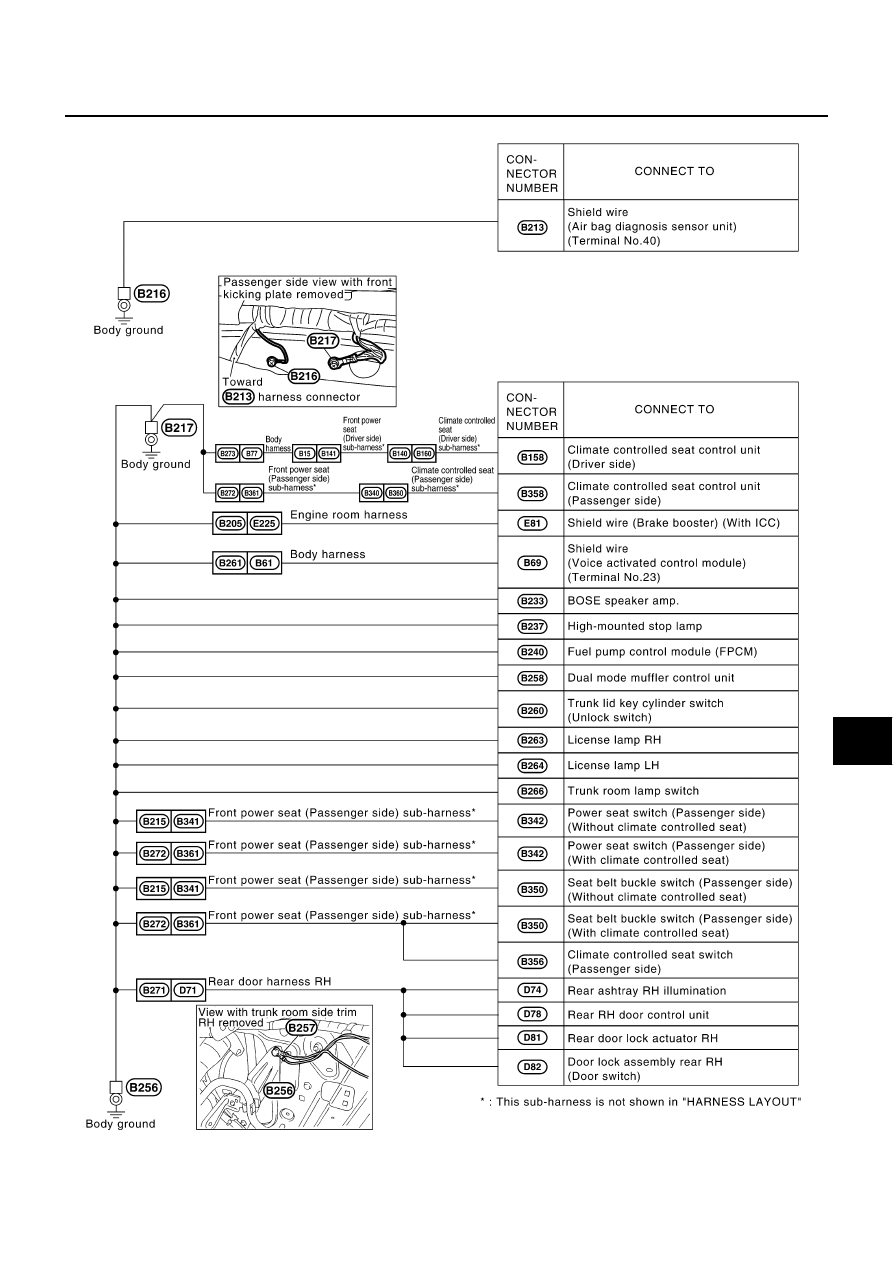

BODY NO.2 HARNESS

CKIA0243E

PG-26

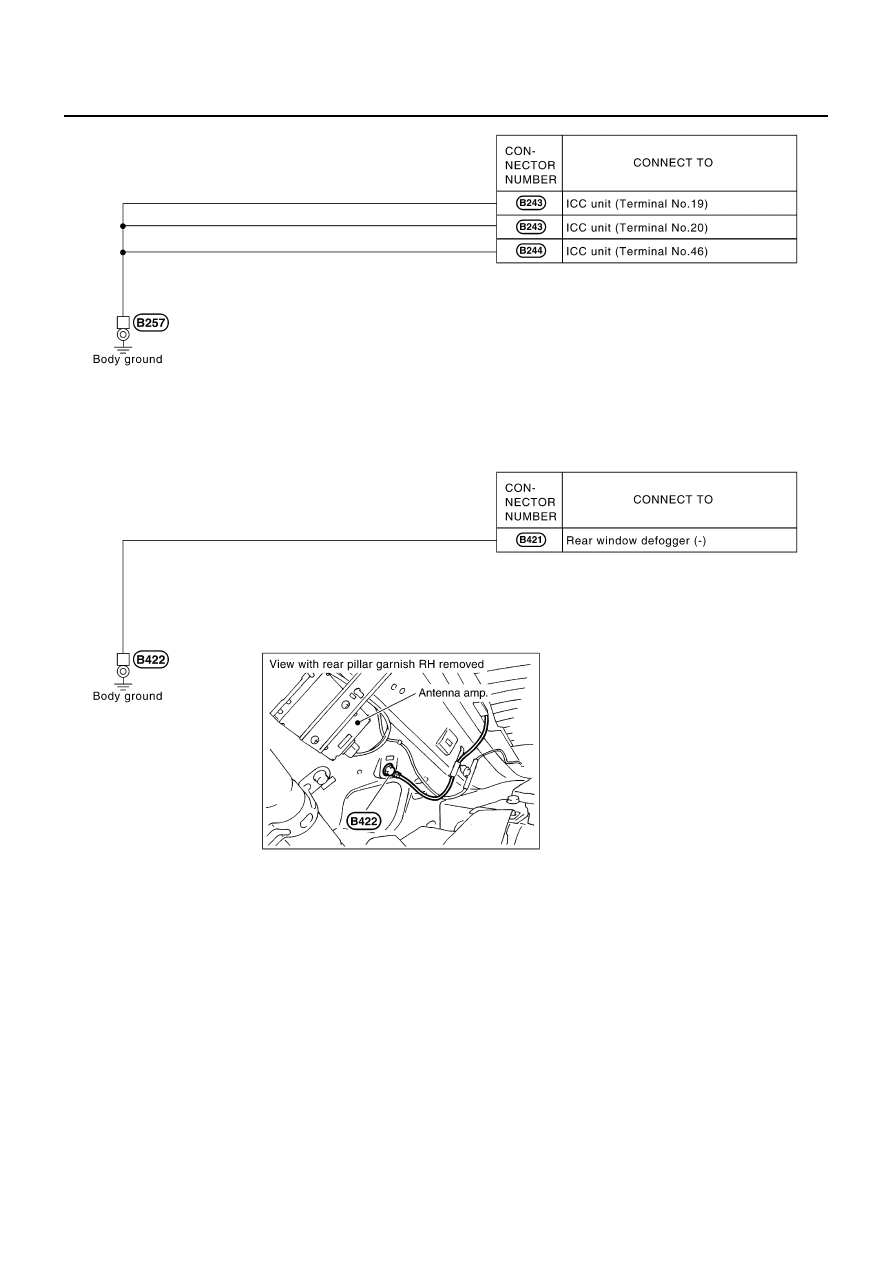

GROUND

CKIA0244E

HARNESS

PG-27

C

D

E

F

G

H

I

J

L

M

A

B

PG

HARNESS

PFP:00011

Harness Layout

AKS002RT

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate
connectors on the drawings:

Main Harness

Engine Room Harness (Engine Compartment)

Engine Control Harness

Body Harness

Body No.2 Harness

To use the grid reference

1.

Find the desired connector number on the connector list.

2.

Find the grid reference.

3.

On the drawing, find the crossing of the grid reference letter column and number row.

4.

Find the connector number in the crossing zone.

5.

Follow the line (if used) to the connector.

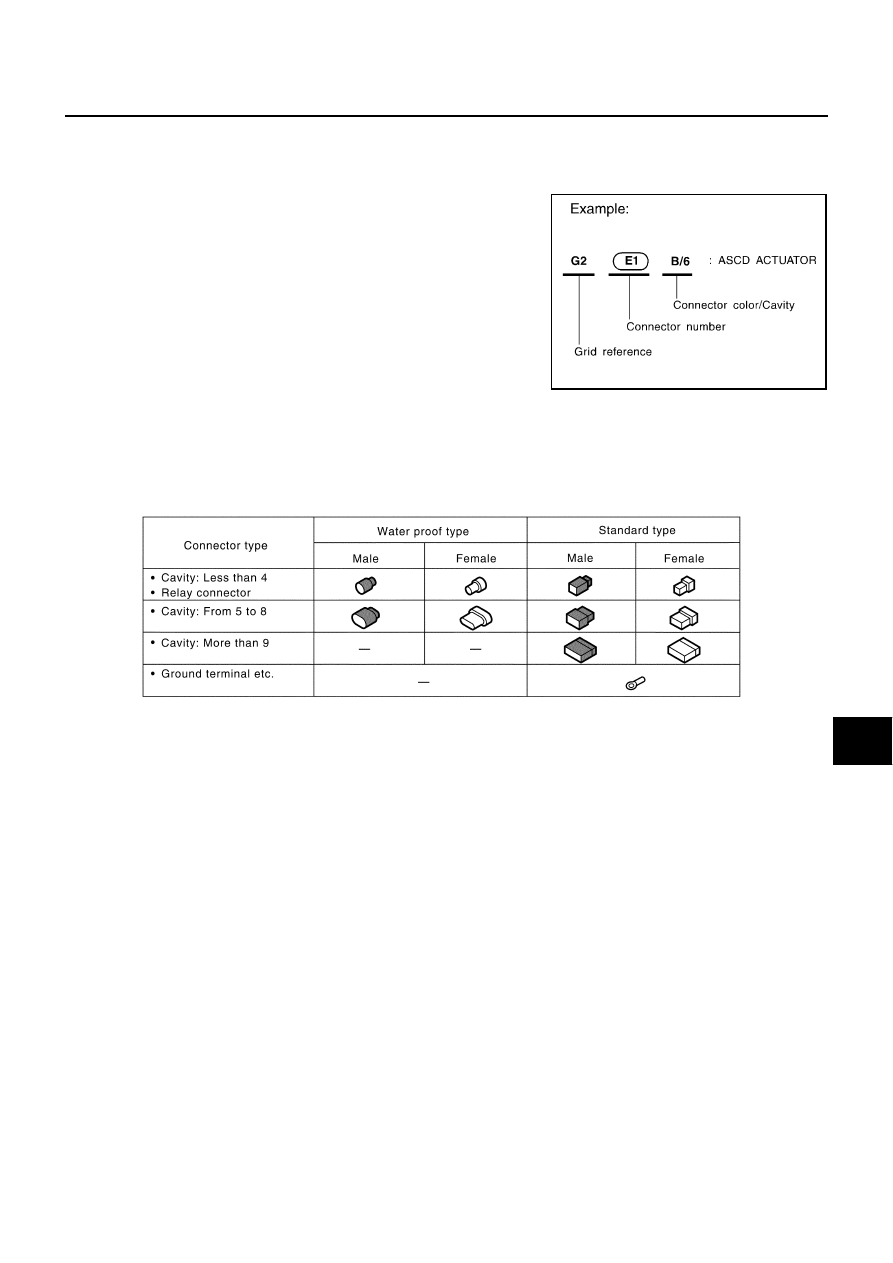

CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.

SEL252V

SKIA0404E

PG-28

HARNESS

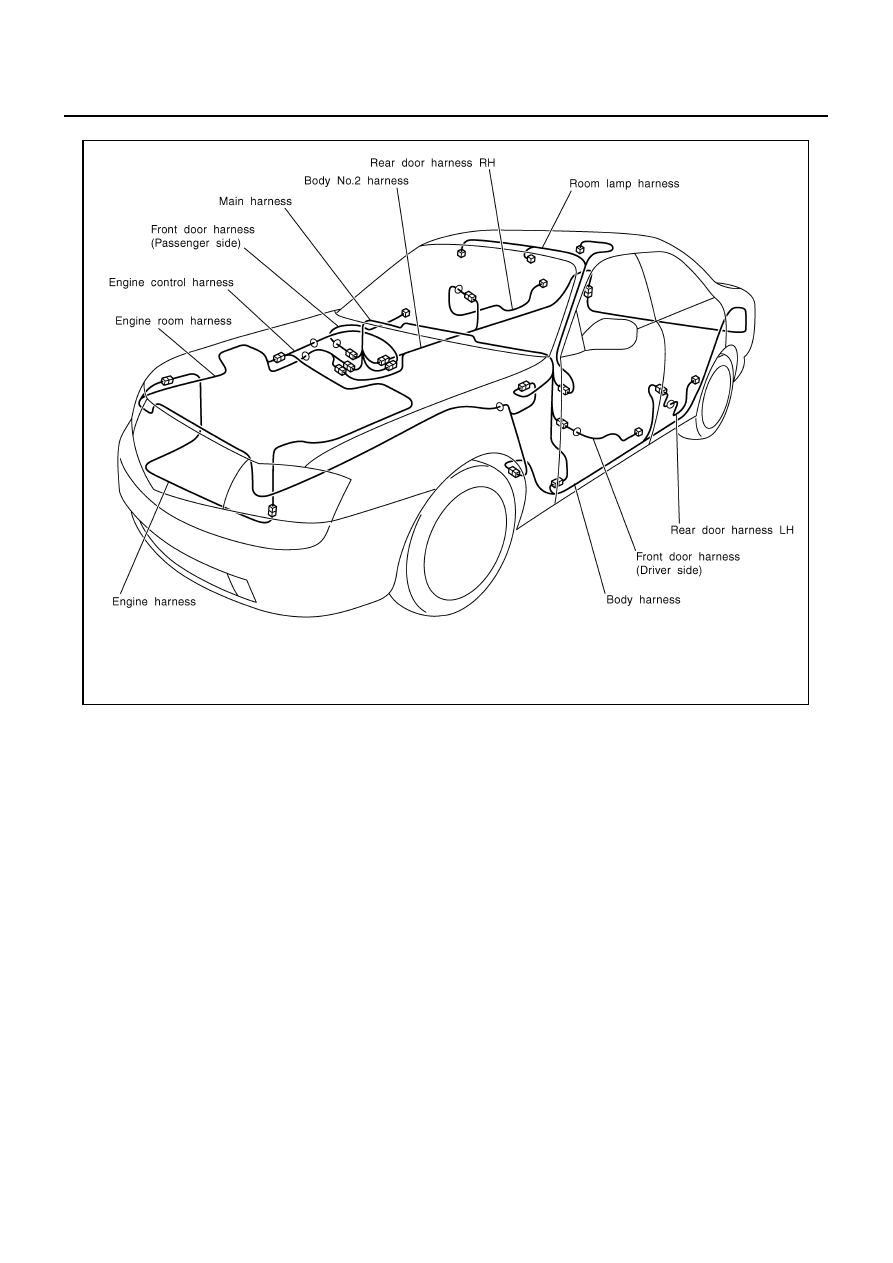

OUTLINE

TKIA0001E
