POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

POWER SUPPLY ROUTING  ...................................... 2

Schematic ................................................................ 2
Wiring Diagram — POWER — ................................. 3

BATTERY POWER SUPPLY— IGNITION SW. IN
ANY POSITION ..................................................... 3
ACCESSORY POWER SUPPLY — IGNITION
SW. IN “ACC” OR “ON” ......................................... 7
IGNITION POWER SUPPLY — IGNITION SW.
IN “ON” AND/OR “START”  .................................... 9

Fuse ....................................................................... 13
Fusible Link  ............................................................ 13
Circuit Breaker  ....................................................... 13

GROUND .................................................................. 14

Ground Distribution  ................................................ 14

MAIN HARNESS ................................................. 14
ENGINE ROOM HARNESS ................................ 17
ENGINE HARNESS  ............................................ 20
ENGINE CONTROL HARNESS  ......................... 21
BODY HARNESS ................................................ 23
BODY NO.2 HARNESS  ...................................... 25

HARNESS ................................................................. 27

Harness Layout  ...................................................... 27

HOW TO READ HARNESS LAYOUT  ................. 27
OUTLINE ............................................................. 28
MAIN HARNESS ................................................. 29
ENGINE ROOM HARNESS ................................ 32
ENGINE HARNESS  ............................................ 35
ENGINE CONTROL HARNESS  ......................... 36
BODY HARNESS ................................................ 38
BODY NO. 2 HARNESS  ..................................... 40
ROOM LAMP HARNESS .................................... 42
FRONT DOOR HARNESS .................................. 43

REAR DOOR HARNESS  .................................... 44

Wiring Diagram Codes (Cell Codes)  ...................... 45

ELECTRICAL UNITS LOCATION  ............................ 49

Electrical Units Location  ......................................... 49

ENGINE COMPARTMENT  .................................. 49
PASSENGER COMPARTMENT  ......................... 50
LUGGAGE COMPARTMENT  .............................. 52

HARNESS CONNECTOR  ......................................... 53

Description .............................................................. 53

HARNESS CONNECTOR (TAB-LOCKING
TYPE) .................................................................. 53
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) .................................................................. 54

JOINT CONNECTOR (J/C)  ....................................... 55

Terminal Arrangement  ............................................ 55

ELECTRICAL UNITS  ................................................ 56

Terminal Arrangement  ............................................ 56

SMJ (SUPER MULTIPLE JUNCTION)  ..................... 58

Terminal Arrangement  ............................................ 58

STANDARDIZED RELAY .......................................... 60

Description .............................................................. 60

NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ........................................ 60
TYPE OF STANDARDIZED RELAYS  ................. 60

FUSE BLOCK - JUNCTION BOX (J/B) NO.1  .......... 62

Terminal Arrangement  ............................................ 62

FUSE BLOCK - JUNCTION BOX (J/B) NO.2  .......... 63

Terminal Arrangement  ............................................ 63

FUSE, FUSIBLE LINK AND RELAY BLOCK (J/B) ... 64

Terminal Arrangement  ............................................ 64

FUSE, FUSIBLE LINK AND RELAY BOX ................ 65

Terminal Arrangement  ............................................ 65

PG-2

POWER SUPPLY ROUTING

POWER SUPPLY ROUTING

PFP:00011

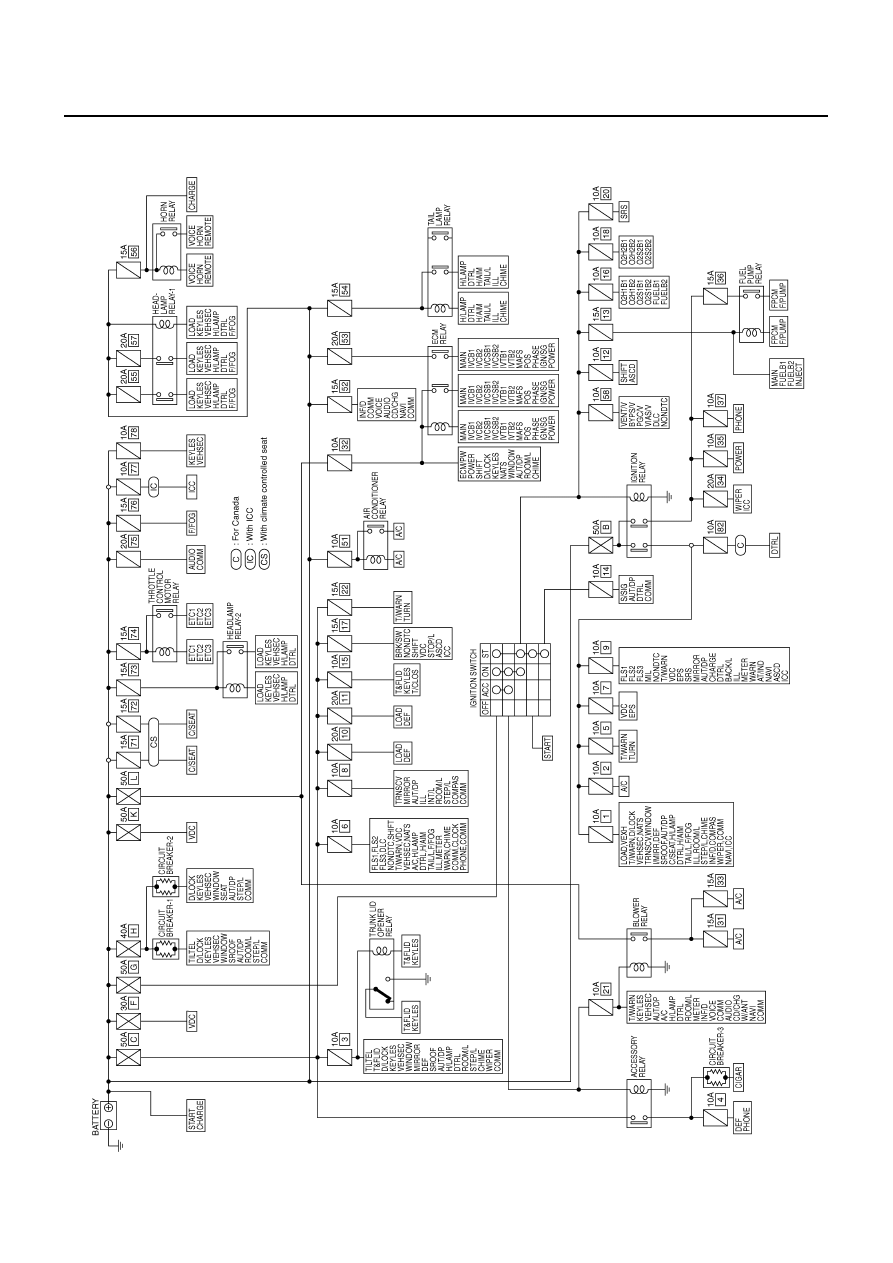

Schematic

AKS002RQ

TKWA1654E

POWER SUPPLY ROUTING

PG-3

C

D

E

F

G

H

I

J

L

M

A

B

PG

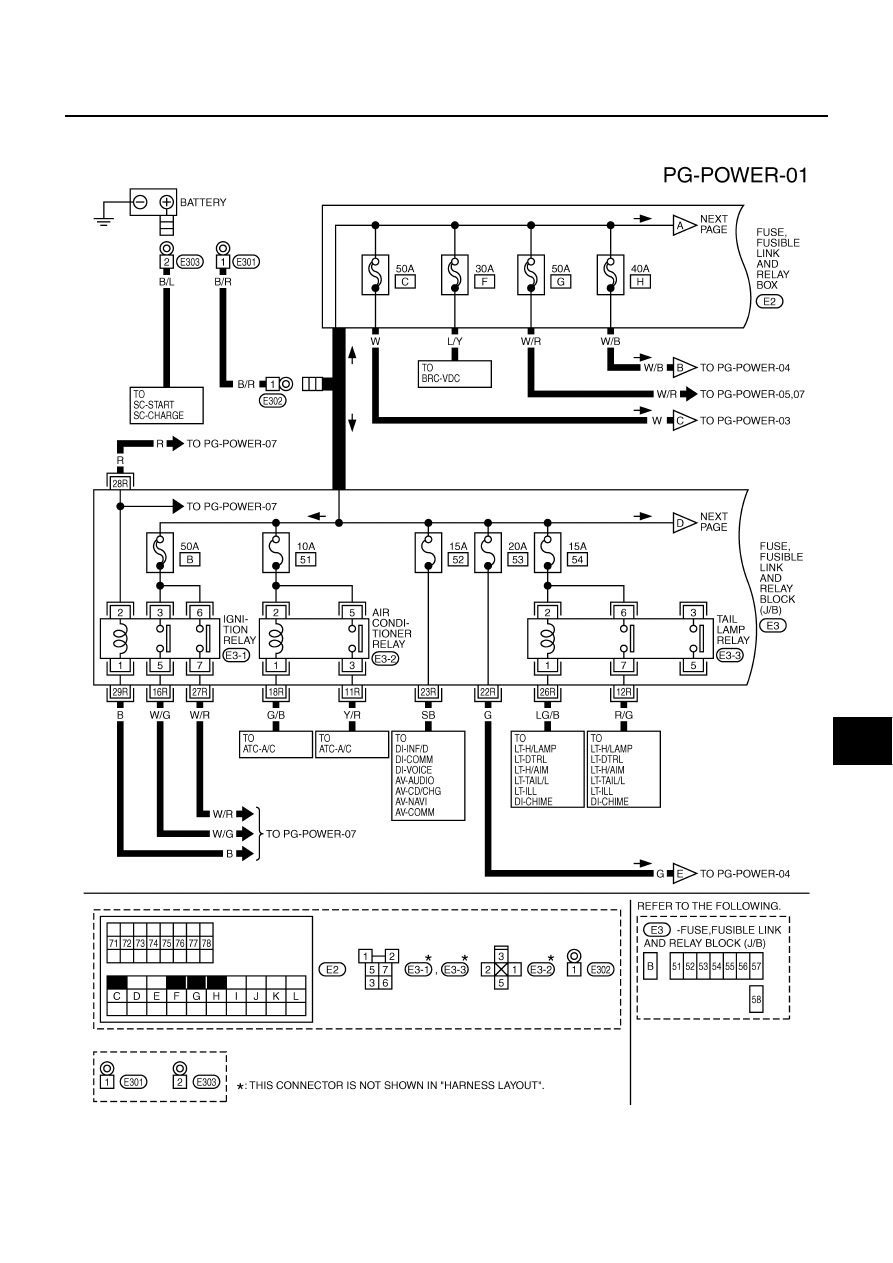

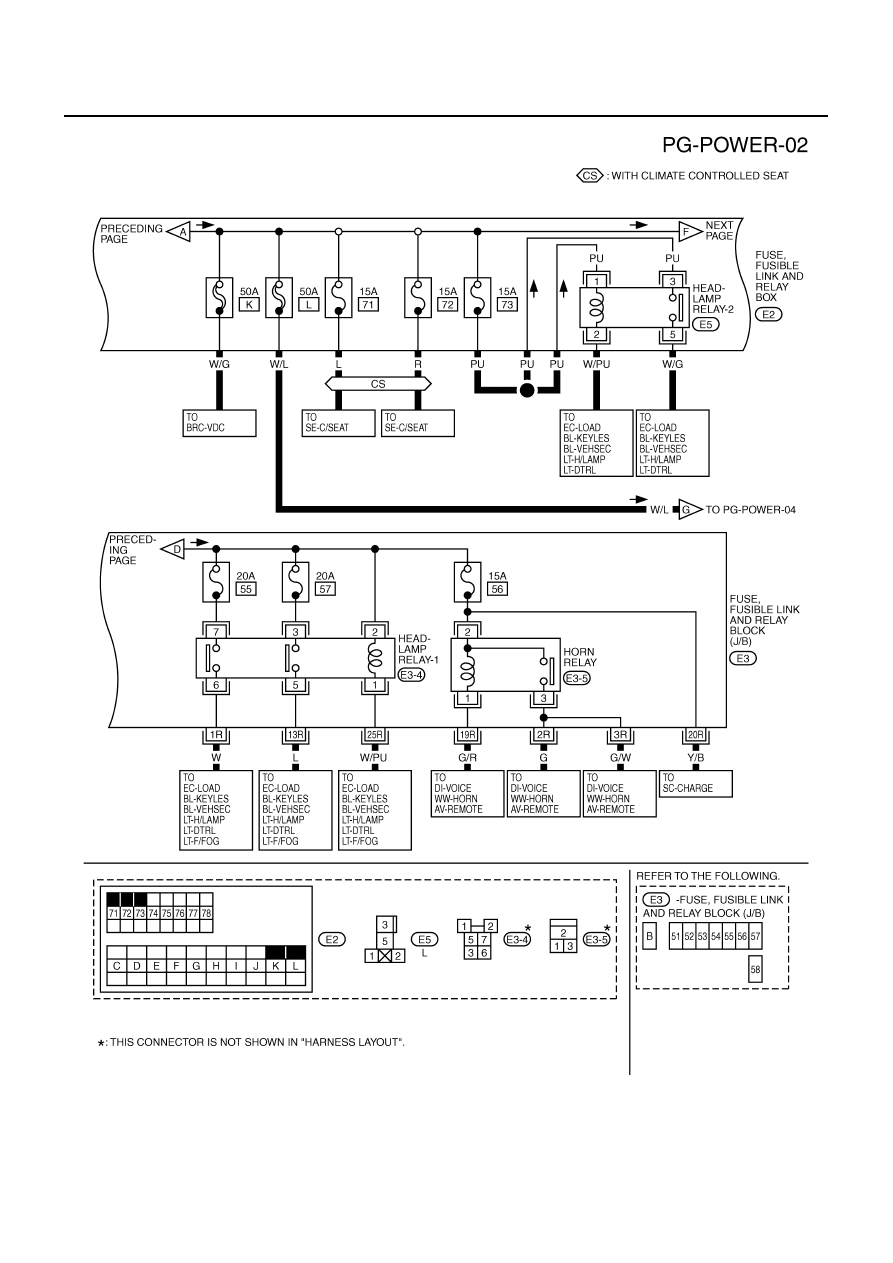

Wiring Diagram — POWER —

AKS002RR

BATTERY POWER SUPPLY— IGNITION SW. IN ANY POSITION

TKWA0683E

PG-4

POWER SUPPLY ROUTING

TKWA0684E
