PARKING BRAKE SYSTEM

PB-3

C

D

E

G

H

I

J

K

L

M

A

B

PB

PARKING BRAKE SYSTEM

PFP:36010

On-Vehicle Service

AFS000JK

INSPECTION

While depressing the parking brake pedal to specified amount of
force. Check that the pedal stroke is within the range of the
specified stroke amount.

Check that warning lamp comes on when parking brake pedal is
depressed with in one notch.

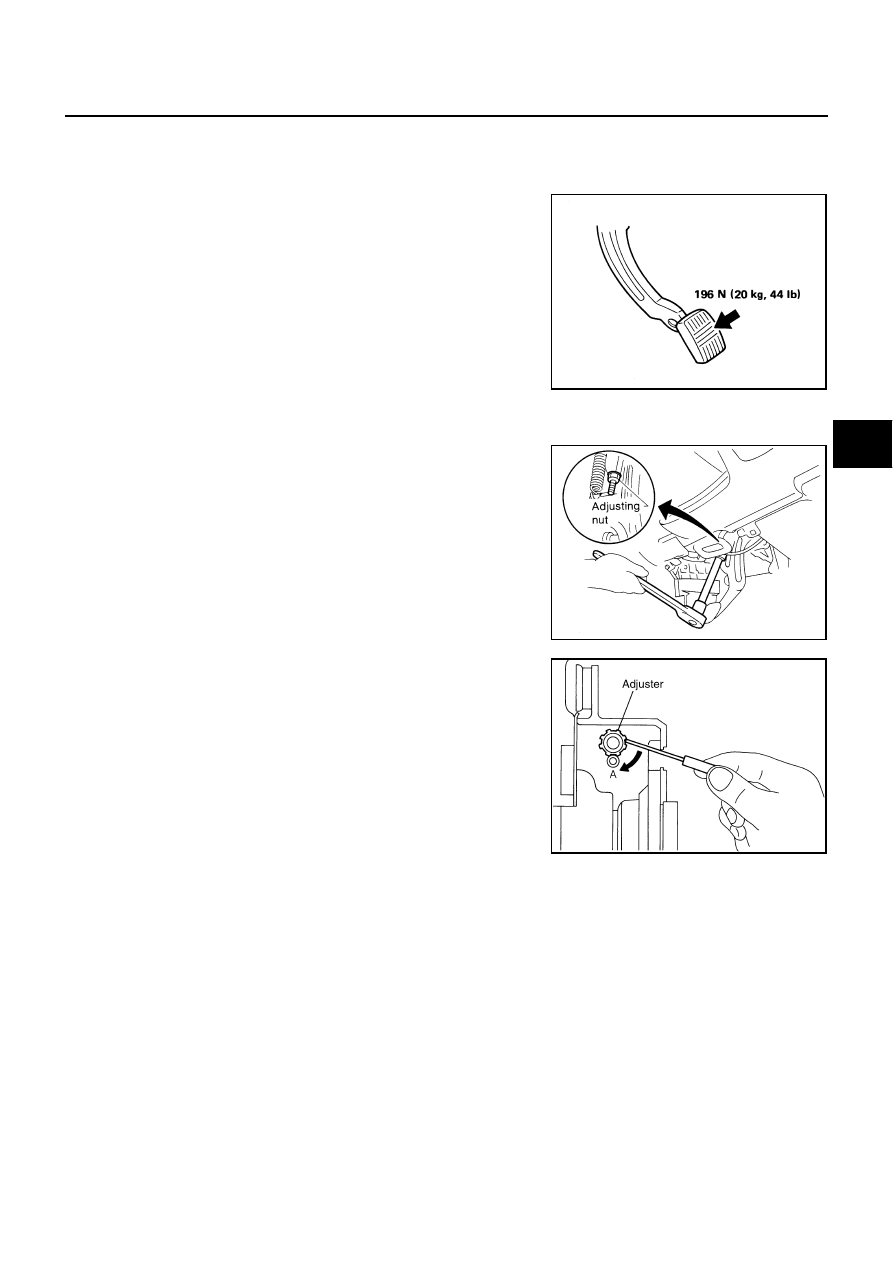

ADJUSTMENT

To perform adjustment operations, remove tire from vehicle.

1.

Insert a deep-well socket wrench to rotate the adjusting nut to
loosen the cable sufficiently. Then, after returning the pedal
completely, adjust the clearance of the rear shoes.

2.

Using a wheel nut, fix the disc to the hub preventing it from tilt-
ing.

3.

Remove adjuster hole plug installed on the disc. Using a flat-
bladed screwdriver, turn the disc in direction as A as shown in
the figure until the disc is locked. After locking, turn the adjuster
to the opposite direction by 5 or 6 notches.

4.

Rotate the disc to make sure that there is no drag. Then install
the adjuster hole plug.

5.

After adjusting the clearance of the rear shoes, with no drag on
the rear brake, adjust the cable as follows:

a.

Operate the pedal 10 or more times with the force of 294 N (30
kg, 66 lb).

b.

Depress the pedal until a deep-well socket can be inserted.
Insert the deep-well socket, and rotate the adjusting nut to adjust the pedal stroke.

CAUTION:

Do not reuse the adjusting nut after removing it.

c.

After operating the pedal 3 to 4 times with the force of 196 N (20 kg, 44 lb), make sure that the pedal
stroke is within the specified value.

d.

With the pedal completely returned, make sure that there is no drag on the rear brake.

Number of notches

: 4 - 5

SBR695A

SBR051C

PFIA0295E

PB-4

PARKING BRAKE CONTROL

PARKING BRAKE CONTROL

PFP:36010

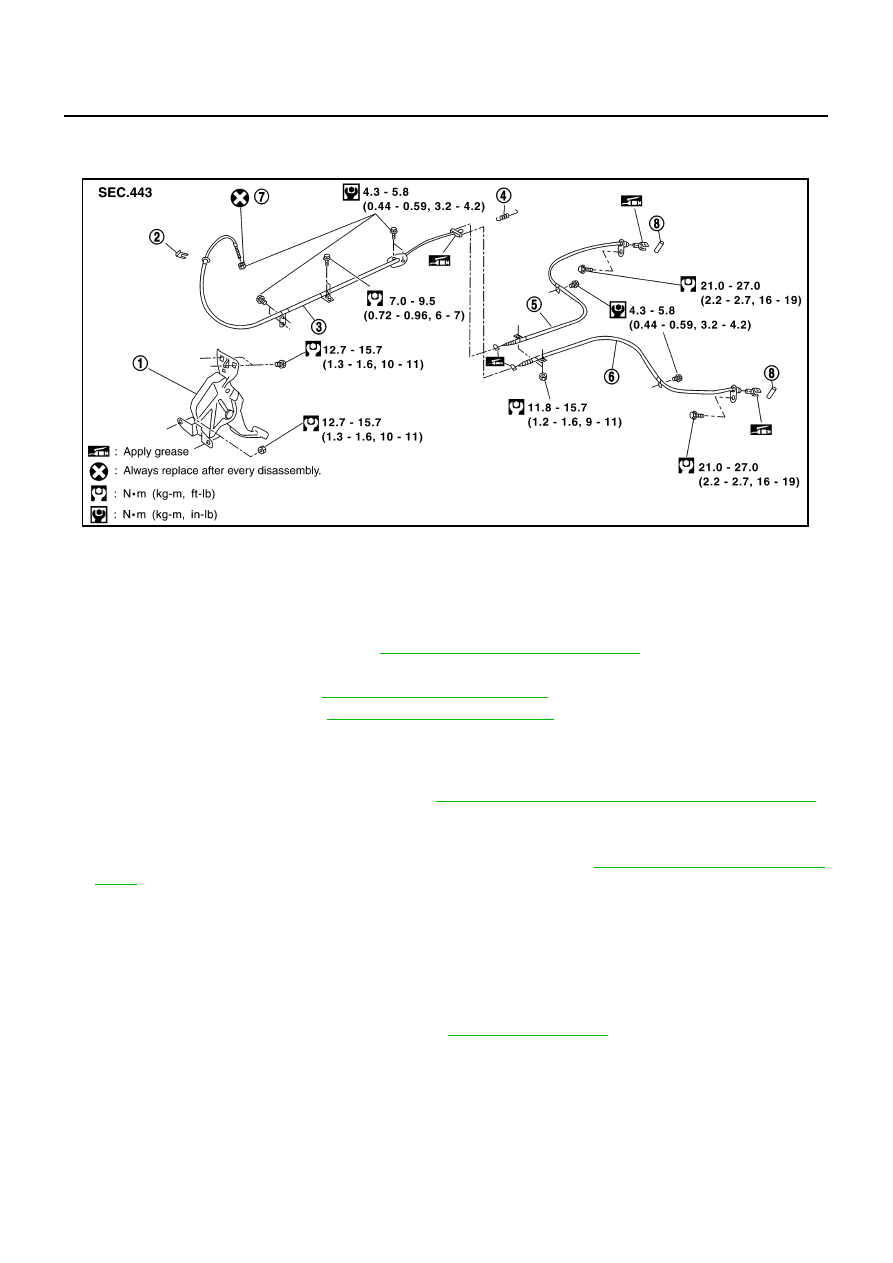

Components

AFS000JL

Removal and Installation

AFS000JM

REMOVAL

1.

Remove console box assembly. Refer to

IP-16, "CONSOLE BOX ASSEMBLY"

 .

2.

Remove adjusting nut from pedal assembly.

3.

Remove center muffler. Refer to

EX-3, "Removal and Installation"

 .

4.

Remove propeller shaft. Refer to

PR-5, "Removal and Installation"

 .

CAUTION:

Do not impact or damage propeller shaft tube.

5.

Remove tire from the vehicle.

6.

Remove rear disc caliper and disc rotor. Refer to

BR-31, "Removal and Installation of Caliper Assembly"

 .

7.

Remove parking brake shoe, and remove rear cable from toggle lever.

8.

Remove rear cable mounting nuts and bolts, and remove right and left rear cable from the vehicle.

9.

Remove air bag sensor unit with the sensor mount bracket. Refer to

SRS-51, "DIAGNOSIS SENSOR

UNIT"

 .

10. Remove front cable from the vehicle.

11. Remove mounting bolts and nuts of pedal assembly, and remove pedal assembly from the vehicle.

INSTALLATION

1.

Install in the reverse order of removal. Tighten the mounting bolts and nuts to the specified torque.

CAUTION:

Do not reuse the self-locking nut of the parking cable.

2.

Adjust clearance of parking brake shoes. Refer to

PB-3, "ADJUSTMENT"

 .

Inspection

AFS000JN

Check the pedal assembly for bend, damage, and cracks. Replace if necessary.

Check the cable for wear and damage.

Check the brake warning lamp switch. Replace if necessary.

Check each part for deformation, or damage by contact with other parts. Replace if necessary.

1.

Pedal assembly

2.

Lock plate

3.

Front cable

4.

Return spring

5.

RH rear cable

6.

LH rear cable

7.

Adjusting nut

8.

Pin

SFIA1922E

PARKING BRAKE SHOE

PB-5

C

D

E

G

H

I

J

K

L

M

A

B

PB

PARKING BRAKE SHOE

PFP:44060

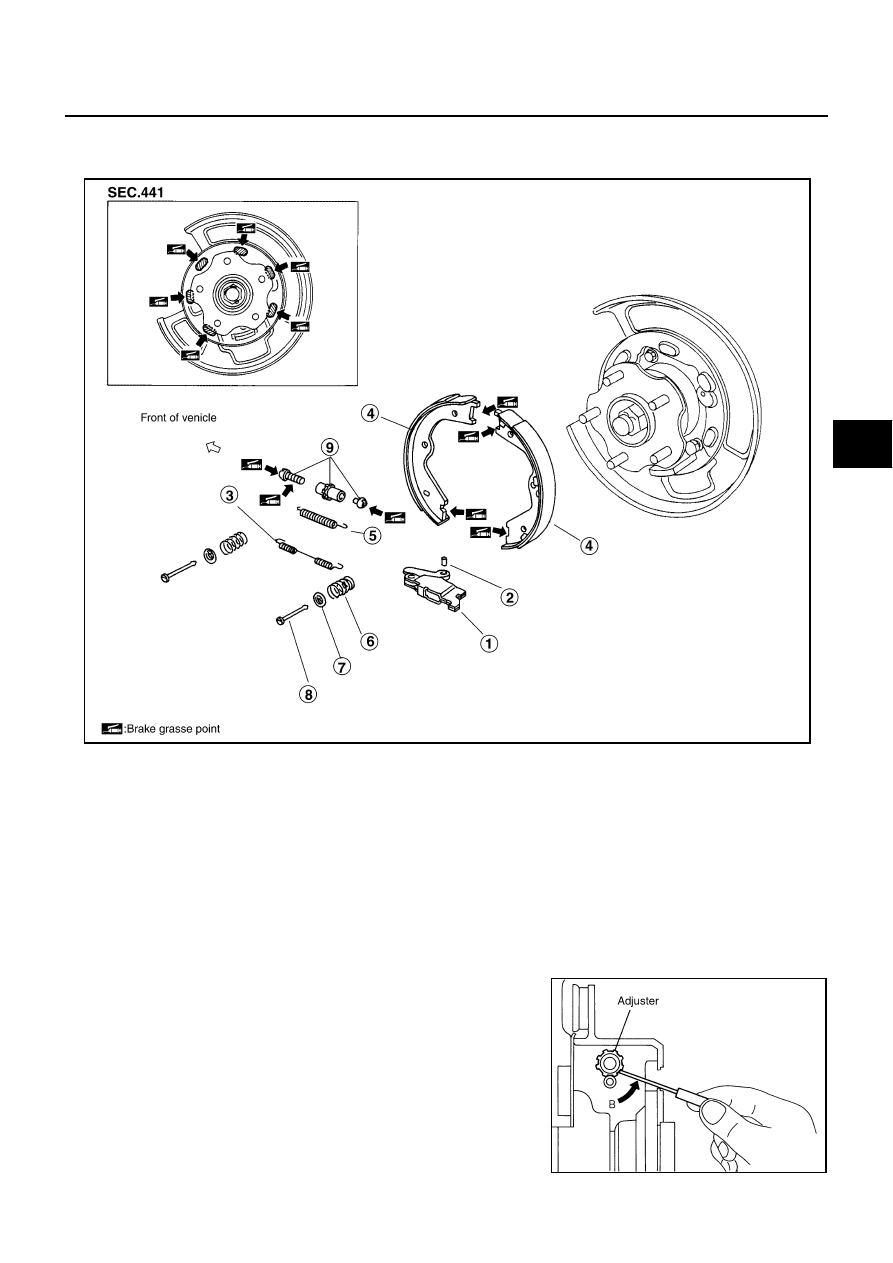

Components

AFS000JO

Removal and Installation

AFS000JP

REMOVAL

WARNING:

Clean brakes with a vacuum dust collector to minimize the hazard of airborne particles or other mate-
rials.

CAUTION:

Remove the wheel, and remove the disc rotor with the parking pedal completely returned.

If the disc rotor cannot be removed, remove as follows.

1.

Fix the disc rotor in place with wheel nuts and remove disc rotor
plug. Using a flat-bladed screwdriver, rotate star wheel on the
adjuster assembly in direction B to retract and loosen brake
shoes.

1.

Toggle lever

2.

Stopper pin

3.

Return spring

4.

Shoe

5.

Adjuster spring

6.

Anti-rattle spring

7.

Retainer

8.

Anti-rattle pin

9.

Adjuster assembly

SFIA0568E

PFIA0309E

PB-6

PARKING BRAKE SHOE

INSPECTION

Visually check the lining for malfunction wear, damage, and
peeling.

Using a scale, check the thickness of the lining.

CAUTION:

If necessary, remove the brake shoe, and check as follows.

Check the shoe sliding surface for malfunction wear and dam-
age.

Check the anti-rattle pin for malfunction wear and corrosion.

Check the return spring for sagging.

Check the adjuster for rough operation.

Visually check the inside of the drum for malfunction wear, dam-
age, and cracks. Using a pair of vernier calipers, check the
inside of the drum.

INSTALLATION

Install all parts in the reverse order of removal while taking care of the following.

Apply brake grease to the contact areas shown in the figure.

Assemble the parking brake shoe springs as shown.

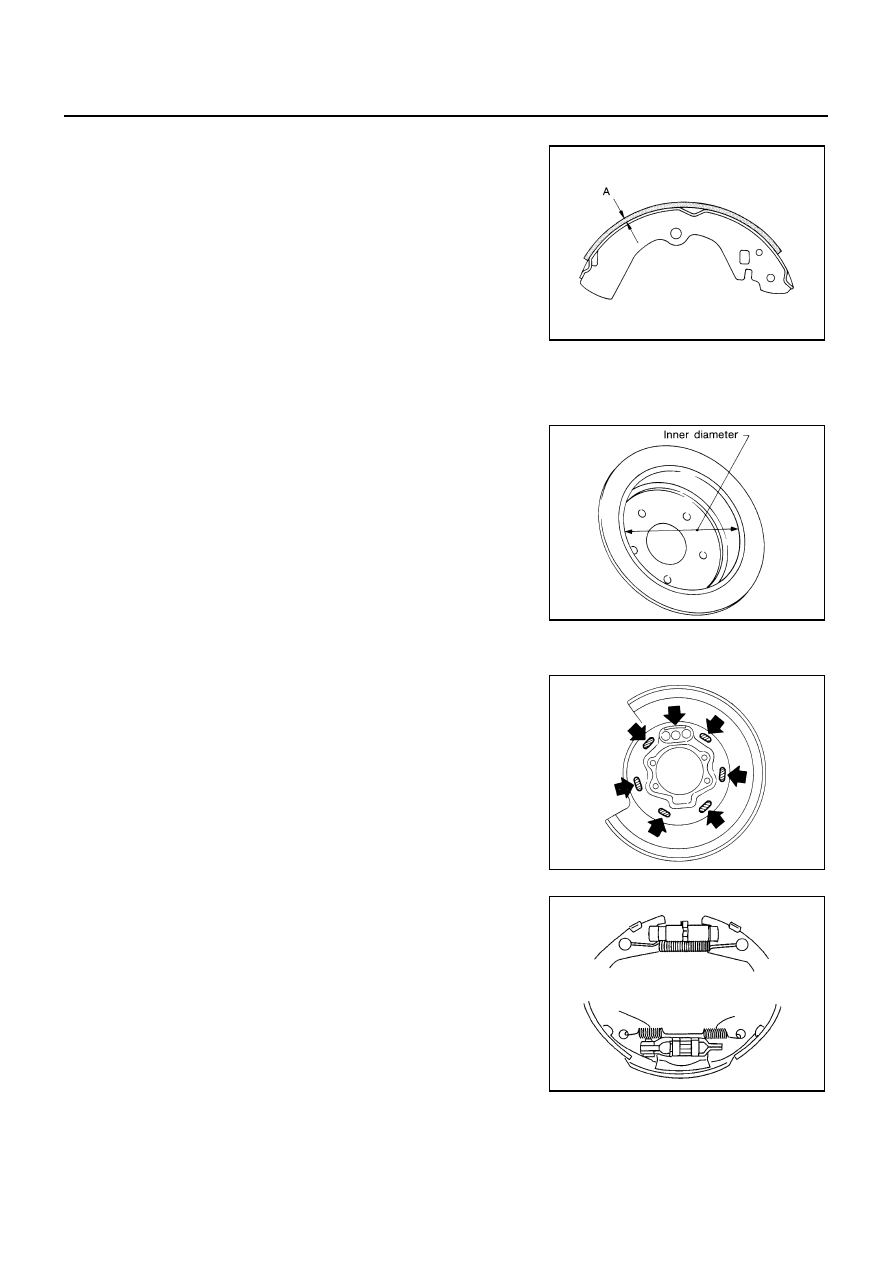

Standard

Standard lining thickness “A”

: 3.2 mm (0.126 in)

lining wear limit “A”

: 1.5 mm (0.059 in)

Standard

Standard inner diameter

: 172.0 mm (6.77 in)

Maximum inner diameter

: 173.0 mm (6.81 in)

SBR021A

SBR768A

SBR047C

SFIA0841E
