ENGINE MAINTENANCE

MA-15

C

D

E

F

G

H

I

J

K

M

A

B

MA

Changing Engine Oil

ALS00065

WARNING:

Be careful not to burn yourself, as engine oil is hot.

Prolonged and repeated contact with used engine oil may
cause skin cancer; try to avoid direct skin contact with
used engine oil. If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as possible.

1.

Remove engine undercover with power tool.

2.

Warm up engine, and check for engine oil leakage from engine
components.

3.

Stop engine and wait for 15 minutes.

4.

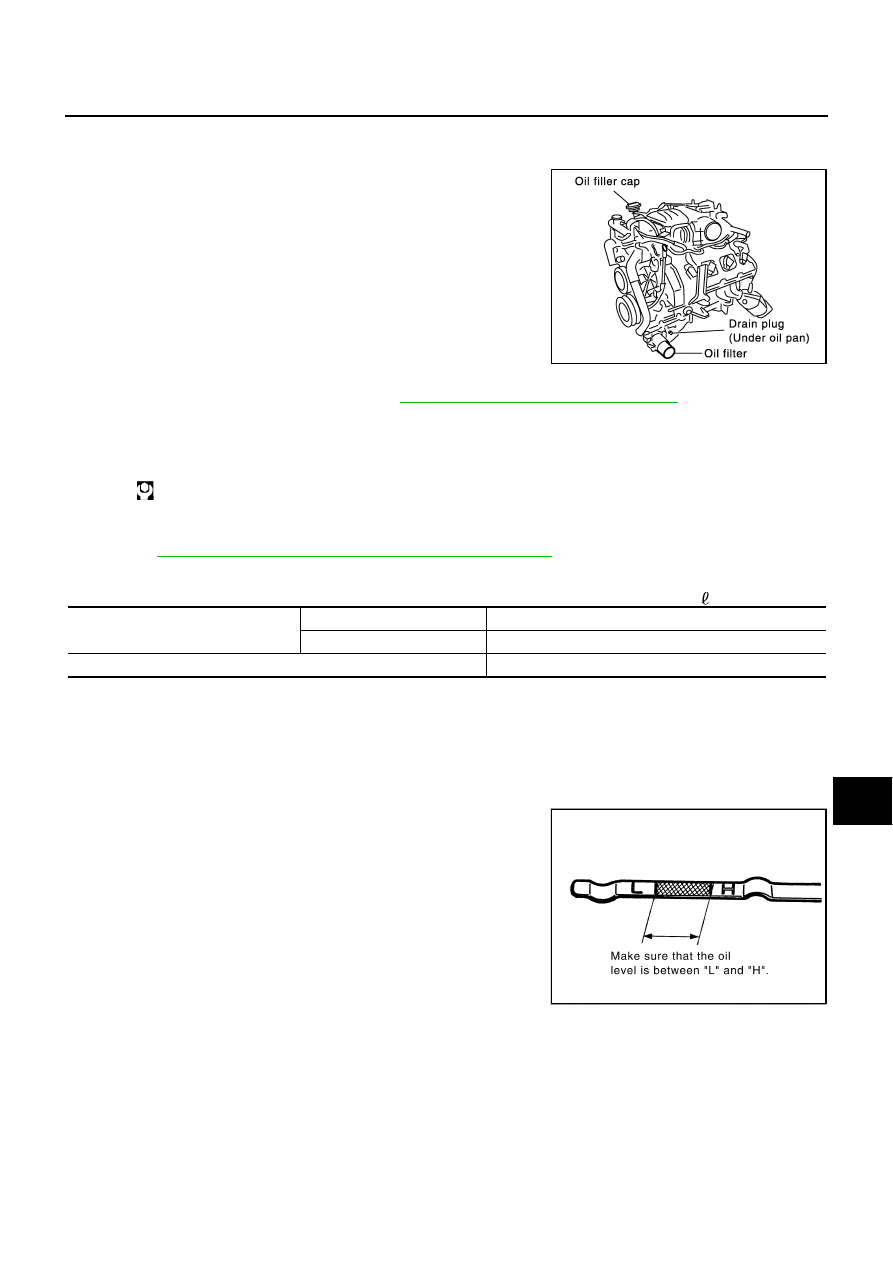

Loosen oil filler cap, then remove drain plug.

5.

Drain engine oil.

6.

Install drain plug with new washer. Refer to

EM-25, "OIL PAN AND OIL STRAINER"

 .

CAUTION:

Be sure to clean drain plug and install with new washer.

7.

Refill with new engine oil.
Engine oil specification and viscosity:
Refer to

MA-10, "RECOMMENDED FLUIDS AND LUBRICANTS"

 .

Engine oil capacity (Approximate):

                                                                                                                                                                  Unit:

 (US qt, Imp qt)

CAUTION:

The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.

Always use the oil level gauge to determine when the proper amount of engine oil is in engine.

8.

Warm up engine and check area around drain plug and oil filter for oil leakage.

9.

Stop engine and wait for 15 minutes.

10. Check the engine oil level.

Oil pan drain plug:

 : 29.4 - 39.2 N·m (3.0 - 4.0 kg-m, 22 - 28 ft-lb)

PBIC0993E

Drain and refill

With oil filter change

5.6 (5-7/8, 4-7/8)

without oil filter change

5.0 (5-1/4, 4-3/8)

Dry engine (engine overhaul)

6.7 (7-1/8, 5-7/8)

PBIC0249E

MA-16

ENGINE MAINTENANCE

Changing Oil Filter

ALS00069

REMOVAL

1.

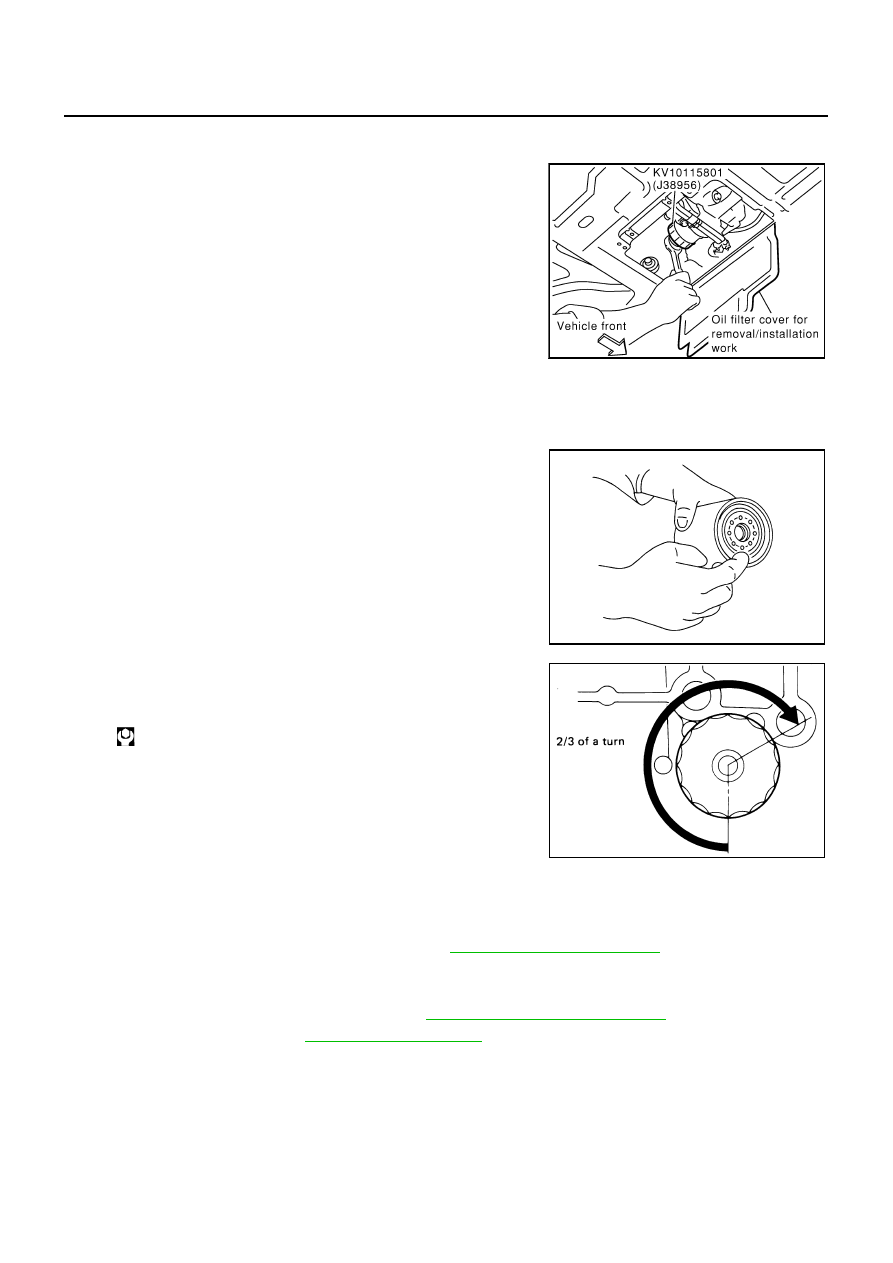

Open oil filter installation/removal cover on engine undercover.

2.

Using the oil filter wrench (SST), remove oil filter.

CAUTION:

The oil filter is provided with a relief valve.
Use genuine NISSAN oil filter or equivalent.

Be careful not to get burned when engine and engine oil
are hot.

When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.

Do not allow engine oil to adhere to drive belts.

Completely wipe off any engine oil that adhere to engine
and vehicle.

INSTALLATION

1.

Remove foreign materials adhering to the oil filter installation surface.

2.

Apply engine oil to the oil seal circumference of new oil filter.

3.

Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn.

INSPECTION AFTER INSTALLATION

1.

After warming up engine, check for engine oil leakage.

2.

Stop engine and wait for 15 minutes.

3.

Check engine oil level and add engine oil. Refer to

MA-15, "Changing Engine Oil"

 .

Changing Spark Plugs (Platinum-Tipped Type)

ALS0006A

REMOVAL

1.

Remove engine cover with power tool. Refer to

EM-12, "ENGINE ROOM COVER"

 .

2.

Remove ignition coil. Refer to

EM-28, "IGNITION COIL"

 .

PBIC0137E

SMA010

Oil filter:

 :14.7 - 20.6 N·m (1.5 - 2.1 kg-m, 11 - 15 ft-lb)

SMA229B

ENGINE MAINTENANCE

MA-17

C

D

E

F

G

H

I

J

K

M

A

B

MA

3.

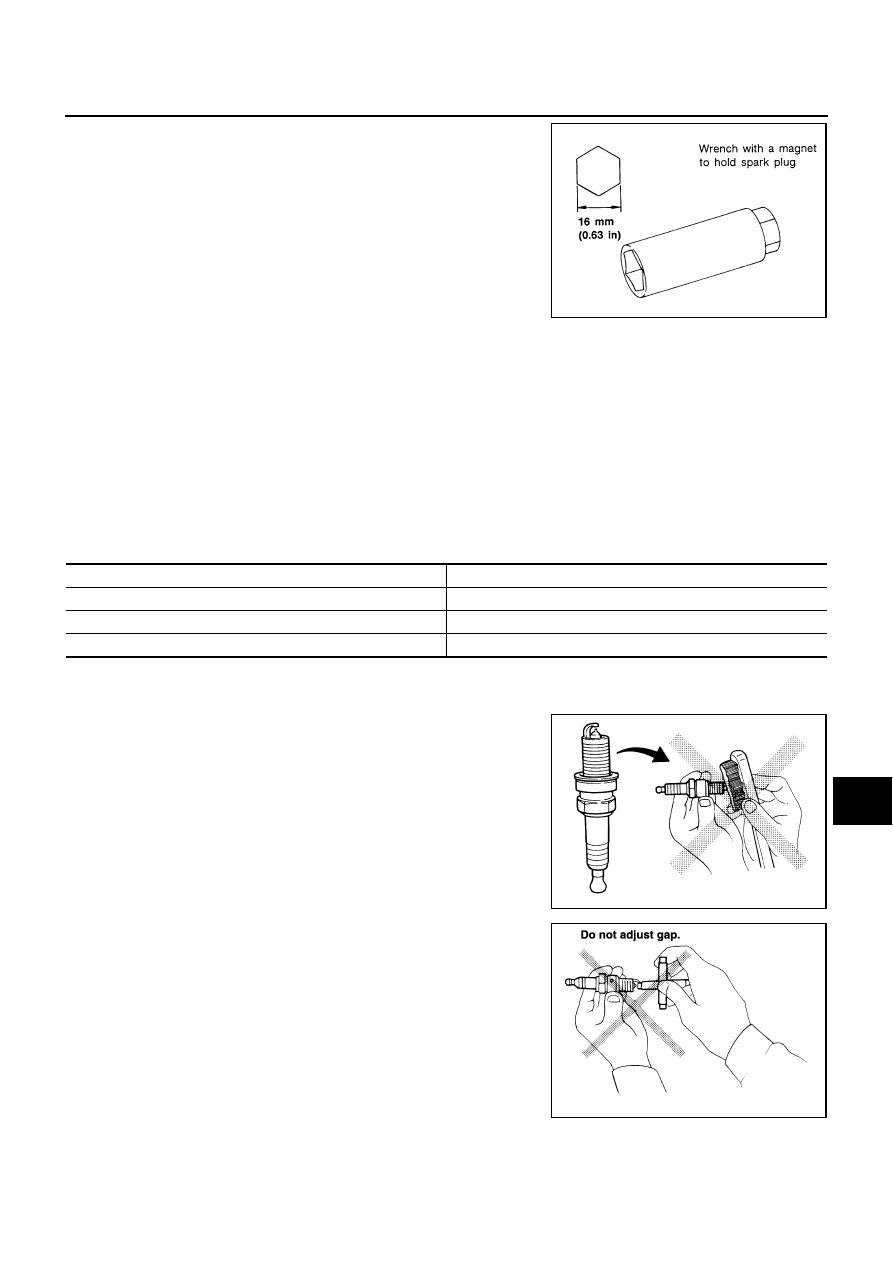

Remove spark plug using the spark plug wrench (commercial
service tool).

INSPECTION AFTER REMOVAL

Use standard type spark plug for normal condition.

The hot type spark plug is suitable when fouling occurs with the standard type spark plug under conditions
such as:

Frequent engine starts

Low ambient temperatures

The cold type spark plug is suitable when spark plug knock occurs with the standard type spark plug under
conditions such as:

Extended highway driving

Frequent high engine revolution

Spark plug (Platinum-tipped type):

CAUTION:

Do not drop or shock spark plug.

Do not use a wire brush for cleaning.

If plug tip is covered with carbon, spark plug cleaner may
be used.

Checking and adjusting plug gap is not required between
change intervals.

INSTALLATION

Install in the reverse order of removal.

SEM294A

Make

NGK

Standard type

PLFR5A-11

Hot type

PLFR4A-11

Cold type

PLFR6A-11

Gap (Nominal)

: 1.1 mm (0.043 in)

Cleaner air pressure:

Less than 588 kPa (6 kg/cm

2

 , 85 psi)

Cleaning time:

Less than 20 seconds

SMA773C

SMA806CA

MA-18

ENGINE MAINTENANCE

Checking EVAP Vapor Lines

ALS00020

1.

Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,
chafing and deterioration.

2.

Inspect fuel tank filler cap vacuum relief valve for clogging, sticking, etc.

Refer to

EC-692, "EVAPORATIVE EMISSION SYSTEM"

 .

Checking Cooling Fan Fluid Level and Lines

ALS00021

Check that there is no fluid leaking from any hose connection or
any other part.

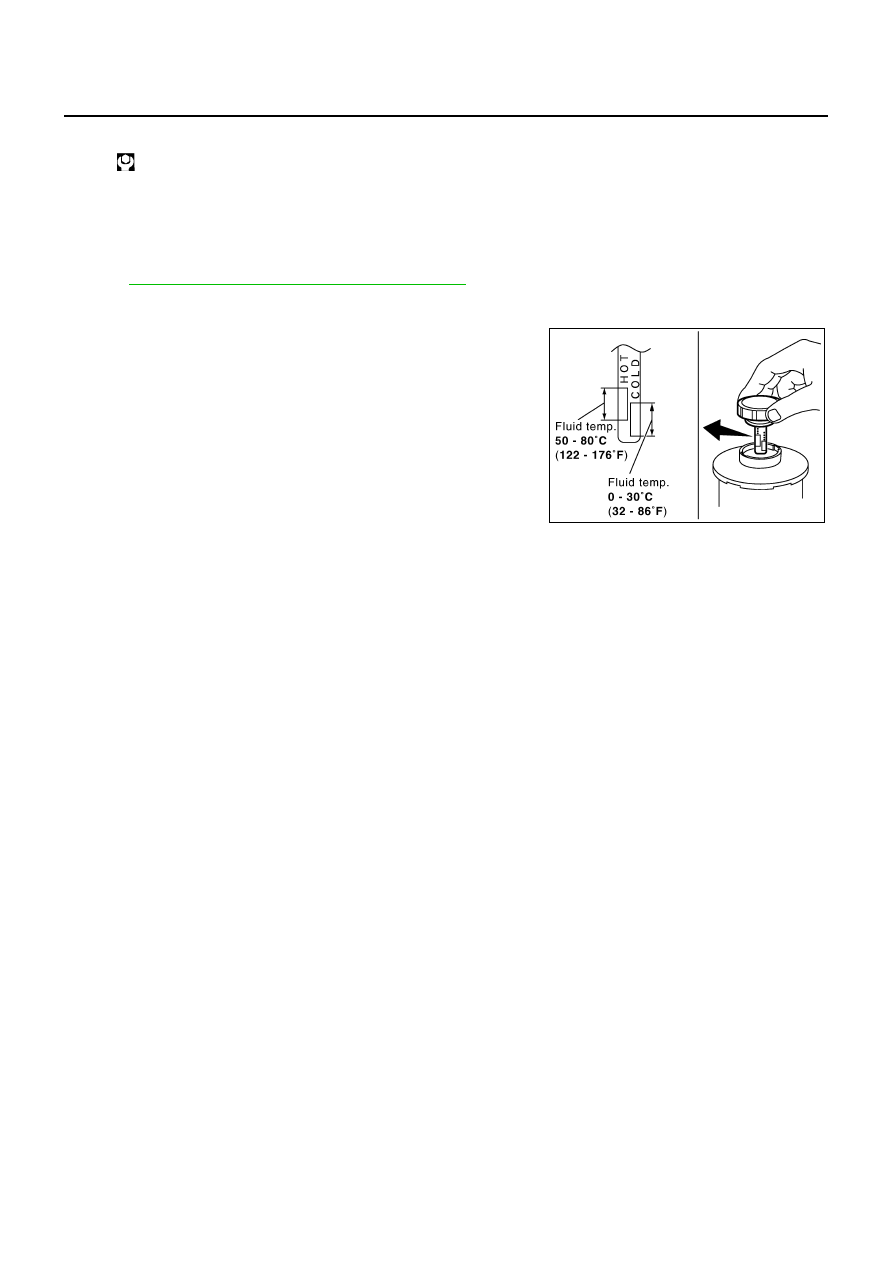

Check the fluid level with level gauge on the reservoir tank cap.
If there is too much or too little, adjust the amount of fluid.

Check that under the fluid temperature conditions below, the
fluid level is within the “COLD” or “HOT” range on the level
gauge.

NOTE:

There is no specified timing for replacing the fluid.

The total fluid volume is 777 ml (26.3 US floz, 27.4 lmp floz) (with the cold maximum on level gauge when
engine is cold).

Spark plug:

 : 24. 6 N·m (2.5 kg-m, 18 ft-lb)

COLD

: Fluid temperature  0 - 30

°

C (32 - 86

°

F)

HOT

: Fluid temperature  50 - 80

°

C (122 - 176

°

F)

PBIC2613E
