ENGINE LUBRICATION SYSTEM

PRECAUTIONS .......................................................... 2

Precautions for Liquid Gasket  .................................. 2

REMOVAL OF LIQUID GASKET SEALING .......... 2
LIQUID GASKET APPLICATION PROCEDURE

..... 2

PREPARATION ........................................................... 3

Special Service Tools  ............................................... 3
Commercial Service Tools ........................................ 3

LUBRICATION SYSTEM  ............................................ 4

Lubrication Circuit  .................................................... 4
System Drawing  ....................................................... 5

ENGINE OIL  ............................................................... 6

Inspection ................................................................. 6

ENGINE OIL LEVEL  ............................................. 6
OIL APPEARANCE ............................................... 6
OIL LEAKAGE ....................................................... 6
OIL PRESSURE CHECK  ...................................... 6

Changing Engine Oil  ................................................ 7

OIL FILTER  ................................................................. 9

Removal and Installation  .......................................... 9

REMOVAL ............................................................. 9
INSTALLATION ..................................................... 9
INSPECTION AFTER INSTALLATION .................. 9

OIL PUMP  ................................................................. 10

Removal and Installation  ........................................ 10

REMOVAL ........................................................... 10
INSTALLATION ................................................... 10
INSPECTION AFTER INSTALLATION ................ 10

Disassembly and Assembly .................................... 11

DISASSEMBLY ................................................... 11
INSPECTION AFTER DISASSEMBLY ................ 11
ASSEMBLY ......................................................... 12

SERVICE DATA AND SPECIFICATIONS (SDS)  ...... 13

Standard and Limit .................................................. 13

OIL PRESSURE  .................................................. 13
OIL PUMP  ........................................................... 13
REGULATOR VALVE  .......................................... 13
ENGINE OIL CAPACITY (APPROXIMATELY)  .... 13

Tightening Torque  ................................................... 13

LU-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

Precautions for Liquid Gasket

ABS000P2

REMOVAL OF LIQUID GASKET SEALING

●

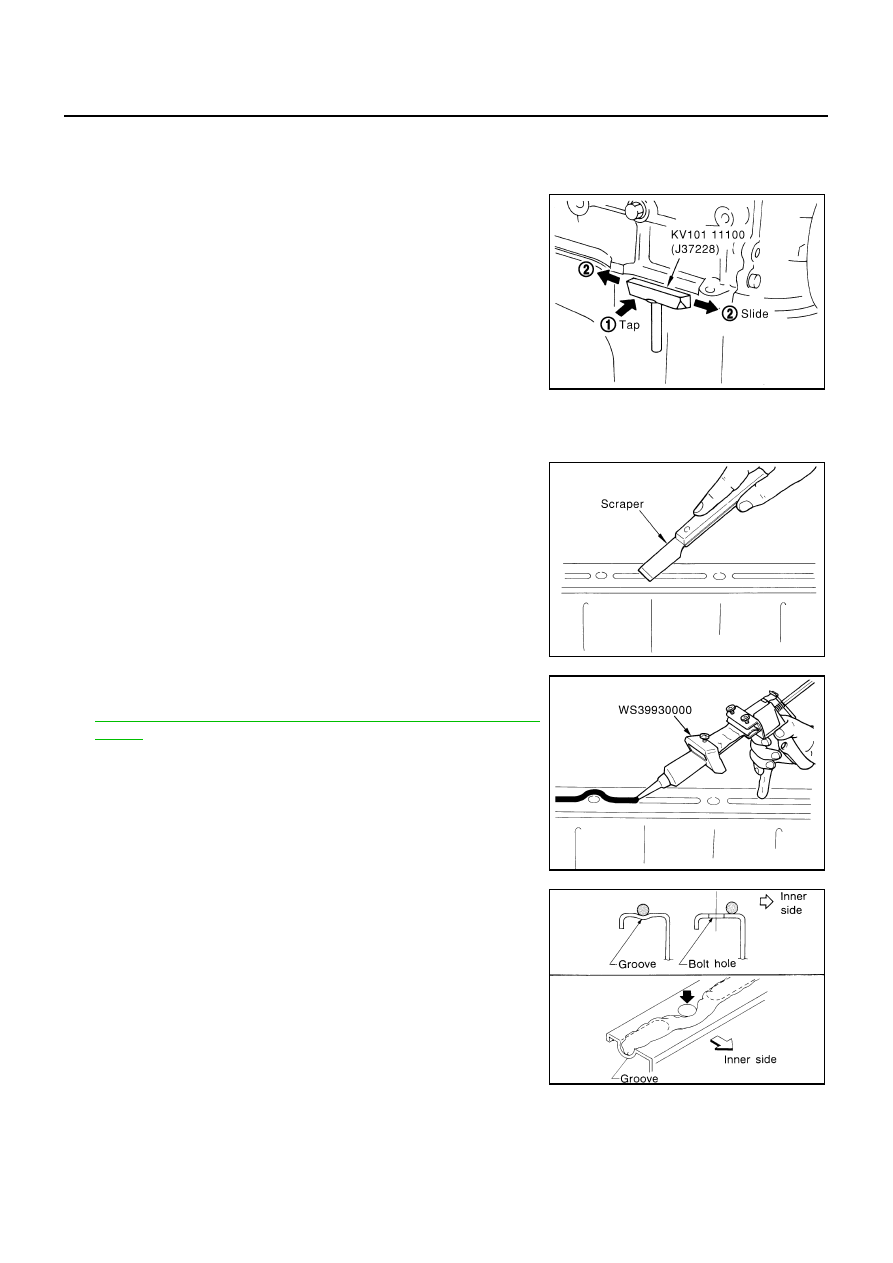

After removing the mounting bolts and nuts, separate the mating
surface using the seal cutter (SST) and remove the liquid gasket
sealing.

CAUTION:

Be careful not to damage the mating surfaces.

●

In areas where the seal cutter (SST) is difficult to use, use a
plastic hammer to lightly tap (1) the seal cutter where the liquid
gasket is applied. Use a plastic hammer to slide the seal cutter
(2) by tapping on the side.

CAUTION:

If for some unavoidable reason a tool such as a flat-bladed
screwdriver is used, be careful not to damage the mating
surfaces.

LIQUID GASKET APPLICATION PROCEDURE

1.

Using a scraper, remove the old liquid gasket adhering to the
gasket application surface and the mating surface.

●

Remove the liquid gasket completely from the groove of the
liquid gasket application surface, mounting bolts, and bolt
holes.

2.

Wipe the gasket application surface and the mating surface
removing any adhering moisture, grease and foreign material.

3.

Attach the liquid gasket tube to the tube presser (SST).
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-46, "RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS"

.

4.

Apply the liquid gasket without breaks to the specified location
with the specified dimensions.

●

If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.

●

As for the bolt holes, normally apply the gasket inside the
holes. Occasionally, it should be applied outside the holes.
Make sure to read the text of this manual.

●

Within five minutes of liquid gasket application, install the mat-
ing component.

●

If the liquid gasket protrudes, wipe it off immediately.

●

Do not retighten after the installation.

●

Wait 30 minutes or more after installation before refilling the
engine with oil and coolant.

CAUTION:

If there are specific instructions in this manual, observe
them.

PBIC0002E

PBIC0003E

PBIC2160E

SEM159F

PREPARATION

LU-3

C

D

E

F

G

H

I

J

K

L

M

A

LU

PREPARATION

PFP:00002

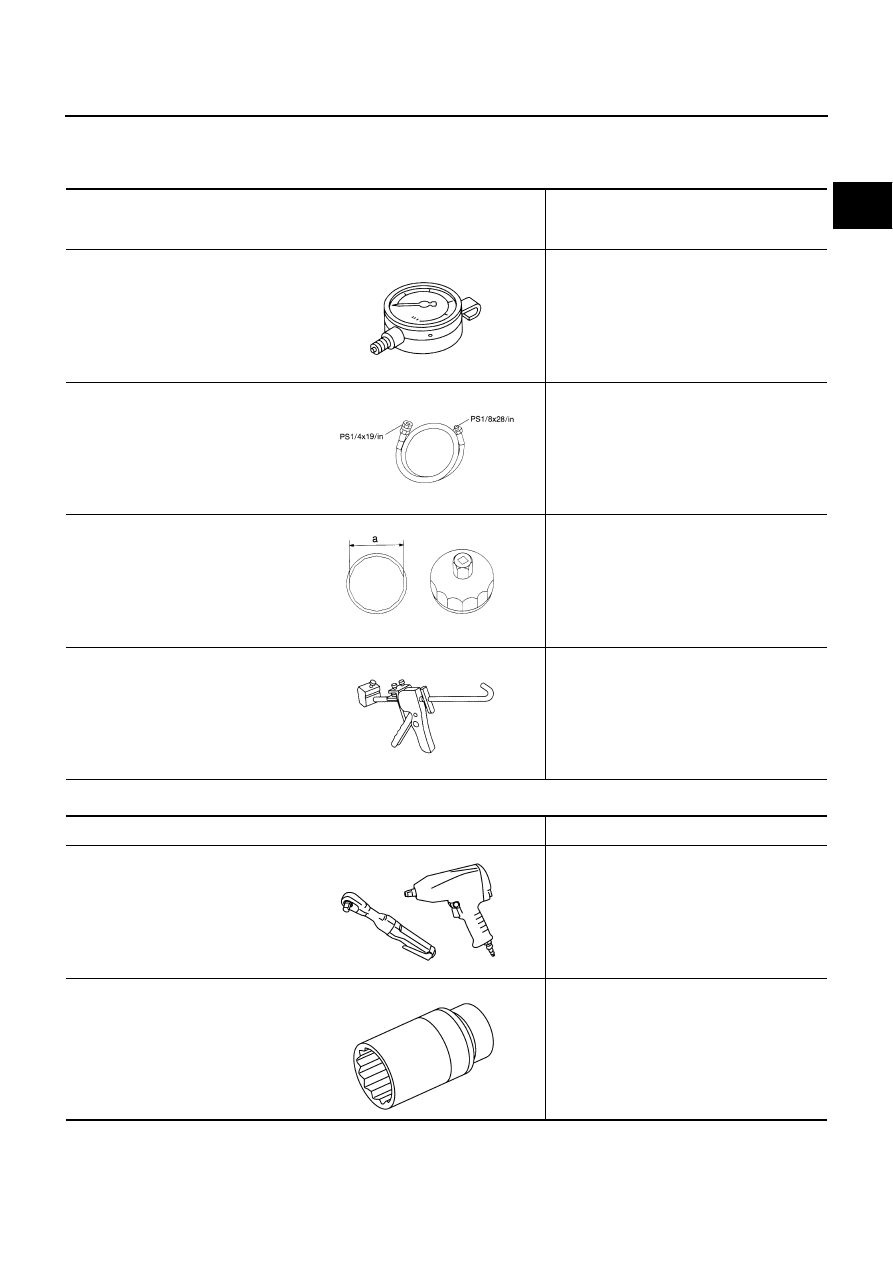

Special Service Tools

ABS000M7

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

ABS000M8

Tool number
(Kent-Moore No.)
Tool name

Description

ST25051001
(J25695-1)
Oil pressure gauge

Measuring oil pressure
Maximum measuring range:

2,452 kPa (25 kg/cm

2

 , 356 psi)

ST25052000
(J25695-2)
Hose

Adapting oil pressure gauge to cylinder block

KV10115801
(J38956)
Oil filter wrench

Removing and installing oil filter
a : 64.3 mm (2.531 in)

WS39930000
(         —        )
Tube presser

Pressing the tube of liquid gasket

S-NT050

S-NT559

S-NT375

S-NT052

Tool name

Description

Power tool

Loosening bolts and nuts

Deep socket

Removing and installing oil pressure switch
Deep socket 27mm (1.06in)

PBIC0190E

NT818

LU-4

LUBRICATION SYSTEM

LUBRICATION SYSTEM

PFP:15010

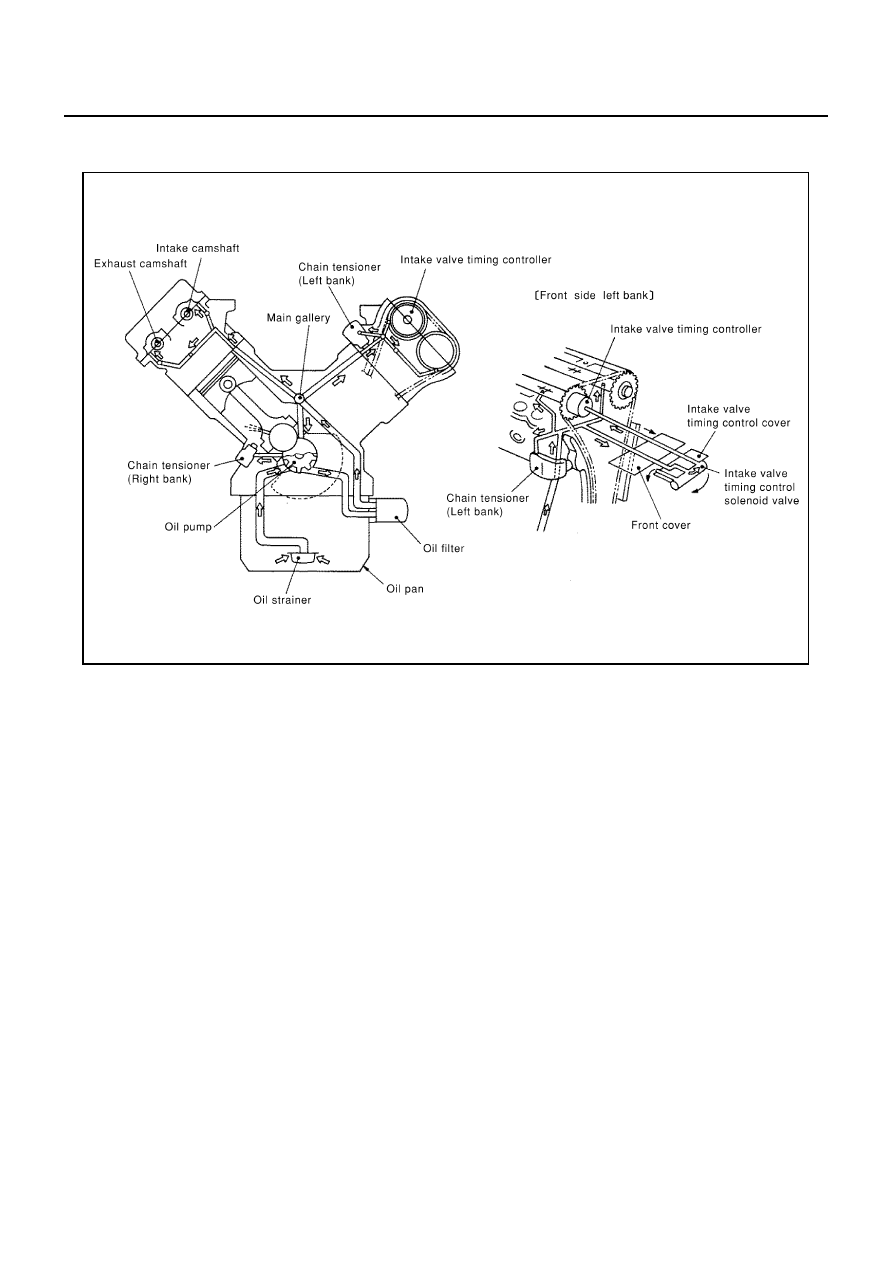

Lubrication Circuit

ABS000M9

PBIC0133E
