Removal and Installation

AKS002HD

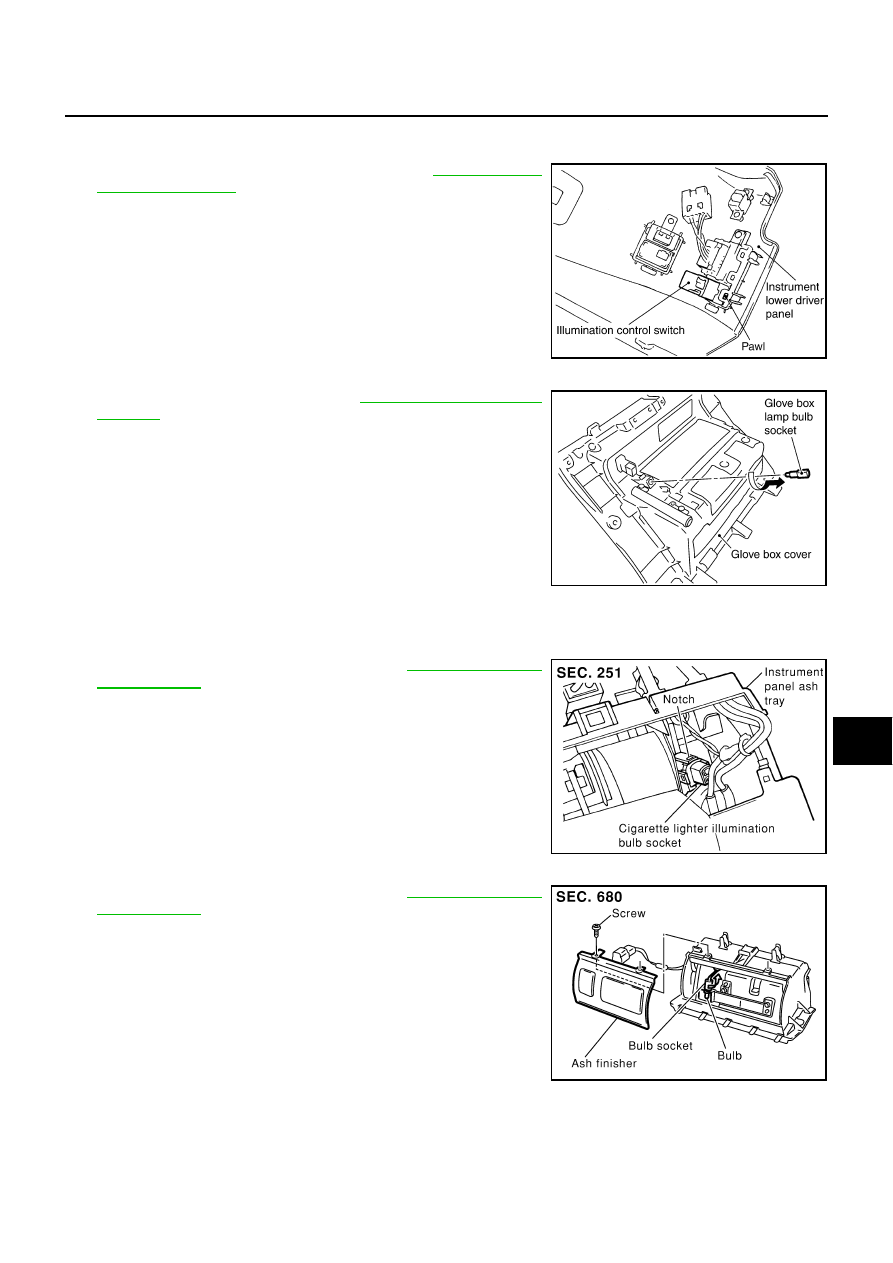

ILLUMINATION CONTROL SWITCH

1.

Remove instrument lower driver panel. Refer to

IP-10, "Compo-

nent Parts Drawing"

  in “INSTRUMENT PANEL (IP)” section.

2.

Press illumination control switch fixing pawls and remove unit
from instrument lower driver panel.

GLOVE BOX LAMP

1.

Remove glove box cover. Refer to

IP-10, "Component Parts

Drawing"

  in “INSTRUMENT PANEL (IP)” section.

2.

Turn bulb socket counterclockwise and unlock it.

Removal and Installation

AKS002HE

FRONT CIGARETTE LIGHTER ILLUMINATION
Cigarette Lighter Socket Illumination

1.

Remove instrument panel ashtray. Refer to

IP-10, "Component

Parts Drawing"

  in “INSTRUMENT PANEL (IP)” section.

2.

Unfold three notches and remove bulb socket.

Ashtray Illumination

1.

Remove instrument panel ashtray. Refer to

IP-10, "Component

Parts Drawing"

  in “INSTRUMENT PANEL (IP)” section.

2.

Remove ashtray finisher mounting screws and remove ashtray
finisher.

3.

Turn bulb socket counterclockwise and unlock it.

PKIA2262E

Glove box lamp

: 12V 1.4W

PKIA6998E

Cigarette lighter illumination

: 12V 1.4W

PKIA0180E

Ashtray illumination

: 12V 1.4W

PKIA0181E

LT-186

ILLUMINATION

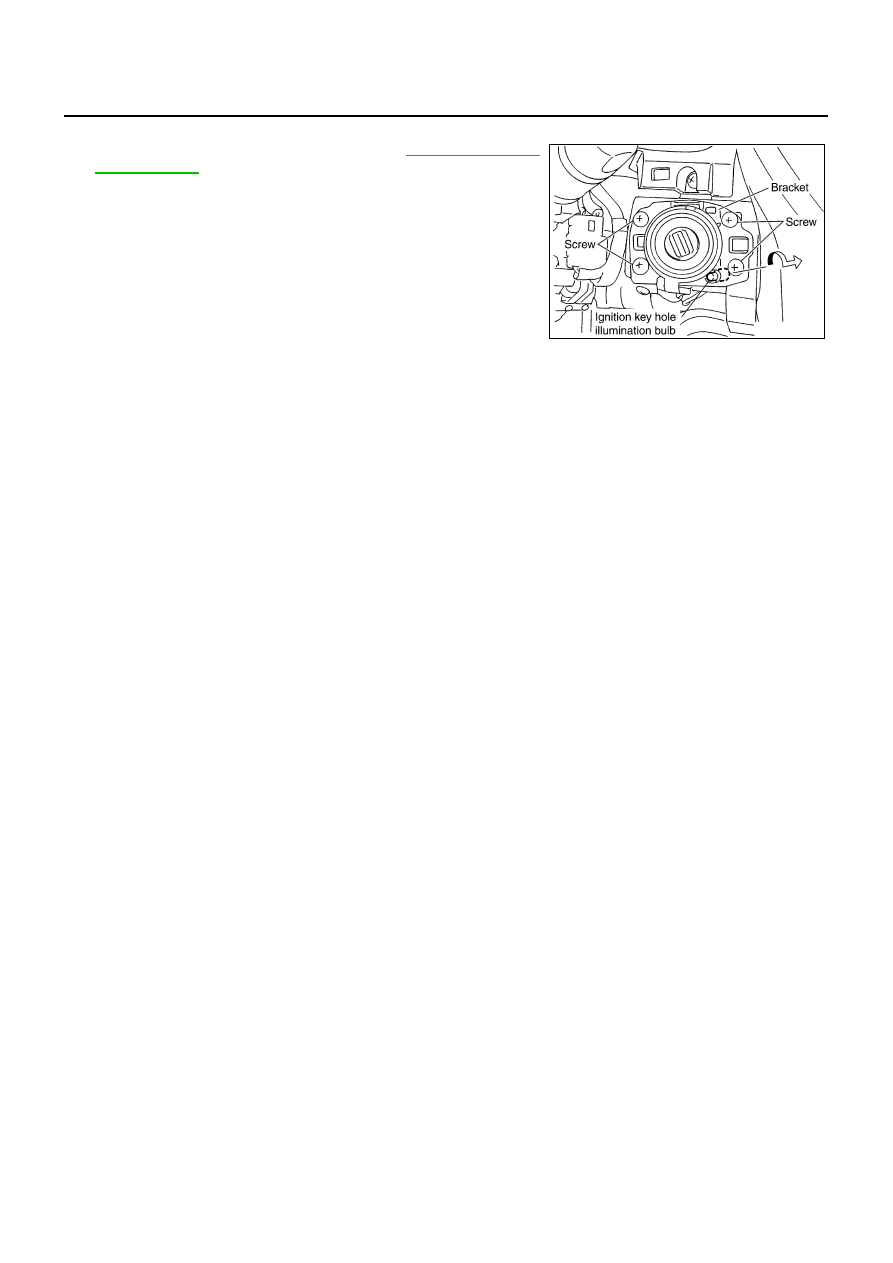

IGNITION KEY HOLE ILLUMINATION

1.

Remove steering lock escutcheon. Refer to

IP-10, "Component

Parts Drawing"

  in “INSTRUMENT PANEL (IP)” section.

2.

Remove bracket mounting screws and remove it

3.

Turn bulb socket counterclockwise and unlock it.

Ignition key hole illumination

:12V 1.4W

PKIA7002E
