PARKING, LICENSE PLATE AND TAIL LAMPS

LT-127

C

D

E

F

G

H

I

J

L

M

A

B

LT

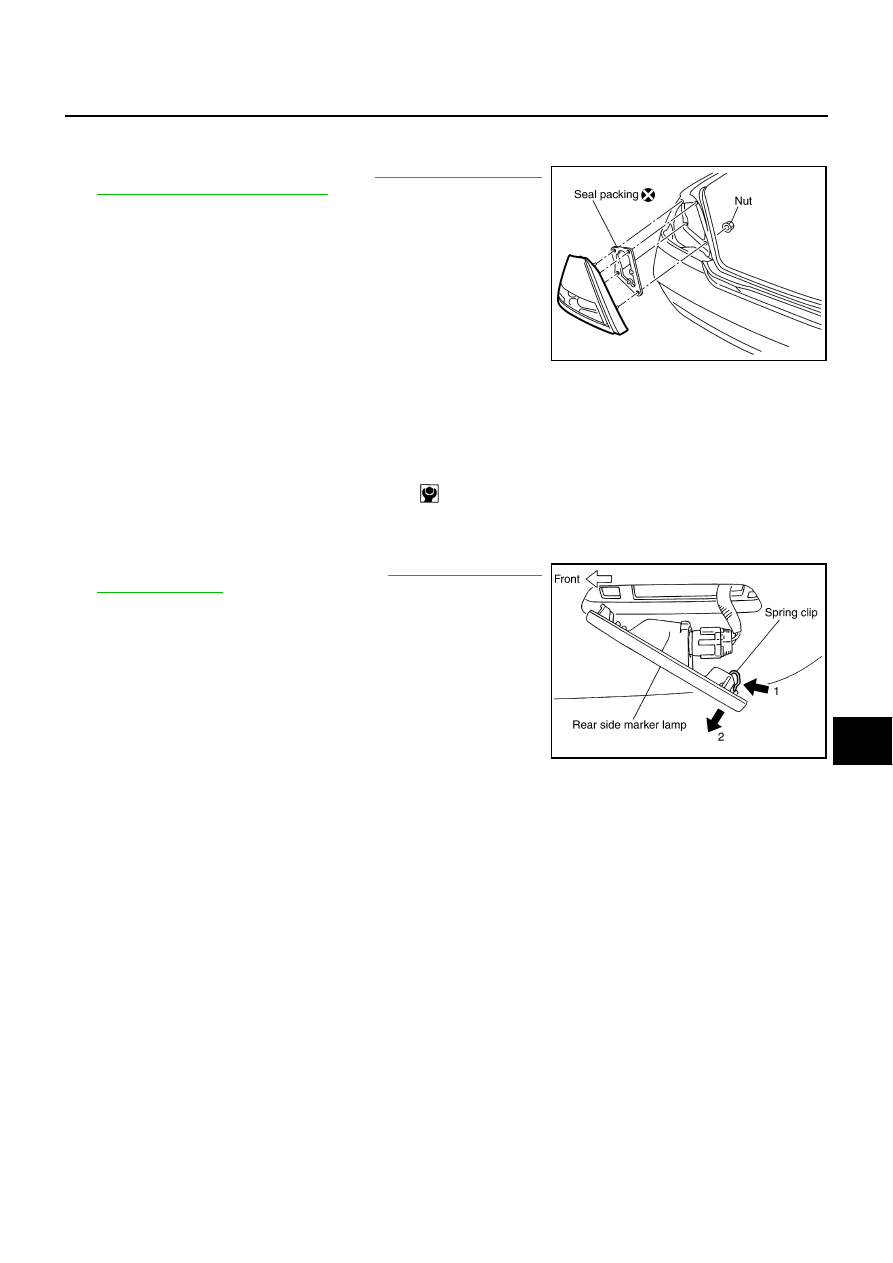

REAR COMBINATION LAMP
Removal

1.

Remove trunk side finisher. Refer to

EI-42, "TRUNK ROOM

TRIM  & TRUNK LID FINISHER"

  in “EXTERIOR & INTERIOR

(EI)” section.

2.

Disconnect rear combination lamp connector.

3.

Remove rear combination lamp mounting nuts.

4.

Pull rear combination lamp toward rear of the vehicle and
remove from the vehicle.

5.

Remove seal packing from the vehicle.

Installation

Install in the reverse order of removal, taking care of the following points.

●

Install a new seal packing to the rear combination lamp.

CAUTION:

Seal packing cannot be reused.

REAR SIDE MARKER LAMP
Removal

1.

Remove rear combination lamp. Refer to

LT-127, "REAR COM-

BINATION LAMP"

 .

2.

While keep pressing spring clip of lamp with a flat blade screw-
driver, pull lamp unit toward out of vehicle.

3.

Disconnect bulb socket connector and remove lamp from the
vehicle.

Installation

Install in the reverse order of removal.

PKIA2259E

Rear combination lamp mounting nut

: 3.3 N·m (0.34 kg-m, 29 in-lb)

PKIA2257E

LT-128

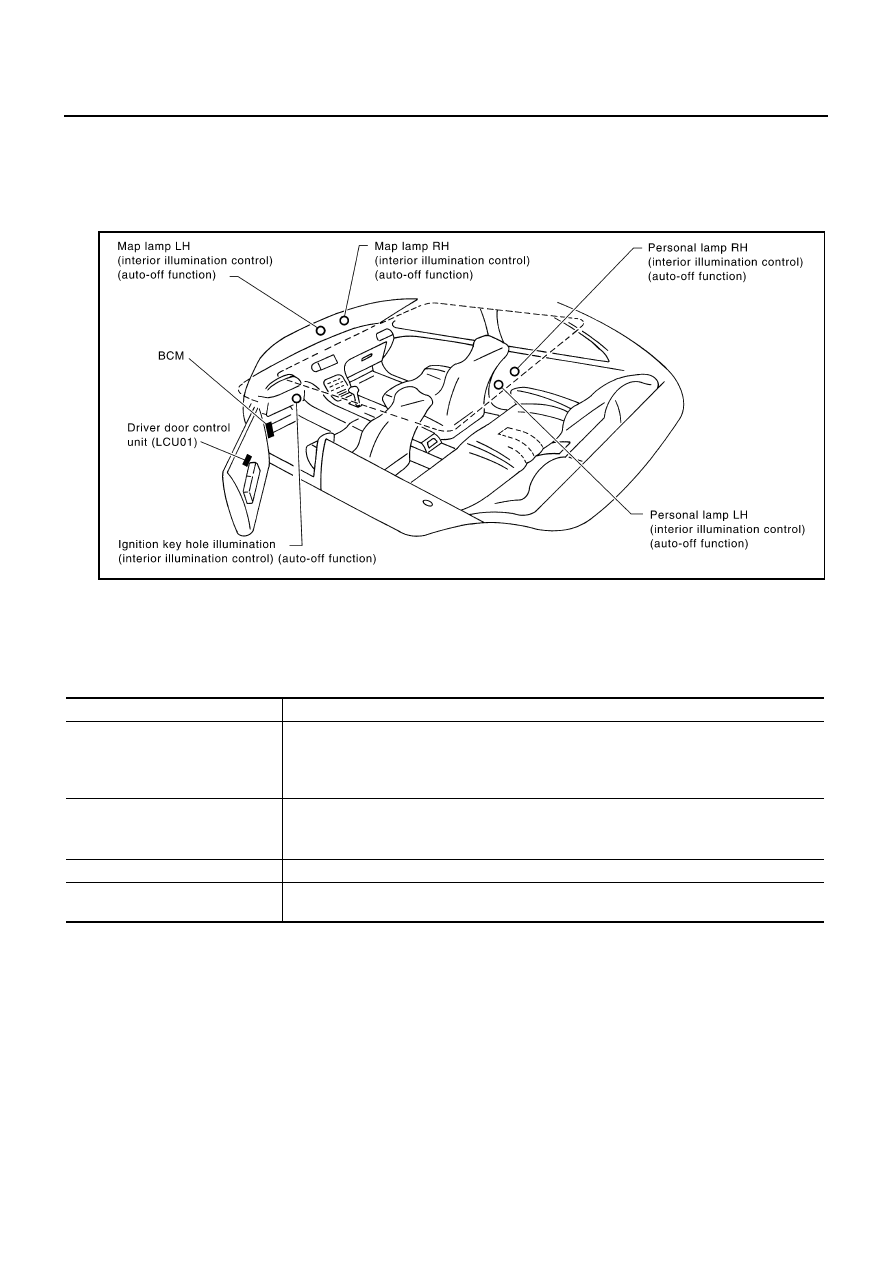

INTERIOR ROOM LAMP

INTERIOR ROOM LAMP

PFP:26410

System Description

AKS002GF

OUTLINE

Controls on/off and afterglow time of the map lamp (front personal light), personal lamp (rear personal light),
and ignition key hole illumination.

TIMER FUNCTION

Controls the illumination duration of the lamps and illuminations according to the signals from the front door
lock actuator (driver side) (door unlock sensor), front door switch (driver side), ignition switch and key switch.

●

The timer operates for approx. 30 seconds.

●

The timer will be actuated or cancelled by the signals from the following switches.

●

If a new timer actuation signal is input while the timer is operating, the later input will have priority.

●

If any lamp switch is operated and a separate actuation signal is input while the timer is operating, the
lamp operation will be prioritized. However, the timer operation will not be renewed or cancelled.

SKIA3770E

Function

Operation

Front door lock actuator (driver side)
(door unlock sensor)

●

Timer will be actuated by input of the door unlock sensor ON (door unlocked) signal when
the front door switch (driver side) is OFF (door closed) and the key switch is OFF (key with-
drawn).

●

Timer will be cancelled by input of the door unlock sensor OFF (door locked) signal.

Front door switch (driver side)

●

Timer will be actuated by input of the front door switch (driver side) ON

→

OFF (door open

→

-

closed) signal when the key switch is OFF.

●

Timer will be cancelled by input of the front door switch (driver side) ON (door open) signal.

Ignition switch

●

Timer will be cancelled by input of the ignition switch ACC or ON signal.

key switch

●

Timer will be actuated by input of the key switch ON

→

OFF (key inserted

→

withdrawn) signal

when the front door switch (driver side) is OFF (door closed).

INTERIOR ROOM LAMP

LT-129

C

D

E

F

G

H

I

J

L

M

A

B

LT

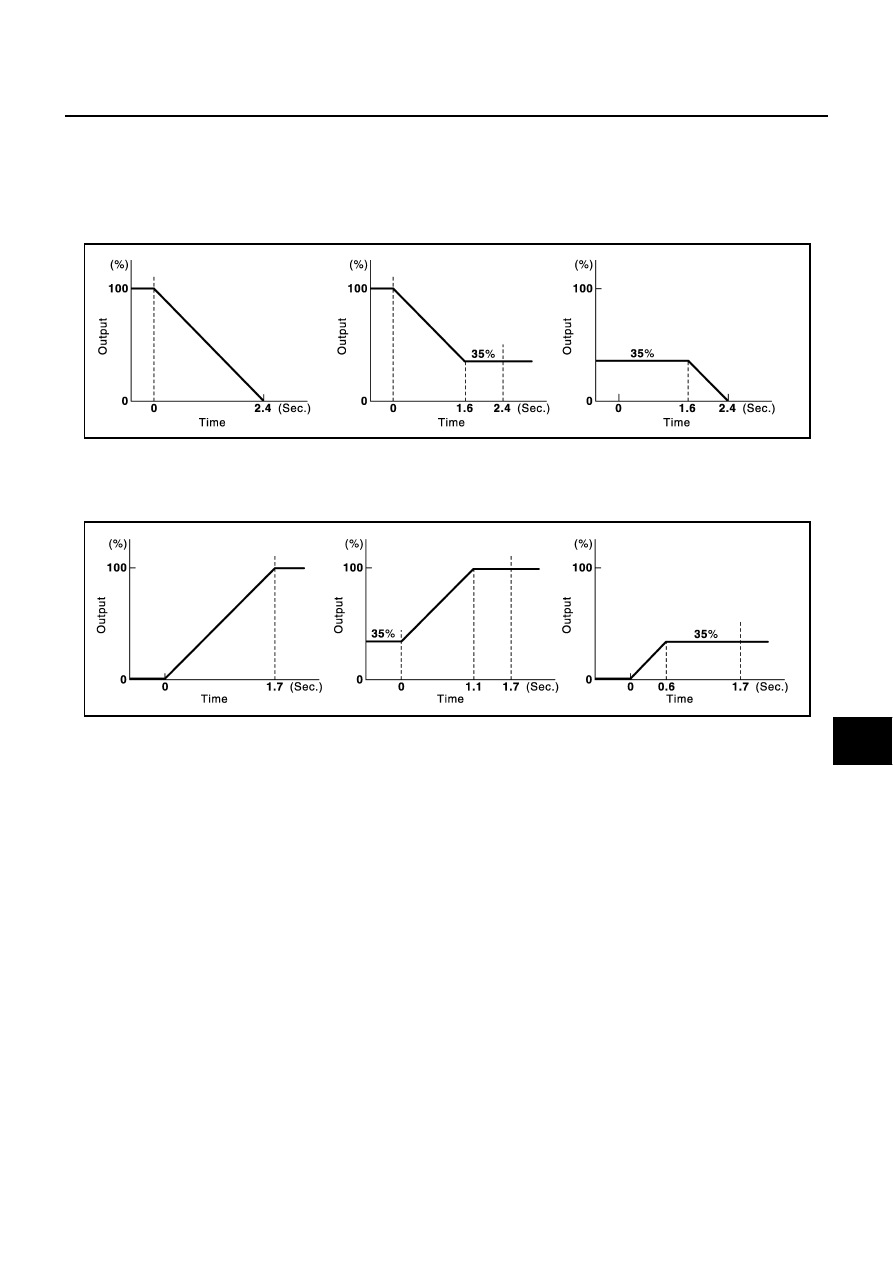

LAMP OUTPUT CONTROL FUNCTION

Controls output of lamps except for the ignition key hole illumination.

●

In case from full illumination to off, from full illumination to half illumination, and from half illumination to off.
NOTE:
In full illumination, brightness of the lamps is 100%. In half illumination, it is 35% (25% for the personal
lamp).

●

In case from off to full illumination, from half illumination to full illumination, and from off to half illumination.

NOTE:
In full illumination, brightness of the lamps is 100%. In half illumination, it is 35% (25% for the personal
lamp).

AUTO OFF FUNCTION

When ignition switch is in OFF, and following condition is continued for approximately 30 minutes without the
change, then interior room lamps are automatically turned OFF.

●

Interior lamp ill switch and personal lamps switch are “AUTO” position, and then door switch of either is
opened.

●

Interior lamp ill switch is “ON” position.

●

Personal lamp switch is “FULL” position.

The auto off function is turned OFF when the one of following change is operated, and executes a usual oper-
ation control thereafter.

●

Ignition switch is turned from OFF to ON.

●

Each door switch is switched from OFF to ON. (Door closed

→

 open)

●

Interior lamp ill switch is switched from OFF to ON.

●

Personal lamp switch is switched from AUTO to ON.

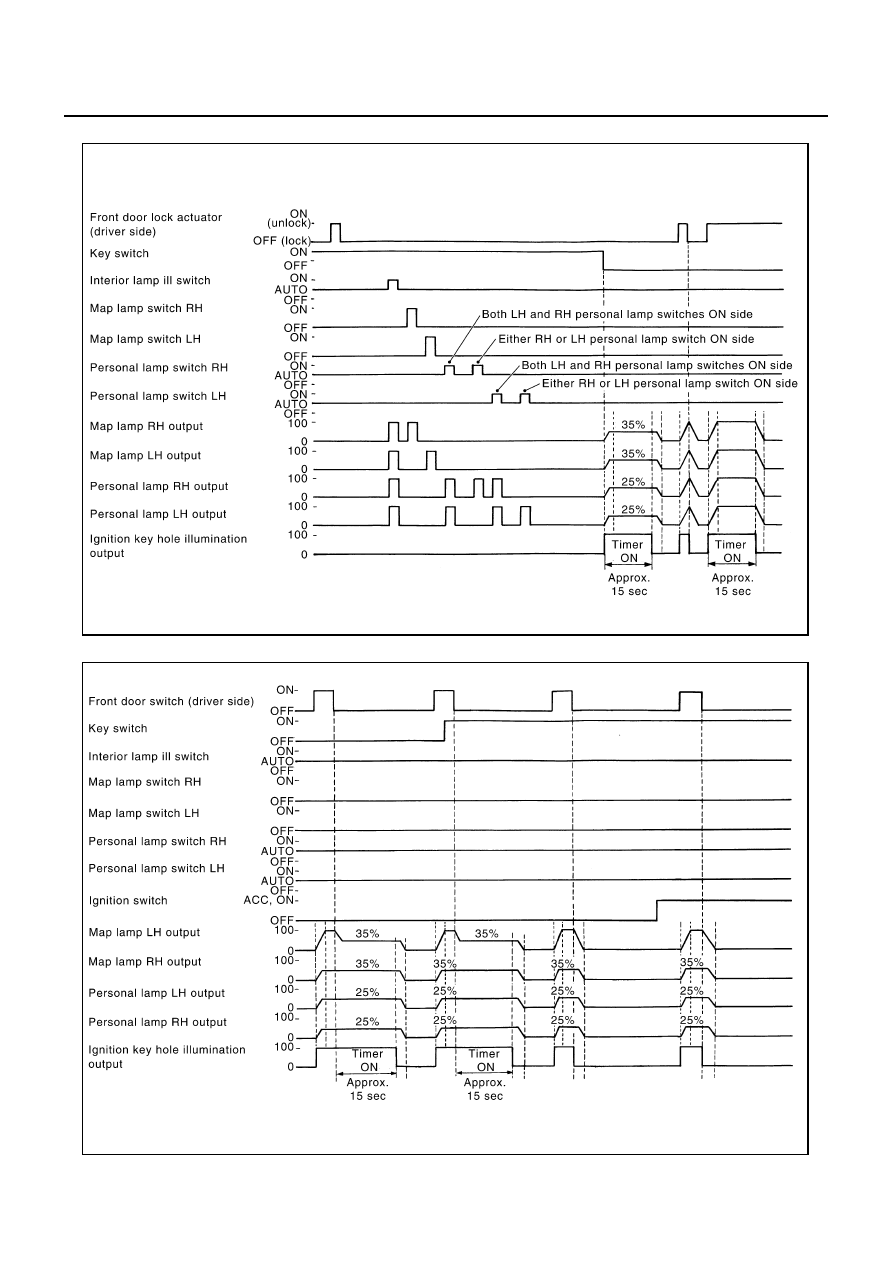

LIGHTS ON/OFF MODES

Separate signal from each switch and signals of higher output have priority over these modes.

PKIA0175E

PKIA0176E

LT-130

INTERIOR ROOM LAMP

1.

Lights on-off modes when each lamp switch is operated

2.

Lights on-off modes when the driver door is opened and closed

SKIA3786E

SKIA3787E
