HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -

LT-47

C

D

E

F

G

H

I

J

L

M

A

B

LT

Ground is supplied

●

to daytime light control unit terminal 16

●

through grounds E42 and E62.

Because the high beam headlamps are now wired in series, they operate at half illumination.

OPERATION

After starting the engine with the lighting switch in the “OFF” or “1ST” position, the headlamp high beam auto-
matically turns on. Lighting switch operations other than the above are the same as conventional light sys-
tems.

●

Hi: “HIGH BEAM” position

●

Lo: “LOW BEAM” position

●

P: “FLASH TO PASS” position

●

×

: Lamp “ON”

●

–: Lamp “OFF”

●

●

: Lamp dims. (Added functions)

●

*: When starting the engine with the parking brake released, the daytime light will come ON.
When starting the engine with the parking brake pulled, the daytime light won't come ON.

Engine

With engine stopped

With engine running

Lighting switch

OFF 1ST 2ND OFF 1ST 2ND

Hi

Lo

P

Hi

Lo

P

Hi

Lo

P

Hi

Lo

P

Hi

Lo

P

Hi

Lo

P

Headlamp

High  beam

–

–

–

–

–

×

×

–

×

●

*

●

*

×

●

*

●

*

×

×

–

×

Low  beam

–

–

–

–

–

×

×

×

×

–

–

×

–

–

×

×

×

×

Parking (clearance), side marker
and tail lamp

–

–

–

×

×

×

×

×

×

–

–

–

×

×

×

×

×

×

License and instrument illumina-
tion lamp

–

–

–

×

×

×

×

×

×

–

–

–

×

×

×

×

×

×

LT-48

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -

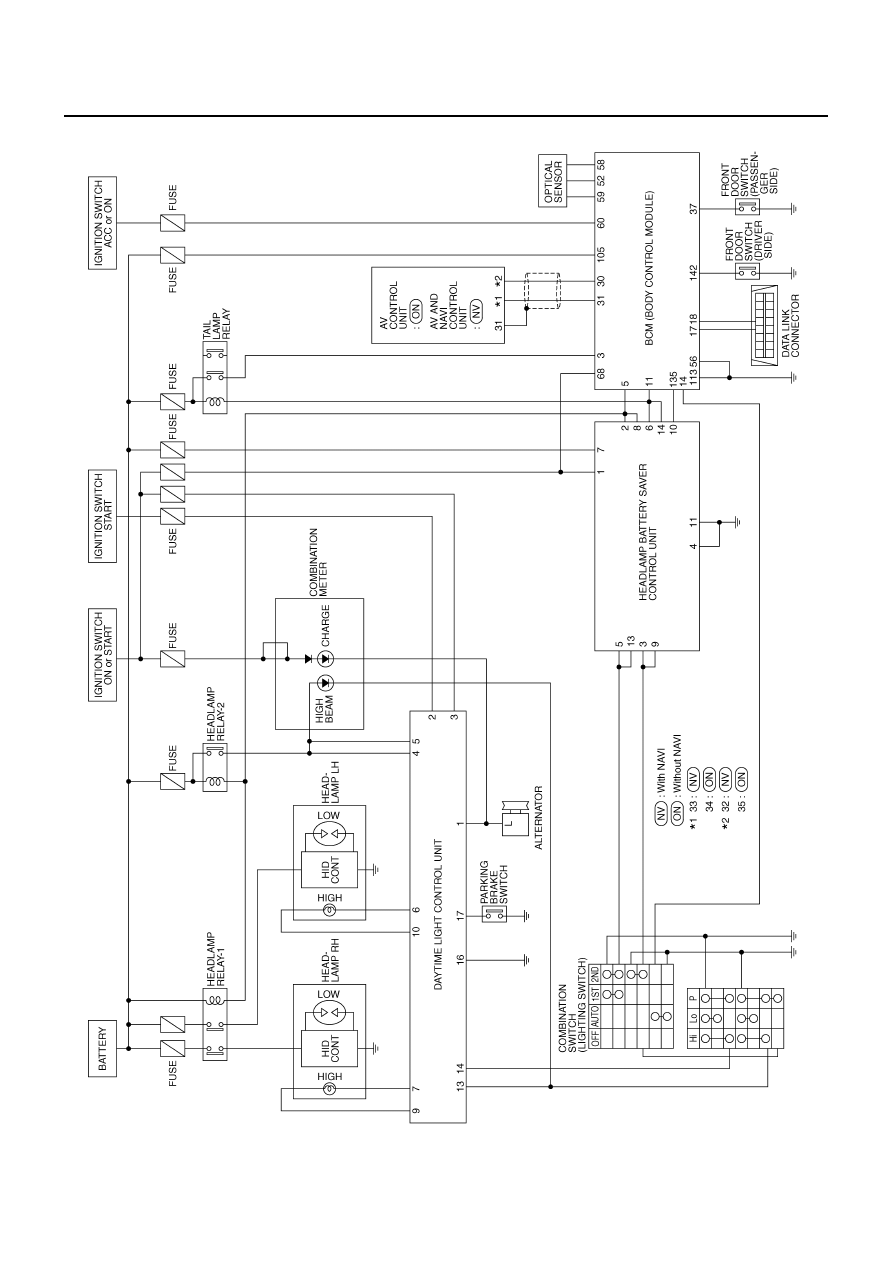

Schematic

AKS002FI

TKWA0523E

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -

LT-49

C

D

E

F

G

H

I

J

L

M

A

B

LT

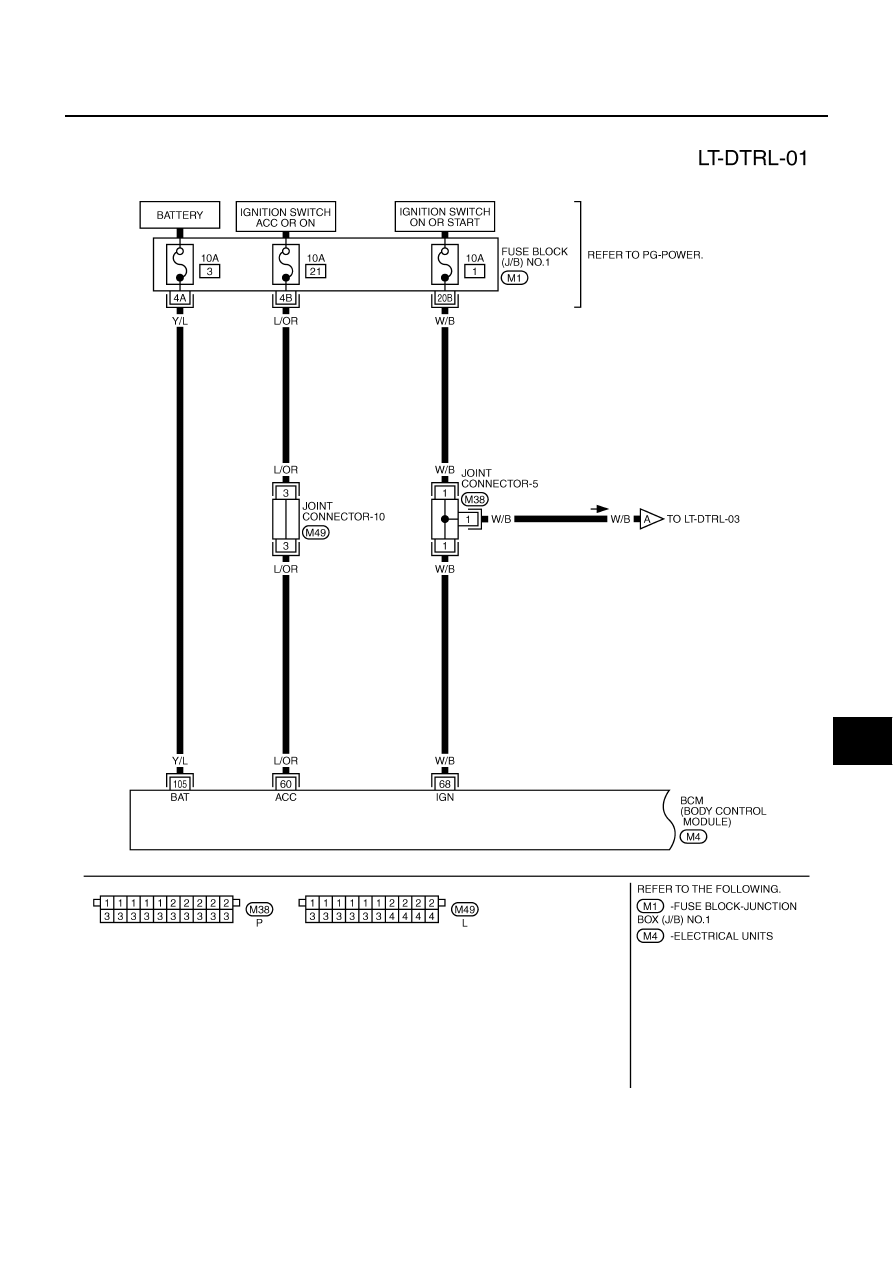

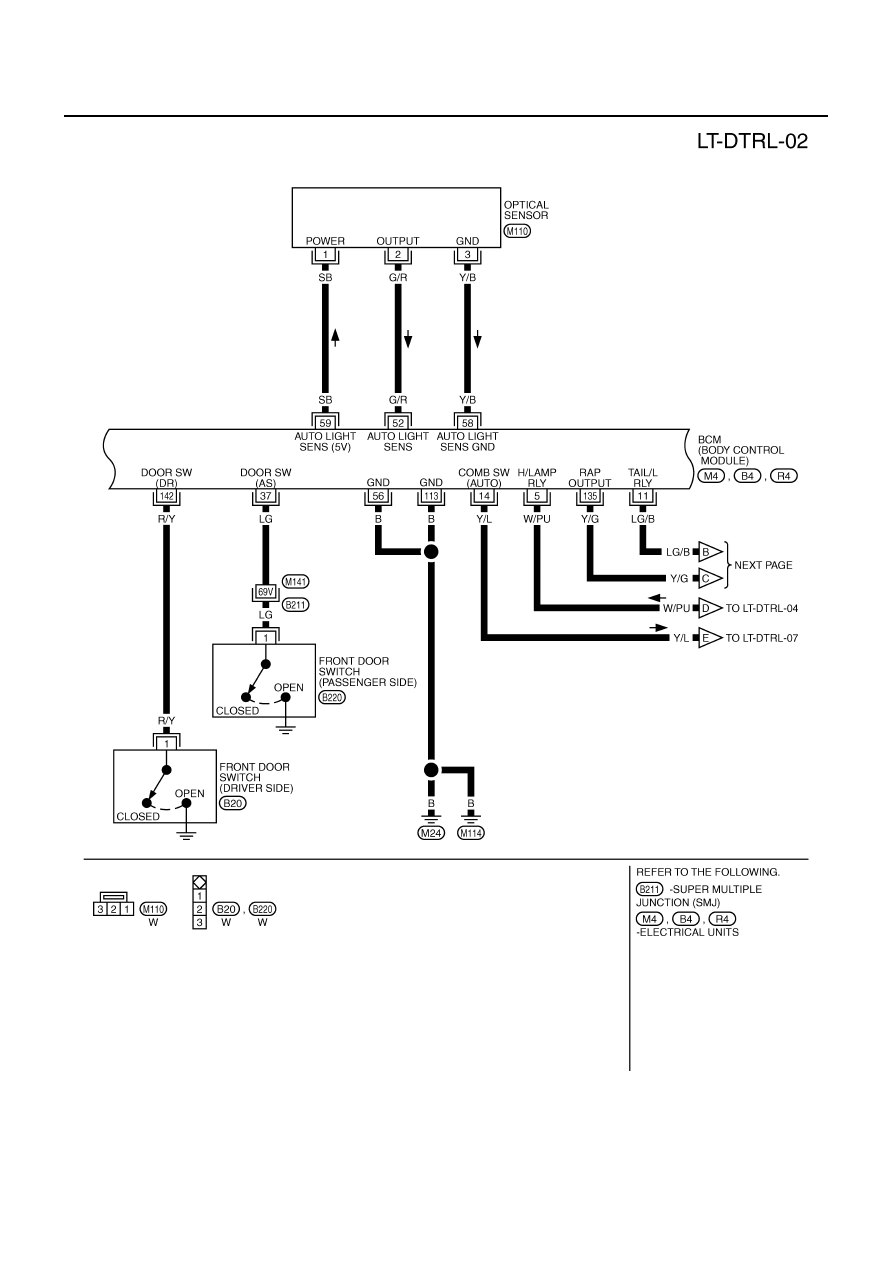

Wiring Diagram — DTRL —

AKS002FJ

TKWA0524E

LT-50

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -

TKWA0525E
