CAN SYSTEM (TYPE 2)

LAN-59

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

13.

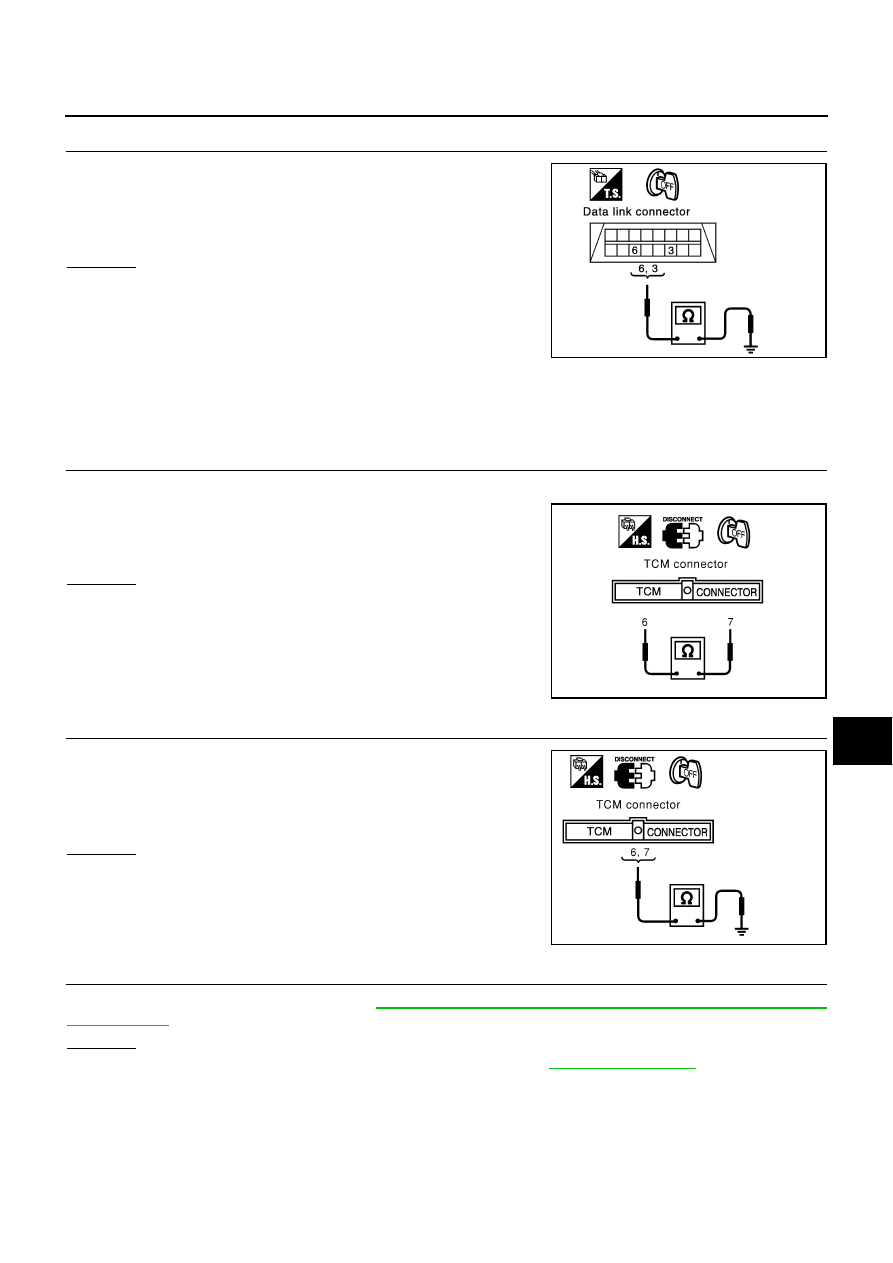

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between data link connector M31 terminals 6 (L), 3
(R) and ground.

OK or NG

OK

>> GO TO 14.

NG

>> Check the following harnesses. If any harness is dam-

aged, repair the harness.

Harness between data link connector and harness
connector M141

Harness between data link connector and harness connector M135

Harness between data link connector and steering angle sensor

Harness between data link connector and combination meter

14.

CHECK HARNESS FOR SHORT CIRCUIT

1.

Disconnect TCM connector.

2.

Check continuity between TCM harness connector F103 termi-
nals 6 (L) and 7 (R).

OK or NG

OK

>> GO TO 15.

NG

>> Repair harness between TCM and harness connector

F105.

15.

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between TCM harness connector F103 terminals 6
(L), 7 (R) and ground.

OK or NG

OK

>> GO TO 16.

NG

>> Repair harness between TCM and harness connector

F105.

16.

ECM/COMBINATION METER INTERNAL CIRCUIT INSPECTION

Check components inspection. Refer to

LAN-60, "ECM/COMBINATION METER INTERNAL CIRCUIT

INSPECTION"

 .

OK or NG

OK

>> Connect all the connectors and diagnose again. Refer to

LAN-43, "Work Flow"

 .

NG

>> Replace ECM and/or combination meter.

6 (L) – ground

: Continuity should not exist.

3 (R) – ground

: Continuity should not exist.

PKIA0286E

6 (L) – 7 (R)

: Continuity should not exist.

PKIA0283E

6 (L) – ground

: Continuity should not exist.

7 (R) – ground

: Continuity should not exist.

PKIA0284E

LAN-60

[CAN]

CAN SYSTEM (TYPE 2)

Component Inspection

AKS003YK

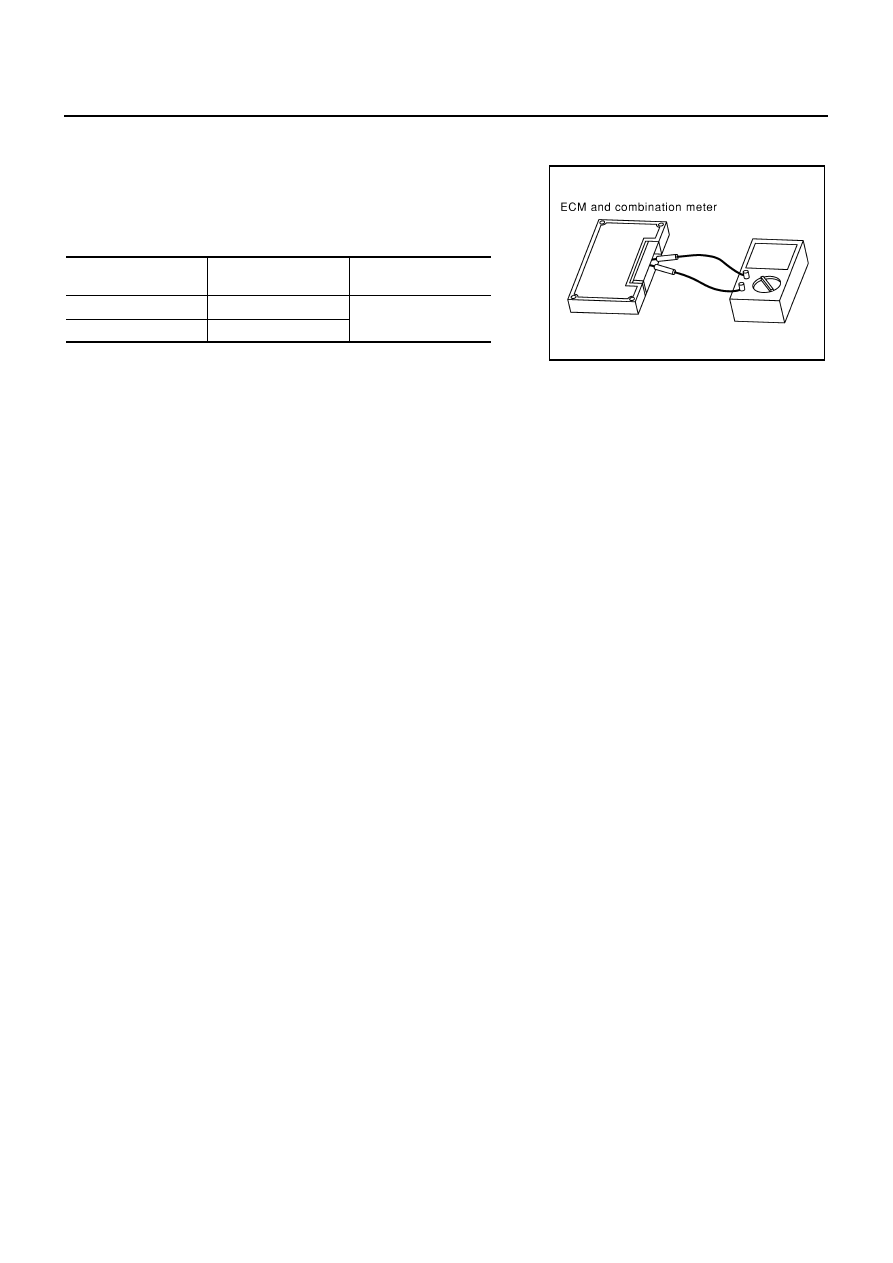

ECM/COMBINATION METER INTERNAL CIRCUIT INSPECTION

Remove ECM and combination meter from vehicle.

Check resistance between ECM terminals 174 and 171.

Check resistance between combination meter terminals 34 and
35.

Unit

Terminal

Resistance value (

)

(Approx.)

ECM

174 – 171

108 - 132

Combination meter

34 – 35

PKIA0830E

LT-1
