Infiniti M45 (Y34). Manual - part 618





CAN SYSTEM (TYPE 1)

LAN-39

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

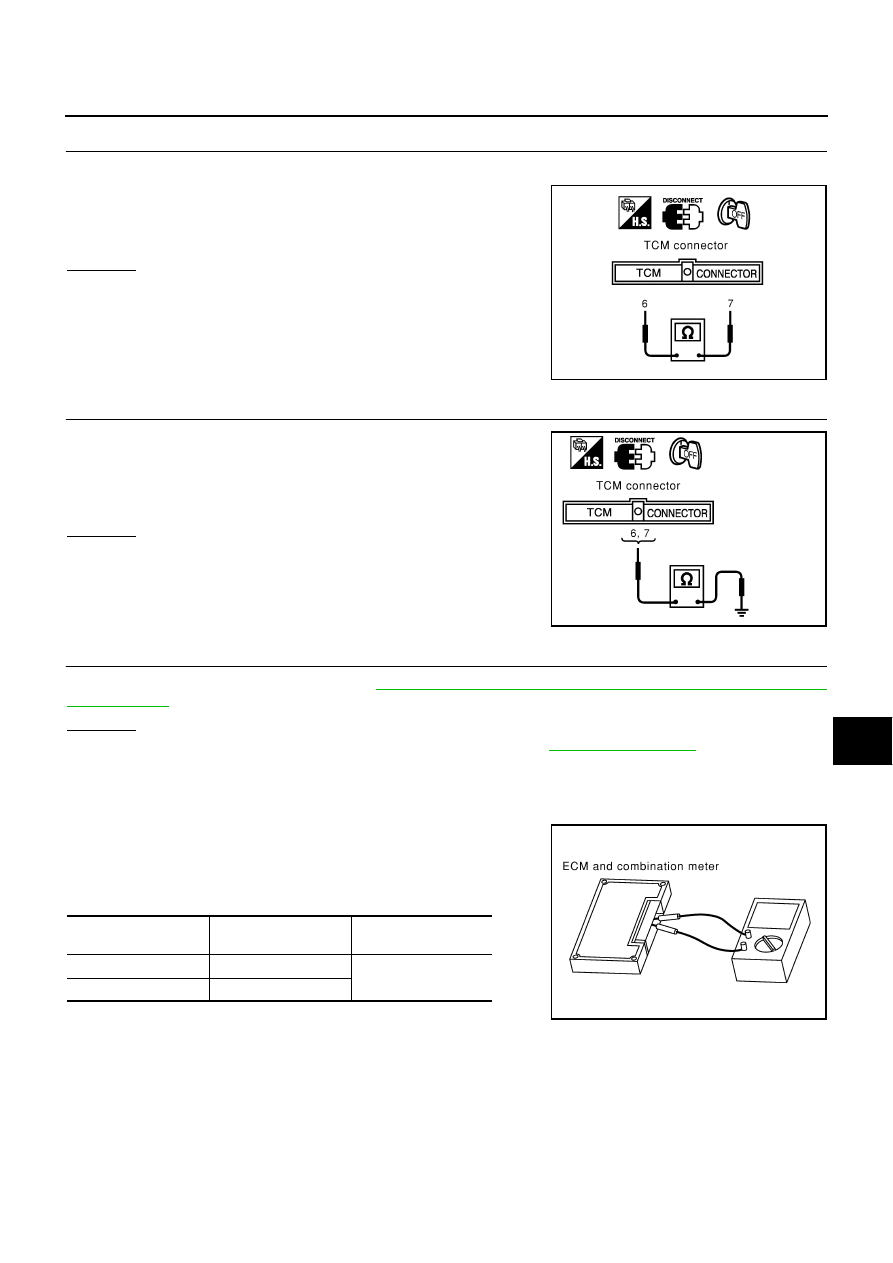

12.

CHECK HARNESS FOR SHORT CIRCUIT

1.

Disconnect TCM connector.

2.

Check continuity between TCM harness connector F103 termi-
nals 6 (L) and 7 (R).

OK or NG

OK

>> GO TO 13.

NG

>> Repair harness between TCM and harness connector

F105.

13.

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between TCM harness connector F103 terminals 6
(L), 7 (R) and ground.

OK or NG

OK

>> GO TO 14.

NG

>> Repair harness between TCM and harness connector

F105.

14.

ECM/COMBINATION METER INTERNAL CIRCUIT INSPECTION

Check components inspection. Refer to

LAN-39, "ECM/COMBINATION METER INTERNAL CIRCUIT

INSPECTION"

 .

OK or NG

OK

>> Connect all the connectors and diagnose again. Refer to

LAN-27, "Work Flow"

 .

NG

>> Replace ECM and/or combination meter.

Component Inspection

AKS003X5

ECM/COMBINATION METER INTERNAL CIRCUIT INSPECTION

Remove ECM and combination meter from vehicle.

Check resistance between ECM terminals 174 and 171.

Check resistance between combination meter terminals 34 and
35.

6 (L) – 7 (R)

: Continuity should not exist.

PKIA0283E

6 (L) – ground

: Continuity should not exist.

7 (R) – ground

: Continuity should not exist.

PKIA0284E

Unit

Terminal

Resistance value (

)

(Approx.)

ECM

174 – 171

108 - 132

Combination meter

34 – 35

PKIA0830E

LAN-40

[CAN]

CAN SYSTEM (TYPE 2)

CAN SYSTEM (TYPE 2)

PFP:23710

System Description

AKS003Y9

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

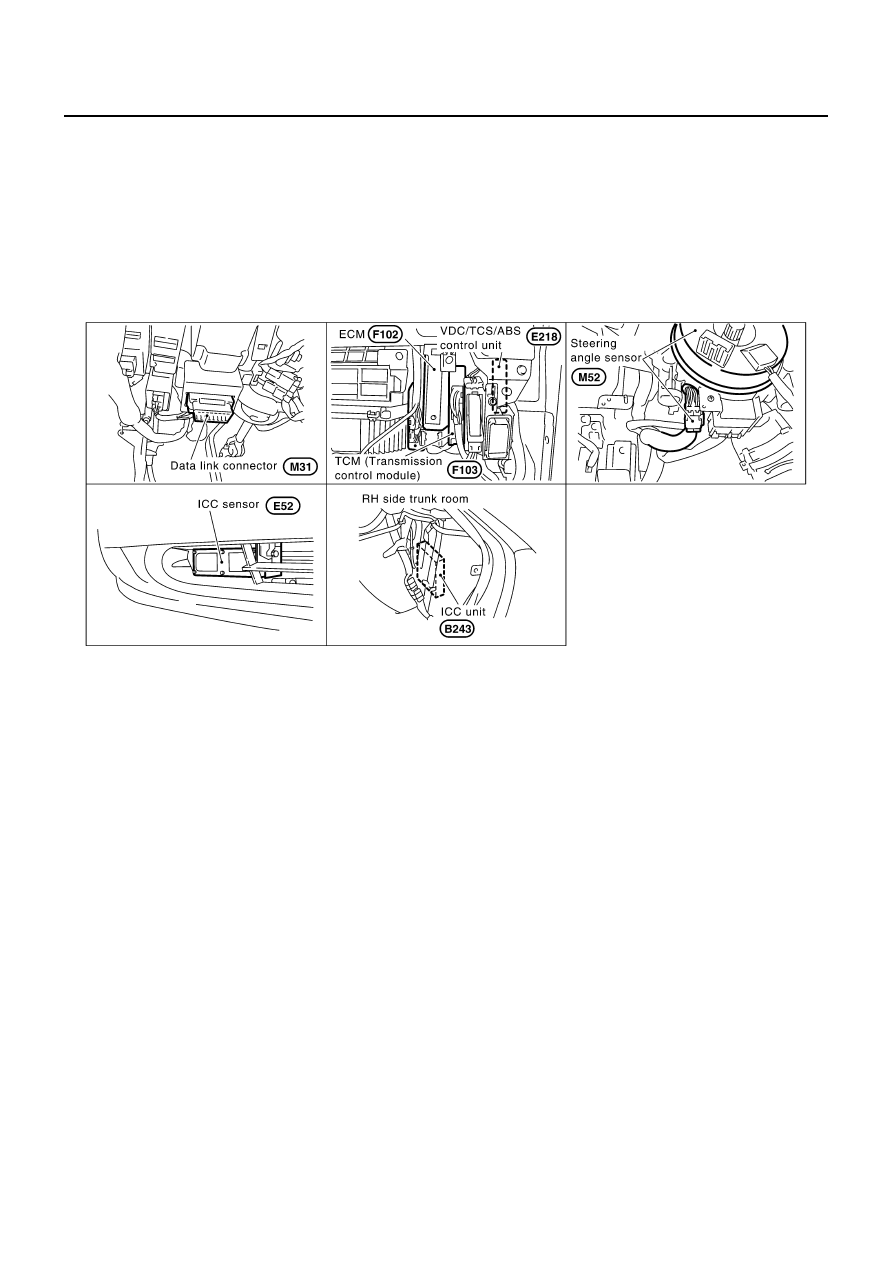

Component Parts and Harness Connector Location

AKS003YA

SKIA3778E

CAN SYSTEM (TYPE 2)

LAN-41

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

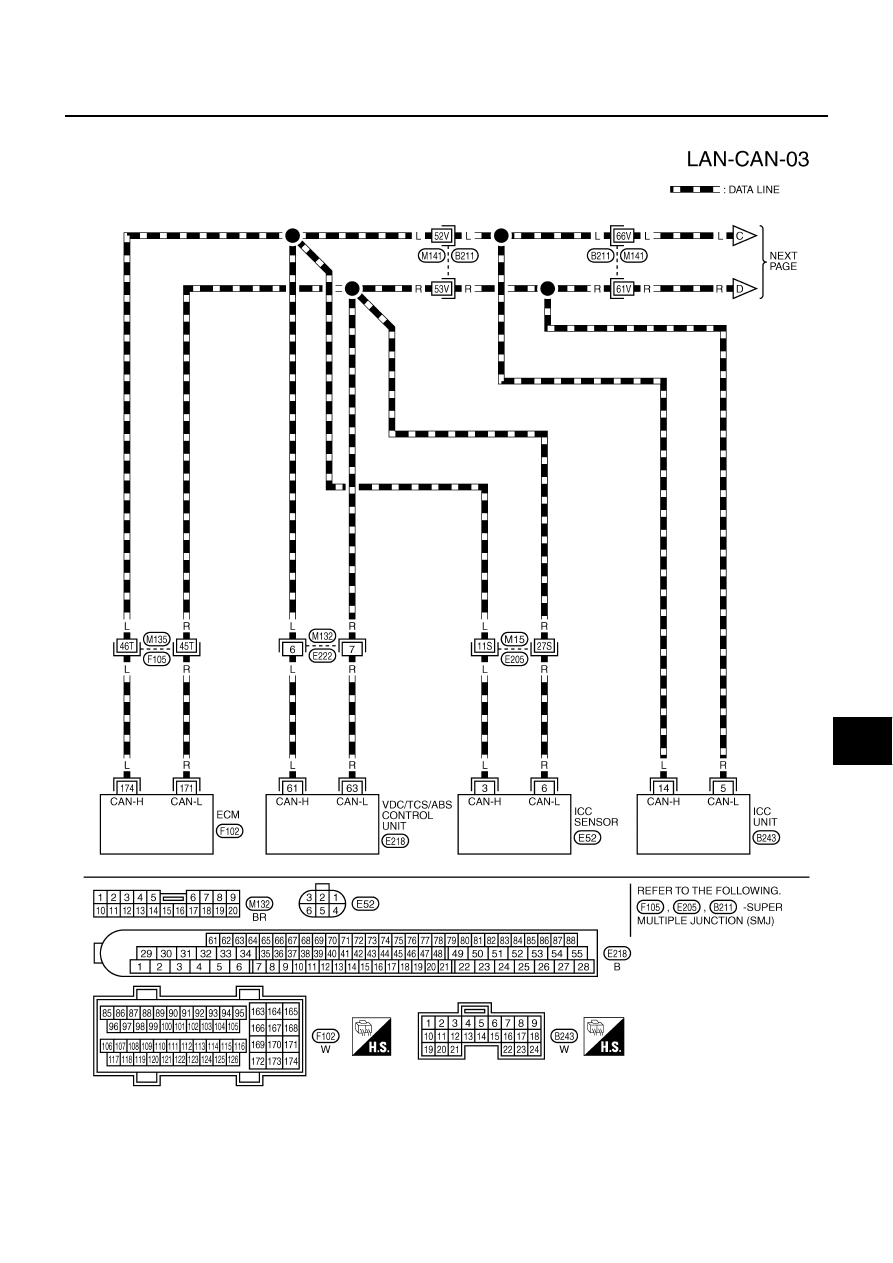

Wiring Diagram — CAN —

AKS003YB

TKWA0642E

LAN-42

[CAN]

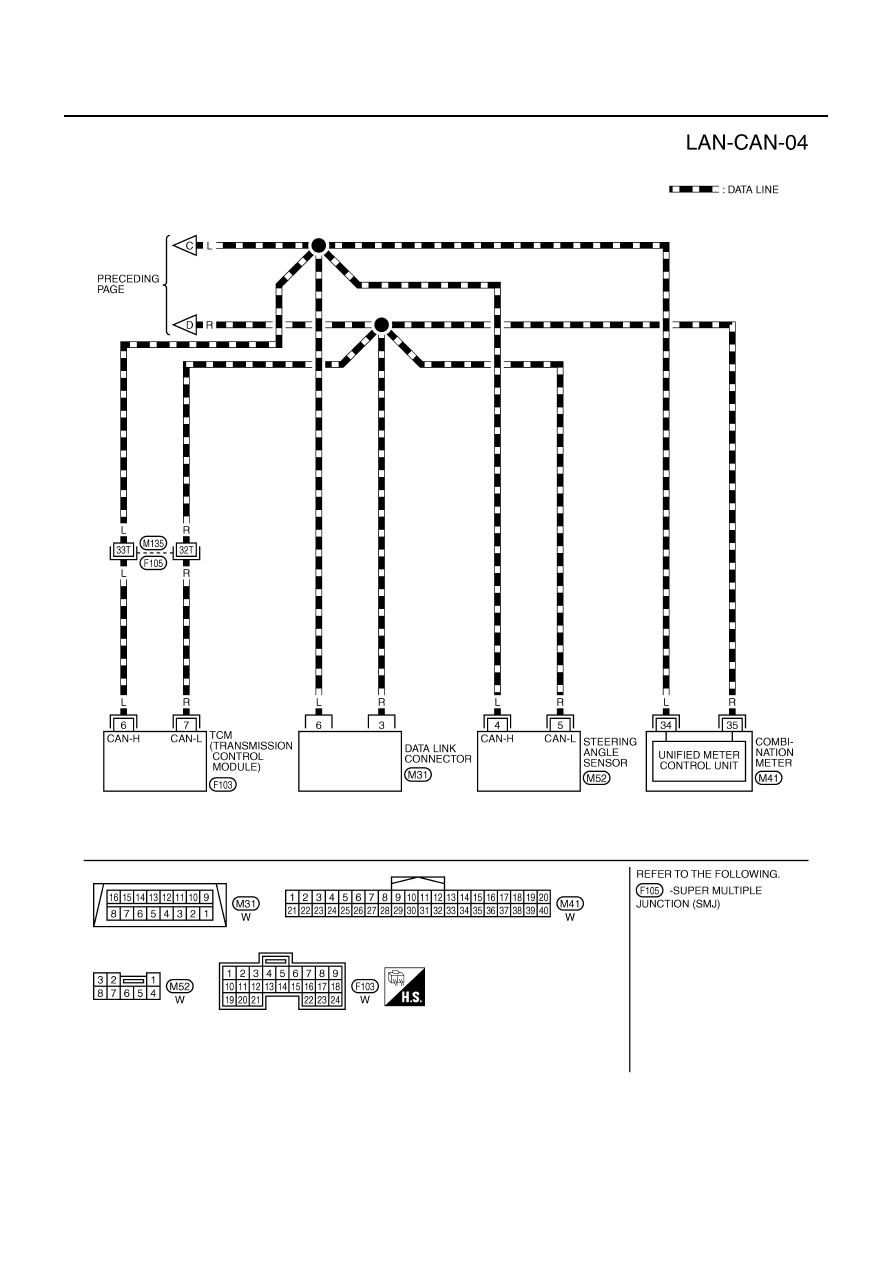

CAN SYSTEM (TYPE 2)

TKWA0643E
