IVMS (LAN)

LAN-19

[LAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

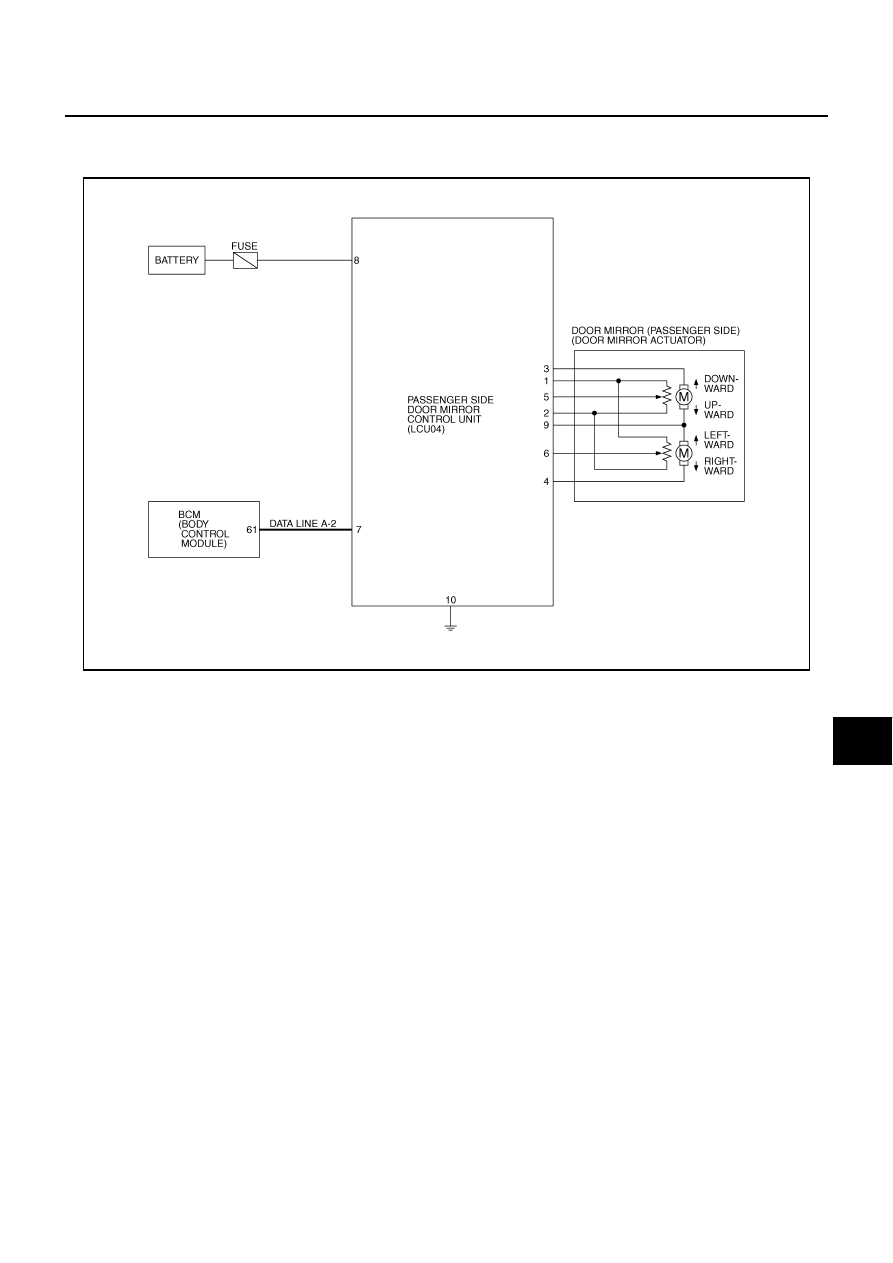

Schematic — LCU04 —

AKS002MF

PASSENGER SIDE DOOR MIRROR CONTROL UNIT (WITH DOOR MIRROR MEMORY SYS-
TEM)

TKWM0120E

LAN-20

[CAN]

PRECAUTIONS

[CAN]

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

AKS004VE

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions For Trouble Diagnosis

AKS002MH

CAN SYSTEM

Do not apply voltage of 7.0 V or higher to the measurement terminals.

Use the tester with its open terminal voltage being 7.0 V or less.

Precautions For Harness Repair

AKS002MI

CAN SYSTEM

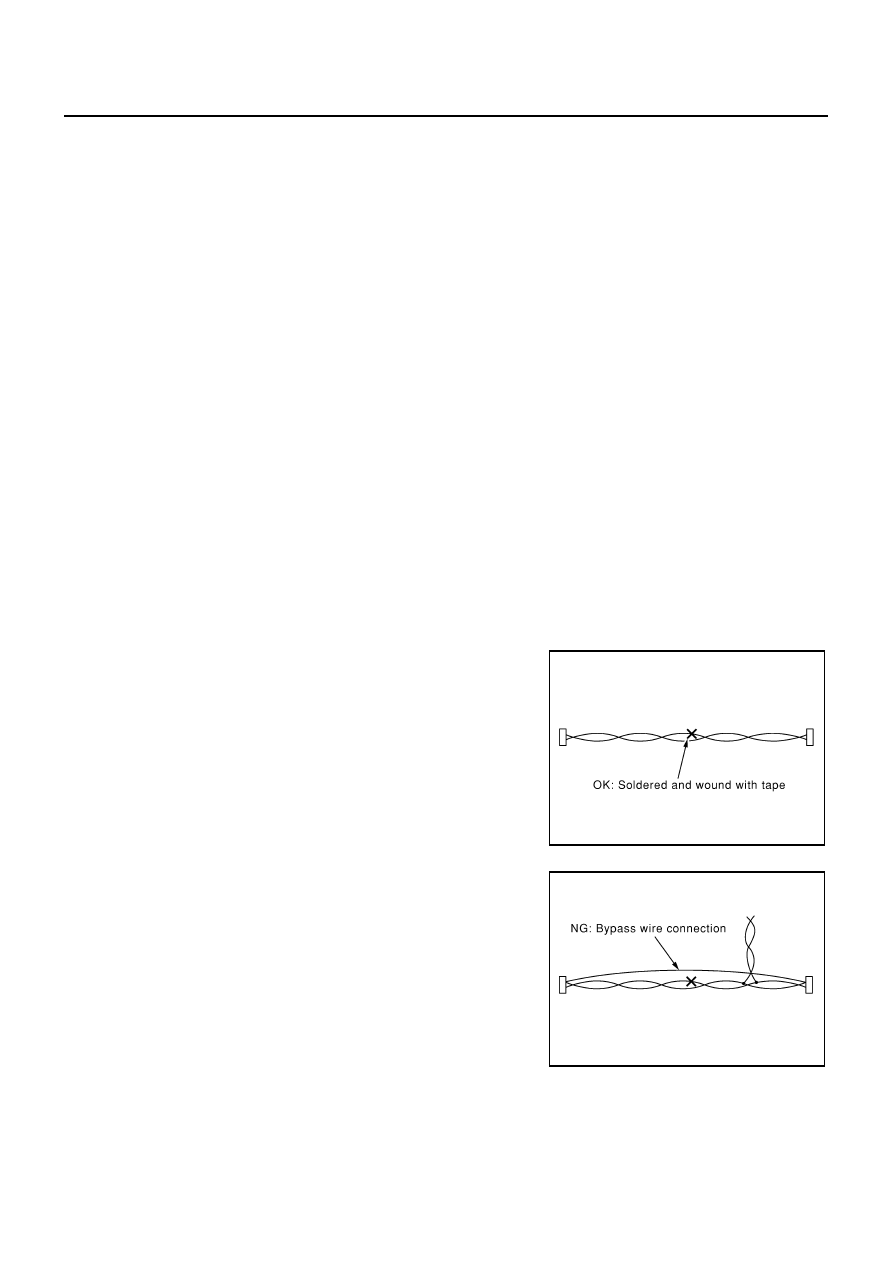

Solder the repaired parts, and wrap with tape. [Frays of twisted
line must be within 110 mm (4.33 in)]

Do not perform bypass wire connections for the repair parts.
(The spliced wire will become separated and the characteristics
of twisted line will be lost.)

PKIA0306E

PKIA0307E

CAN COMMUNICATION

LAN-21

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

CAN COMMUNICATION

PFP:23710

System Description

AKS0031B

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Unit

AKS0091S

Go to CAN system, when selecting your CAN system type from the following table.

×

: Applicable

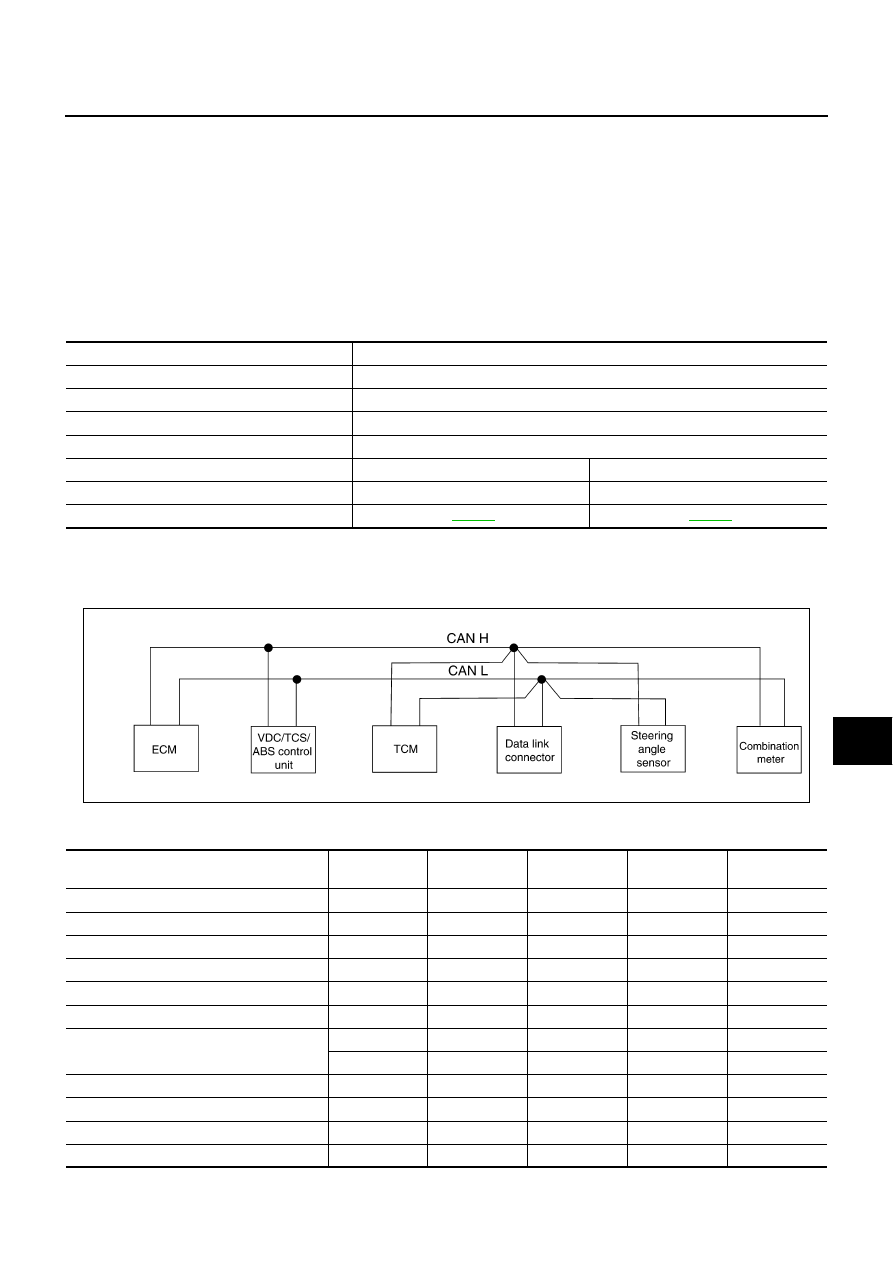

TYPE 1
System Diagram

Input/Output Signal Chart

T: Transmit   R: Receive

Body type

Sedan

Axle

2WD

Engine

VK45DE

Transmission

A/T

Brake control

VDC

ICC system

×

CAN system type

1

2

CAN system trouble diagnosis

LAN-24

LAN-40

SKIA3837E

Signals

ECM

VDC/TCS/ABS

control unit

TCM

Steering angle

sensor

Combination

meter

Engine speed signal

T

R

R

R

Engine coolant temperature signal

T

R

Accelerator pedal position signal

T

R

R

Battery voltage signal

T

R

Closed throttle position signal

T

R

Wide open throttle position signal

T

R

Engine and A/T integrated control signal

T

R

R

T

Fuel consumption monitor signal

T

R

A/T CHECK indicator lamp signal

T

R

A/T position indicator signal

T

R

Current gear position signal

R

R

T

R

LAN-22

[CAN]

CAN COMMUNICATION

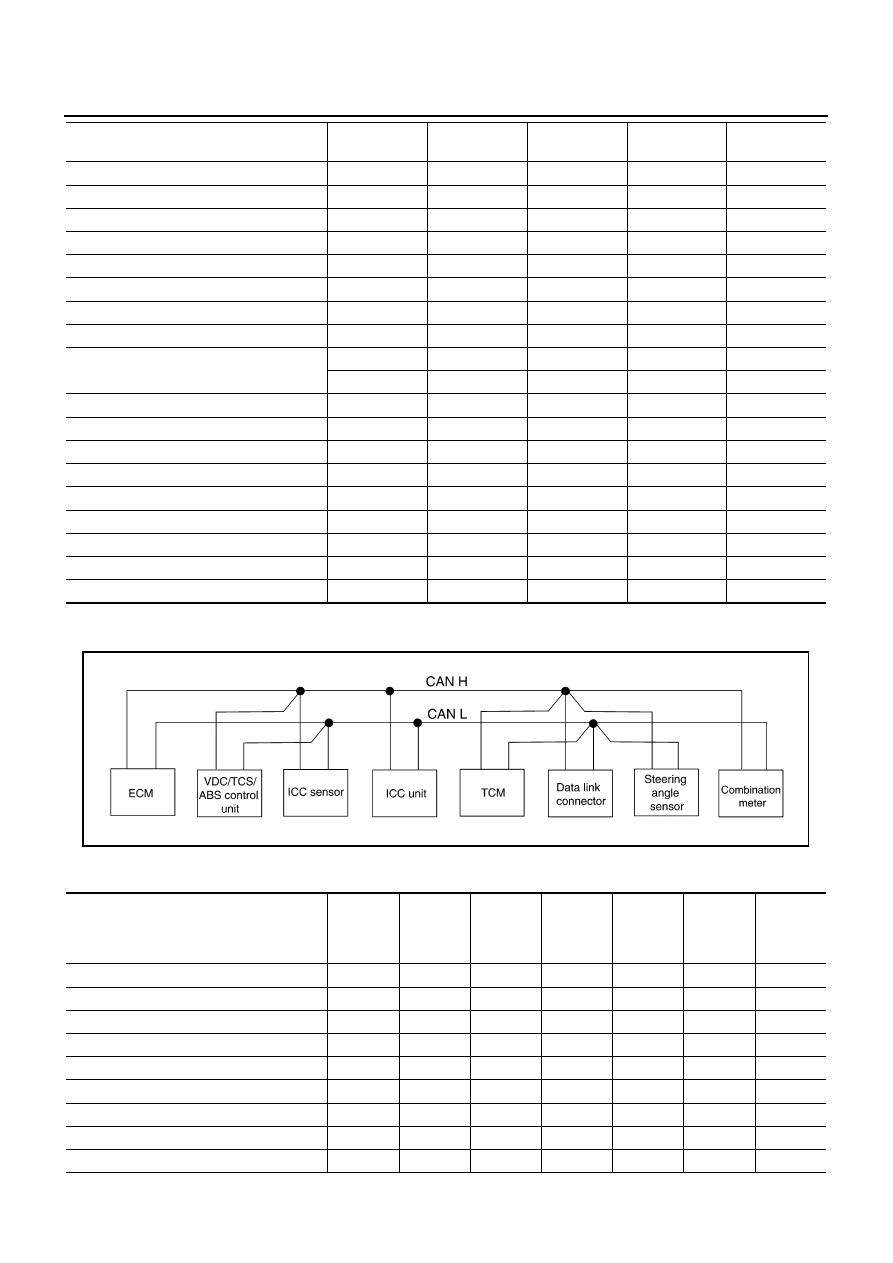

TYPE 2
System Diagram

Input/Output Signal Chart

T: Transmit   R: Receive

Next gear position signal

R

R

T

Shift change signal

R

R

T

Shift pattern signal

R

T

Steering angle sensor signal

R

T

Air conditioner switch signal

R

T

Headlamp switch signal

R

T

Rear window defogger switch signal

R

T

OD cancel switch signal

R

T

Vehicle speed signal

T

R

R

R

T

Output shaft revolution signal

R

T

A/T self-diagnosis signal

R

T

Turbine revolution signal

R

T

Manual mode signal

R

T

Not manual mode signal

R

T

Manual mode shift up signal

R

T

Manual mode shift down signal

R

T

Manual mode indicator signal

T

R

Stop lamp switch signal

R

T

Signals

ECM

VDC/TCS/ABS

control unit

TCM

Steering angle

sensor

Combination

meter

SKIA3838E

Signals

ECM

VDC/

TCS/ABS

control

unit

ICC sen-

sor

ICC unit

TCM

Steering

angle

sensor

Combina-

tion meter

ICC system display signal

T

R

ICC sensor signal

T

R

ICC operation signal

T

R

Engine speed signal

T

R

R

R

R

Engine coolant temperature signal

T

R

Accelerator pedal position signal

T

R

R

Battery voltage signal

T

R

Closed throttle position signal

T

R

R

Wide open throttle position signal

T

R
