INSTRUMENT PANEL ASSEMBLY

IP-11

C

D

E

F

G

H

J

K

L

M

A

B

IP

Removal and Installation

AIS004UU

WORK STEPS

When removing instrument panel and pad, combination meter, display unit or console box assembly, take
steps in the order shown by ( ) numbers below.

( ):number indicates step in removal procedures.

1.

Display unit

2.

Cluster lid C

3.

Front defroster grille (RH)

4.

Front defroster grille (LH)

5.

Combination meter

6.

Cluster lid A

7.

Steering lock escutcheon

8.

Side ventilation (LH)

9.

Steering column cover

10. Instrument panel bracket

11.

Clock

12. Ignition key lamp assembly

13. Knee protector lower

14.

Audio unit

15. Cluster lid center lower

16. Instrument lower driver panel

17.

Ashtray

18. A/T console finisher

19. Cup holder

20.

Center ventilator grille

21. Console box assembly

22. Instrument lower cover

23.

Glove box pin

24. Escutcheon glove box

25. Glove box assembly

26.

Console upper finisher

27. Glove box striker

28. Glove box cover

29.

CD auto changer

30.

Instrument panel reinforcement
bracket

31. Side ventilation (RH)

32.

Instrument panel and pad

Parts

Reference

page

Instrument

panel and pad

Combination

meter

 Display unit

Console box

assembly

(A)

Steering lock escutcheon

IP-12

(1)

(1)

(B)

Steering column cover

IP-12

(2)

(2)

(C)

Instrument lower driver panel

IP-12

(3)

(3)

(D)

Cluster lid A

IP-12

(4)

(4)

(E)

Combination meter

IP-13

(5)

(5)

(F)

Cluster lid C

IP-13

(6)

(1)

(G)

Display unit

DI-87

(7)

(2)

(H)

Clock

DI-136

(8)

(I)

A/T console finisher

IP-13

(9)

(1)

(J)

Cup holder

IP-13

(10)

(2)

(K)

Cluster lid center lower

IP-14

(11)

(3)

(L)

Console upper finisher

IP-14

(12)

(4)

(M)

Audio unit

AV-29

(13)

(N)

Ashtray

IP-14

(14)

(O)

Instrument lower cover

IP-14

(15)

(5)

(P)

Glove box assembly

IP-14

(16)

(6)

(Q)

Glove box cover

IP-15

(17)

(7)

(R)

CD auto changer

AV-30

(18)

(S)

Center ventilator grille

ATC-131

(19)

(8)

(T)

Console box assembly

IP-15

(20)

(9)

(U)

Front defroster grille (LH/RH)

IP-15

(21)

(V)

Front pillar garnish (LH/RH)

EI-34

(23)

(W)

Instrument panel bracket

IP-15

(24)

(X)

Instrument panel reinforcement bracket

IP-15

(25)

(Y)

Instrument panel and pad

IP-15

(26)

IP-12

INSTRUMENT PANEL ASSEMBLY

REMOVAL

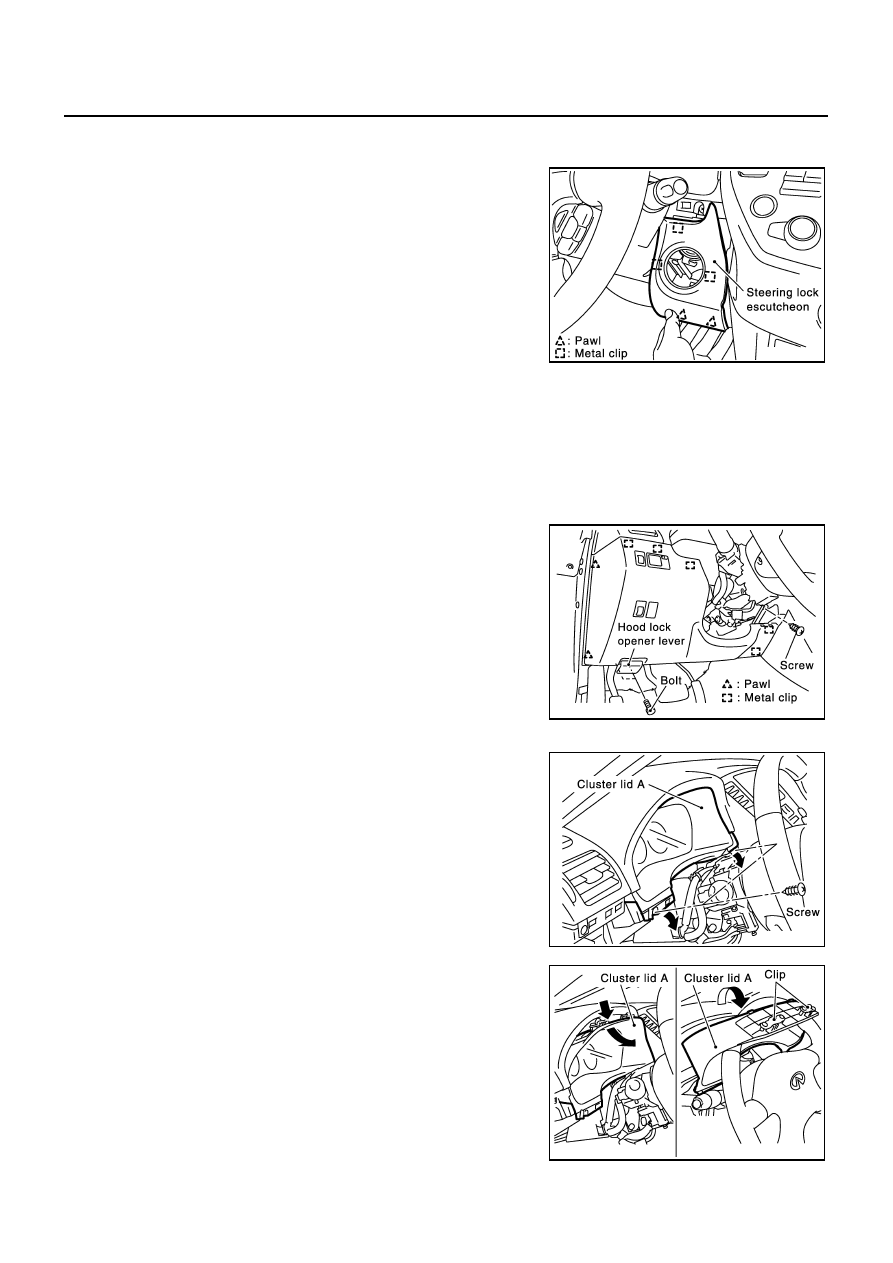

(A) Steering Lock Escutcheon

Pull back to your side, and disconnect metal clips.

(B) Steering Column Cover

1.

Remove screws with power tool.

2.

Disengage steering position switch connector, then remove steering column cover.

NOTE:

Move the steering column telescopic to the rear most position.

Move the steering column tilt to the lower bottom position.

(C) Instrument Lower Driver Panel

1.

Remove bolts and nuts with power tool, then remove hood lock
opener lever.

2.

Pull straight to your side, disconnect connectors, and remove
instrument lower driver panel.

(D) Cluster Lid A

1.

Remove screws with power tool.

2.

Pull upper side downward, and disconnect clips.

3.

Make upper and lower side narrower, and pull it back to your
side.

4.

Remove as covering steering wheel.

PIIA2603E

PIIA2612E

PIIA2604E

PIIA2605E

INSTRUMENT PANEL ASSEMBLY

IP-13

C

D

E

F

G

H

J

K

L

M

A

B

IP

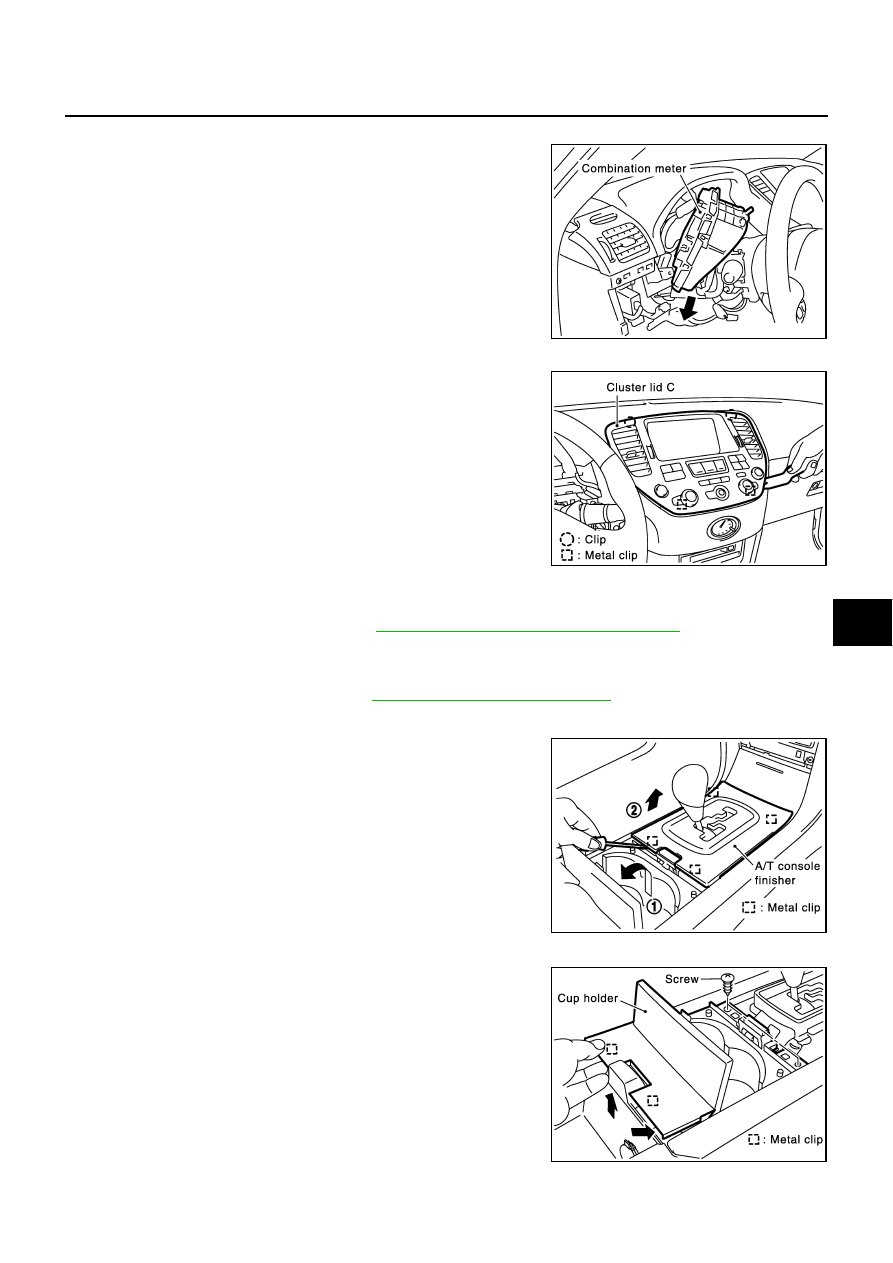

(E) Combination Meter

1.

Remove screws with power tool and then disconnect harness
connector.

2.

Pull lower part straight forward and remove location pin.

3.

Push right side of meter rearward and then pull straight forward
on left side.

CAUTION:

To prevent it from being damaged by interference with the
meter bracket, protect the meter with cloths.

(F) Cluster Lid C

1.

Insert a remover, or thin spatula into dip between instrument
panel, pull back to your side, and disconnect metal clips below.

2.

Disconnect harness connectors, and remove.

CAUTION:

Cover surroundings with cloth to avoid scratches or dam-
ages.

(G) Display Unit

1.

Remove screws with power tool.

2.

Disconnect harness connector. Refer to

DI-87, "Removal and Installation of Display"

  .

(H) Clock

1.

Remove screws, push to frontward and remove.

2.

Disconnect harness connector.Refer to

DI-136, "Removal and Installation"

 .

(I) A/T Console Finisher

Open cup holder lid. Hold rear part of A/T console finisher, lift it up,
and disconnect metal clips at its rear end.

(J) Cup Holder

Remove screws with power tool, lift it up, disconnect metal clips at its
rear end, and remove.

PIIA2613E

PIIA2606E

PIIA2608E

PIIA2609E

IP-14

INSTRUMENT PANEL ASSEMBLY

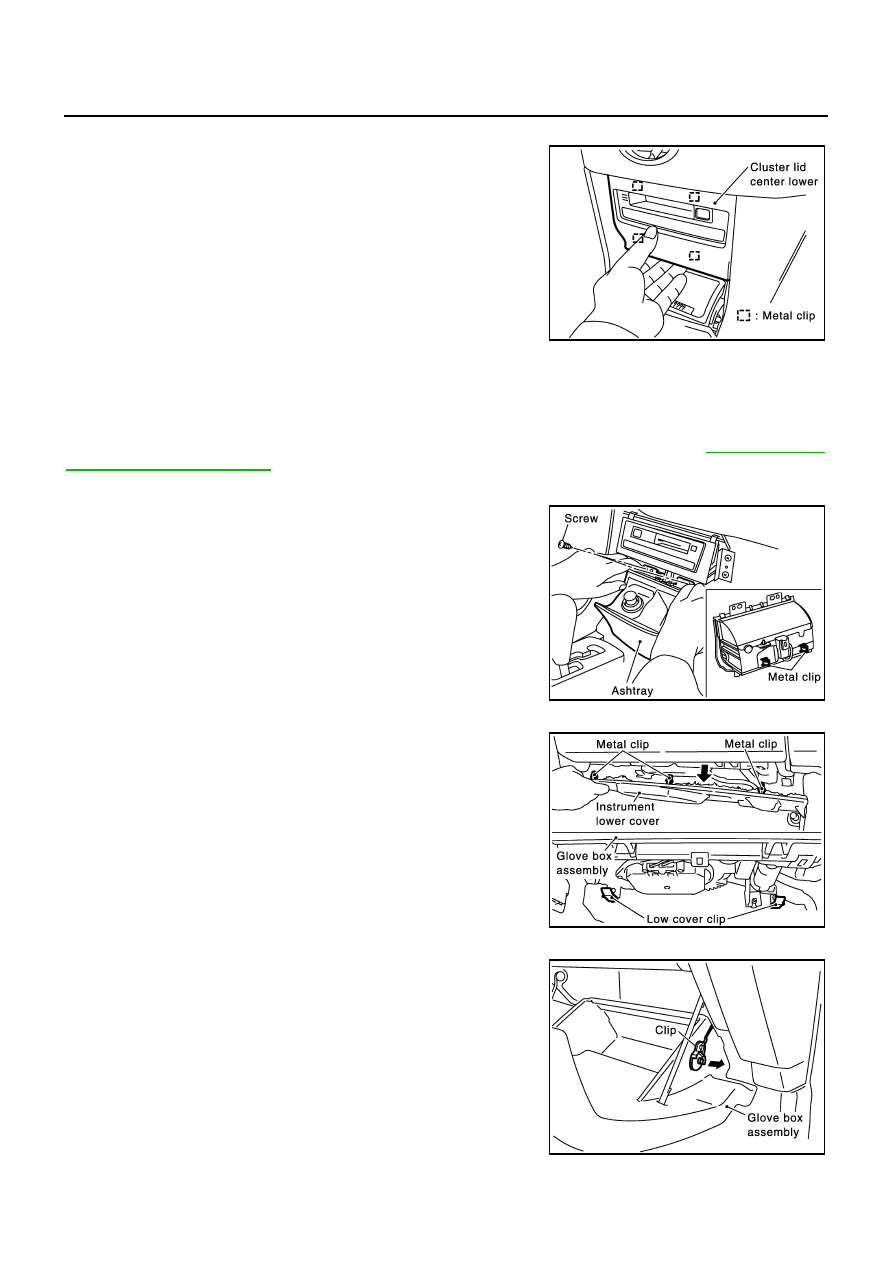

(K) Cluster Lid Center Lower

Open lid of ashtray. Hold lower part of cluster lid center lower, and
pull back to your side. Disconnect both metal clips, and remove.

(L) Console Upper Finisher

Remove screws with power tool, hold front part of console upper finisher, pull back to your side, and discon-
nect clips.

(M) Audio Unit

Remove screws with power tool, disconnect connectors, and remove audio unit. Refer to

AV-29, "Removal

and Installation of Audio Unit"

 .

(N) Ashtray

1.

Remove screws with power tool, pull back to your side, and dis-
connect metal clips.

2.

Disconnect harness connectors, and remove.

(O) Instrument Lower Cover

1.

Pull down front of instrument lower cover, and disconnect metal
clips.

2.

Pull it horizontally, and remove from lower cover clips.

CAUTION:

Remove connectors of air bag from instrument lower cover.

(P) Glove Box Assembly

1.

Remove clip to outside.

PIIA2607E

PIIA2610E

PIIA2615E

PIIA2614E
