Infiniti M45 (Y34). Manual - part 601





REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-115

C

D

E

F

G

H

J

K

L

M

A

B

GW

7.

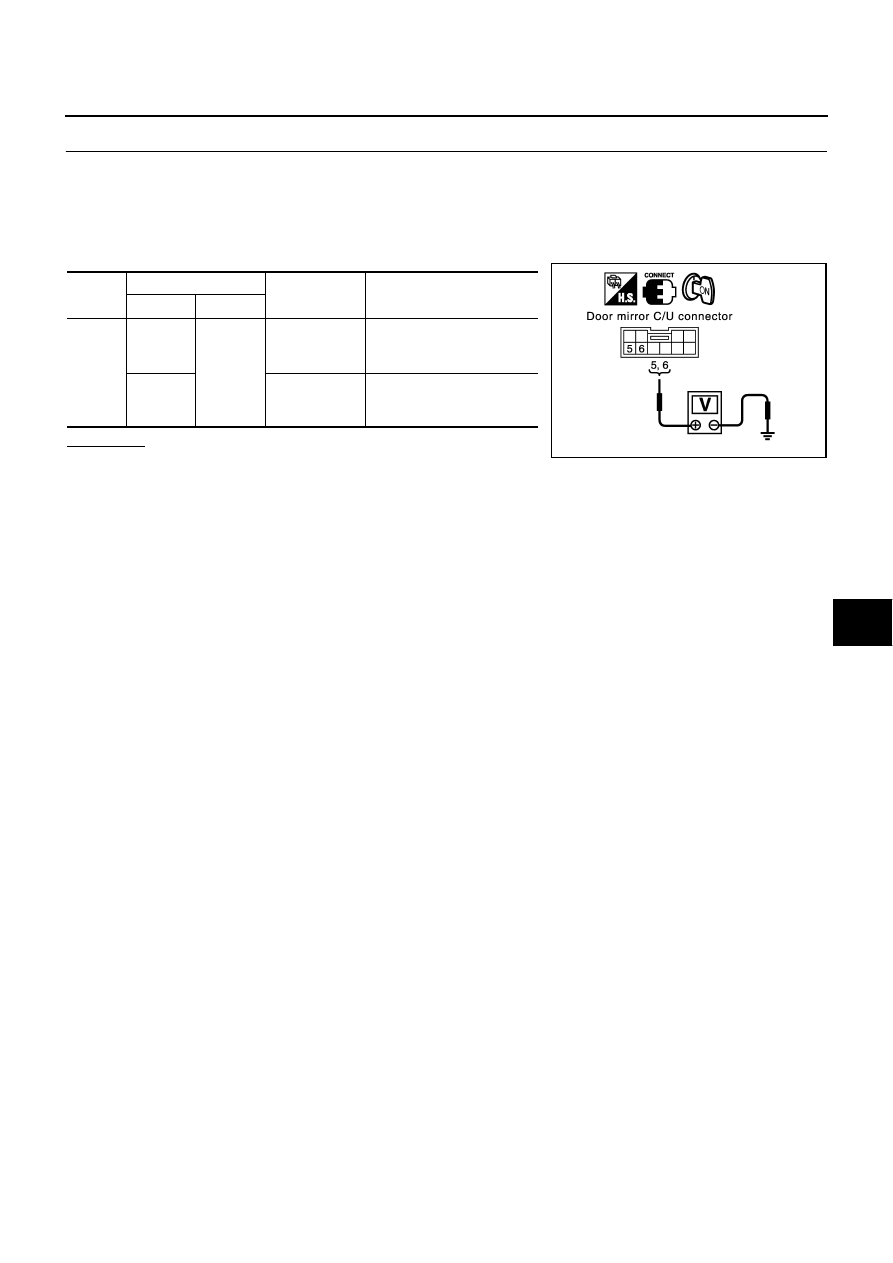

MIRROR SENSOR SIGNAL INSPECTION

1.

Connect  door mirror control unit D5 (driver side), D35 (passenger side) and door mirror D2 (driver side),
D32 (passenger side) connectors.

2.

Turn ignition switch ON.

3.

Check voltage between door mirror control unit connector D5 (driver side), D35 (passenger side) termi-
nals 5, 6and ground.

OK or NG?

OK

>> Replace the door mirror control unit.

NG

>> Replace the door  mirror.

Con-

nector

Terminals (Wire color)

Condition

Voltage(V)

(Approx,)

(+)

(–)

D5

D35

5(L/Y)

Ground

When motor is
activated
(UP/ DOWN)

Changes between

4 (close to peak) –

 0.5 (close to valley)

6(G)

When motor is
activated
(LEFT/ RIGHT)

Changes between

4 (close to right edge) –

0.5 (close to left edge)

PIIA3541E

GW-116

DOOR MIRROR

DOOR MIRROR

PFP:96301

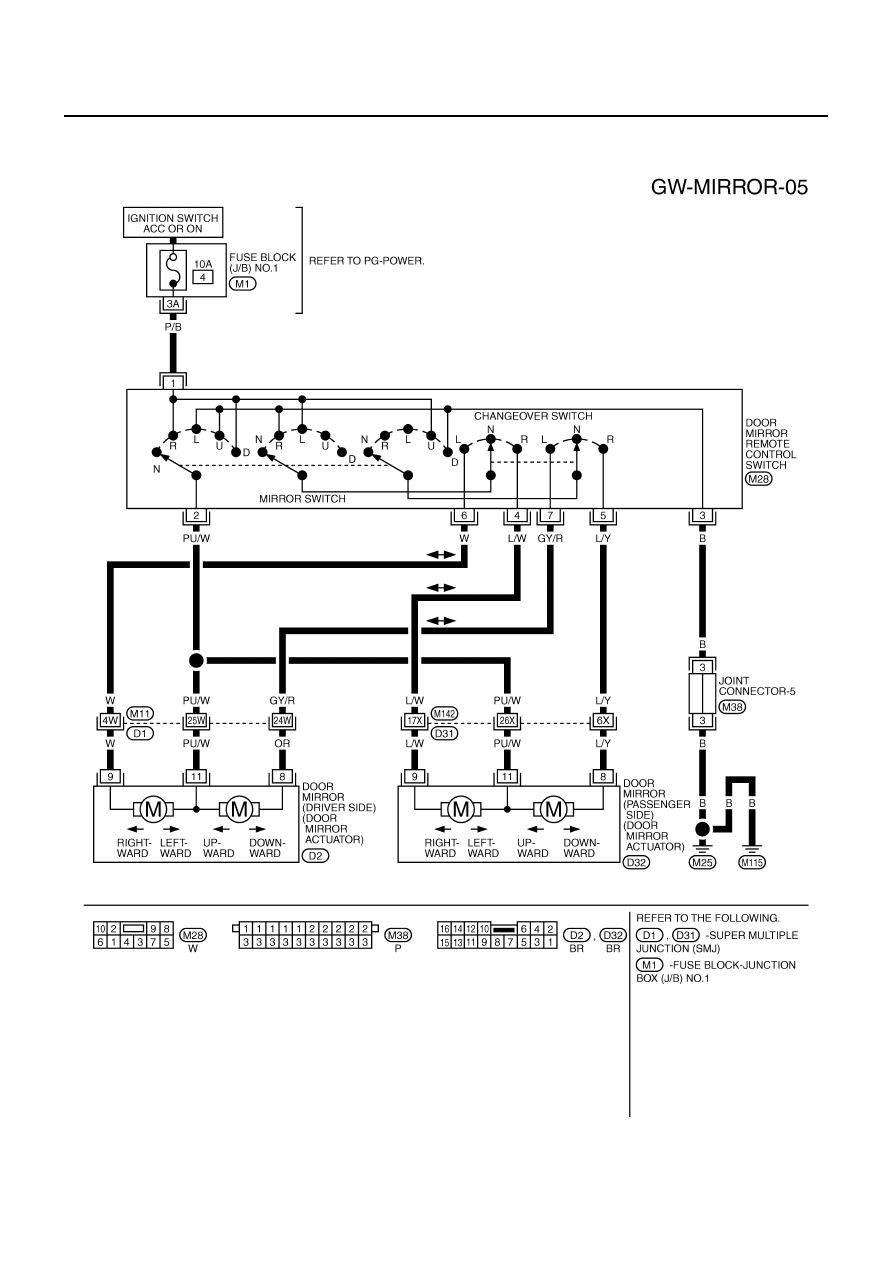

Wiring Diagram — MIRROR —

AIS001HM

TIWA0227E

DOOR MIRROR

GW-117

C

D

E

F

G

H

J

K

L

M

A

B

GW

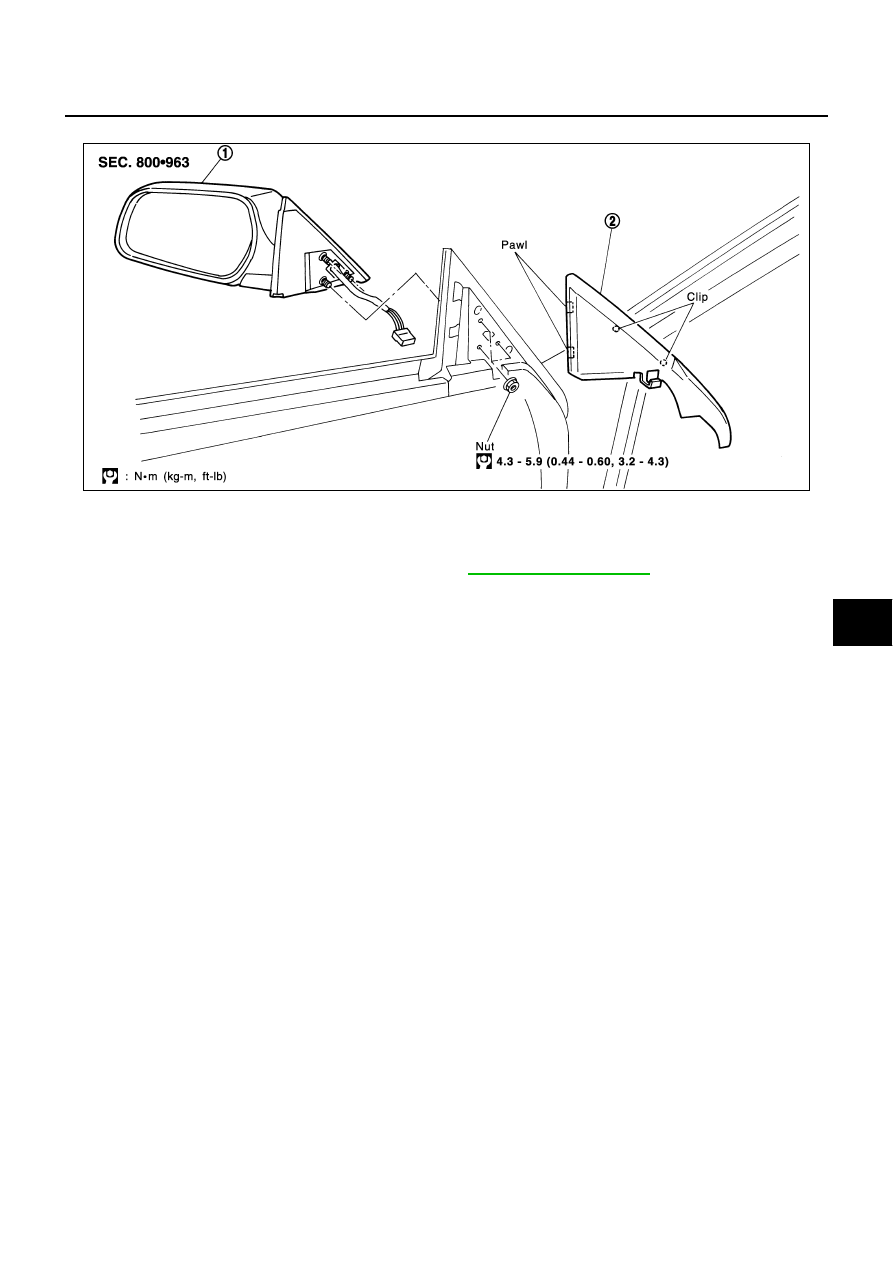

Removal and Installation

AIS001HN

REMOVAL

1.

Remove  front door finisher and Inner cover. Refer to

EI-31, "DOOR FINISHER"

 .

2.

Disconnect  door mirror harness connector.

3.

Loosen the door mirror mounting nuts, and remove door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

PIIA3216E

1.

Door mirror assembly

2.

 Inner cover

GW-118

DOOR MIRROR

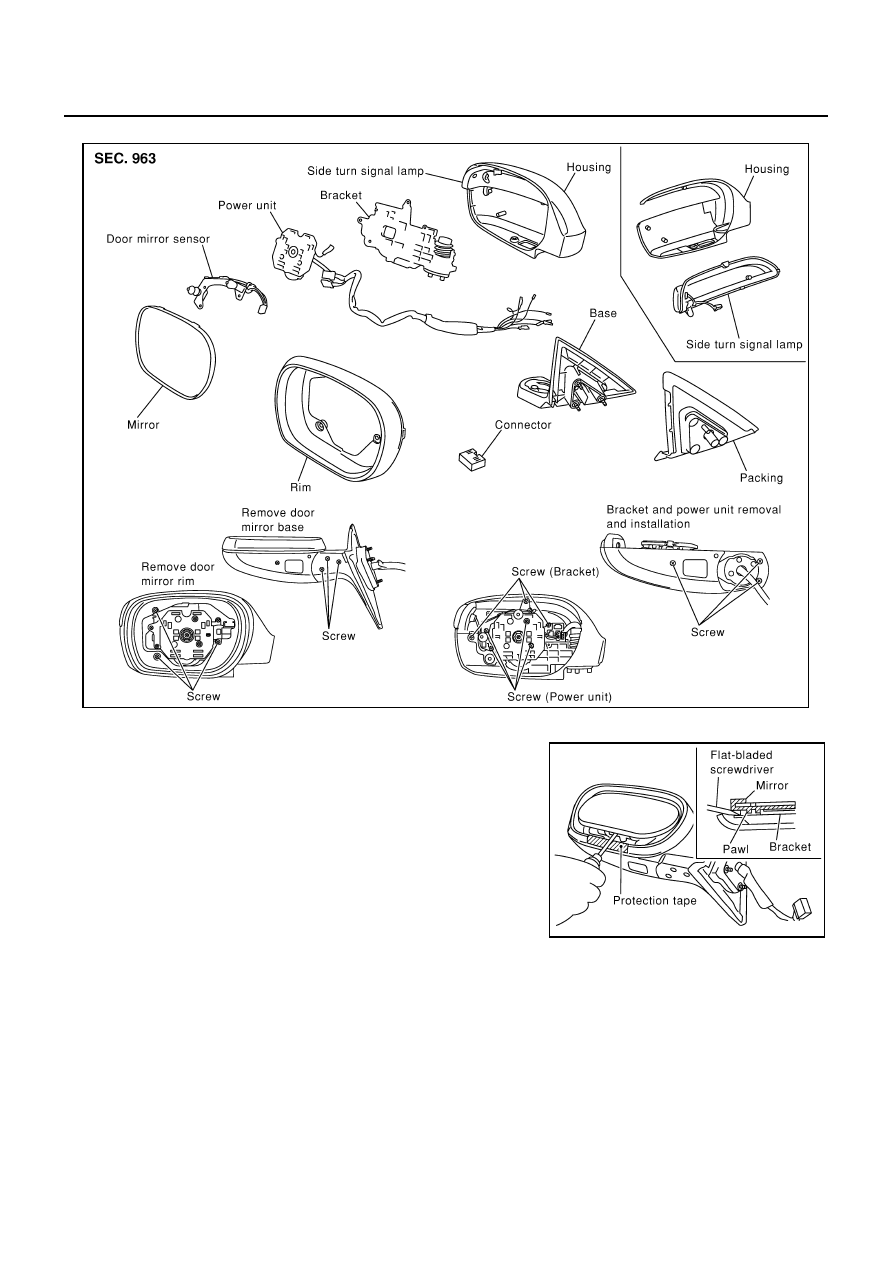

Disassembly and Assembly

AIS001HO

DISASSEMBLY

1.

Place the mirror body with the mirror glass facing upward.

2.

Put a strip of protective tape on the mirror body.

3.

As shown in the figure, insert a small slotted screwdriver
wrapped with tape into the recess between the mirror face (mir-
ror holder) and mirror holder bracket, and push up the lower
pawls to remove the mirror holder lower half.

NOTE:
When pushing up the pawls, do not attempt to use 1 recess only,
be sure to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating
(twist) to make work easier.

4.

Lightly lift up lower side of the mirror face, and detach pawls of upper side as if pulling it out. Remove the
mirror face from the mirror body.

NOTE:
Be certain not to allow grease on sealing agent in center of the mirror body assembly or back side of the
mirror face (mirror holder).

5.

Remove the terminals of mirror heater from the mirror face.

PIIA0047E

PIIA0048E
