REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-79

C

D

E

F

G

H

J

K

L

M

A

B

GW

Operation Angle

Fixed operation angle

End of Operation

If the following conditions is satisfied, the reverse gear-linked operation is stopped.

When the set angle is reached.

When no operation signal or no operation end signal can be received for approximately 2 seconds or
more after BCM actually outputs the reverse gear-linked operation signal.

After receiving the operation signal from the door mirror control unit, when BCM has stayed in the status
for 60 seconds.

Return Operation

If one of the following conditions is satisfied, the mirror face returns upward.

When the ignition switch is turned OFF.

When the A/T selector lever is shifted to any position except R position.

When the door mirror remote control switch is in the neutral position.

NOTE:

After the above operation, if no operation conditions previously mentioned are satisfied, shifting the A/T
selector lever to R position will not move the mirror face downward.

End of Return Operation

Mirror face returns to the original position.

When no operation signal or no operation end signal can be received for approximately 2 seconds or
more after BCM actually outputs the reverse gear-linked operation signal.

After receiving the operation signal from the door mirror control unit, when BCM has stayed in the status
for 60 seconds.

MIRROR POSITION MEMORY FUNCTIONS

 Equipped with a function which allows memorizing the desired mirror face positions (2 positions each for LH/
RH door mirror).

Memory Operation Conditions

The seat and steering wheel positions are in accordance with memory 1 or memory 2 in the automatic drive
position control. Refer to

SE-13, "AUTOMATIC DRIVE POSITIONER"

 .

Memory Operation Procedure

1.

Turn ignition switch ON.

2.

Shift the A/T selector lever to R position.

3.

Switch the door mirror remote control switch to right or left, and set the mirror face to the desired angle.

4.

Press the setting button, and within 5 seconds, press the memory switch which stores the current seat
and steering wheel positions for 0.5 seconds or more.

5.

If the memory switch with certain positions stored is used, it turns off for 0.5 seconds after the operation,
and after that it illuminates continuously (for Pyrex. 5 seconds).

6.

If a memory switch with no positions stored is used, it illuminates (for Pyrex. 5 seconds) after the memory
switch operation.

POWER SUPPLY

Power is supplied at all times

through 10A fuse [No.8, located in the fuse block (J/B)]

to driver side door mirror control unit terminal No.8 and passenger side door mirror remote control unit ter-
minal No.8.

through 10A fuse [No.3, located in the fuse block (J/B)]

to BCM terminal No.105.

Facing downward

Facing unwearied

Driver-side

7

°

1

°

Passenger-side

7

°

1

°

GW-80

REVERSE INTERLOCK DOOR MIRROR SYSTEM

With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No.9, located in the fuse block (J/B)]

to back-up lamp relay terminal No. 2 and 5.

With the ignition switch in the ON or START position and selector lever is in R position, power is supplied

though back-up lamp relay terminal No.3

to TCM terminal No.141.

MIRROR CONTROL SWITCH TO OPERATION

If the changeover switch with RH positions,
Ground is supplied

to BCM terminal No.21

through the door mirror remote control switch terminal No.5,

through door mirror remote control switch terminal No.7

through grounds M25 and M115,

BCM recognizes that changeover switch is RH positions.
If the changeover switch with LH positions,
Ground is supplied

to BCM terminal No.24

through the door mirror remote control switch terminal No.6,

through door mirror remote control switch terminal No.7

through grounds M25 and M115

BCM recognizes that changeover switch is LH positions.
When mirror switch is selected to right,
Ground is supplied

through BCM terminal No.29

to the door mirror remote control switch terminal No.1,

through door mirror remote control switch terminal No.7

through grounds M25 and M115,

BCM recognizes that mirror switch is selected to right.
When mirror switch is selected to left,
Ground is supplied

to BCM terminal No.25

through the door mirror remote control switch terminal No.2,

through door mirror remote control switch terminal No.7

through grounds M25 and M115,

BCM recognizes that mirror switch is selected to left.
When mirror switch is selected to up,
Ground is supplied

to BCM terminal No.32

through the door mirror remote control switch terminal No.3,

through door mirror remote control switch terminal No.7

through grounds M25 and M115,

BCM recognizes that mirror switch is selected to up.
When mirror switch is selected to down,
Ground is supplied

to BCM terminal No.34

through the door mirror remote control switch terminal No.4,

through door mirror remote control switch terminal No.7

through grounds M25 and M115,

BCM recognizes that mirror switch is selected to down.
BCM is connected to driver side door mirror control unit (LCU03) and passenger side door mirror control unit
(LCU04) as DATA LINE A–2 and DATA LINE A–3.

REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-81

C

D

E

F

G

H

J

K

L

M

A

B

GW

Then signal inputs to driver side door mirror control unit and passenger side door mirror control unit terminal
No.7 from BCM terminal No.61 and No.67 by DATA LINE A–2 and DATA LINE A–3.
If the changeover switch with LH positions, signal is transmitted to LCU03.
If the changeover switch with RH positions, signal is transmitted to LCU04.

MEMORY MIRROR OPERATION

BCM transmits the memory switch (1 or 2) ON signal to the door mirror control unit.
BCM is connected to driver side door mirror control unit (LCU03) and passenger side door mirror control unit
(LCU04) as DATA LINE A–2 and DATA LINE A–3.
Then signal input to driver side door mirror control unit and passenger side door mirror control unit terminal
No.7 from BCM terminal No.61 and No.67 by DATA LINE A–2 and DATA LINE A–3.
When door mirror control unit receives the signal of memory switch from BCM, control unit operations the door
mirror according to memory data.
Power is supplied

through door mirror control unit terminal No. 1

to the door mirror terminal No. 16, and then

signal is transmitted (upper and down)

through door mirror terminal No. 14

to door mirror control unit terminal No. 5,

LCU recognizes an upper and down position according to the voltage.
and also signal is transmitted (left and right)

through door mirror terminal No. 12

to door mirror control unit terminal No. 6,

an left and right position is recognized according to the voltage.

DOOR MIRROR MOTOR TO OPERATION

When mirror motor up signal is transmitted from BCM to door mirror control unit,
Power is supplied

through door mirror control unit terminal No.3

to door mirror terminal No.8.

Then ground is supplied,

to door mirror terminal No.11

through door mirror control unit terminal No.9

through door mirror control unit terminal No.10

through body ground M24 and M114.

with power and ground supplied, mirror motor is operated up side.
When mirror motor down signal is transmitted from BCM to door mirror control unit,
Power is supplied

through door mirror control unit terminal No.9

to door mirror terminal No.11.

Then ground is supplied

to door mirror terminal No.8

through door mirror control unit terminal No.3

through door mirror control unit terminal No.10

through body ground M24 and M114.

with power and ground supplied, mirror motor is operated down side.
When mirror motor left signal is transmitted from BCM to door mirror control unit,
Power is supplied

through door mirror control unit terminal No.4

to the door mirror terminal No.9.

Then ground is supplied

to door mirror terminal No.11

through door mirror control unit terminal No.9

GW-82

REVERSE INTERLOCK DOOR MIRROR SYSTEM

through door mirror control unit terminal No.10

through body ground M24 and M114.

with power and ground supplied, mirror motor is operated left side.
When mirror motor right signal is transmitted from BCM to door mirror control unit,
Power is supplied

through door mirror control unit terminal No.9

to the door mirror terminal No.11

Then ground is supplied

to door mirror terminal No.9

through door mirror control unit terminal No.4

through door mirror control unit terminal No.10

through body ground M24 and M114.

with power and ground supplied, mirror motor is operated right side.

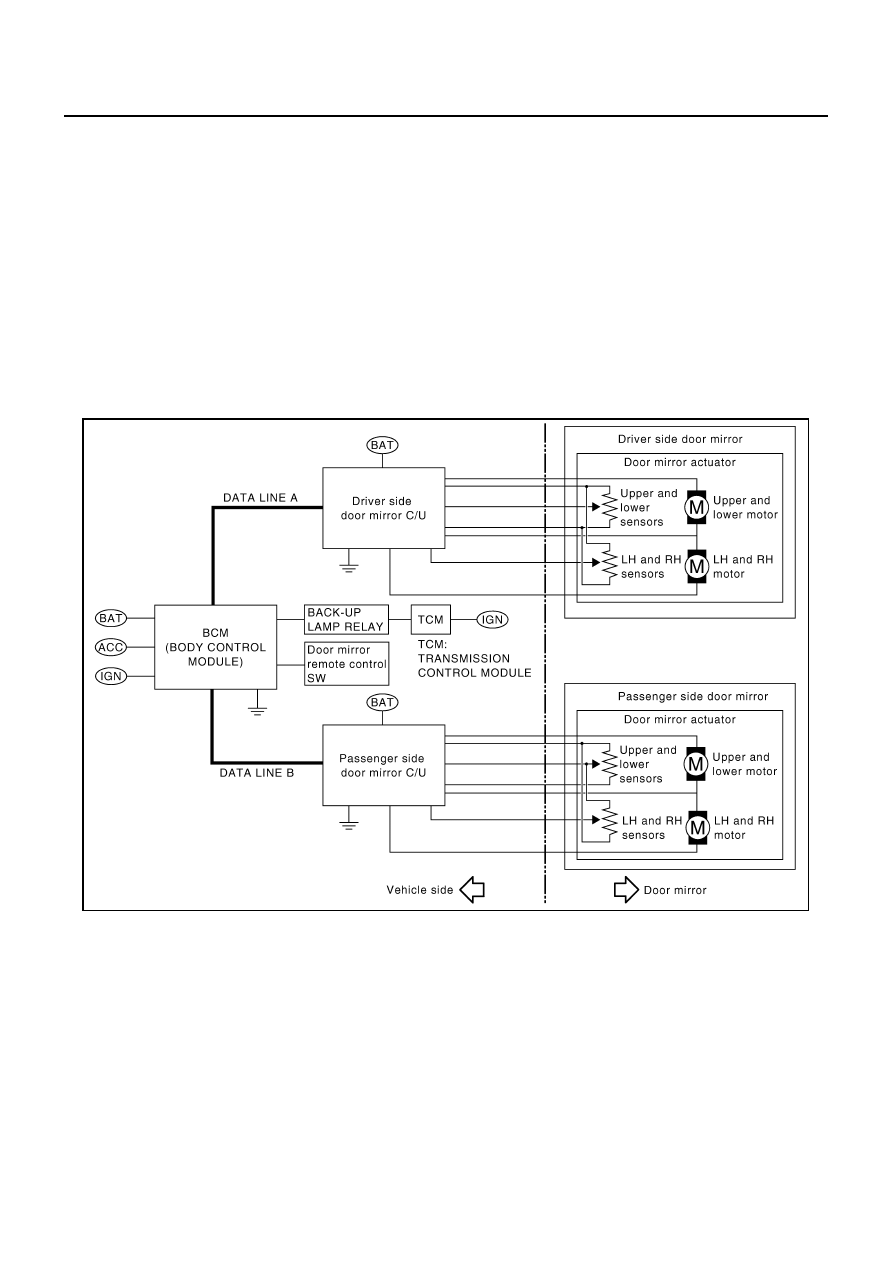

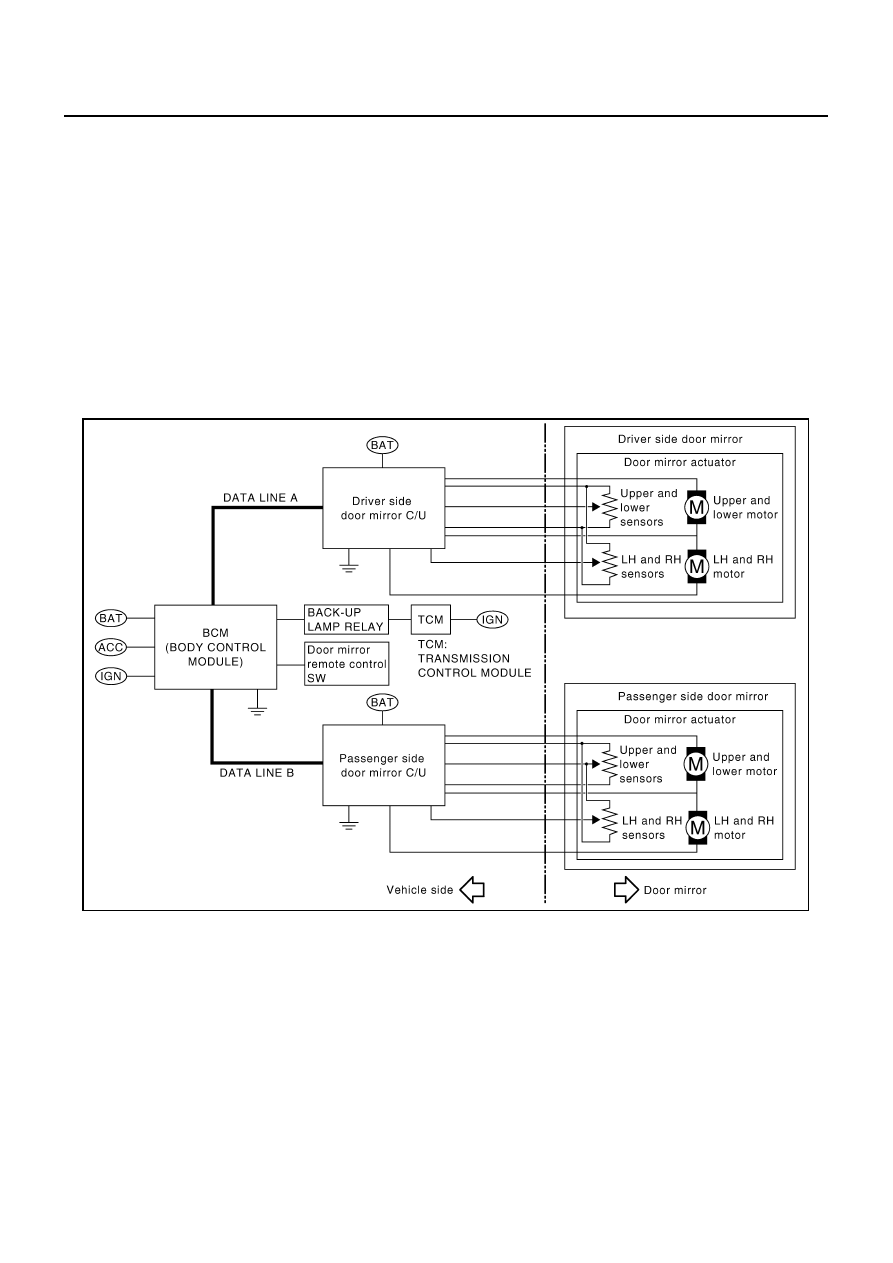

SYSTEM DIAGRAM

PIIA0168E
