REAR WINDOW DEFOGGER

GW-75

C

D

E

F

G

H

J

K

L

M

A

B

GW

2.

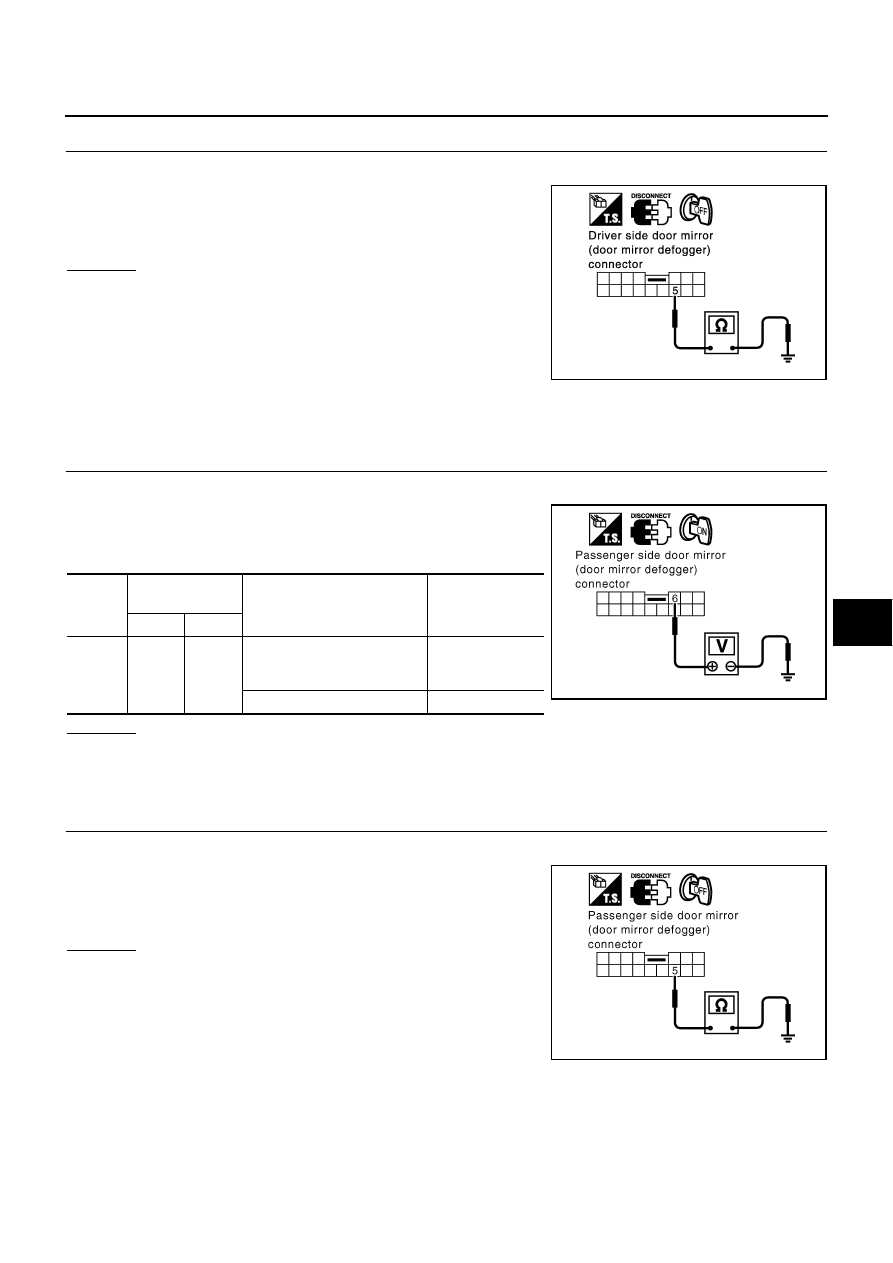

DOOR MIRROR DEFOGGER GROUND HARNESS INSPECTION

1.

Turn ignition switch OFF.

2.

Check continuity between driver side door mirror defogger con-
nector D2 terminal 5 (B) and ground.

OK or NG

OK

>> Check the following, if it is OK, replace driver side door

mirror glass.

Door mirror defogger firmament continuity check.

Check the harness for open or short between door
mirror defogger relay and door mirror.

NG

>> Repair or replace harness between driver side door mir-

ror (Door mirror defogger) and ground.

Passenger Side Door Mirror Defogger Circuit Check

AIS001OC

1.

DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT INSPECTION

1.

Turn ignition switch OFF.

2.

Disconnect passenger side door mirror defogger connector.

3.

Check voltage between passenger side door mirror defogger
connector and body ground.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace harness between door mirror defogger relay and passenger side door mirror

(door mirror defogger).

2.

DOOR MIRROR DEFOGGER GROUND HARNESS INSPECTION

1.

Turn ignition switch OFF.

2.

Check continuity between passenger side door mirror defogger
connector D32 terminal 5 (B) and body ground.

OK or NG

OK

>> Check the following, if it is OK, replace passenger side

door mirror glass.

Door mirror defogger firmament continuity check.

Check the harness for open or short between door
mirror defogger relay and door mirror.

NG

>> Repair or replace harness between passenger side door

mirror defogger and ground.

5 (B) – Ground

: Continuity should exist.

PIIA2890E

Con-

nector

Terminal

(Wire color)

Condition

Voltage V

(Approx)

(+)

(–)

D32

6 (L/R)

Ground

Turn ignition switch ON.
When rear window defogger
switch is pressed.

 Battery voltage

Turn ignition switch OFF.

0

PIIA2889E

5 (B) – Ground

: Continuity should exist.

PIIA2891E

GW-76

REAR WINDOW DEFOGGER

Filament Check

AIS001H3

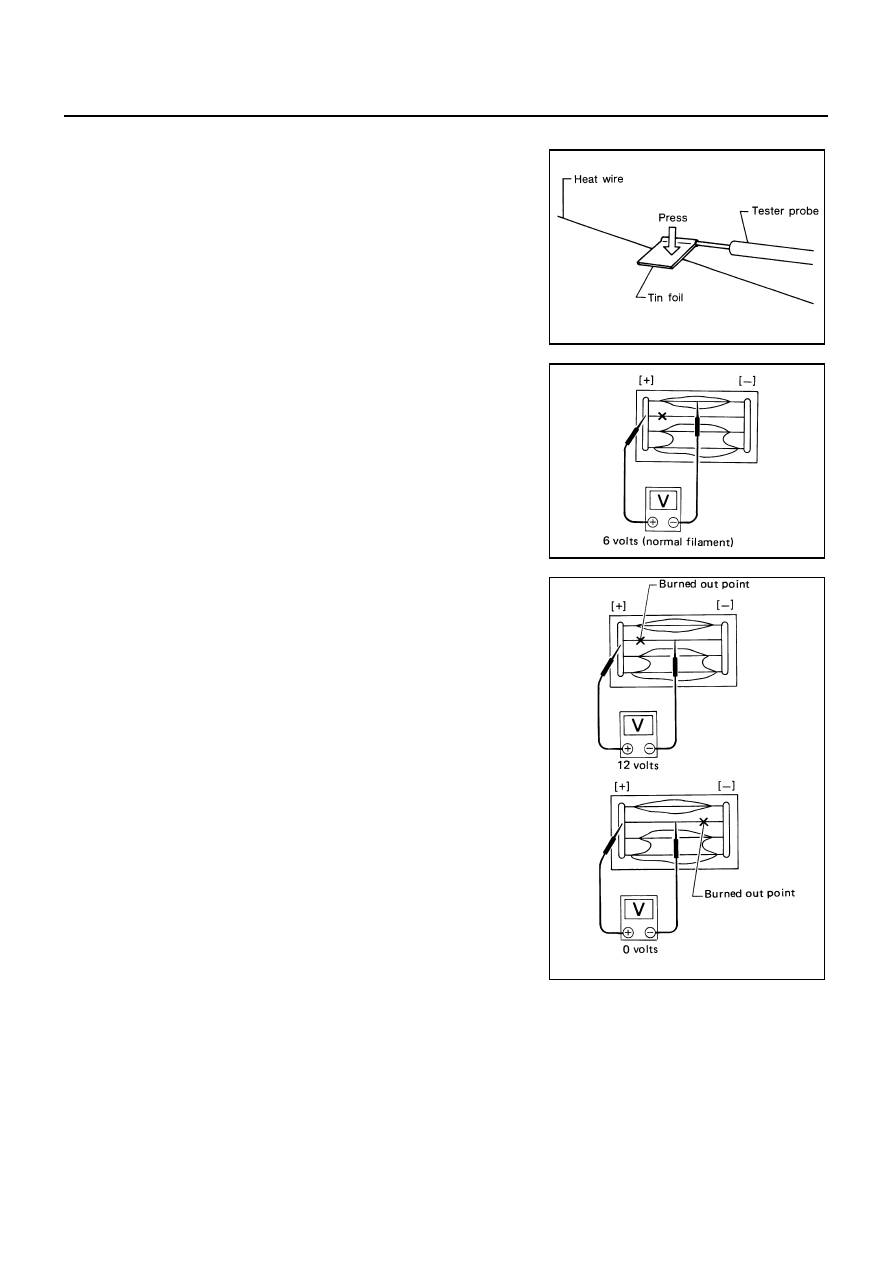

1.

When measuring voltage, wrap tin foil around the top of the neg-
ative probe.Then press the foil against the wire with your finder.

2.

Attach probe circuit tester (in Volt range) to middle portion of
each filament.

3.

If a filament is burned out, circuit tester registers 0 or battery
voltage.

4.

To locate burned out point, move probe to left and right along fil-
ament. Test needle will swing abruptly when probe passes the
point.

Filament Repair

AIS001H4

REPAIR EQUIPMENT

Conductive silver composition (Dupont No. 4817 or equivalent)

Ruler 30 cm (11.8 in) long

Drawing pen

Heat gun

Alcohol

Cloth

SEL122R

SEL263

SEL265

REAR WINDOW DEFOGGER

GW-77

C

D

E

F

G

H

J

K

L

M

A

B

GW

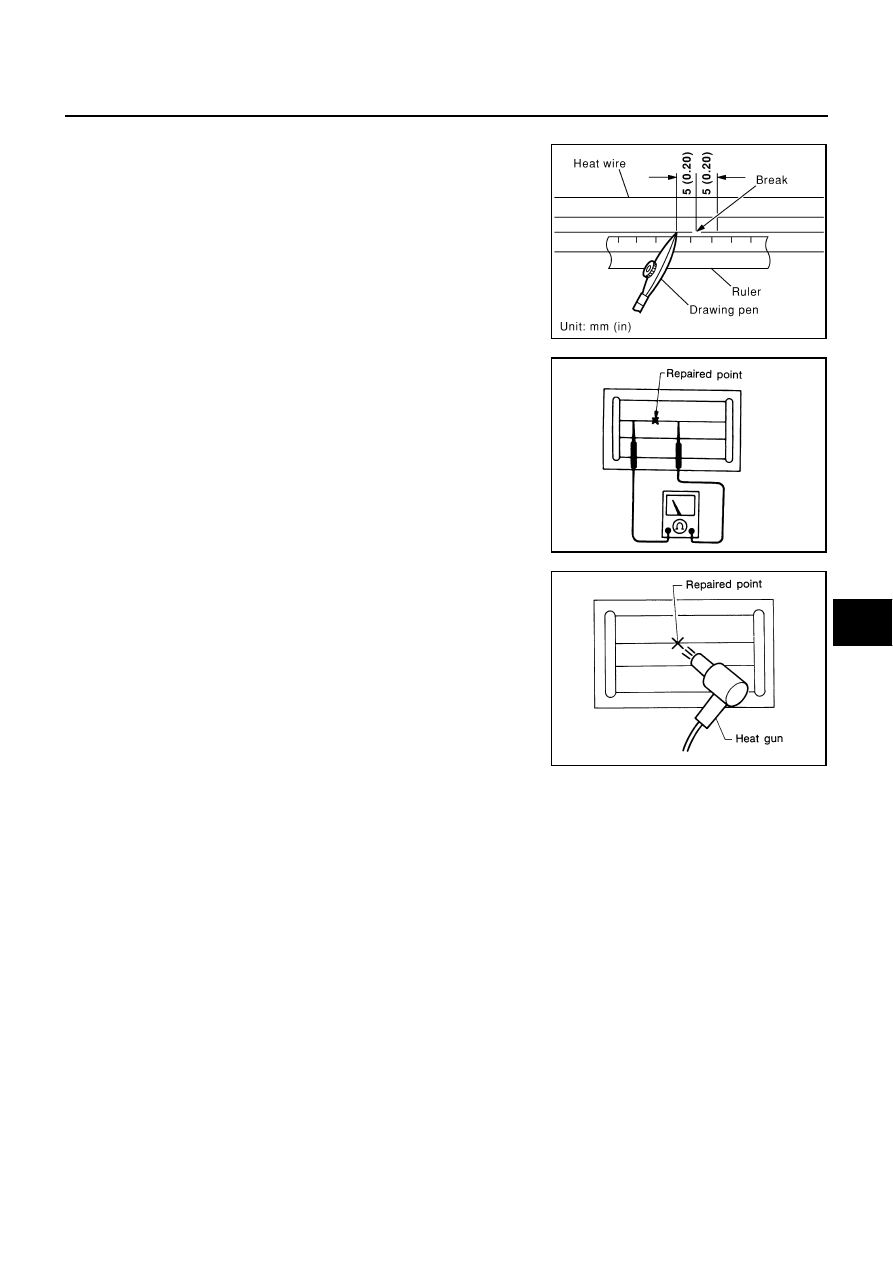

REPAIRING PROCEDURE

1.

Wipe broken heat wire and its surrounding area clean with a
cloth dampened alcohol.

2.

Apply a small amount of conductive silver composition to tip of
drawing pen.
Shake silver composition container before use.

3.

Place ruler on glass along broken line. Deposit conductive silver
composition on break with drawing pen. Slightly overlap existing
heat wire on both sides [preferably 5 mm (0.20 in)] of the break.

4.

After repair has been completed, check repaired wire for conti-
nuity.This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.

5.

Apply a constant stream of hot air directly to the repaired area
for approximately 20 minutes with a heat gun. A minimum dis-
tance of 3 cm (1.2 in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.

PIIA0215E

SEL012D

SEL013D

GW-78

REVERSE INTERLOCK DOOR MIRROR SYSTEM

REVERSE INTERLOCK DOOR MIRROR SYSTEM

PFP:28548

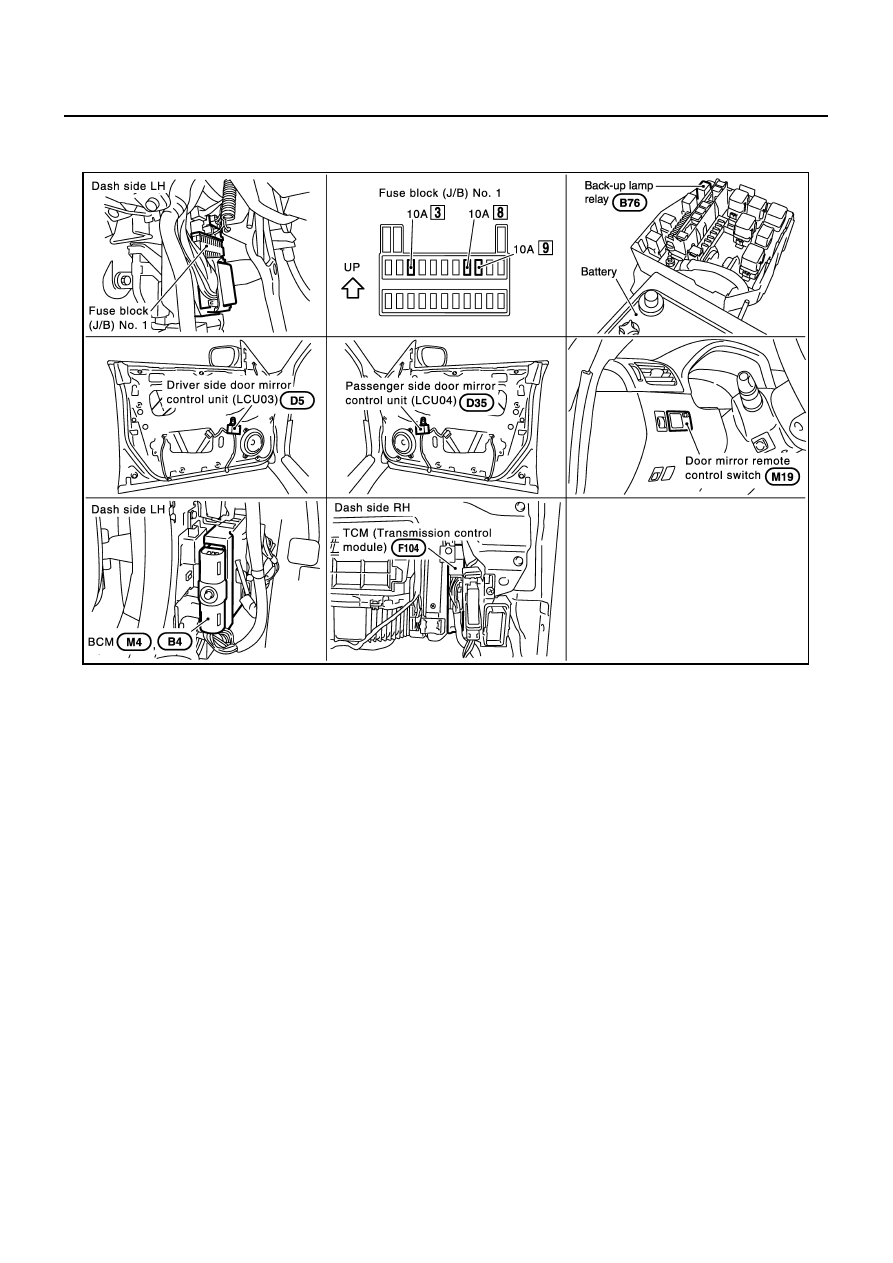

Component Parts and Harness Connector Location

AIS001OH

System Description

AIS001H5

 When switching the door mirror remote control switch position (LH/RH), the system moves driver or pas-
senger door mirror face downward, in relation to the A/T selector lever being shifted to Reverse Position.

The mirror position with the reverse gear engaged can be adjusted and the adjusted mirror position can
be stored in memory (2 positions).

With reverse gear-linked operation signal, the driver side door mirror control unit (LCU 03) and passenger
side door mirror control unit (LCU 04) installed on the door panel drives and controls the motors (UP/
DOWN, LH/RH).

Using the self-diagnostic function and CONSULT-II, system diagnosis can be performed.

OUTLINE OF OPERATION
Operation Conditions

If all of the following conditions are satisfied, starts operating after approximately 0.5 seconds.

Ignition switch is in ON position.

Set the door mirror remote control switch to the right position, or left position.

A/T selector lever is in R position.

NOTE:

If the conditions for reverse gear-linked operation are satisfied during manual operation, the manual oper-
ation is interrupted and switched to the reverse gear-linked operation.

PIIA2882E
