REAR DOOR GLASS AND REGULATOR

GW-55

C

D

E

F

G

H

J

K

L

M

A

B

GW

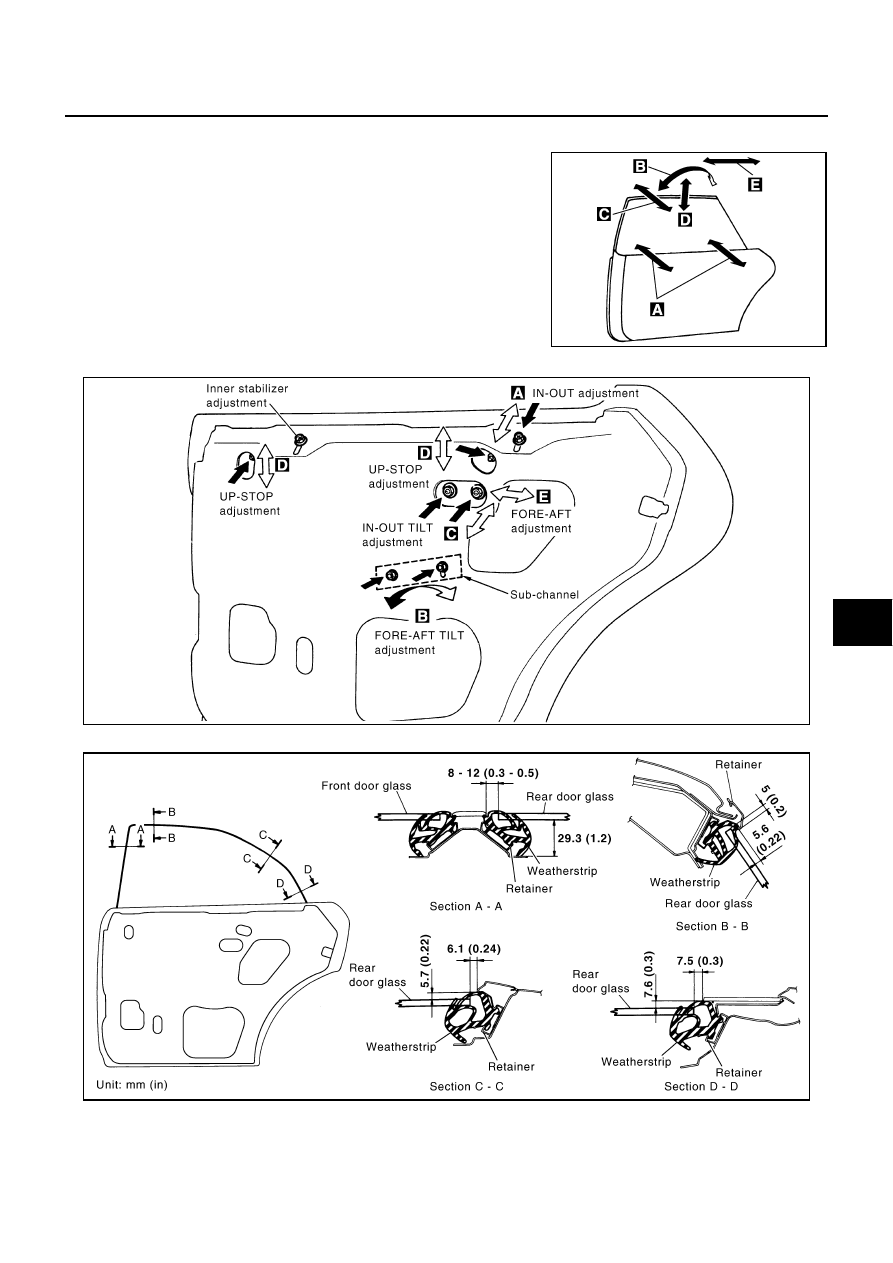

Door Glass Fitting Adjustment

AIS001Q1

The door glass is properly adjusted using the following five methods:
[A] In-out adjustment (at the glass waist).
[B] Fore-aft tilt adjustment.
[C] In-out tilt adjustment.
[D] Up-stop adjustment.
[E] Fore-aft adjustment.

NOTE:

●

When adjusting the door glass, it is not necessary to
remove the outside door molding.

●

After completing door glass adjustment, retighten all lock
nuts.

ADJUSTMENT LOCATIONS

ADJUSTMENT STANDARD CLEARANCE

PIIA3172E

PIIA3171E

PIIA3170E

GW-56

REAR DOOR GLASS AND REGULATOR

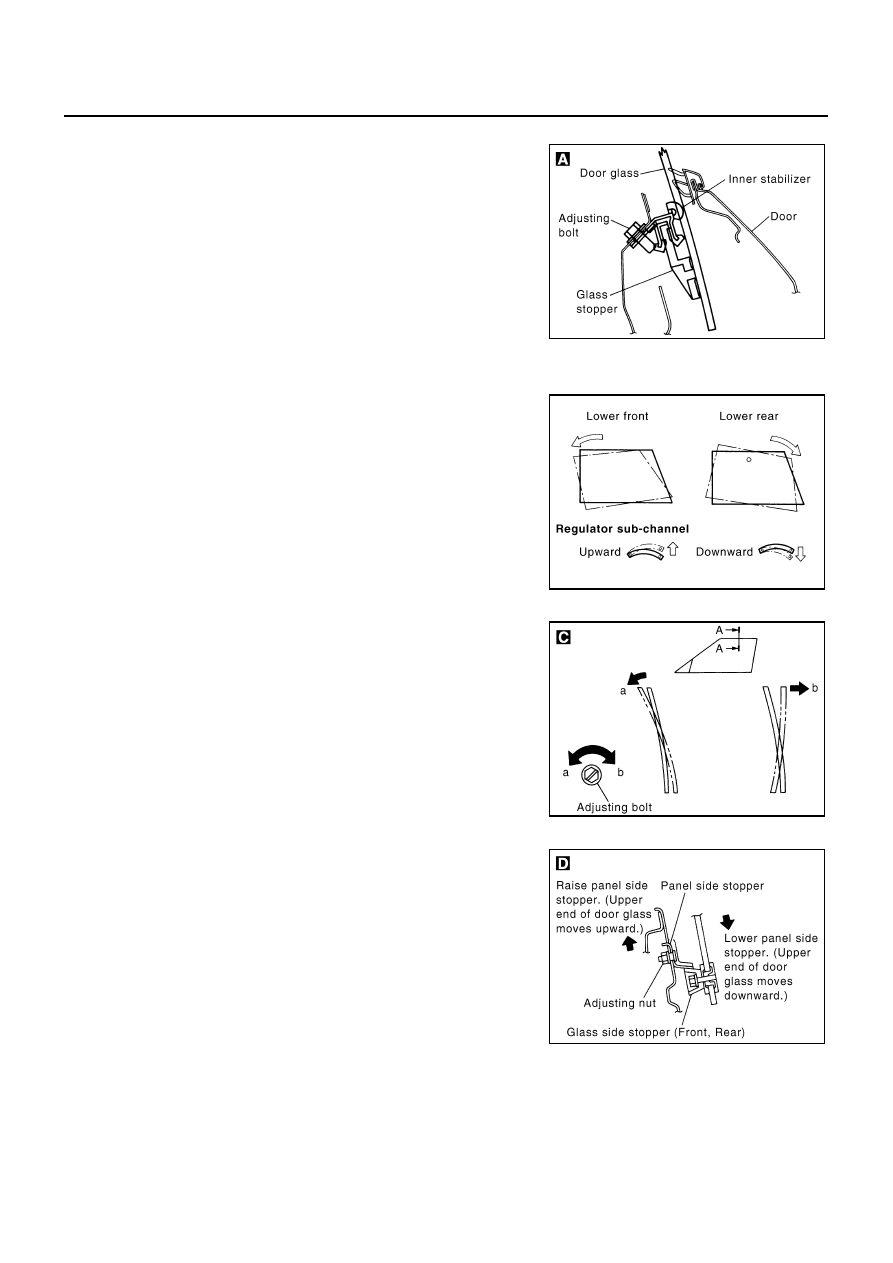

[A] IN-OUT ADJUSTMENT (AT THE GLASS WAIST)

1.

Raise door glass until glass stopper is in contact with inner stabi-
lizer, just before the window stops.

2.

Loosen adjusting bolts.

3.

Lightly press door glass upper end outward so that glass outer
surface contacts outer. With glass held in that position, press
inner stabilizer to glass inner surface and tighten adjusting bolt.

CAUTION:

●

Make sure nap portions of stabilizers are clean and free
from oil, grease, etc.

●

Make sure that stabilizers are parallel with glass surface.

[B] FORE-AFT TILT ADJUSTMENT

●

Adjust front glass sub-channel at the glass and retainer holder/body side weatherstrip location.

●

For sub-channel adjustment procedures, refer to figure at right
as a guide.

CAUTION:

The fore-aft tilt adjustment must be made at the same time the
fore-aft adjustment [E] is made.

[C] IN-OUT TILT ADJUSTMENT (AT GUIDE RAIL)

1.

Adjust door glass-to-holder clearance to 0 to 3.5 mm (0 to 0.138
in)  with the adjusting bolts.

CAUTION:

●

Turn adjusting bolt clockwise to move door glass upper end
outward.

●

Turn adjusting bolt counterclockwise to move door glass
upper end inward.

[D] UP-STOP ADJUSTMENT

1.

Adjust panel stopper location so that clearance at upper edge of
door is standard measurement to 0 to 3.5 mm (0 to 0.138 in).
Make sure front and rear glass stoppers lightly contact front and
rear panel stoppers, then tighten adjusting nuts.

2.

If stoppers do not contact each other, adjust sub-channel nut.
Refer to “[B] Fore-aft tilt adjustment”.

3.

Open and close doors to make sure upper end of door glass
does not contact holder.

PIIA3158E

PIIB1568E

PIIA3157E

PIIA3159E

REAR DOOR GLASS AND REGULATOR

GW-57

C

D

E

F

G

H

J

K

L

M

A

B

GW

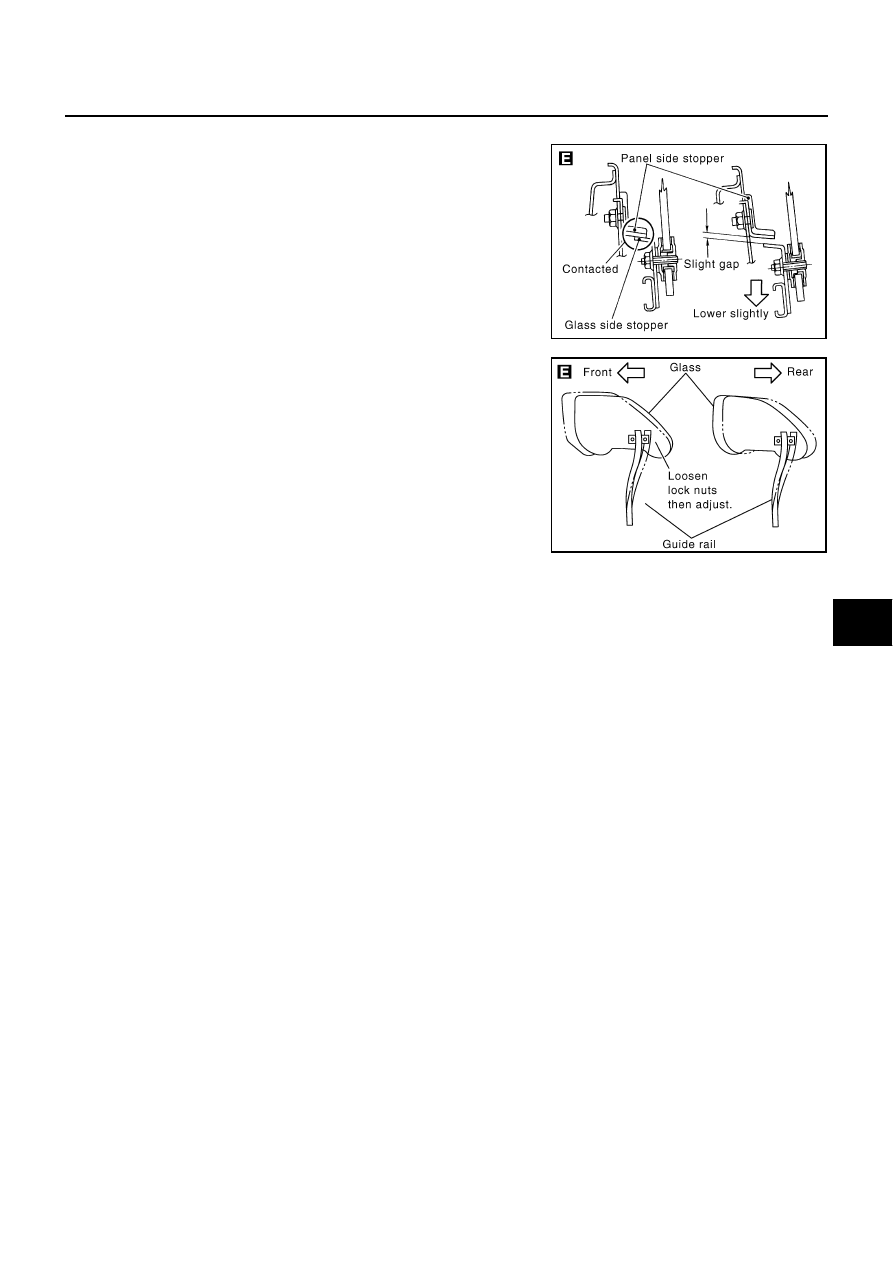

[E] FORE-AFT ADJUSTMENT

1.

Lower the glass slightly until the glass side stopper comes off
the panel side stopper.

CAUTION:

Do not lower the glass excessively.

2.

Loosen lock nuts, and adjust guide rail in the fore-aft direction so
that clearance between upper edge of door glass and holder is
constant at the midpoint of holder specified dimension to 0 to 3.5
mm (0 to 0.138 in). Check that there is no interference between
glass and holder when door is closed or opened.

CAUTION:

While loosening and tightening lock nuts, hold adjusting
bolts using a standard screwdriver to prevent them from
turning.

3.

If outer perimeter of door glass interferes with holder when door
is opened or closed, refer to “[B] Fore-aft tilt adjustment” for pro-
cedures.

PIIA3161E

PIIA3226E

GW-58

INSIDE MIRROR

INSIDE MIRROR

PFP:96321

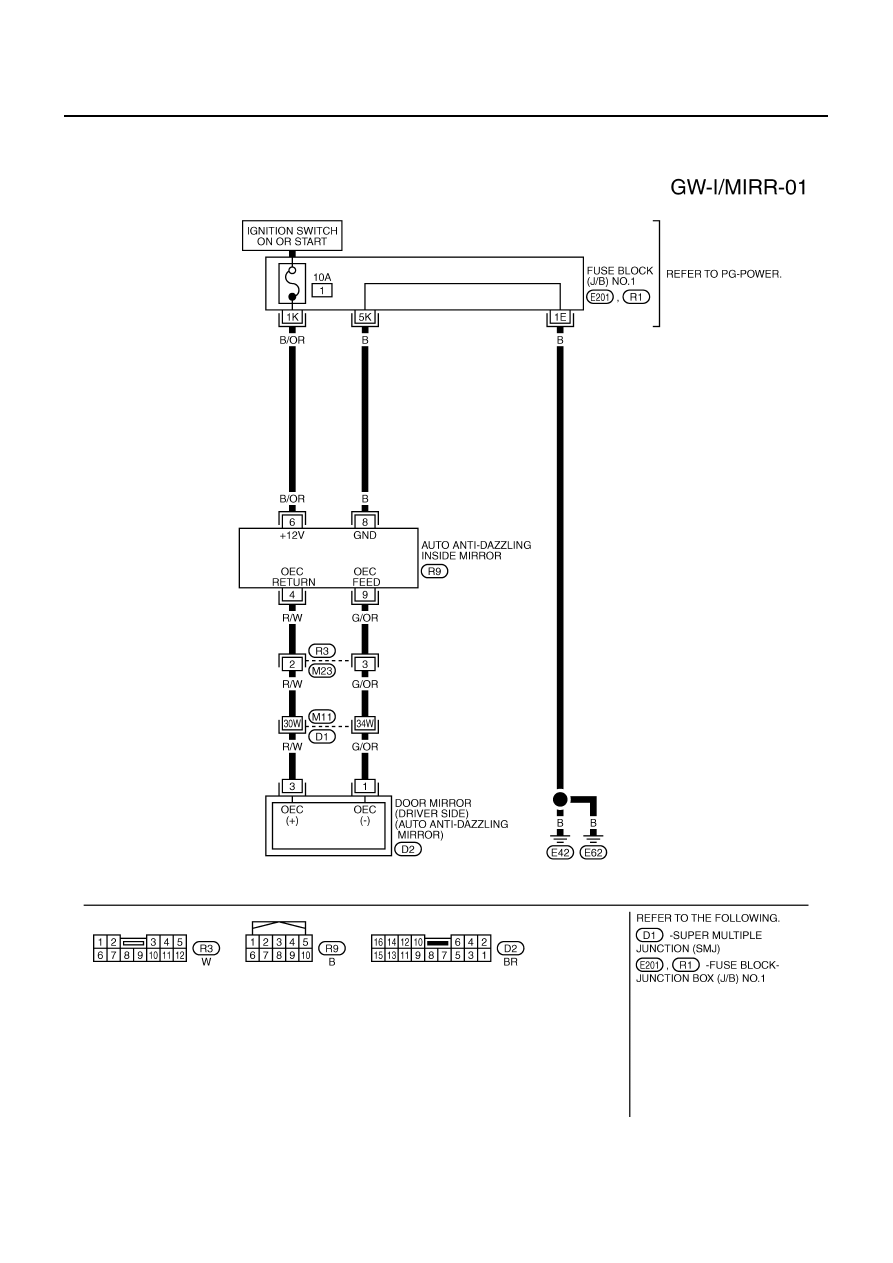

Wiring Diagram — I/MIRR —

AIS001GR

TIWA0228E
