POWER WINDOW SYSTEM

GW-27

C

D

E

F

G

H

J

K

L

M

A

B

GW

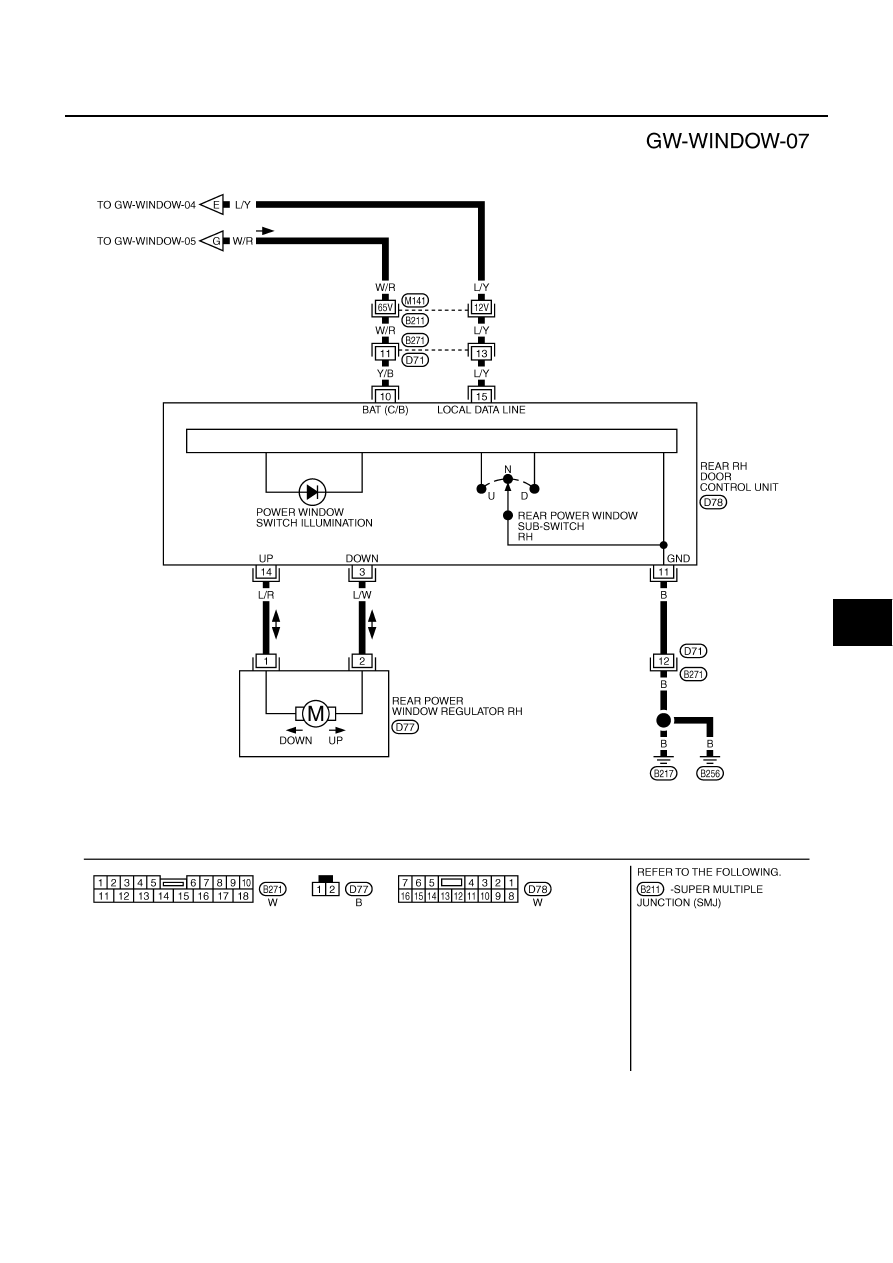

TIWA0220E

GW-28

POWER WINDOW SYSTEM

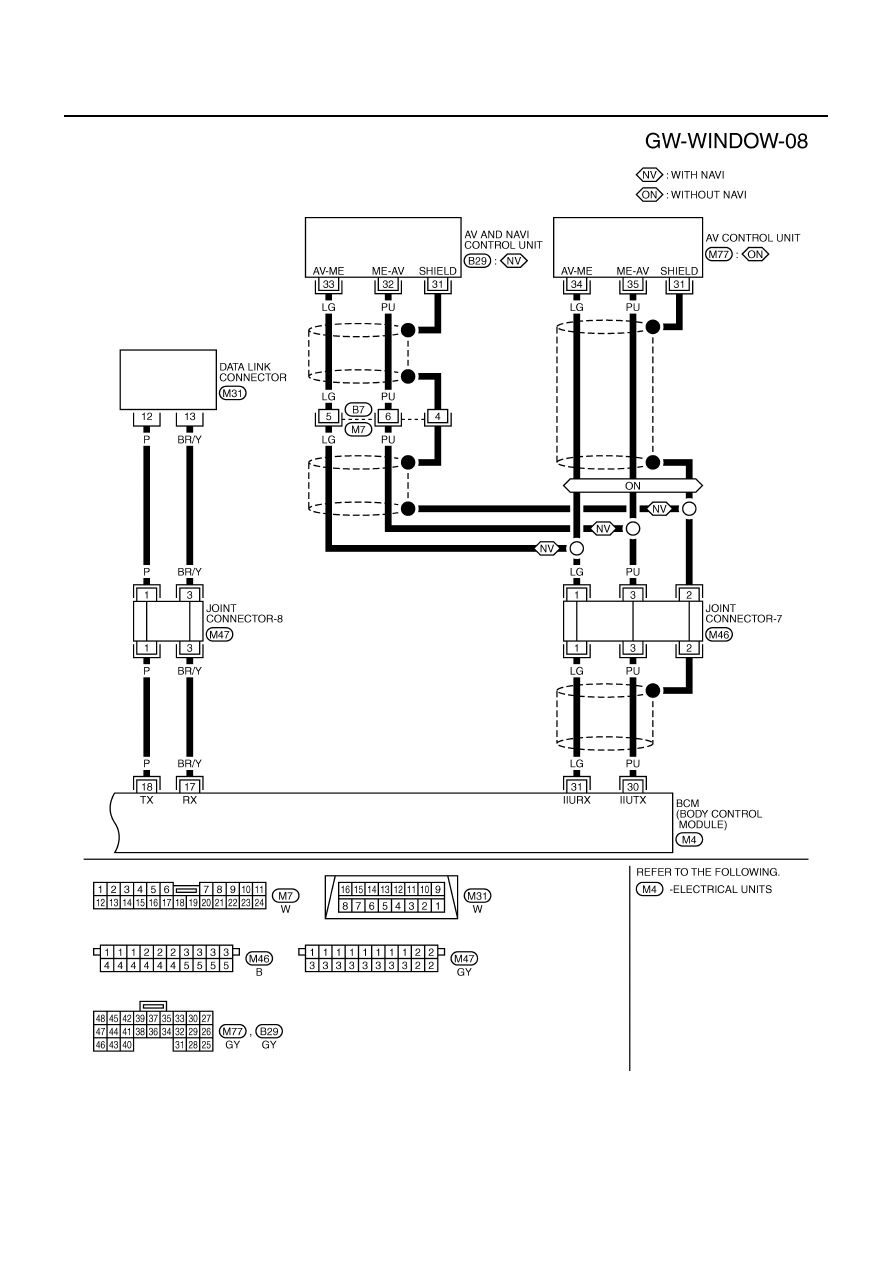

TIWA0221E

POWER WINDOW SYSTEM

GW-29

C

D

E

F

G

H

J

K

L

M

A

B

GW

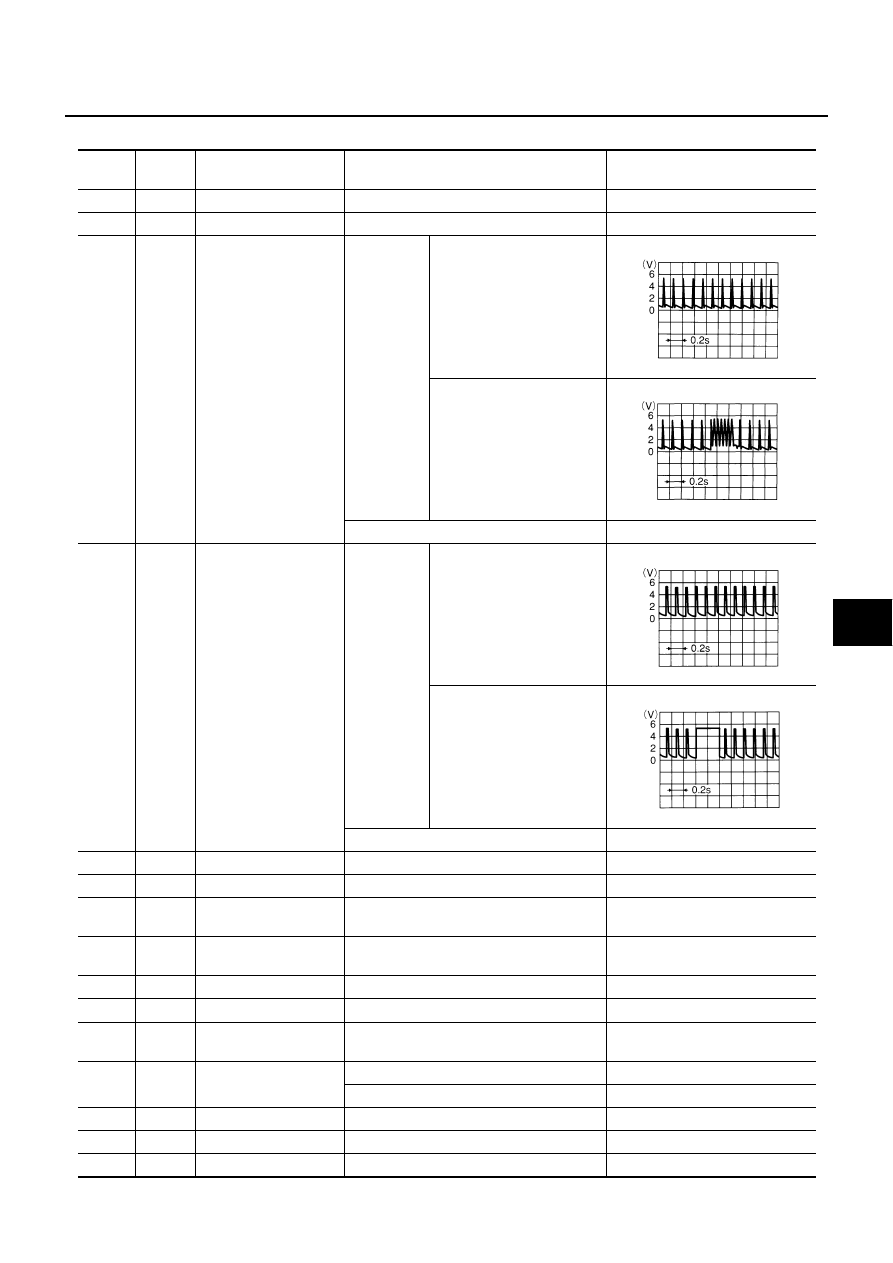

Terminals and Reference Value for BCM

AIS001MV

TERMI-

NAL

WIRE

COLOR

ITEM

CONDITION

Voltage (V)

(Approx.)

17

BR/Y

Date link connector RX

—

—

18

P

Date link connector TX

—

—

27

BR/W

Remote keyless entry
receiver signal

Vehicle key

is removed

State of reception waiting

Keyfob switch is pushed

Vehicle key is inserted

0

28

L

Remote keyless entry
receiver power supply

Vehicle key
is removed

State of reception waiting

Keyfob switch is pushed

Vehicle key is inserted

0

30

PU

Monitor 1

—

—

31

LG

Monitor 2

—

—

37

LG

Passenger side door
switch

ON (Open)

→

 OFF (Close)

0

→

 Battery voltage

44

Y

Remoter keyless entry
receiver ground

—

0

56

B

Ground

—

0

67

G/W

Date line A-3

—

—

68

W/B

Ignition switch
ON or START

Ignition switch (ON or START position)

Battery voltage

69

PU/W

Key-in detection

Vehicle key is inserted (ON)

Battery voltage

Vehicle key is removed (OFF)

0

105

Y/L

BAT power supply

—

Battery voltage

113

B

Ground

—

0

142

R/Y

Driver side door switch

ON (Open)

→

 OFF (Close)

0

→

 Battery voltage

OCC3879D

OCC3880D

OCC3881D

OCC3882D

GW-30

POWER WINDOW SYSTEM

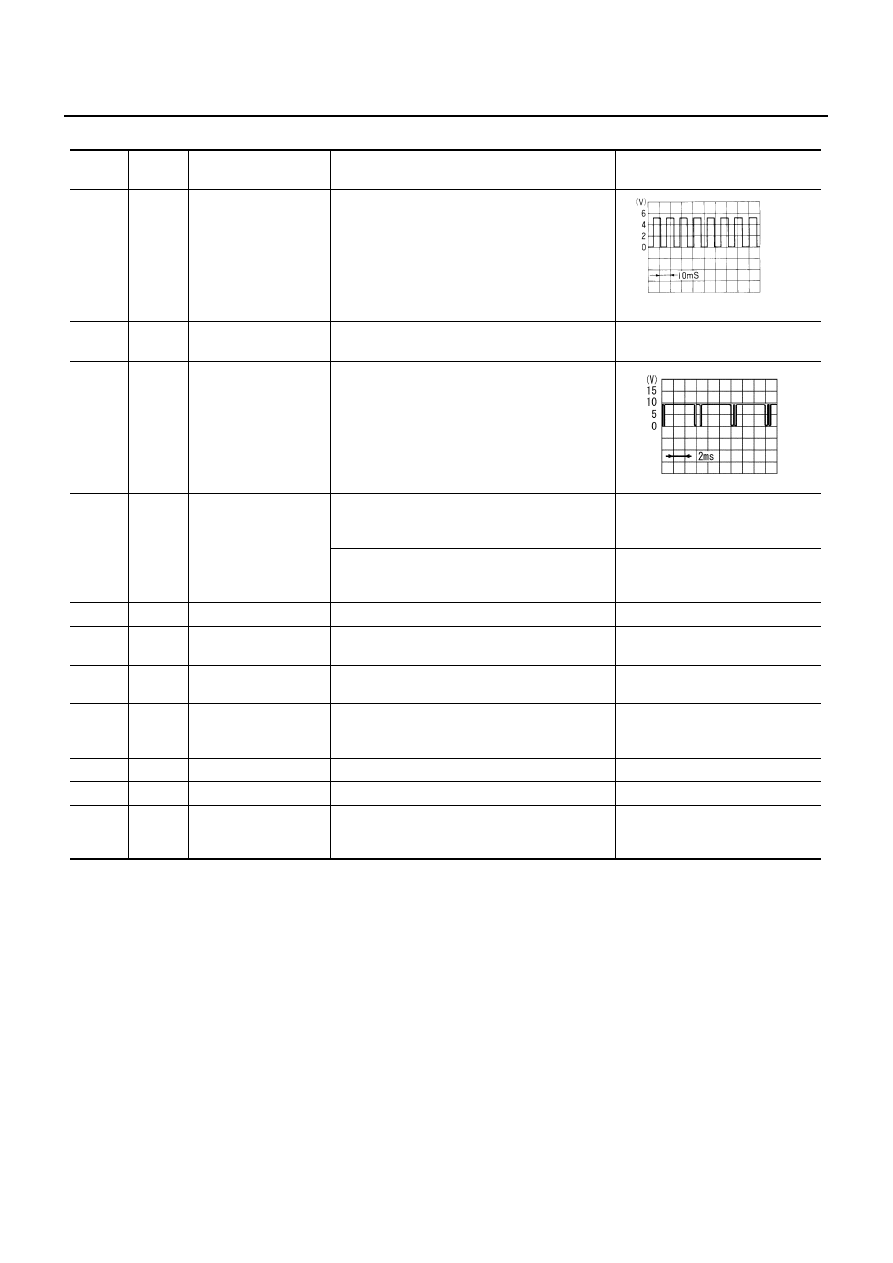

Terminals and Reference Value for Driver Door Control Unit

AIS001MW

TERMI-

NAL

WIRE

COLOR

ITEM

CONDITION

Voltage (V)

(Approx.)

1

G

Encoder pulse signal

When power window motor operates

4

W

Encoder power supply

When ignition switch ON or power window timer
operates

10

5

L/Y

Local data line

When ignition switch ON or power window timer
operates

7

PU

Limit switch signal

Driver side door window is in a position between
fully-open and just before fully-closed position
(ON)

0

Driver side door window is in a position between
just before fully-closed position and fully-closed
position (OFF)

5

8

G/W

Data line A-3

—

—

9

PU/W

Key cylinder switch
unlock signal

Key position (Neutral

→

 Unlock)

5

→

 0

10

GY

Key cylinder switch
lock signal

Key position (Neutral

→

 Lock)

5

→

 0

11

L/W

Driver side power
window motor
 DOWN signal

When power window motor DOWN operates

Battery voltage

14

Y/G

BAT power supply

—

Battery voltage

15

B

Ground

—

0

18

L/R

Driver side power
window motor
 UP signal

When power window motor UP operates

Battery voltage

OCC3383D

SIIA0591J
