FSU

FRONT SUSPENSION MEMBER

PFP:54401

Removal and Installation

AES0008N

REMOVAL

1.

Set engine slinger to engine, then suspend an engine.

2.

Remove tire with power tool.

3.

Remove undercover with power tool.

4.

Remove steering hydraulic piping bracket from front suspension member. Refer to

PS-31, "HYDRAULIC

LINE"

 .

5.

Remove steering gear from front suspension member and hang steering gear on vehicle. Refer to

PS-13,

"POWER STEERING GEAR AND LINKAGE"

 .

6.

Remove suspension arm from front suspension member. Refer to

FSU-12, "SUSPENSION ARM"

 .

7.

Remove stabilizer bar mounting bolts and nuts from front suspension member and hang stabilizer on vehi-
cle with power tool. Refer to

FSU-14, "STABILIZER BAR"

 .

8.

Set jack under front suspension member.

9.

Remove mounting bolts and nuts of member stay, then remove member stay from vehicle.

10. Remove fixing nuts between engine mounting insulator and front suspension member. Refer to

EM-76,

"ENGINE ASSEMBLY"

 .

11. Remove front suspension member fixing nuts from body.

12. Slowly down jack to remove front suspension member from vehicle.

INSPECTION AFTER REMOVAL

Check front suspension member for deformed parts, cracks, or any other damage. Replace if necessary.

INSTALLATION

●

Refer to

FSU-8, "Components"

  for tightening torque. Tighten in the reverse order of removal.

CAUTION:

Refer to component parts location and do not reuse non-reusable parts.

●

Perform final tightening of each part under unladen conditions with tires on ground. Check wheel align-
ment. Refer to

FSU-6, "Wheel Alignment Inspection"

 .

FSU-16

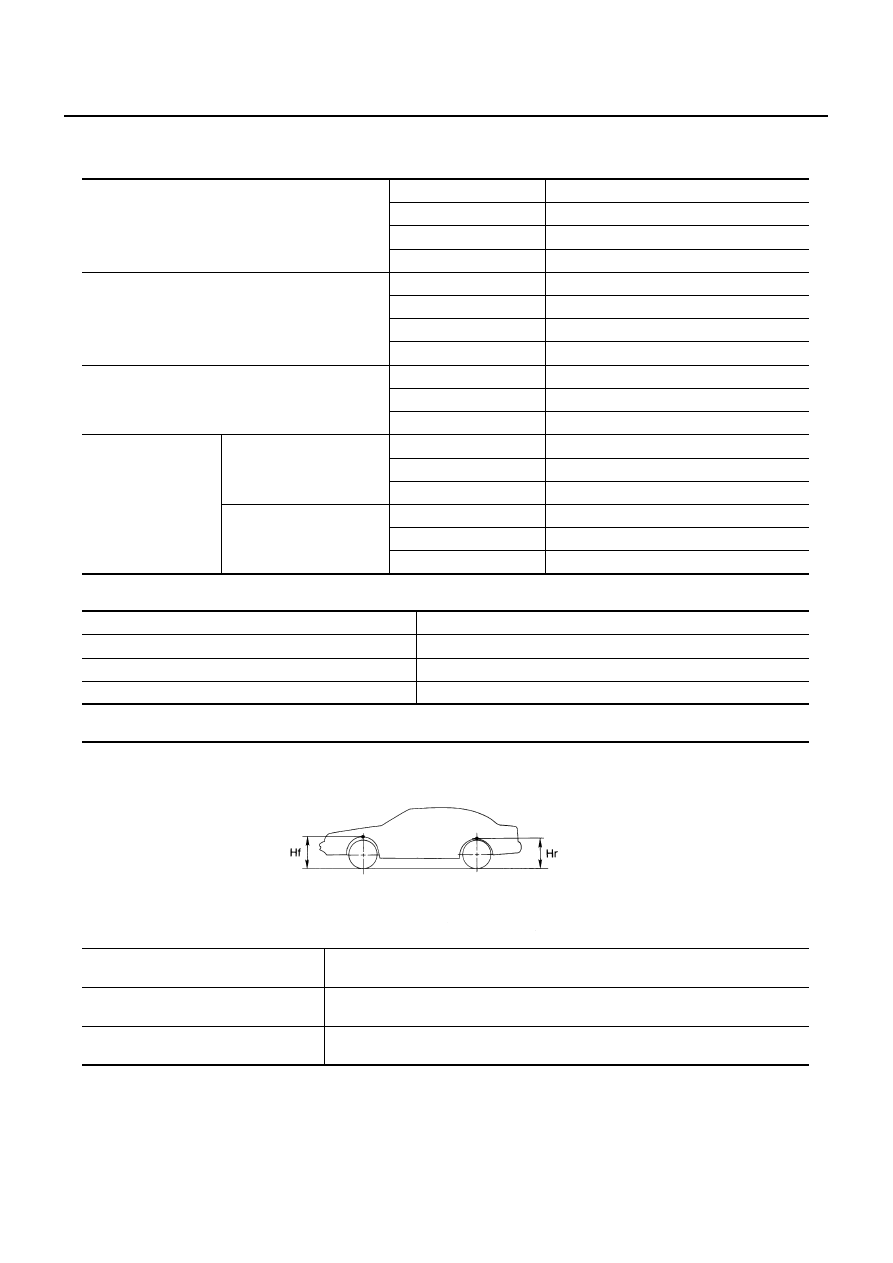

SERVICE DATA

SERVICE DATA

PFP:00030

Wheel Alignment (Unladen)

AES0008O

Ball Joint

AES0008P

Wheelarch Height (Unladen*)

AES0008Q

*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Camber
Degree minute (Decimal degree)

Minimum

−

1

°

25

′

 (

−

1.42

°

)

Nominal

−

 0

°

40

′

 (

−

 0.67

°

)

Maximum

0

°

05

′

 (0.08

°

)

Left and right difference

45

′

 (0.75

°

) or less

Caster
Degree minute (Decimal degree)

Minimum

5

°

50

′

 (5.83

°

)

Nominal

6

°

35

′

 (6.58

°

)

Maximum

7

°

20

′

 (7.33

°

)

Left and right difference

45

′

 (0.75

°

) or less

Kingpin inclination
Degree minute (Decimal degree)

Minimum

12

°

40

′

 (12.67

°

)

Nominal

13

°

25

′

 (13.42

°

)

Maximum

14

°

10

′

 (14.17

°

)

Total toe-in

Distance (A - B)

Minimum

1 mm (0.04 in)

Nominal

2 mm (0.08 in)

Maximum

3 mm (0.12 in)

Angle (left plus right)
Degree minute (Degree)

Minimum

2

′

 (0.03

°

)

Nominal

5

′

 (0.08

°

)

Maximum

8

′

 (0.13

°

)

Axial end play

0 mm (0 in)

Swing torque

0.5 - 3.4 N·m (0.06 - 0.34 kg-m, 5 - 30 in-lb)

Measurement on spring balance (cotter pinhole position)

8.8 - 59.6 N (0.90 - 6.08 kg, 1.98 - 13.41 lb)

Rotating torque

0.5 - 3.4 N·m (0.06 - 0.34 kg-m, 5 - 30 in-lb)



Applied model

235/45R18

P235/45R18

Front (Hf)

711 mm (27.99 in) [USA model]

712 mm (28.03 in) [Canada model]

Rear (Hr)

706 mm (27.79 in) [USA model]

707 mm (27.83 in) [Canada model]

SFA818A

A
B
C
D

E

F

G

H

I

J

K

M
