DOOR FINISHER

EI-33

C

D

E

F

G

H

J

K

L

M

A

B

EI

8.

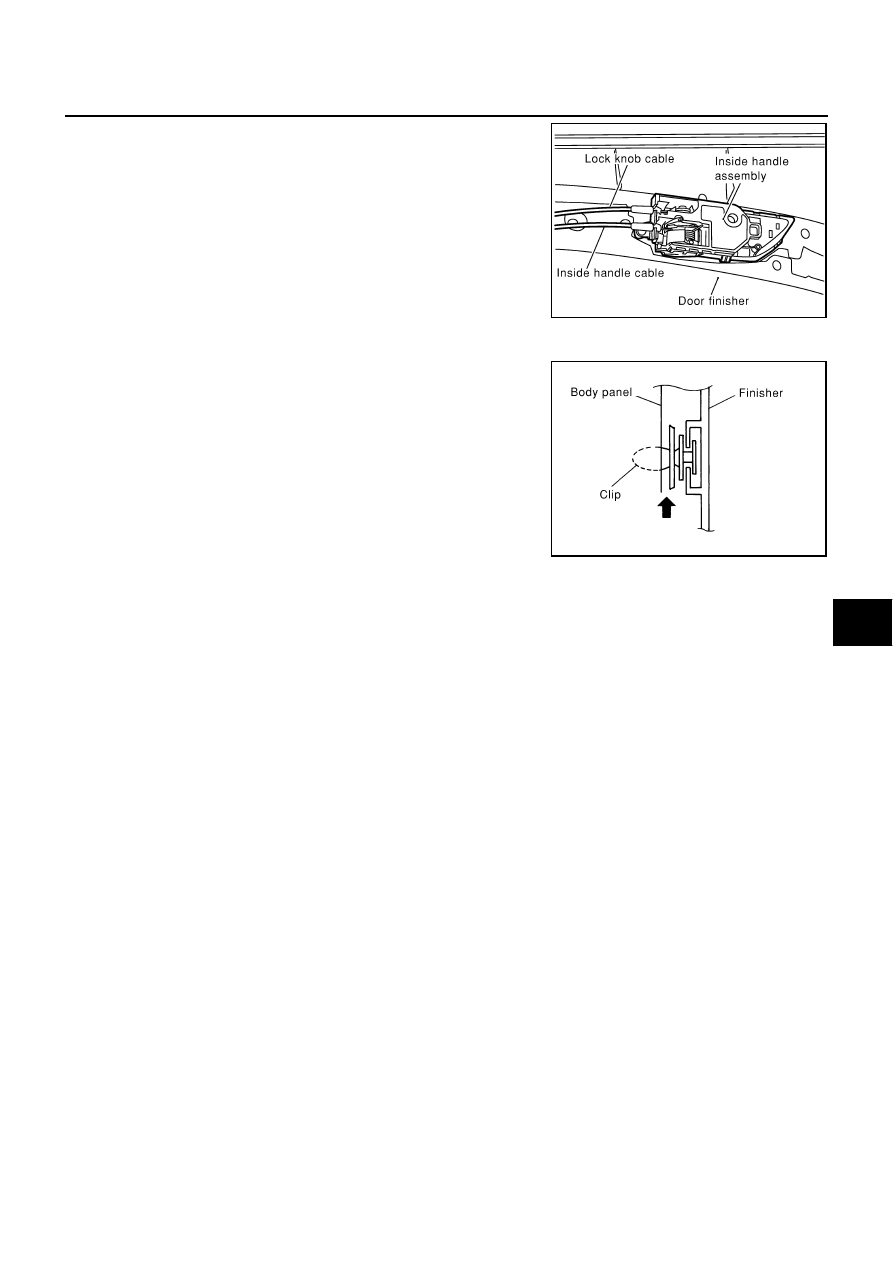

Pull up door finisher, and remove connectors, inside handle
cable and lock knob cable.

NOTE:
Insert screw driver rolled with cloth between panel on vehicle
and clips (as indicated with arrow), and remove finisher.

Installation

Install in the reverse over of removal.

CAUTION:

To install finisher, check if all clips are matched over holes of panel on vehicle, then push in.

SIIA0266E

SIIA0810E

EI-34

BODY SIDE TRIM

BODY SIDE TRIM

PFP:76913

Removal and Installation

AIS004VW

CAUTION:

●

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

●

When removing or installing body side welts, do not allow betel seal to come in contact with pillar
garnish.

FRONT PILLAR GARNISH
Removal

1.

Remove body side welt.

2.

Insert screw driver rolled with was cloth into clip under garnish and disconnect clips.

3.

Remove front pillar garnish.

Installation

Install in the reverse order of removal.

FRONT AND REAR KICKING PLATE
Removal

1.

Remove clips of kicking plate.

2.

Remove kicking plate.

Installation

Install in the reverse order of removal.

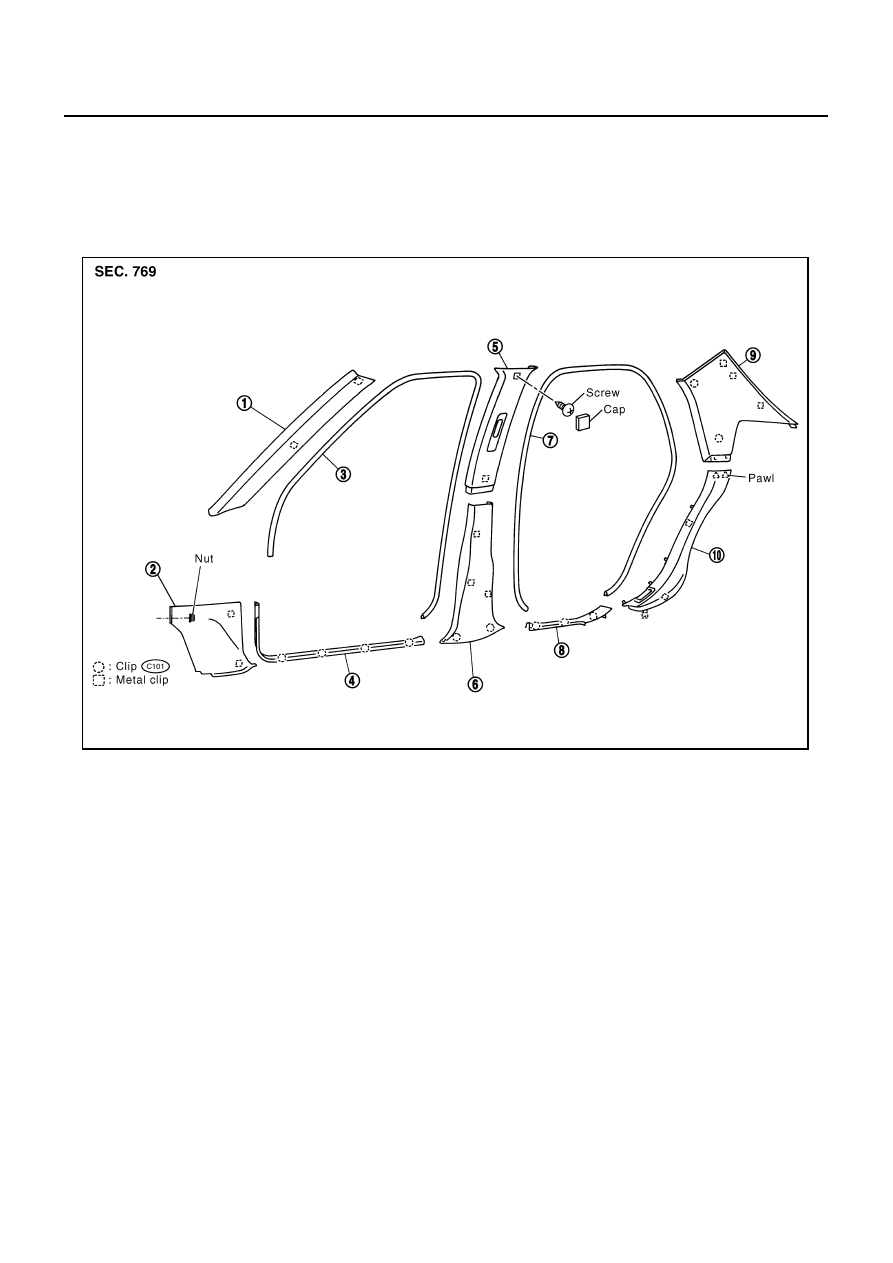

1.

Front pillar garnish

2.

Dash side finisher

3.

Front body side welt

4.

Front kicking plate

5.

Center pillar finisher upper

6.

Center pillar lower finisher lower

7.

Rear body side welt

8.

Rear kicking plate

9.

Rear pillar finisher upper

10. Rear wheel house garnish

PIIA2721E

BODY SIDE TRIM

EI-35

C

D

E

F

G

H

J

K

L

M

A

B

EI

FRONT AND REAR BODY SIDE WELT
Removal

Remove body side welt.

Installation

Install in the reverse order of removal.

DASH SIDE FINISHER
Removal

1.

Remove front kicking plate.

2.

Remove front body side welt.

3.

Remove nut and clips of dash side finisher.

4.

Remove dash side finisher.

Installation

Install in the reverse order of removal.

CAUTION:

To install, check if all clips are matched over holes of panel on vehicle, then push in.

CENTER PILLAR FINISHER LOWER
Removal

1.

Remove front and rear kicking plate.

2.

Remove front and rear body side welt.

3.

Insert screw driver rolled with cloth into clips under finisher and disconnect clips.

4.

Remove center pillar finisher lower.

Installation

Install in the reverse order of removal.

CENTER PILLAR FINISHER UPPER
Removal

1.

Remove seat belt shoulder anchor. Refer to

SB-4, "Removal and Installation of Front Seat Belt"

 .

2.

Remove front and rear kicking plate.

3.

Remove front and rear body side welt.

4.

Insert screw driver rolled with cloth into clips under finisher and disconnect clips.

5.

Remove center pillar finisher upper.

Installation

Install in the reverse order of removal.

REAR PILLAR FINISHER
Removal

1.

Remove rear seat. Refer to

SE-133, "REAR SEAT"

 .

2.

Remove rear kicking plate.

3.

Remove rear body side welt.

4.

Insert screw driver rolled with cloth into clips under finisher and disconnect clips.

5.

Remove rear pillar finisher.

Installation

Install in the reverse order of removal.

REAR WHEEL HOUSE GARNISH
Removal

1.

Remove rear seat. Ref to

SE-133, "REAR SEAT"

 .

2.

Remove clips of rear wheel house garnish.

3.

Rear wheel house garnish.

EI-36

BODY SIDE TRIM

Installation

Install in the reverse order of removal.
