SIDE GUARD MOLDING

PFP:76840

Removal and Installation

AIS001IR

REMOVAL

1.

Apply masking tape around outer circumference of side guard molding.

2.

Remove double-faced adhesive tapes with (wide) plastic lever. Disconnect clips and remove side guard
molding.

INSTALLATION

1.

Remove double-faced adhesive tape remaining on vehicle.

2.

Clean contact surface of vehicle (to side guard molding), and install side guard molding to vehicle.

●

To re-use side guard molding, follow above steps 1 and 2 as well; clean surface after removing double-
faced adhesive tape, apply new double-faced adhesive tape as shown in illustration, then install side
guard molding to vehicle.

CAUTION:

●

Do not let air between contact surfaces when installing.

●

To secure contact, do not wash vehicle within 24 hours after installation.

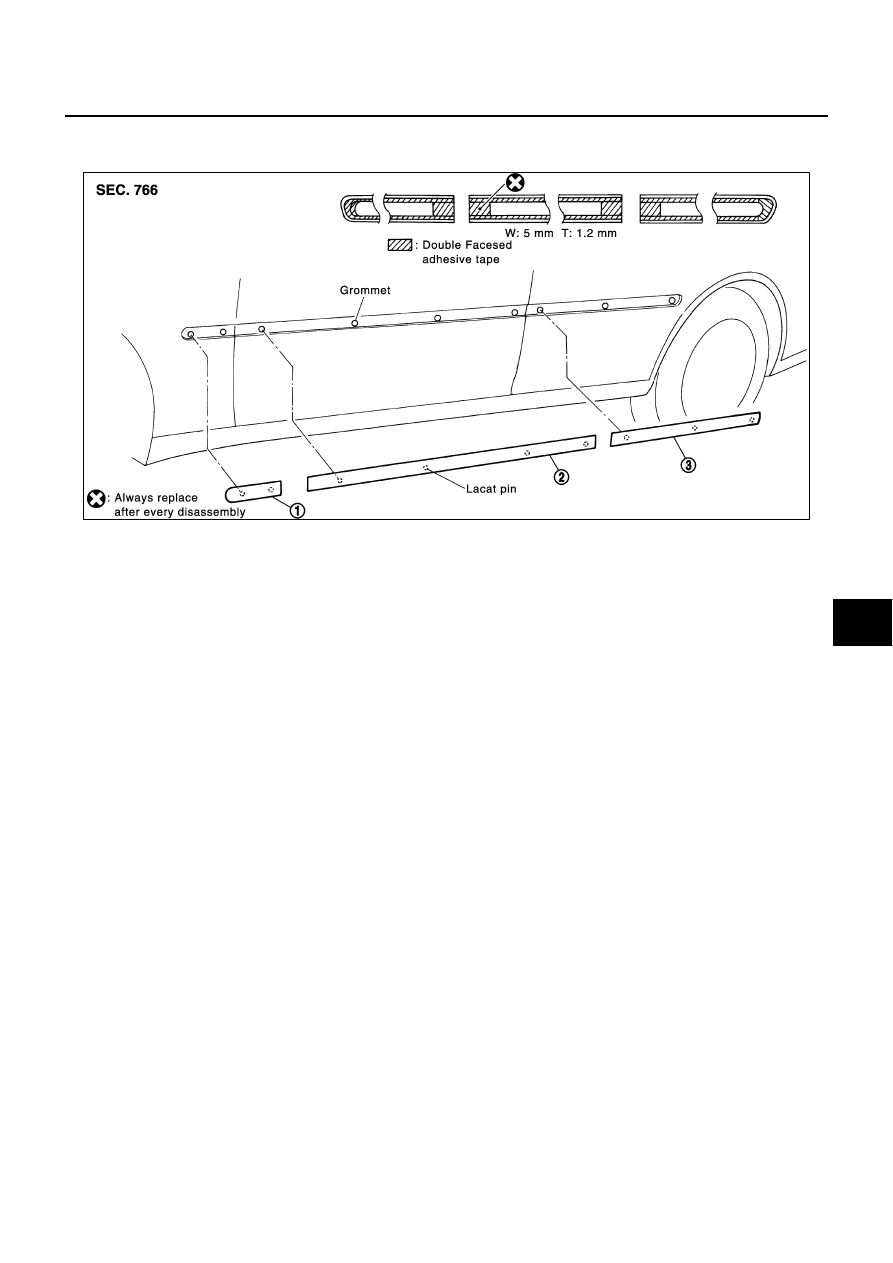

PIIA2716E

1.

Side guard molding front

2.

Side guard molding center

3.

Side guard molding rear

Double-faced adhesive tape

thickness: 6 mm (0.24 in) (upper side)

thickness: 8 mm (0.31 in) (lower side)

EI-30

TRUNK LID FINISHER

TRUNK LID FINISHER

PFP:84810

Removal and Installation

AIS004VH

REMOVAL

1.

Remove trunk lid finisher inner. Ref to

EI-42, "TRUNK ROOM TRIM & TRUNK LID FINISHER"

  .

2.

Remove nuts and clips on trunk lid finisher.

3.

Remove trunk lid finisher.

INSTALLATION

Install in the reverse order of removal.

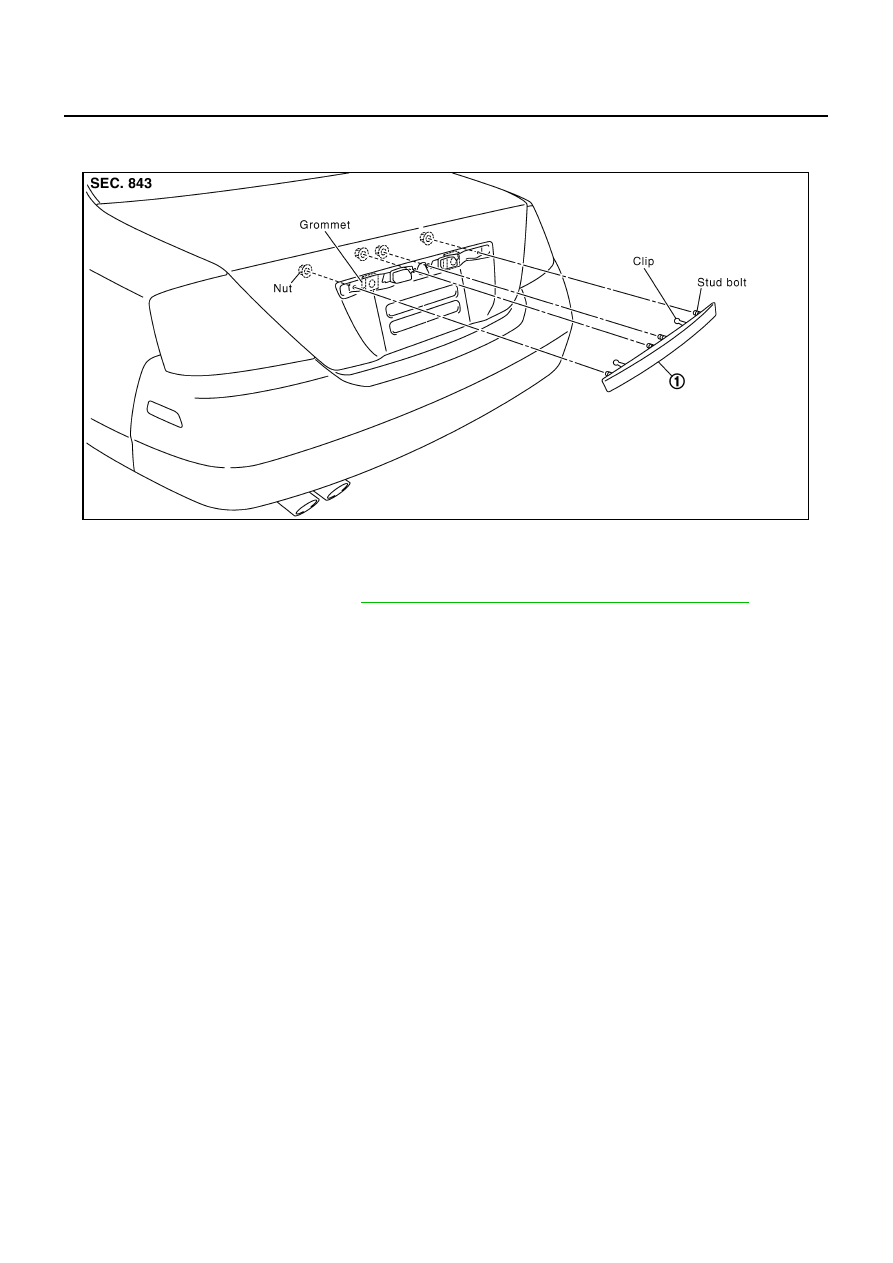

PIIA2719E

1.

Trunk lid finisher

DOOR FINISHER

EI-31

C

D

E

F

G

H

J

K

L

M

A

B

EI

DOOR FINISHER

PFP:80900

Removal and Installation

AIS001IT

FRONT DOOR FINISHER
Removal

1.

Insert screw driver rolled with cloth or tapes into dip at rear of
inside handle escutcheon, and pull it back to your side. Discon-
nect upper pawl, lower and front, and remove inside handle
escutcheon.

2.

Remove cap and screw of power window main switch finisher.

3.

Insert clip driver rolled with cloth into dip under power window main switch finisher, and lift up finisher.
Insert your fingers between gaps, pull it back to your side and disconnect metal clips.

4.

Disconnect power window main switch harness connector.

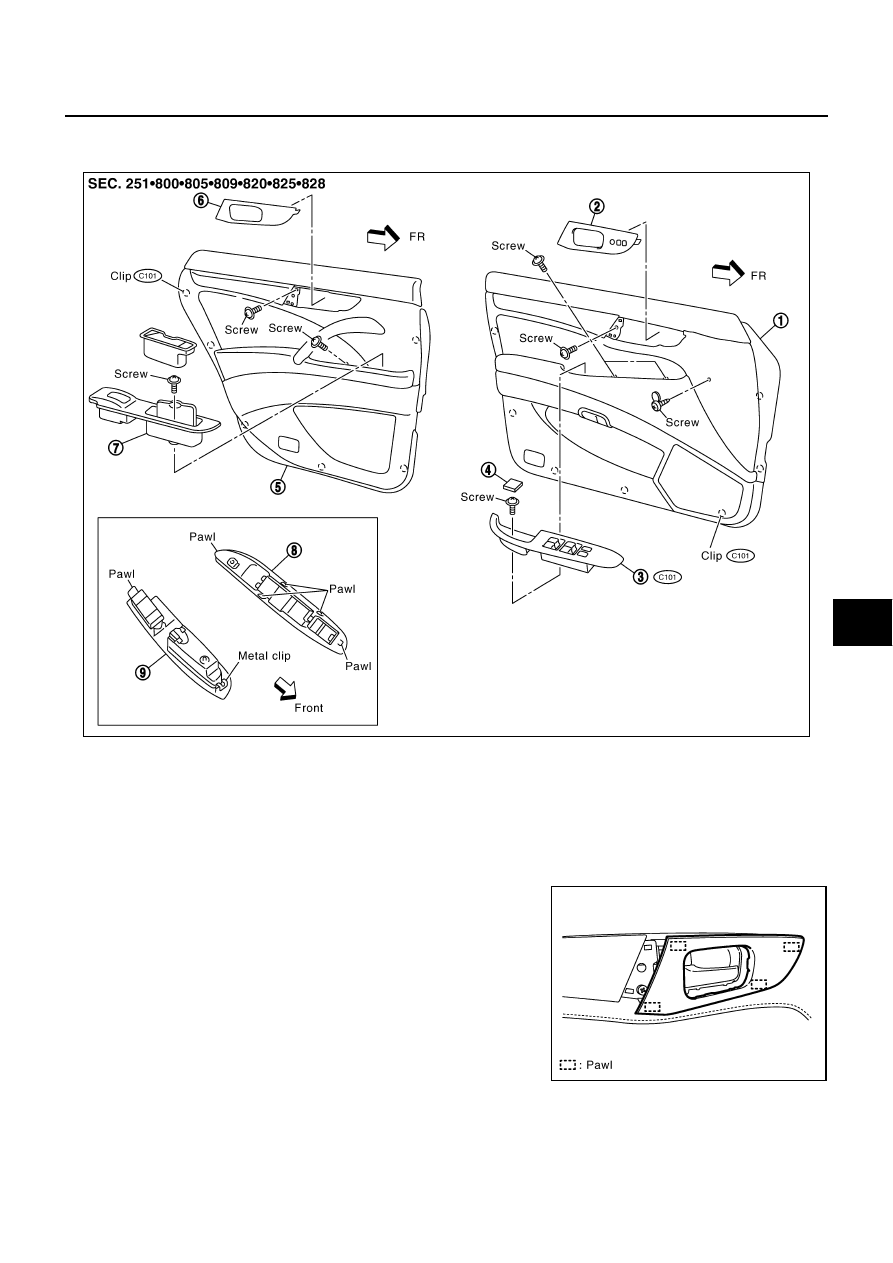

PIIA2720E

1.

Front door finisher

2.

Inside handle escutcheon (front)

3.

Power window main switch finisher

4.

Cap

5.

Rear door finisher

6.

Inside handle escutcheon (rear)

7.

Power window sub-switch
(rear) finisher

8.

Power window main switch finisher
(back side)

9.

Power window sub-switch (rear) fin-
isher (back side)

PIIB1614E

EI-32

DOOR FINISHER

5.

Remove screws of front door finisher.

6.

Remove step lamp, and disconnect harness connectors.

7.

Insert screw driver rolled with cloth into clips under door finisher, and disconnect clips.

8.

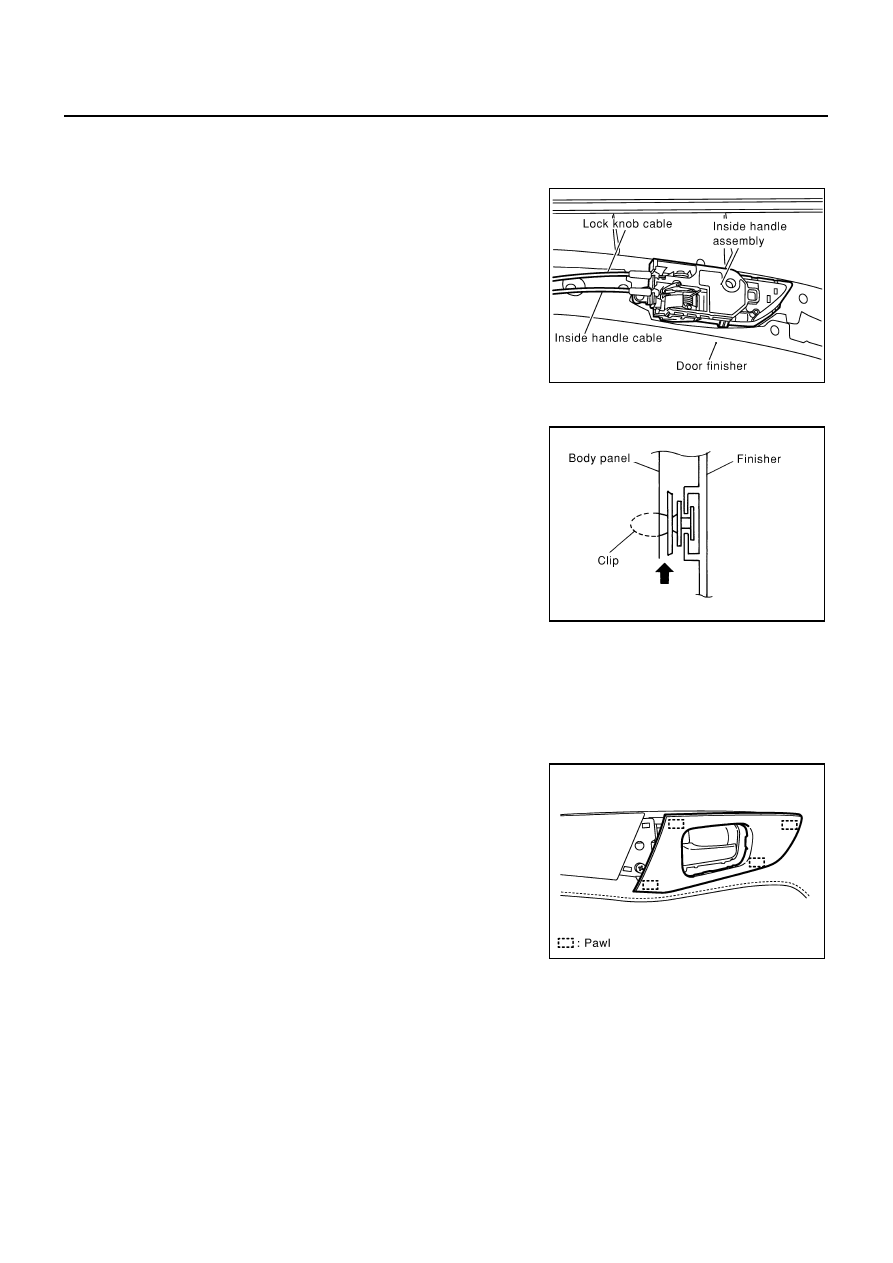

Pull up door finisher, and remove connectors, inside handle
cable and lock knob cable.

NOTE:
Insert screw driver rolled with cloth between panel on vehicle
and clips (as indicated with arrow), and remove finisher.

Installation

Install in the reverse over of removal.

CAUTION:

To install finisher, check if all clips are matched over holes of panel on vehicle, then push in.

REAR DOOR FINISHER
Removal

1.

Insert screw driver rolled with cloth or tape into dip at rear of
inside handle escutcheon, and pull it back to your side. Discon-
nect upper pawl, lower and front, and remove inside handle
escutcheon.

2.

Remove ashtray and screw of power window sub switch (rear) finisher.

3.

Insert screw driver rolled with cloth into dip under power window sub-switch (rear) finisher, and lift up fin-
isher. Insert your fingers between gaps, pull it back to your side, and disconnect metal clips.

4.

Disconnect power window sub-switch harness connector.

5.

Remove screws of rear door finisher.

6.

Remove step lamp, and disconnect harness connectors.

7.

Insert screw driver rolled with cloth into clips under door finisher, and disconnect clips.

SIIA0266E

SIIA0810E
