DRIP MOLDING

EI-25

C

D

E

F

G

H

J

K

L

M

A

B

EI

DRIP MOLDING

PFP:76810

Removal and Installation

AIS004VG

REMOVAL

1.

Remove clips of body side weatherstrip, then remove body side weatherstrip.

2.

Remove screws of retainer center, then remove retainer center.

3.

Remove screw and clips of drip molding, then remove drip molding.

INSTALLATION

Install in the reverse order of removal.

CENTER PILLAR COVER
Removal

Lift and twist center pillar cover up from center pillar. Disconnect
clips, and remove center pillar molding.

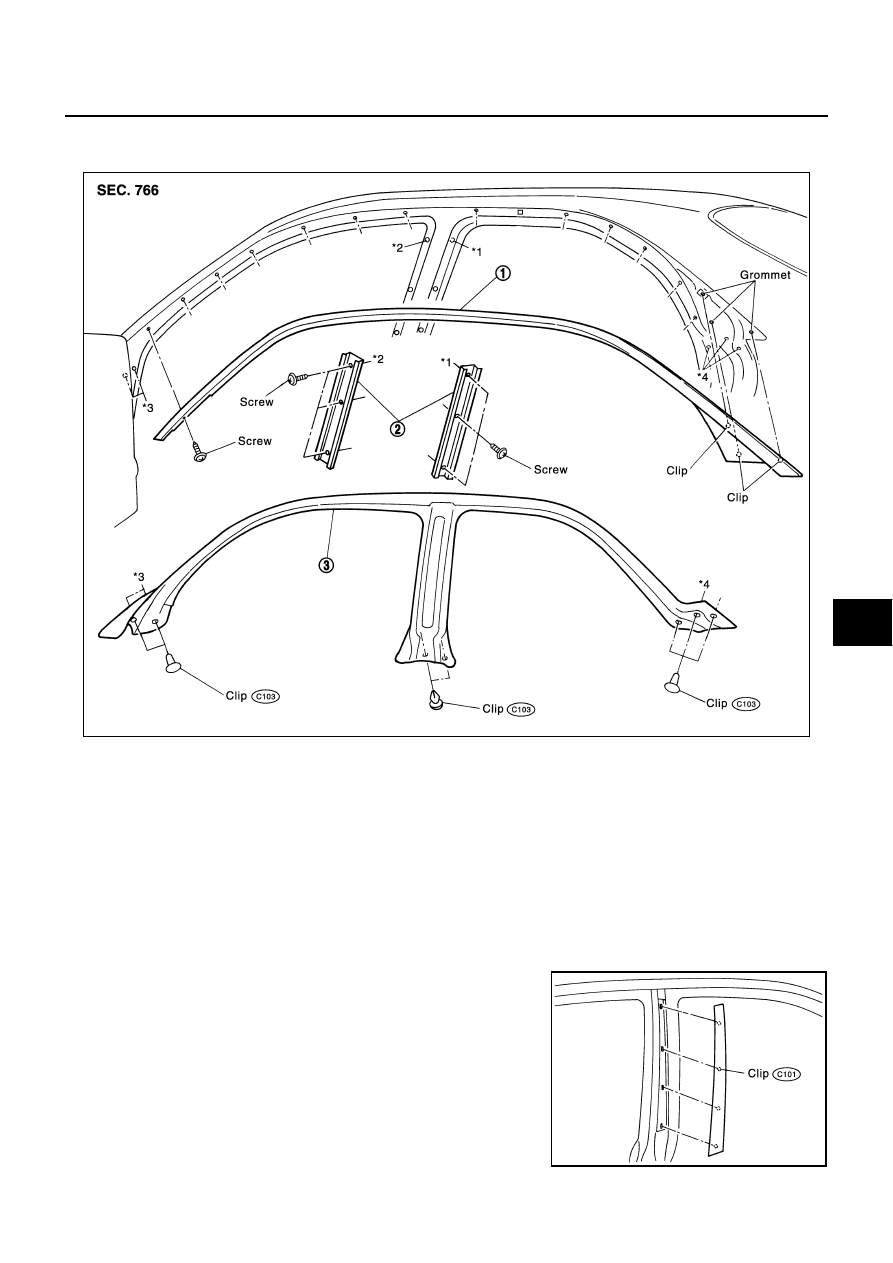

PIIA2714E

1.

Drip molding

2.

Retainer center

3.

Body side weatherstrip

PIIA2718E

EI-26

DRIP MOLDING

Installation

Install in the reverse order of removal.

DOOR OUTSIDE MOLDING

EI-27

C

D

E

F

G

H

J

K

L

M

A

B

EI

DOOR OUTSIDE MOLDING

PFP:82820

Removal and Installation

AIS001IQ

FRONT DOOR OUTSIDE MOLDING
Removal

1.

Open windows fully.

2.

Remove screw of rear edge.

3.

Lift and twist from rear side, disconnect clips from flange, and pull out molding to backward.

Installation

Install in the reverse order of removal.

REAR DOOR OUTSIDE MOLDING
Removal

1.

Open windows fully.

2.

Remove screws of front and rear edge.

3.

Lift and twist from rear side, and disconnect clip from flange, and pull out molding to backward.

Installation

Install in the reverse order of removal.

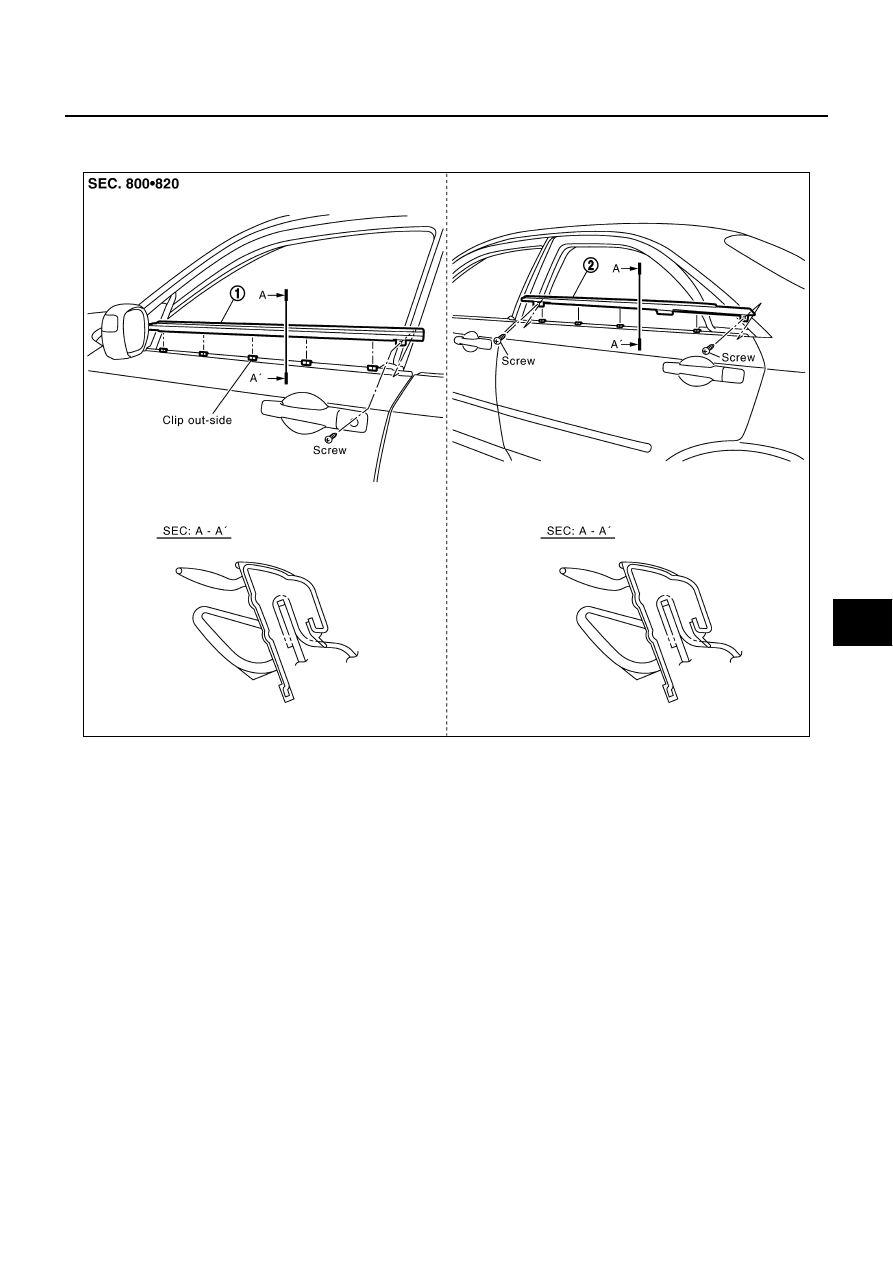

PIIA2715E

1.

Front door outside molding

2.

Rear door outside molding

EI-28

DOOR OUTSIDE LOWER MOLDING

DOOR OUTSIDE LOWER MOLDING

PFP:82877

Removal and Installation

AIS001NT

FRONT AND REAR DOOR OUTSIDE LOWER MOLDING
Removal

1.

Open front and rear door.

2.

Remove screws and clips of door outside lower molding.

Installation

Install in the reverse order of removal.

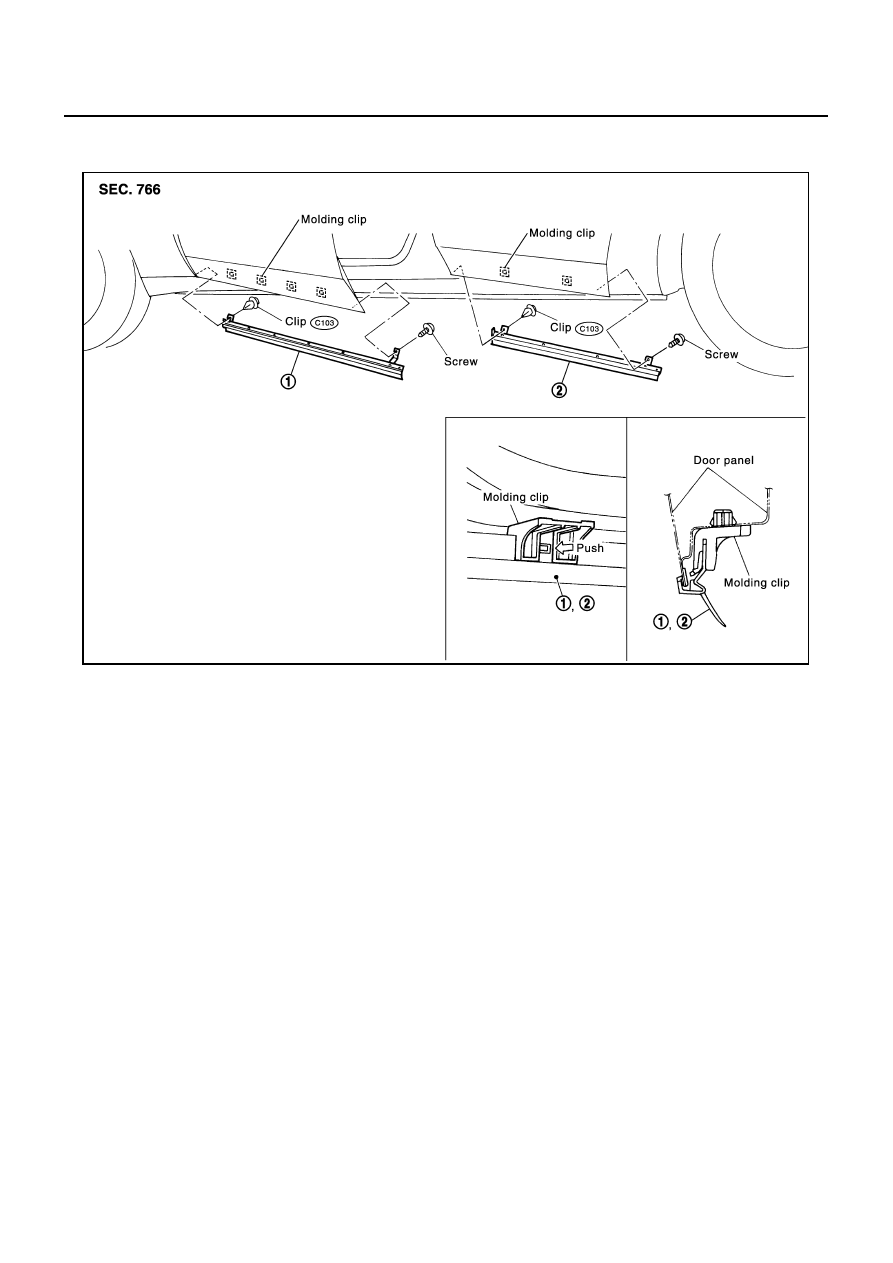

PIIA2717E

1.

Front door outside lower molding

2.

Rear door outside lower molding
