Infiniti M45 (Y34). Manual - part 510

FENDER PROTECTOR

EI-21

C

D

E

F

G

H

J

K

L

M

A

B

EI

FENDER PROTECTOR

PFP:63840

Removal and Installation

AIS001IL

REMOVAL

1.

Remove screws of front portion fender protector (front).

2.

Remove clips of arch portion fender protector (front and rear).

3.

Remove screws of rear portion fender protector (rear).

INSTALLATION

Install in the reverse order of removal.

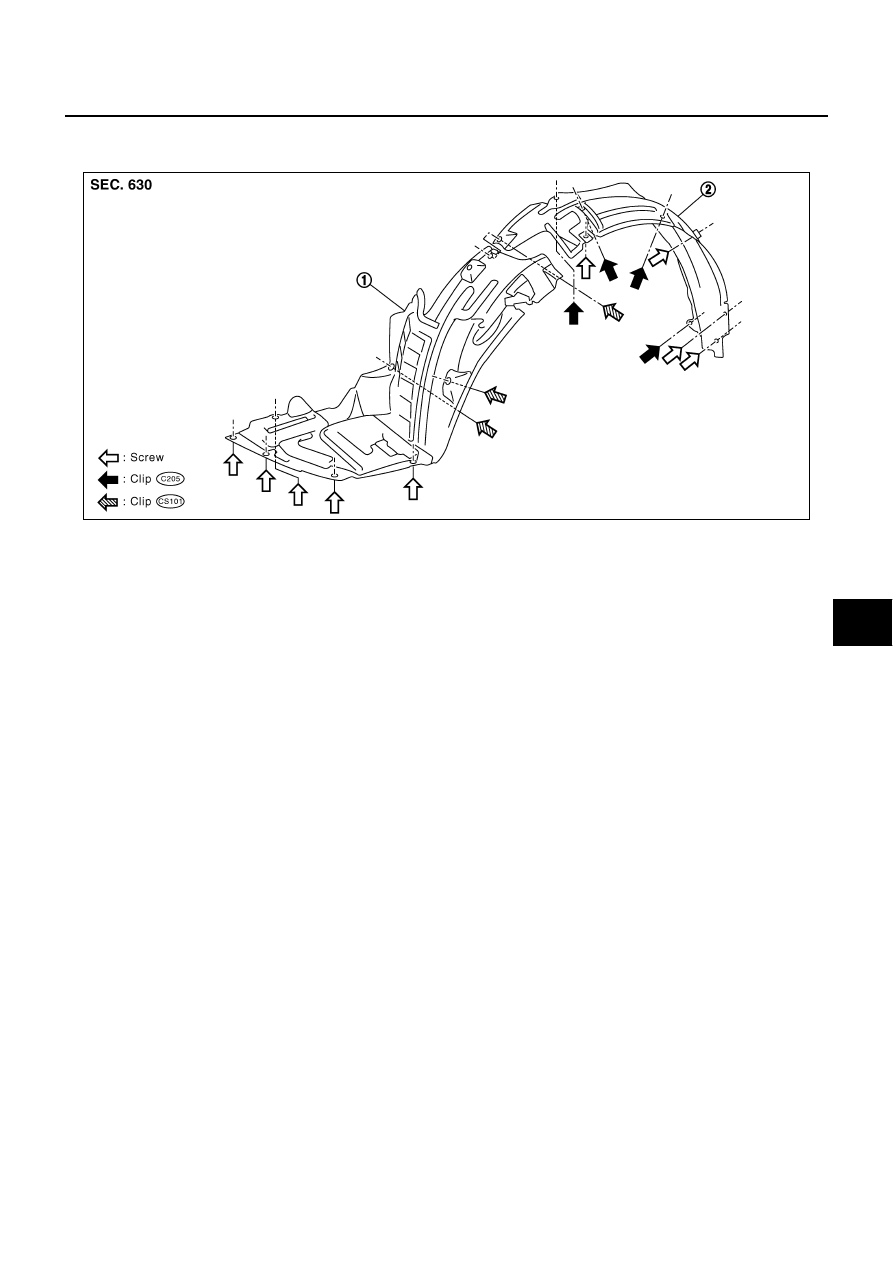

PIIA2712E

1.

Fender protector (front)

2.

Fender protector (rear)

EI-22

MUDGUARD

MUDGUARD

PFP:63854

Removal and Installation

AIS001IM

MUDGUARD FRONT
Removal

1.

Remove screws and clip of mudguard.

2.

Pull out mudguard front of forward.

Installation

Install in the reverse order of removal.

MUDGUARD REAR
Removal

1.

Remove screws and clips of mudguard rear.

2.

Pull out mudguard rear of forward.

Installation

Install in the reverse order of removal.

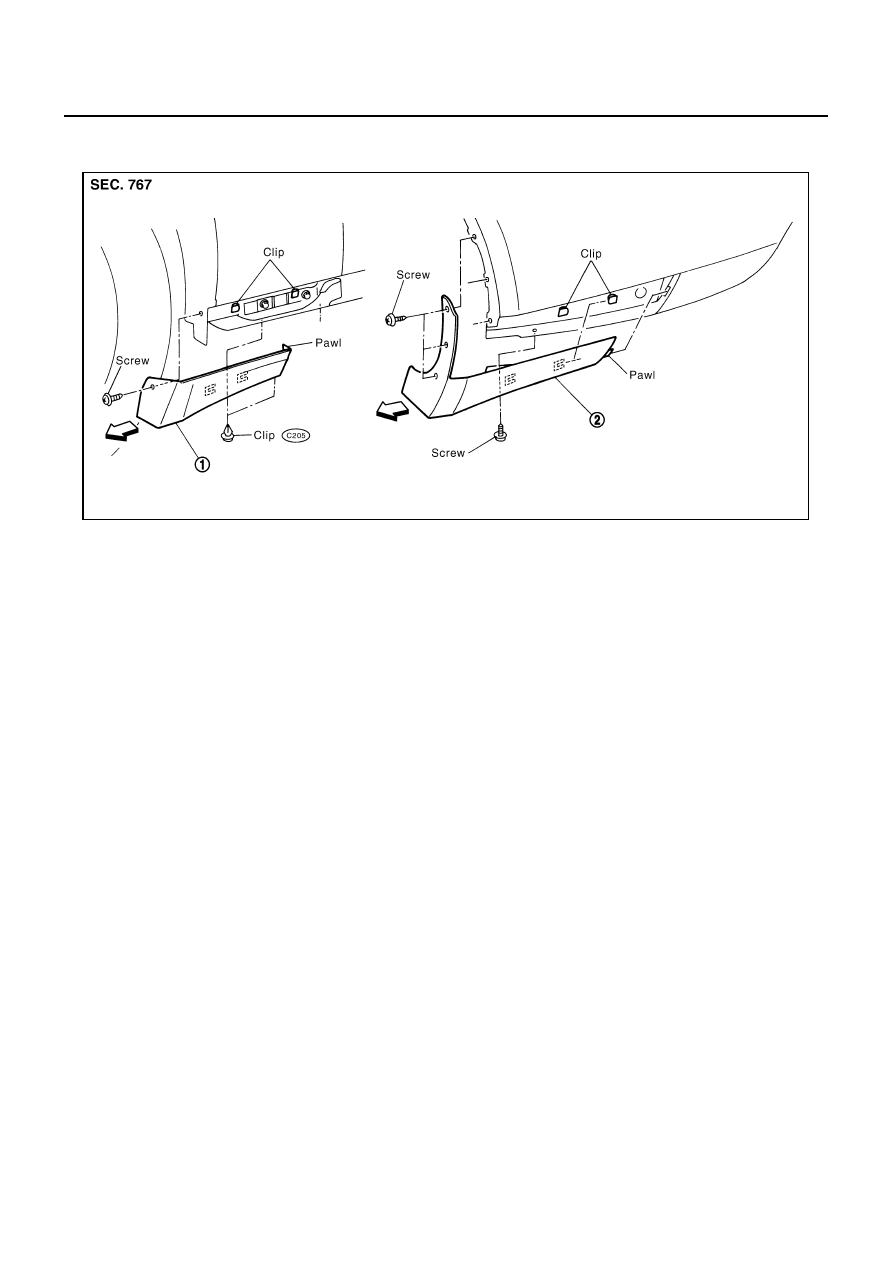

PIIA2713E

1.

Mudguard front

2.

Mudguard rear

WINDSHIELD MOLDING

EI-23

C

D

E

F

G

H

J

K

L

M

A

B

EI

WINDSHIELD MOLDING

PFP:72700

Removal and Installation

AIS001IN

REMOVAL

Remove windshield molding. Refer to

GW-11, "WINDSHIELD GLASS"

  .

INSTALLATION

Install windshield molding. Refer to

GW-11, "WINDSHIELD GLASS"

  .

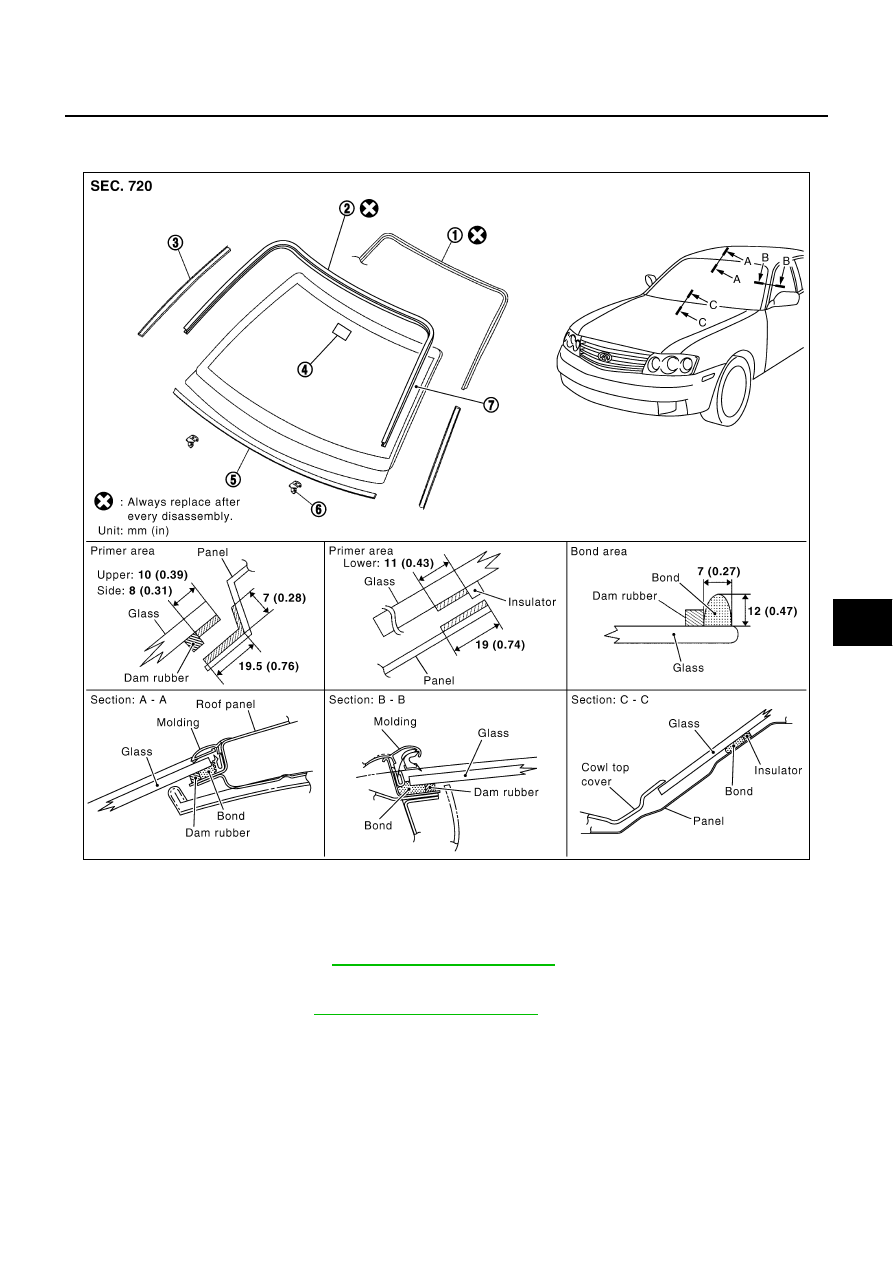

PIIA3219E

1.

Fastener (upper)

2.

Clip

3.

Rivet

4.

Fastener (lower)

5.

Windshield molding

6.

Joint

EI-24

REAR WINDOW MOLDING

REAR WINDOW MOLDING

PFP:79762

Removal and Installation

AIS005TL

REMOVAL

Remove rera window molding. Refer to

GW-13, "REAR WINDOW GLASS AND MOLDING"

  .

INSTALLATION

Install rear window molding. Refer to

GW-13, "REAR WINDOW GLASS AND MOLDING"

  .

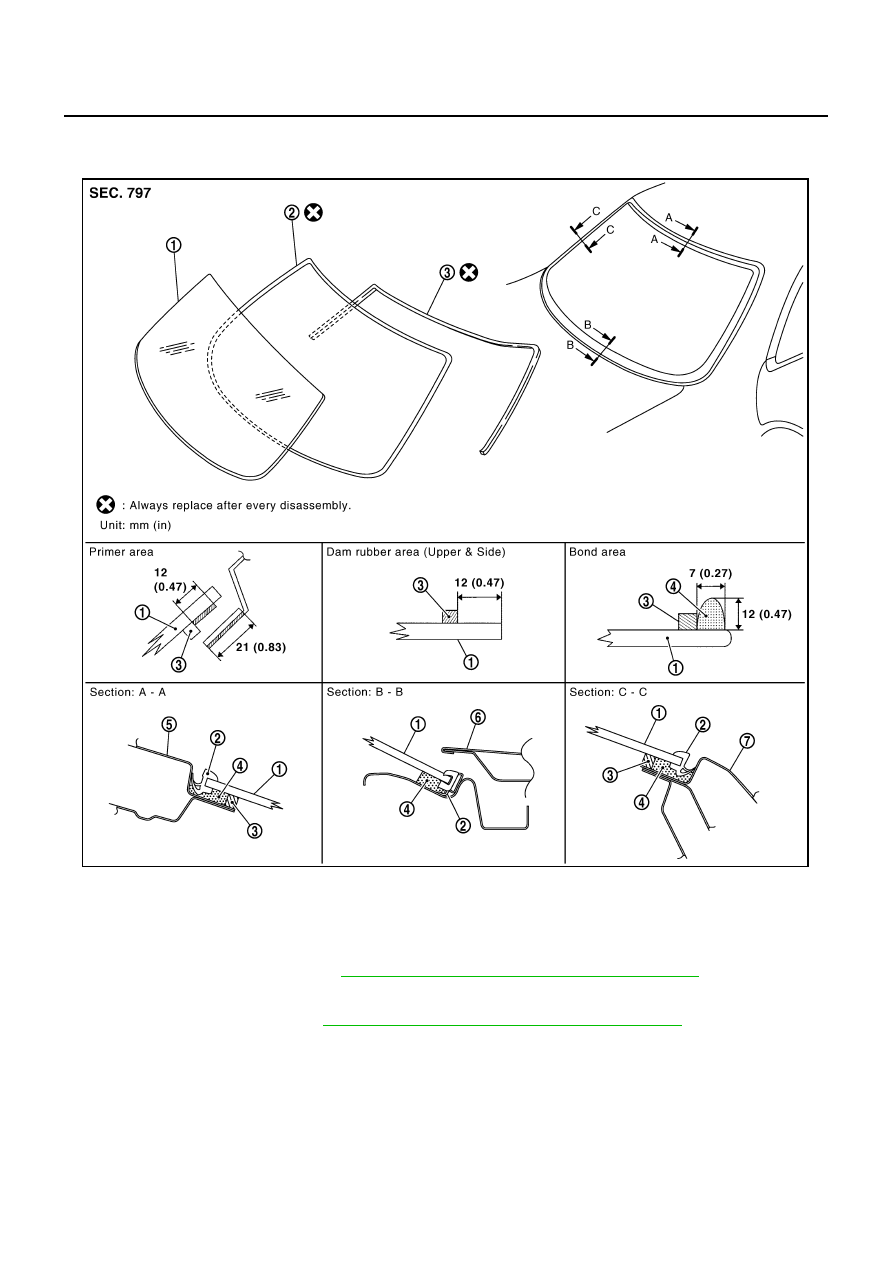

1.

Rear window glass

2.

Rear window molding

3.

Dam rubber

4.

Bond

5.

Roof panel

6.

Trunk lid (outer)

7.

Body side (outer)

PIIB0644E
