FRONT BUMPER

EI-15

C

D

E

F

G

H

J

K

L

M

A

B

EI

FRONT BUMPER

PFP:F2022

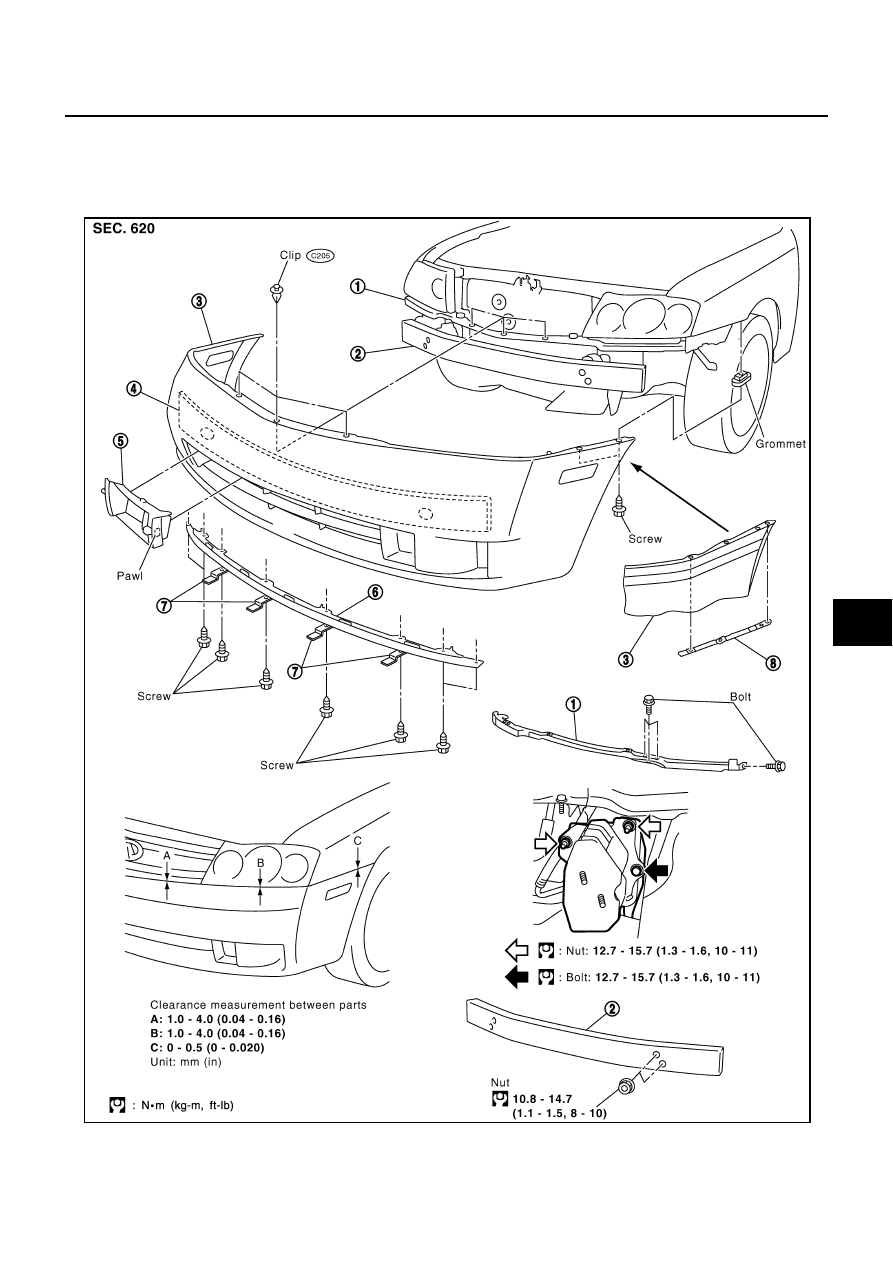

Removal and Installation

AIS004VD

CAUTION:

Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil  away from it.

1.

Bumper retainer upper

2.

Bumper reinforcement

3.

Bumper fascia

PIIA2709E

EI-16

FRONT BUMPER

REMOVAL

1.

Remove front grille. Refer to

EI-19, "FRONT GRILLE"

 .

2.

Remove bolts of engine undercover.

3.

Remove front spoiler and spoiler retainer.

4.

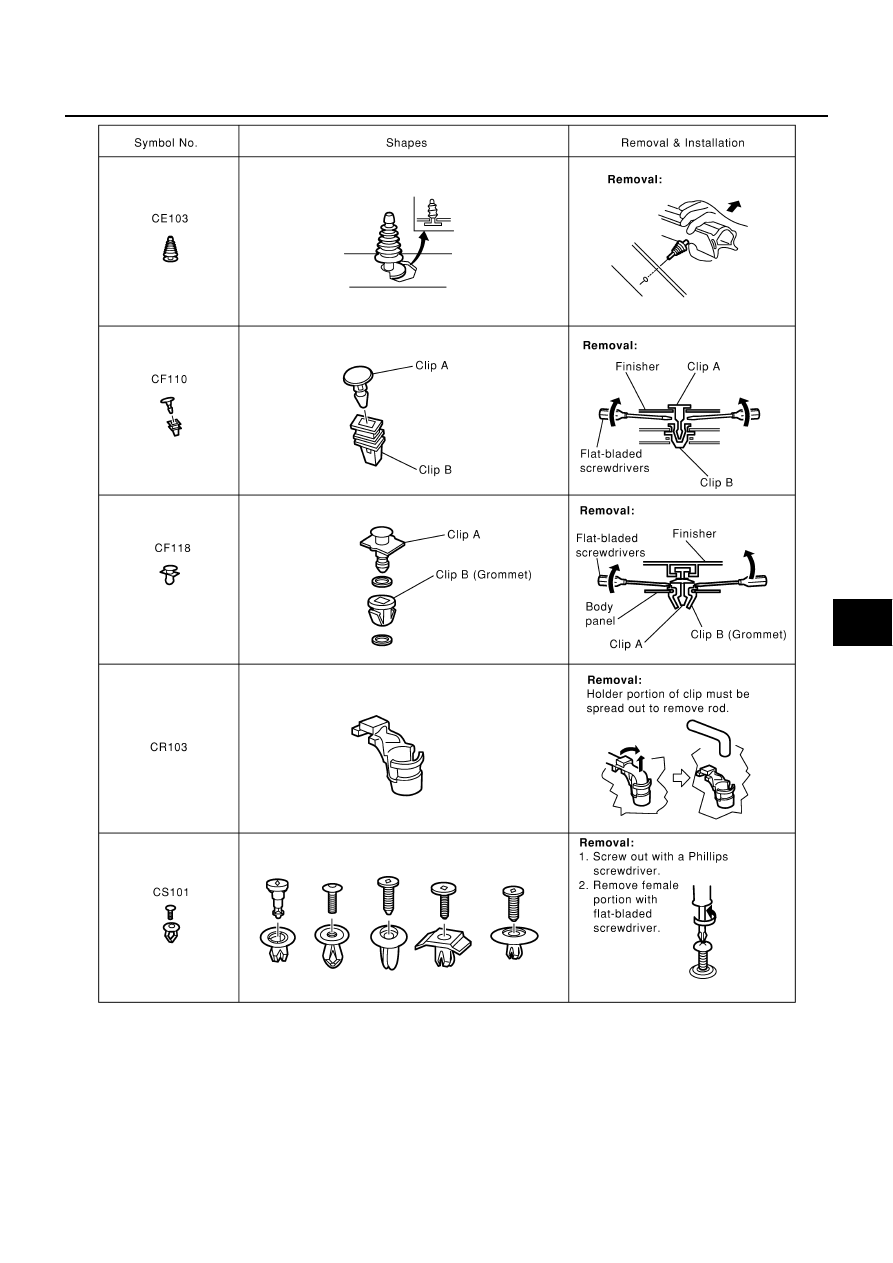

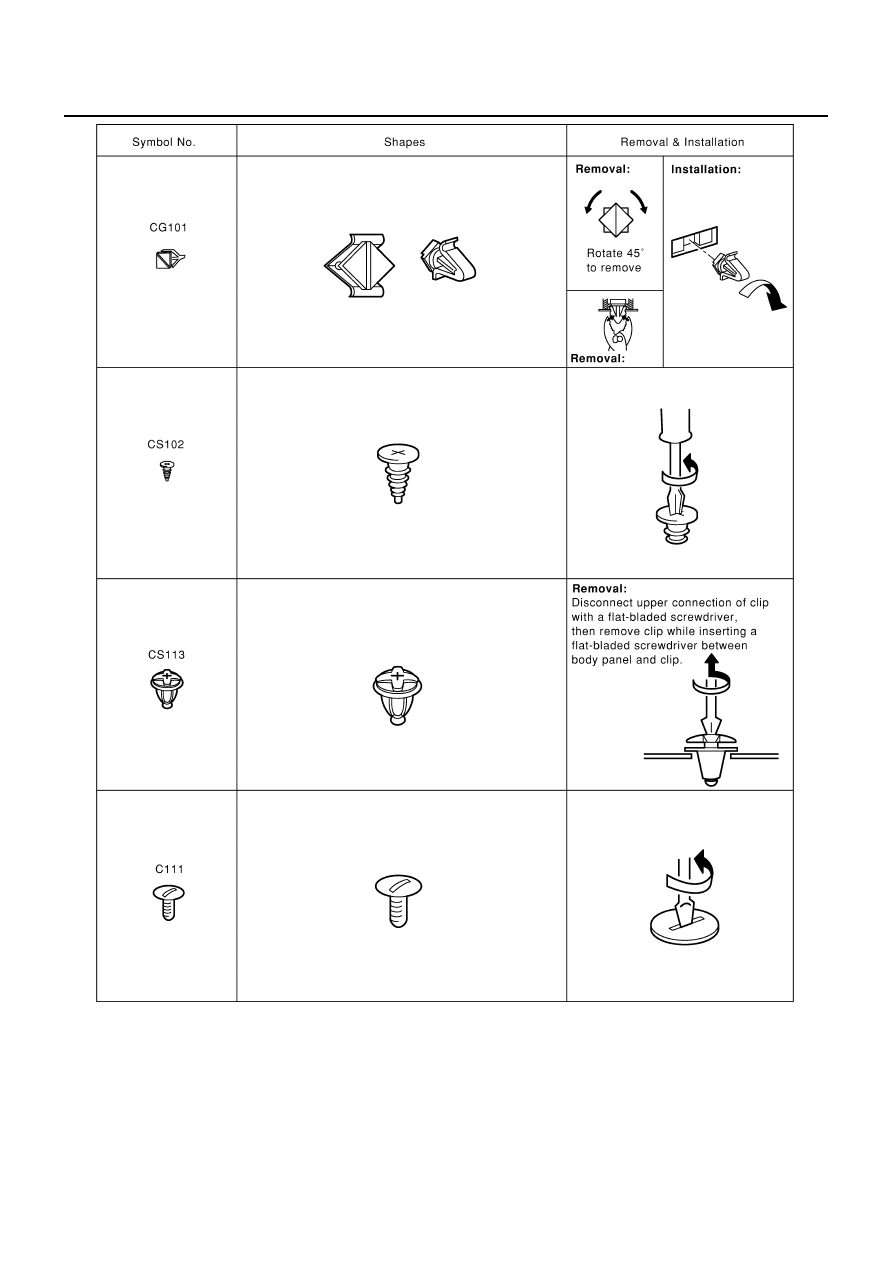

Remove bolts and clips of both right/left fender protectors (on front side). Refer to

EI-21, "FENDER PRO-

TECTOR"

 .

5.

Remove screw of bumper fascia from both right/left front fenders.

6.

Remove clips of bumper fascia from bumper retainer upper.

7.

Disconnect fog lamp and front side marker lamp harness connector.

8.

Remove bumper fascia.

9.

Remove nuts of bumper reinforcement.

10. Remove bolts of bumper upper retainer.

INSTALLATION

 Install in the reverse order of  removal.

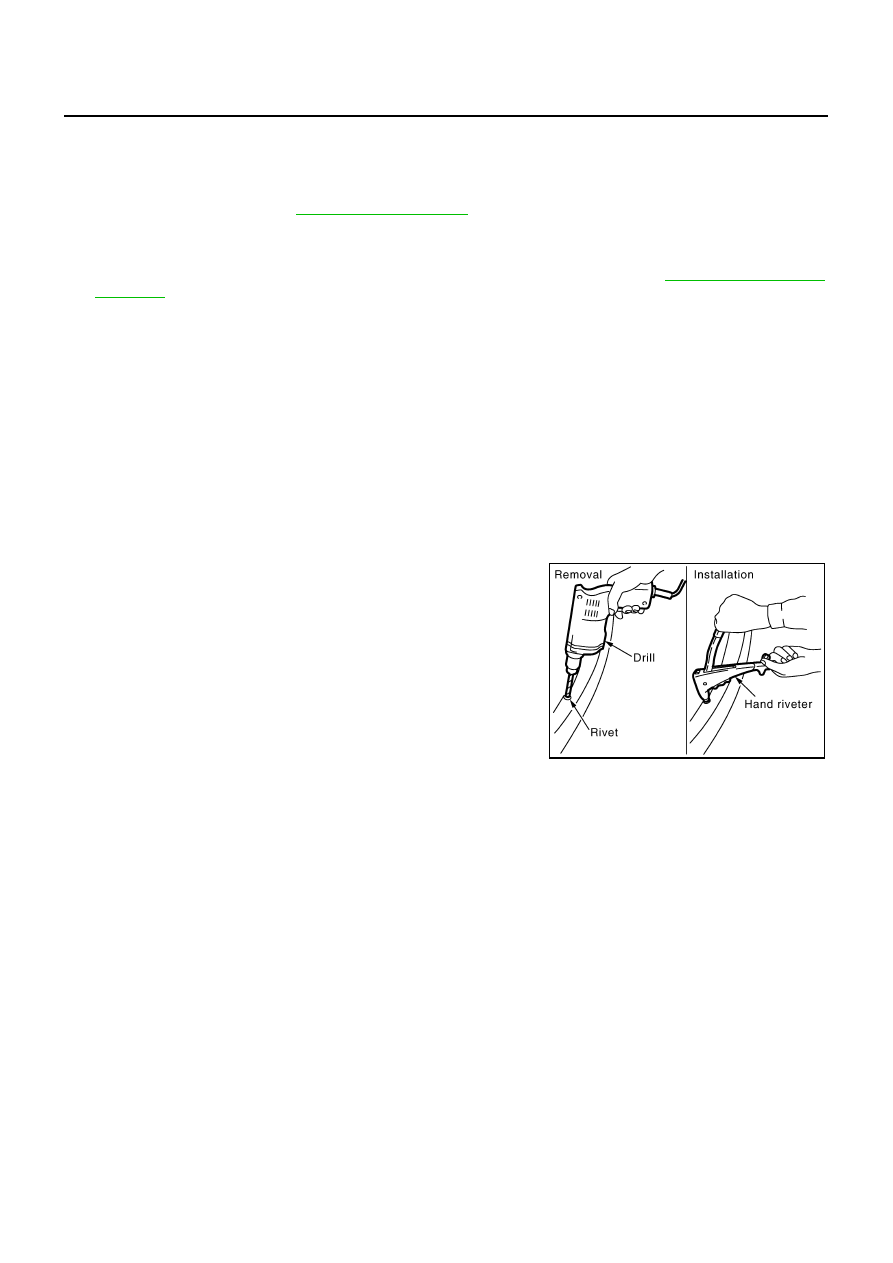

Removal of Bumper Side Brackets

Shave head of rivet with drill [4.0 to 4.5 mm (0.157 to 0.177 in) dia.]

Installation of Bumper Side Brackets

Install bracket to fascia firmly with hand riveter.

4.

Energy absorber

5.

ICC sensor cover

6.

Front spoiler

7.

Spoiler retainer

8.

Bumper side bracket

PIIA0216E
