INJECTOR CIRCUIT

EC-661

C

D

E

F

G

H

I

J

K

L

M

A

EC

INJECTOR CIRCUIT

PFP:16600

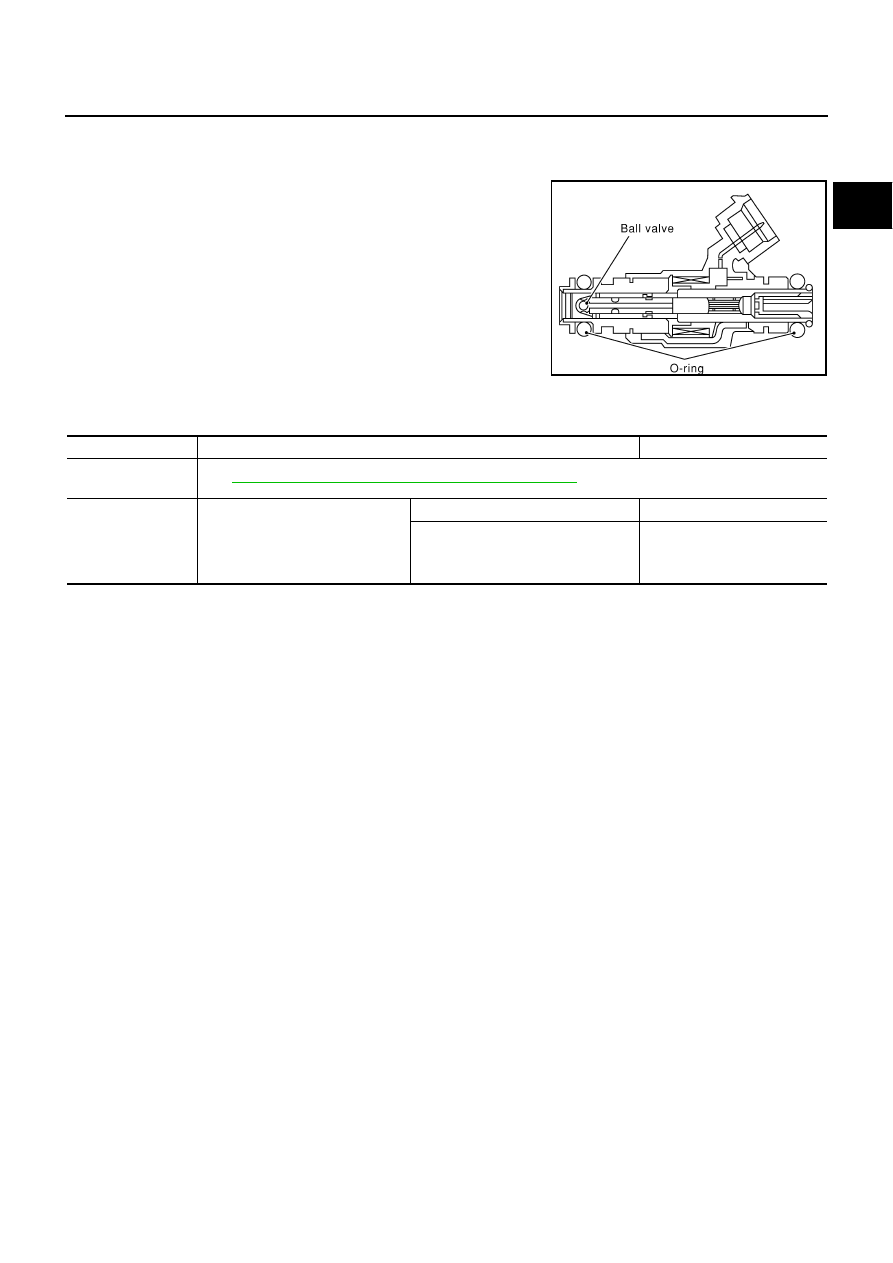

Component Description

ABS002TQ

The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the injector circuit, the coil in the injector is
energized. The energized coil pulls the ball valve back and allows
fuel to flow through the injector into the intake manifold. The amount
of fuel injected depends upon the injection pulse duration. Pulse
duration is the length of time the injector remains open. The ECM
controls the injection pulse duration based on engine fuel needs.

CONSULT-II Reference Value in Data Monitor Mode

ABS002TR

Specification data are reference values.

SEF375Z

MONITOR ITEM

CONDITION

SPECIFICATION

INJ PULSE-B1
INJ PULSE-B2

See

EC-128, "TROUBLE DIAGNOSIS - SPECIFICATION VALUE"

 .

B/FUEL SCHDL

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load

Idle

2.3 - 2.9 msec

2,000 rpm

2.3 - 2.9 msec

EC-662

INJECTOR CIRCUIT

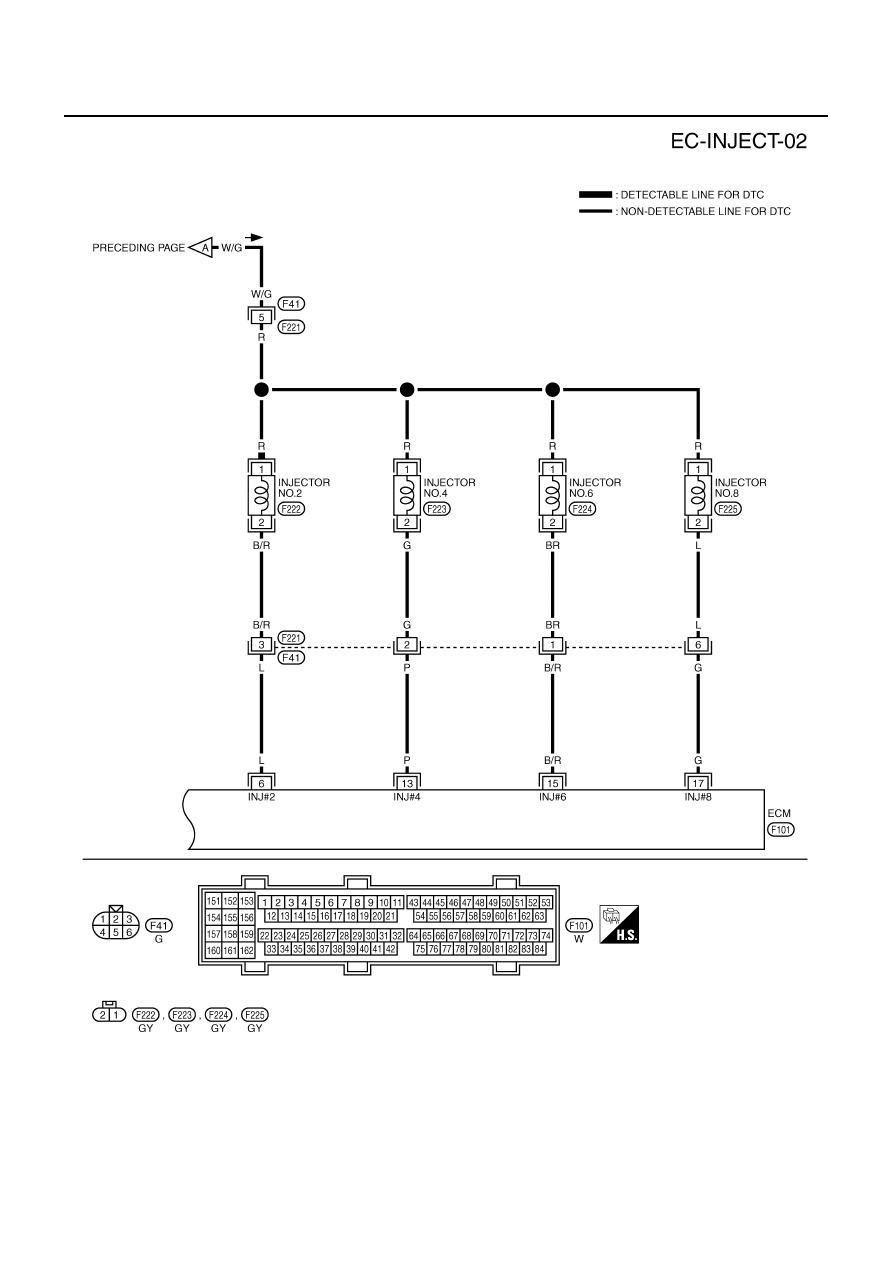

Wiring Diagram

ABS002TS

TBWA0311E

INJECTOR CIRCUIT

EC-663

C

D

E

F

G

H

I

J

K

L

M

A

EC

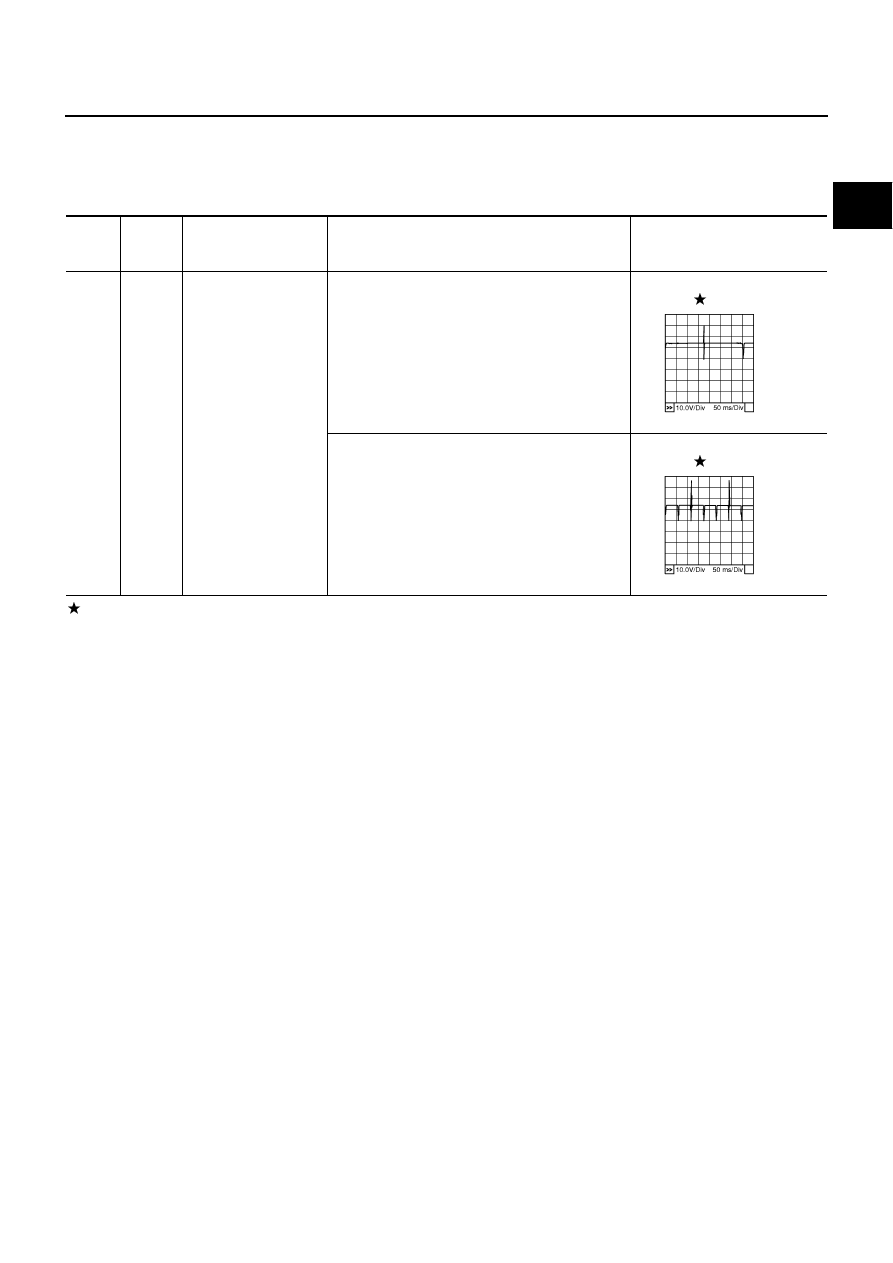

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

5
7

14
16

B/W
BR
OR/L
OR

Injector No. 1
Injector No. 3
Injector No. 5
Injector No. 7

[Engine is running]

Warm-up condition

Idle speed

NOTE:
The pulse cycle changes depending on rpm at idle.

BATTERY VOLTAGE

(11 - 14V)

[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm

BATTERY VOLTAGE

(11 - 14V)

PBIB0042E

PBIB0043E

EC-664

INJECTOR CIRCUIT

TBWA0312E
